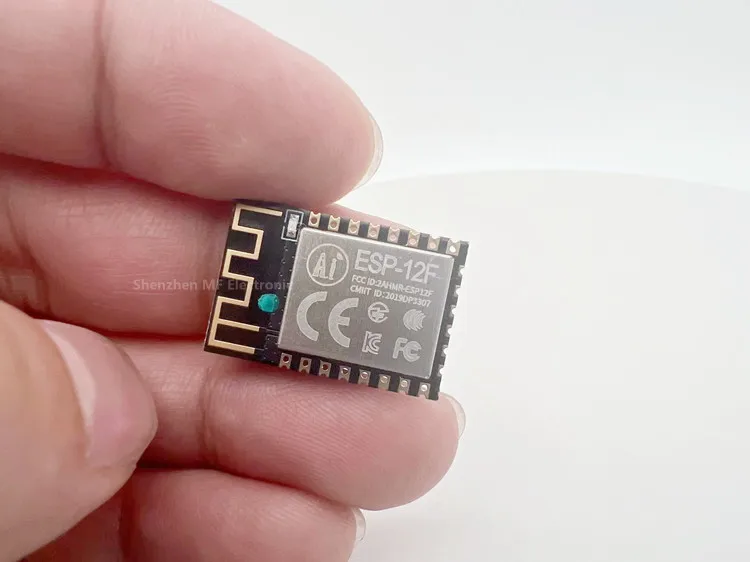

Smart IoT Arduino Wifi Module ESP8266 12F ESP 12F Integrates Transparent Transmission Function

Product Overview

Description

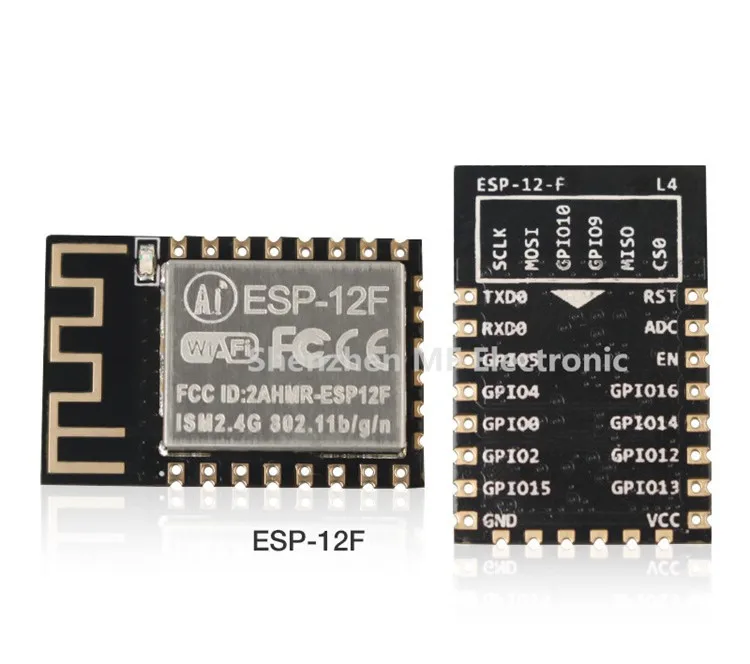

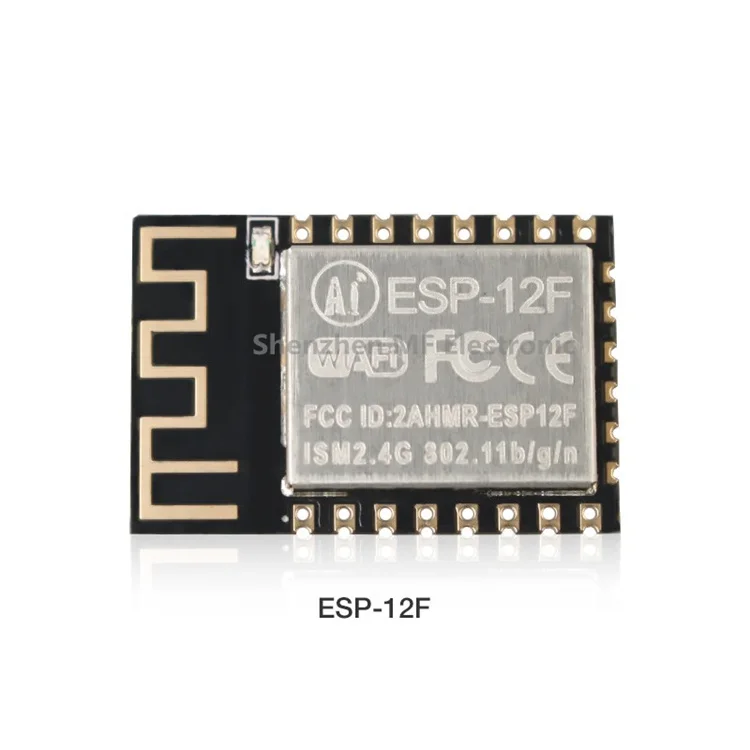

Smart IoT Arduino Wifi Module ESP8266 12F ESP-12F Integrates Transparent Transmission Function





ESP8266-12F is ESP8266 enhanced version of 12, based on the development of ESP8266 chip, the module integrates the transparent transmission function, supports the serial port AT instruction set, and users can access the network through the serial port, which is widely used in the fields of intelligent wear, smart home, home security, remote control, automotive electronics, intelligent lighting, industrial Internet of things (IOT), etc.







Model	ESP-12F
Packaging	SMD22

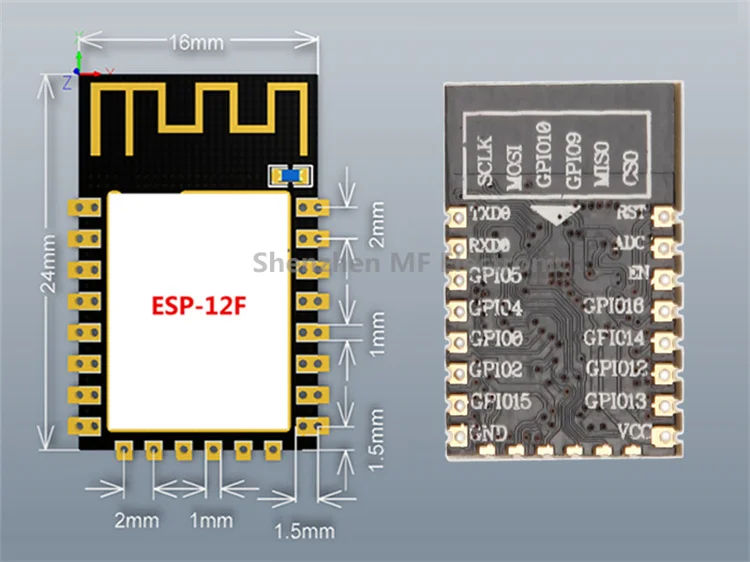

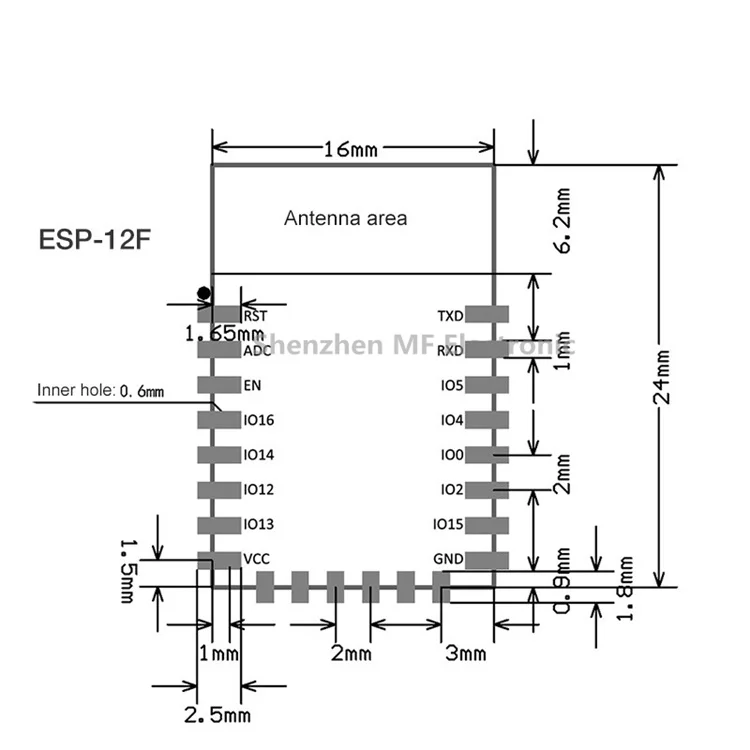

Size	24*16*3mm
SPI Flash	32Mbit
Support Interface	UART/GPIO/ADC/PWM
Available IO port	9
Voltage	3.0~3.6V (current>500mA)
Series Rate	4608000bps
Spectrum Range	2.4GHz
Antenna Form	On-board PCB Antenna
Transmitting Power	802.11B: 16±2dBm
Security	WEP/WPA-PSK/WPA2-PSK
Working Temperature	-20℃~+85℃
AT Support	Built in intelligent processing, can be read through AT command
Certificate	CE/ROHS/FCC/REACH
