Dust Tight Wide Range Straight Male Dust Tight Strain Relief Grips Wide Range Dust Tight Wide Range Grip Cord Grips
- Category: Cable Glands >>>
- Supplier: Jiangsu,Maxdao,Technology,Limited
Share on:
Product Overview
Description
Product Description
Strain Relief Grip--Dust Tight Grip
* Provides secure cable termination and prevents cable pullout.
* Absorbs longitudinal stresses placed on the point of termination caused by pulling or bending the cable.
* Supplied with locknut ,nylon insulated bushing and neoprene gasket to provide a dirt and dust free seal.
* Constructed with steel mesh and aluminum thread body adding to safety by extending cable life.
* Wide range, single weave mesh construction.
* Recommend for indoor use in wiring of enclosures, power boxes, machine tools and power centers.
* Absorbs longitudinal stresses placed on the point of termination caused by pulling or bending the cable.
* Supplied with locknut ,nylon insulated bushing and neoprene gasket to provide a dirt and dust free seal.
* Constructed with steel mesh and aluminum thread body adding to safety by extending cable life.
* Wide range, single weave mesh construction.
* Recommend for indoor use in wiring of enclosures, power boxes, machine tools and power centers.
Specification
Part Number | Cable Diameter | NPT Fittings |
DTG1201 | 0.22-0.32"(5.6-8.1mm) | 1/2" |
DTG1202 | 0.30-0.43"(7.6-10.9mm) | 1/2" |
DTG1203 | 0.40-0.54"(10.1-13.7mm) | 1/2" |
DTG3401 | 0.52-0.73"(13.2-18.5mm) | 3/4" |
DTG101 | 0.70-0.97"(17.8-24.6mm) | 1" |
DTG11401 | 0.94-1.25"(23.8-31.8mm) | 1-1/4" |
DTG11201 | 1.20-1.50"(30.5-38.1mm) | 1-1/2" |
DTG201 | 1.40-1.75"(35.6-44.5mm) | 2" |
DTG21201 | 1.62-2.00"(41.1-50.8mm) | 2-1/2" |
DTG21202 | 2.00-2.45"(50.8-62.2mm) | 2-1/2" |
Product Certificates
CE
RoHS
Recommend Products
Company Profile
Build A Better World
Maxdao designs and manufactures telecom & electrical components to build a better world.
HEADQUARTER IN CHINA
33 Hailing Industrial Zone, Taizhou, Jiangsu 225300, China

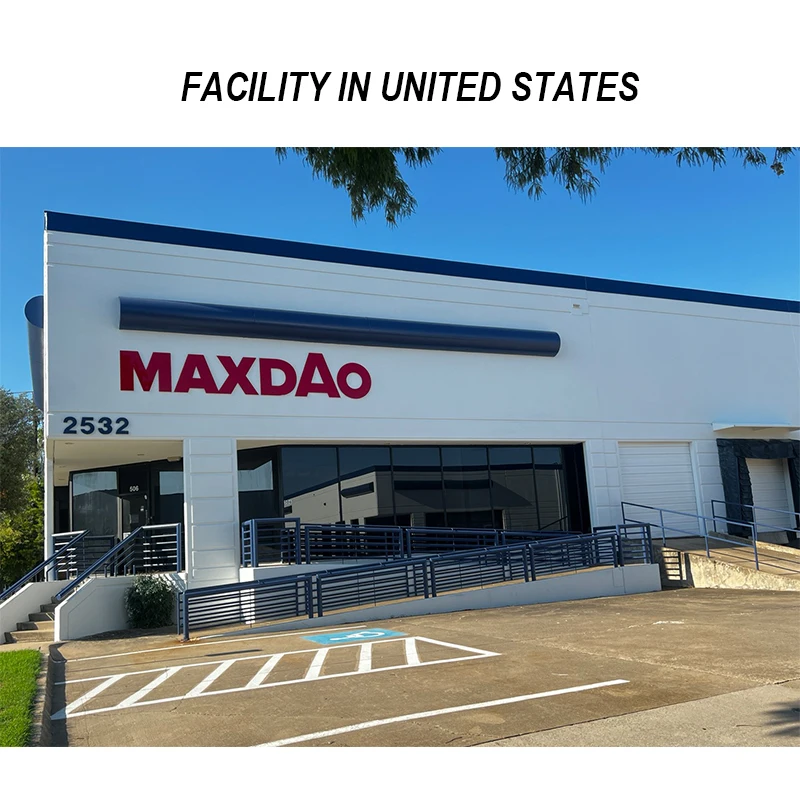

FACILITY IN UNITED STATES
2532 Summit Ave #506, Plano, TX 75074, USA
Workshop & Production Equipments
Maxdao design, manufacture, test the product in our self-owned 6000 square meters workshop.
100+ employees focus on their respective positions. 50+ sets of professional production equipment.
Production Line
Tooling Workshop
Temperature & Humility Controlled Warehouse
R&D Offifice
Automatic Pressing Machine
Automatic Wire Cutting Machine
CNC
Automatic Cable Cutting & Stripping Machine
Testing Equipments
10+ Testing Equipments. 100+ Test Reports.
3D Printer
Salt Spray Test
Pulling Test
UV Test
High/Low-Temprature Test
Vibration Test

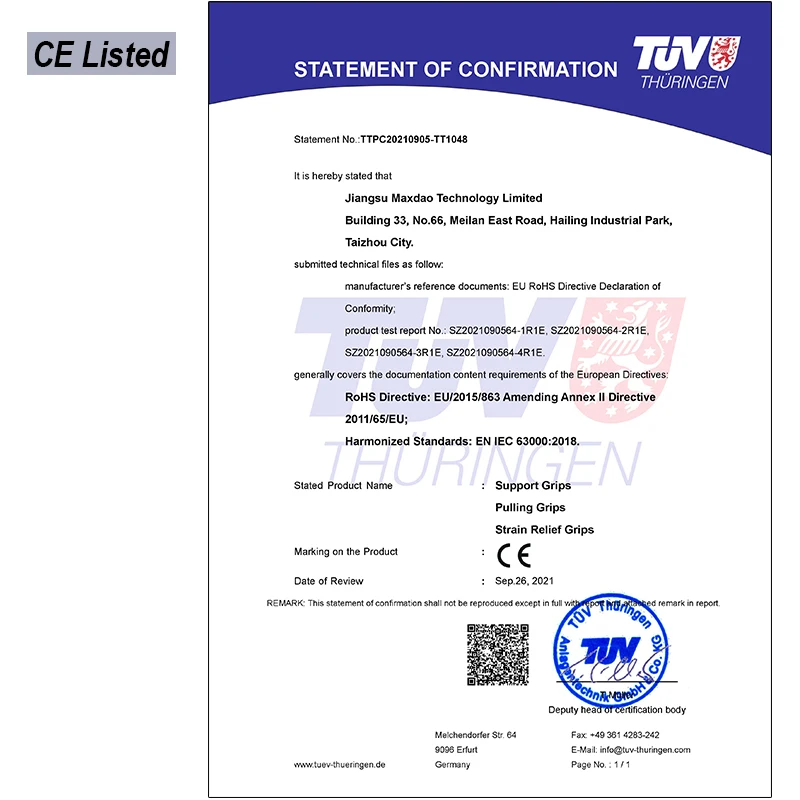

Certifications
13+ Patents. 6+ UL & CE Certificates. 3+ ISO Certificates.
Patents
ISO9001/ISO14001/ISO45001
UL/CE/RoHS/SGS
