Small Laboratory Coater Mini PVD Vacuum Coating Machine
- Category: >>>
- Supplier: Xiangtan Hongfeng Mechanical Equipment Manufactory
Share on (1600616233530):
Product Overview
Description

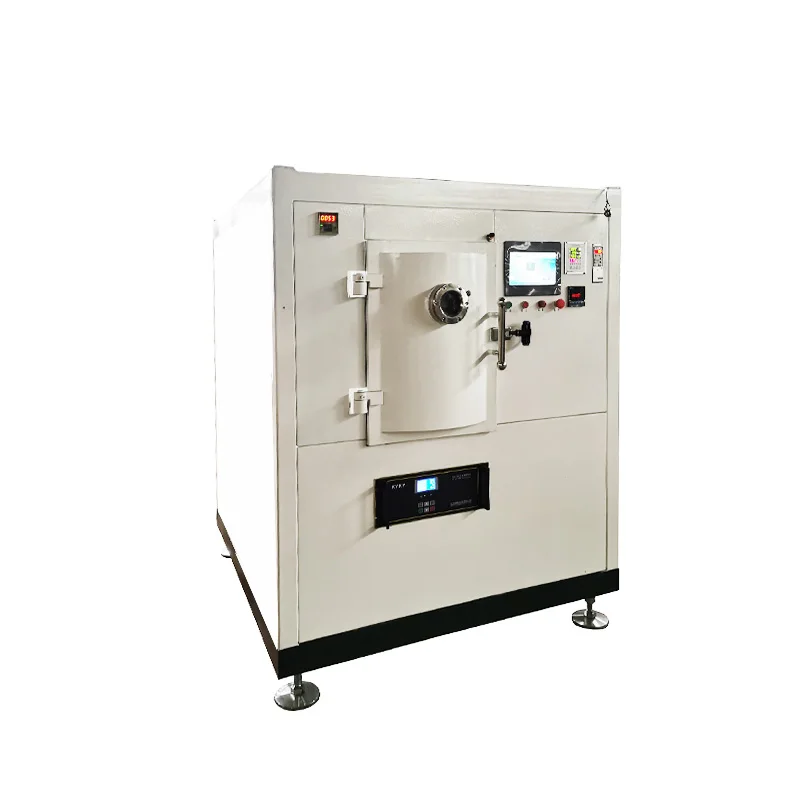

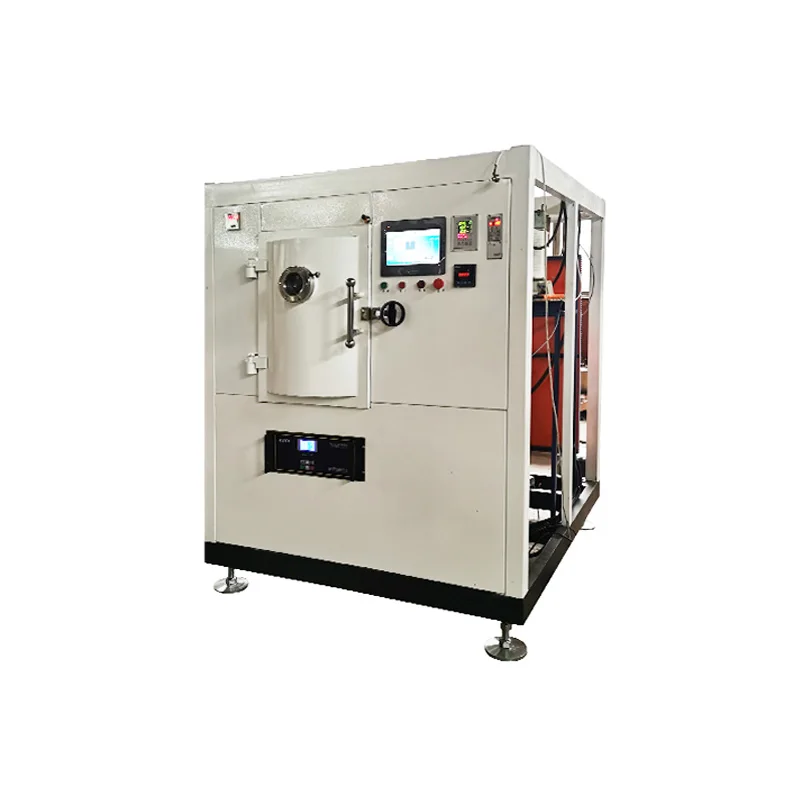

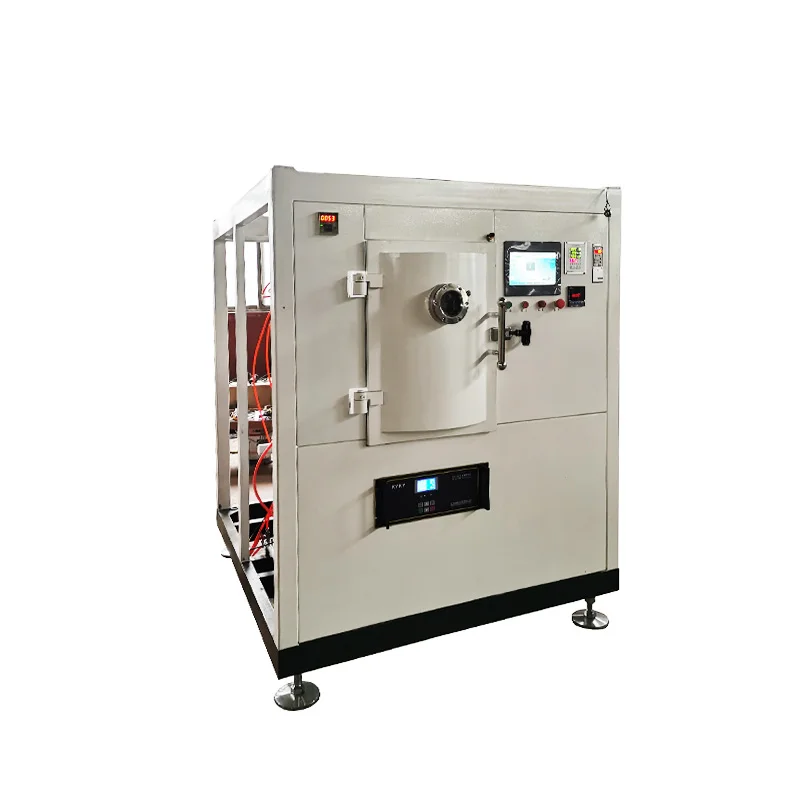

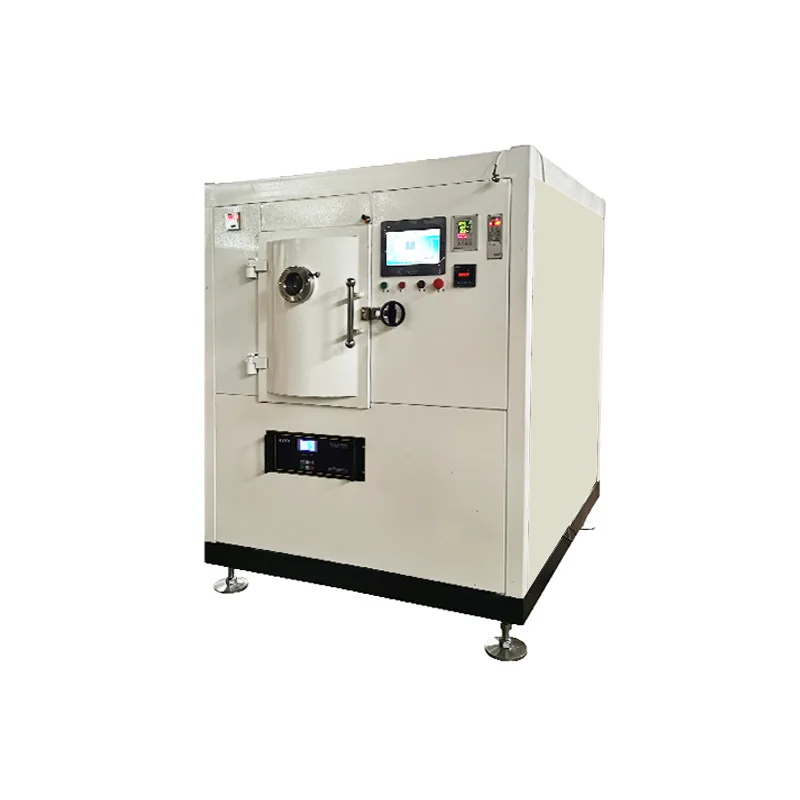

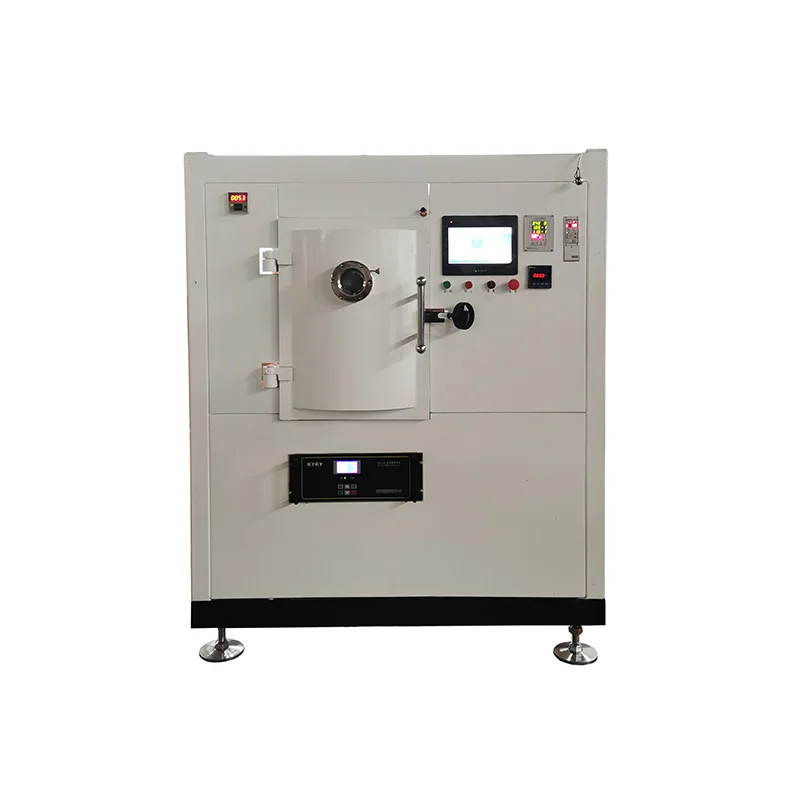

Small Laboratory Coater
ARC Series
This PVD equipment has a small vacuum chamber with pumping system (using diffusion pump or molecular pump+mechanical pump).The equipment can be equipped with some sets of arc deposition coating system and various types of magnetron sputtering cathodes. It is a very
smart and flexible vacuum coating system.This system is very suitable for the design and research and development of coatings in universities or laboratories.
smart and flexible vacuum coating system.This system is very suitable for the design and research and development of coatings in universities or laboratories.
Main features:
1.Coating chamber made by high-quality stainless steelwith front door for the box.
2.The size of coating chamber and workplece axis can be applied to a wide range of equipments.
3. High perforance configuration and reliable arc power supply
4.Cylindrical magnetron sputtering targetor flat magnetronsputtering targetcan be equipped uponuser request,in order to realize DC magnetron sputtering or medium frequency magnetron sputtering
5.Adopt HMl and PLC.with semi-automatic modeor manual operation mode for selection.
Major technical performance:
| Equipment model | ARC300 | ARC400 | ARC500 |
| Size of vacuum chamber | D300*H400mm | D400*H500mm | D500*H600mm |
| Film type | Different types of PVD coatings | ||
| Power type | Arc power supply or DC/MF sputtering supply | ||
| Structure of vacuum chamber | Vertical vacuum chamber with front open door or top open door. | ||
| Vacuum system | Diffusion pump or turbo molecuilar pump+roots pump+machanical pump | ||
| Ultimate vacuum | 8*10-4pa(unload clean room) | ||
| Pumping time | Depend on your needs | ||
| Workpiece rotating method | Customized | ||
| Control method | Manual+Semo+Automatic+Full-auto integration/touch scream+PLC | ||
| Remark | The size of vacuum chamber can be customized according to customer's product and special process/requirements. | ||
Company Information
Packaging & Shipping
1. The inner packing is protective plastic film to protect the PVD machine from moisture and rain.
2. The out packing is plywood plate with steel to keep the PVD machine in good condition during the long distance transportation.
After the customer tested the PVD coating machine and make sure the machine is no problem, we will take the machine apart. The solid packing can make sure you will receive a machine without any destroy.
Contact
In order to help you choose the best suitable PVD coating machine, please try to reply my questions below, thanks for your cooperation.
Q1: What is your product, and the max. dimension?
Q2: The size of your processing material, your desired daily production capacity?
