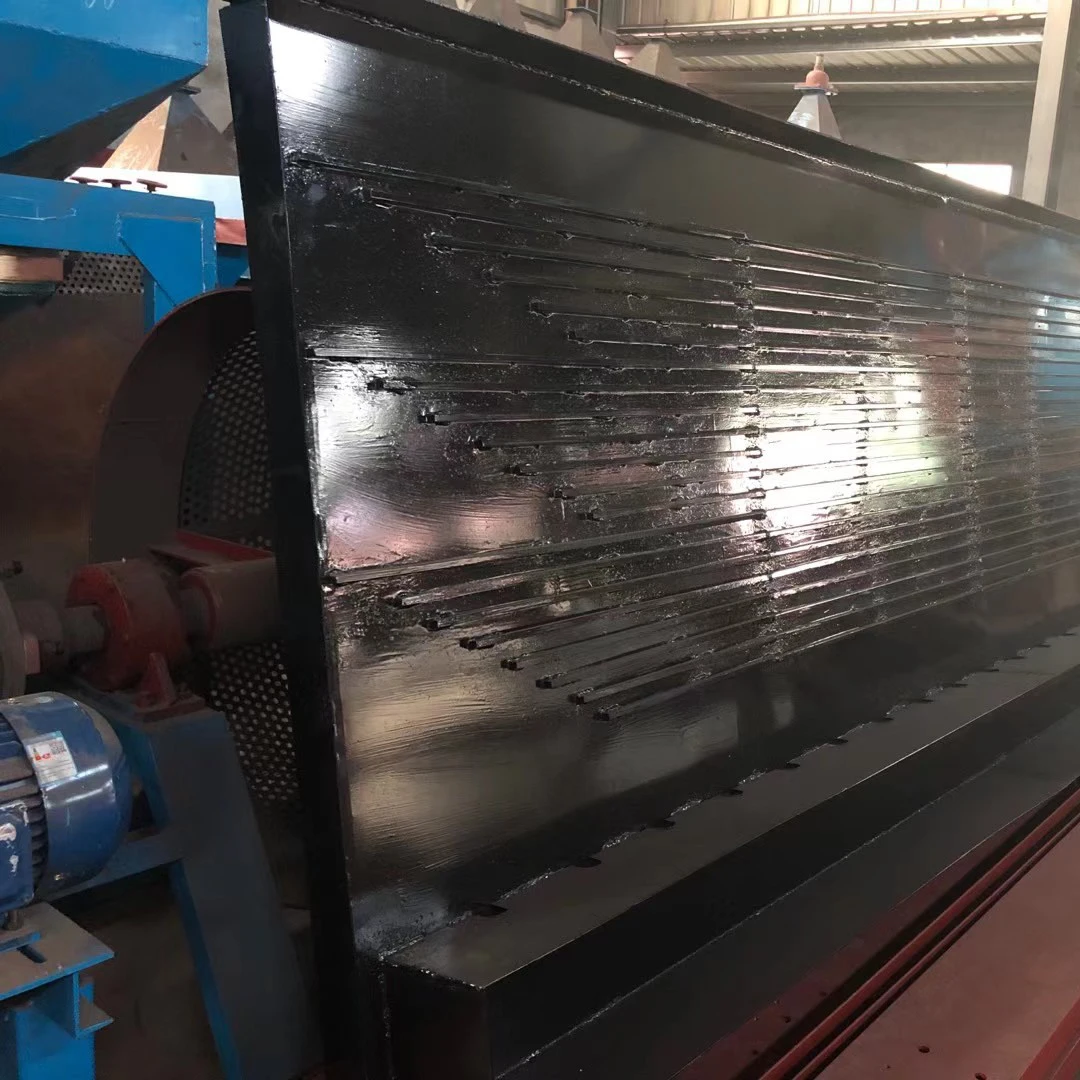

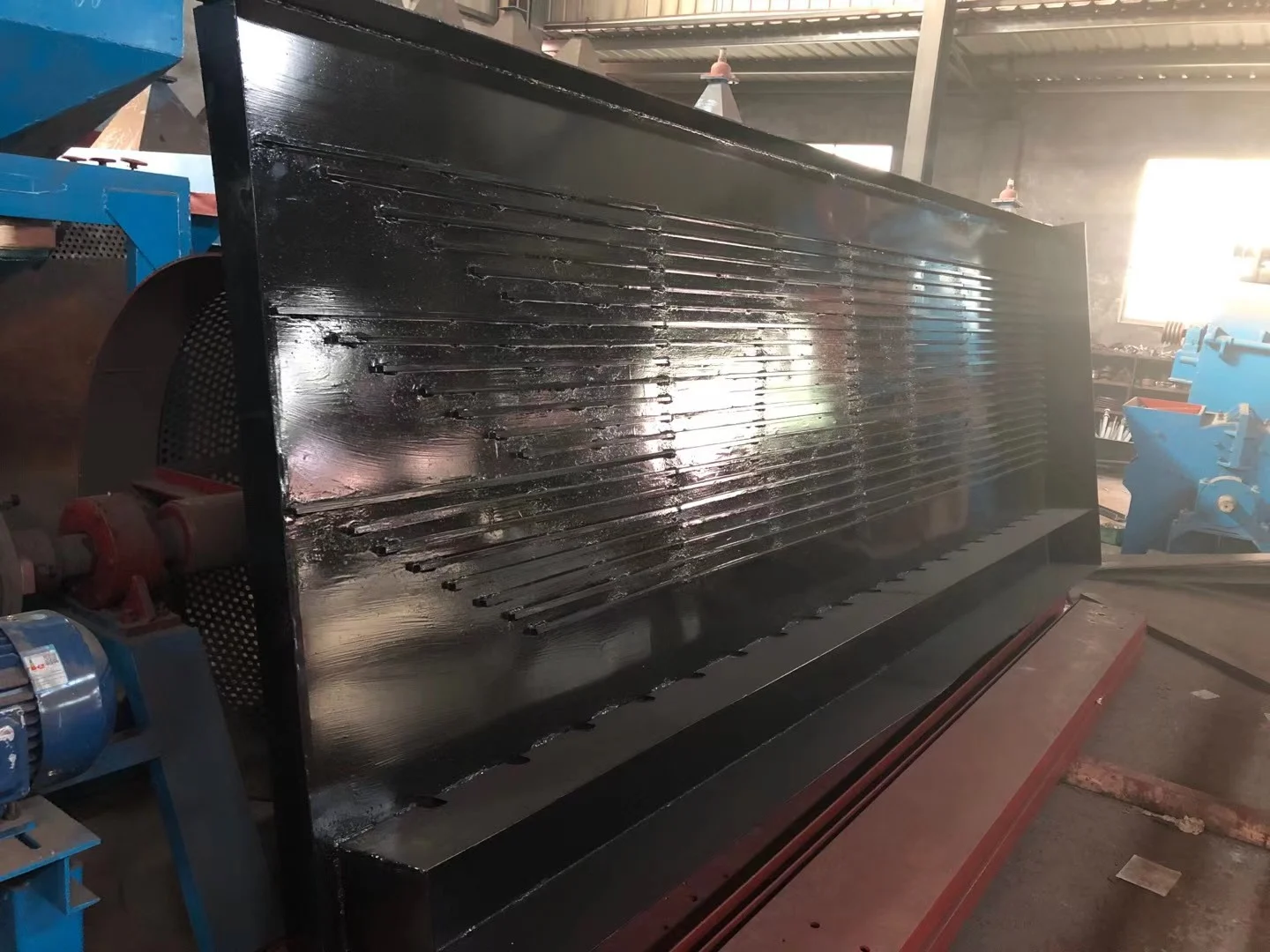

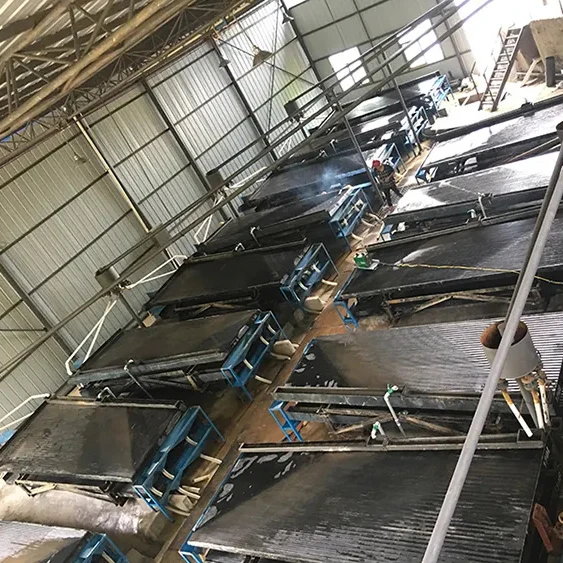

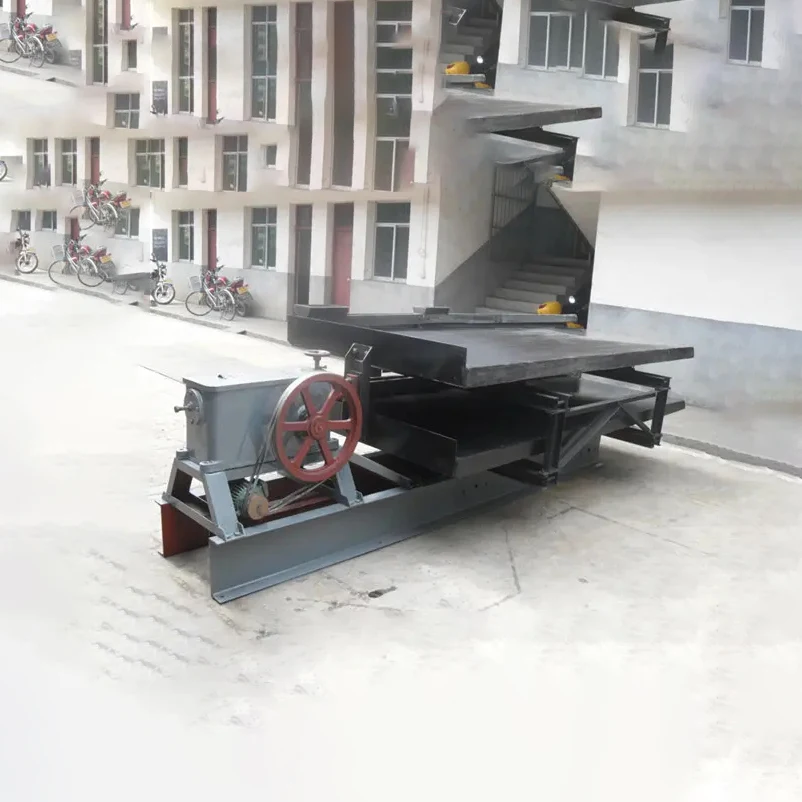

New Double Layers Concentrating Gold Vibrating Shaking Table
New Double Layers Concentrating Gold Vibrating Shaking Table
New Double Layers Concentrating Gold Vibrating Shaking Table
New Double Layers Concentrating Gold Vibrating Shaking Table
New Double Layers Concentrating Gold Vibrating Shaking Table
New Double Layers Concentrating Gold Vibrating Shaking Table
New Double Layers Concentrating Gold Vibrating Shaking Table

New Double Layers Concentrating Gold Vibrating Shaking Table

Share on (1600616259121):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


技术参数 Technical Parameters
规格型号Model
6-S
6-S
6-S
6-S
床面型号Deck Model
LY(S)4500
LY3000
LY2100
LY1100
床面尺寸（毫米）
Deck Size (mm)
长×给矿端宽×精矿端矿
L*W of Feeding Size*W of Concentrate Side
4500×1850×1560
3000×1490×1360
2100×1050×850
1100×500×430
选别面积（平方米）
Concentration Area (㎡)
7.67
4.08
2
0.51
给矿粒度
（毫米）
Feeding size
(mm)
粗砂 Coarse
2-0.5
2-0.5
2-0.5
2-0.5
细砂 Fine
1-2.5
0.6-1.5
0.4-0.8
0.1-0.2
矿泥 Slime
0.3-0.9
0.2-0.6
0.1-0.4
0.03-0.05
给矿浓度（%）
Feeding Density (%)
10-30
10-30
10-30
10-30
处理量
（吨/时）
Capicity(t/h)
粗砂 Coarse
1-2.5
0.6-1.5
0.4-0.8
0.1-0.2
细砂 Fine
0.8-1.2
0.3-0.8
0.2-0.5
0.05-0.1
矿泥 Slime
0.3-0.9
0.2-0.6
0.1-0.4
0.03-0.05
耗水量（吨/时）
Water Consuption(t/h)
2-5
1.5-3
1-2.5
0.2-0.5
冲程（毫米）
Stroke Length (mm)
10-30
10-30
10-30
9~17
冲次（次/分）
Frequency (t/min)
240-360
210-360
210-360
130-210
横向坡度（度）
Horizomtal Slope
0°~10°
0°~10°
0°~10°
0°~8°
电动机
Motor
型号 Model
Y70L-4
Y100L-4
Y90L-4
Y80L-4
功率
Power (kw)
1.1
1.1
1.1
0.55
外形尺寸（毫米）
Dimension (mm)
长×宽×高 (L*W*H)
5630×1850×860
4130×1680×860
3040×1050×760
1530×500×660
设备重量（kg）
Weight (kg)
1100
1000
750
350


item
value
Place of Origin
China
Jiangxi
Condition
New
Machine Type
Vibrating Shaking Table
Weight (KG)
750
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2022
Warranty of core components
1 Year
Core Components
Motor
Warranty
1 Year
Key Selling Points
Long Service Life
Applicable Industries
Building Material Shops, Manufacturing Plant, Energy & Mining
Showroom Location
None
Product name
Shaking Table
Application
Gold
Marketing Type:
Ordinary Product
Feeding Size
0-2mm
Installation
Engineer Guide
Type
Gravity Separator
Screen size
4500*1850*1560mm
Capacity
0.5-1.8t/h
Motor Power
1.1 KW
feeding density
10~30%

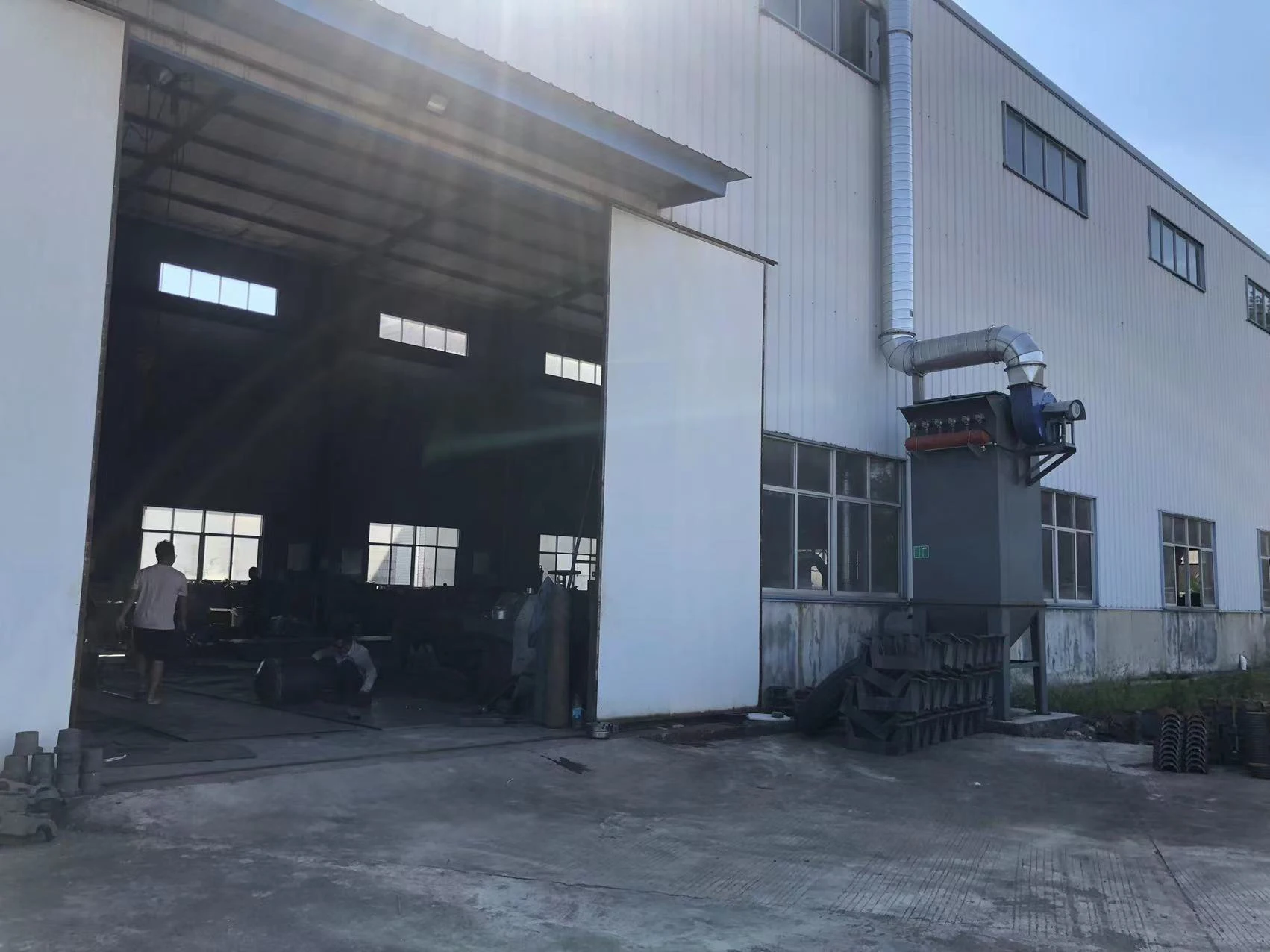

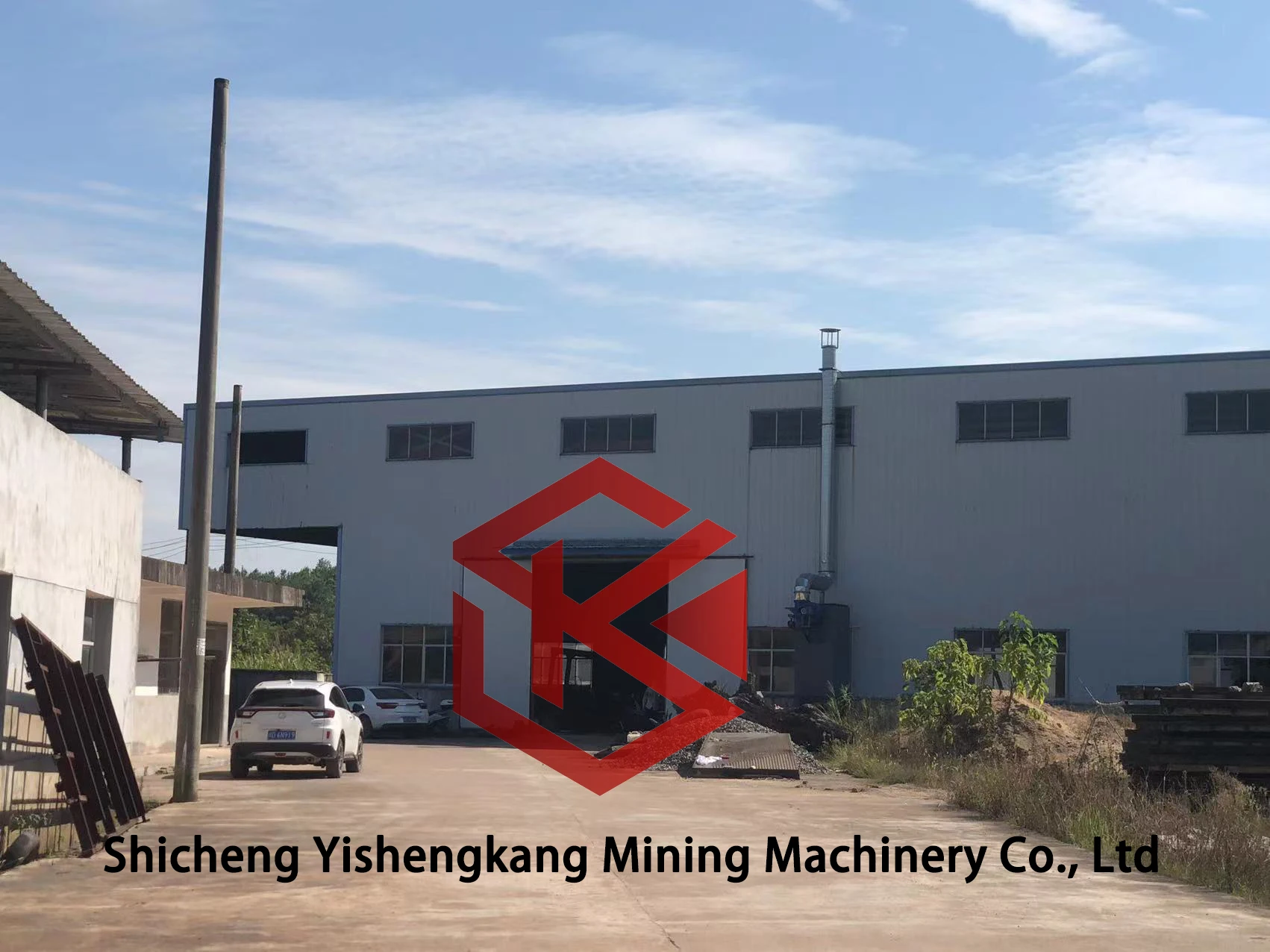

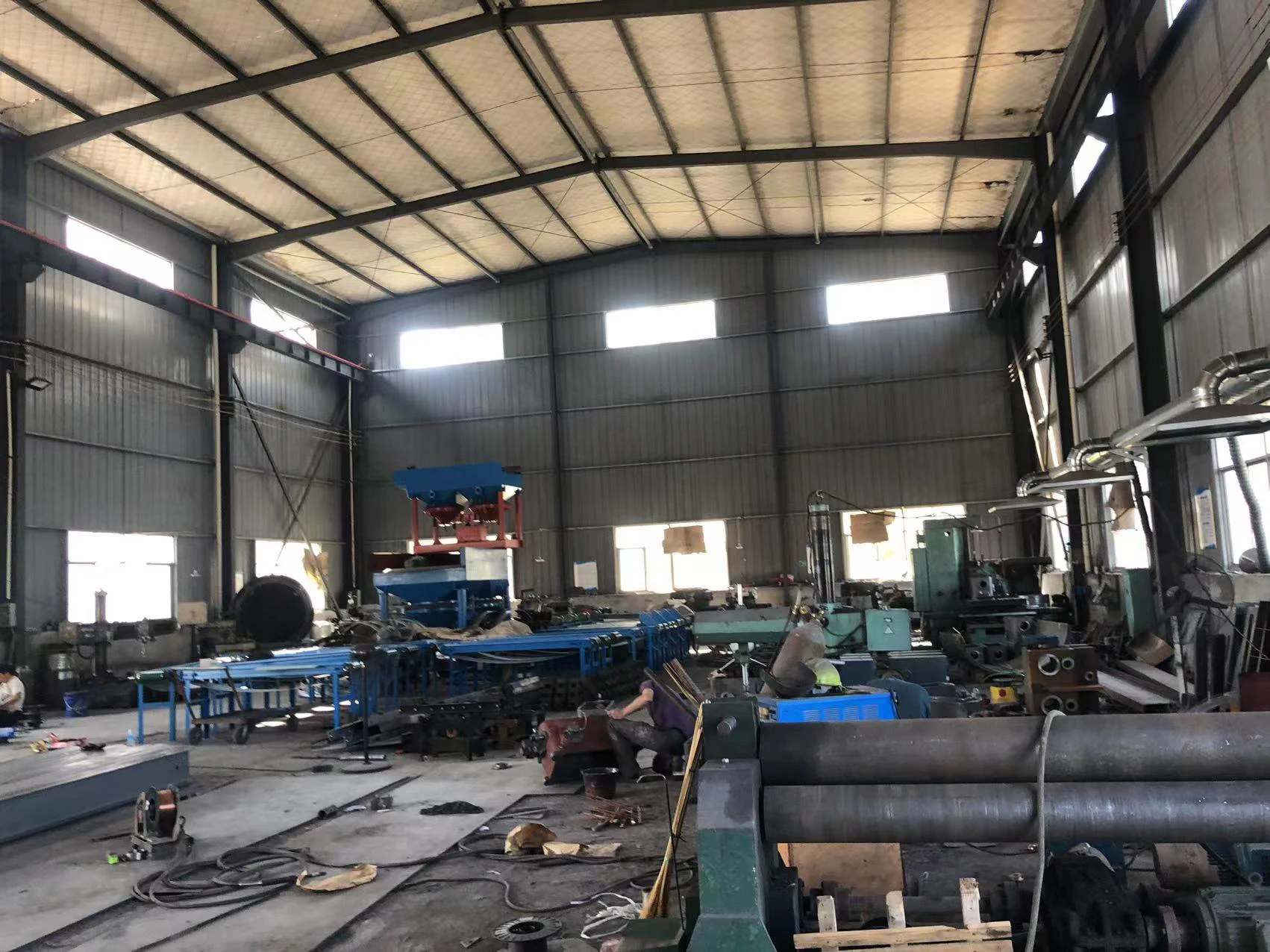

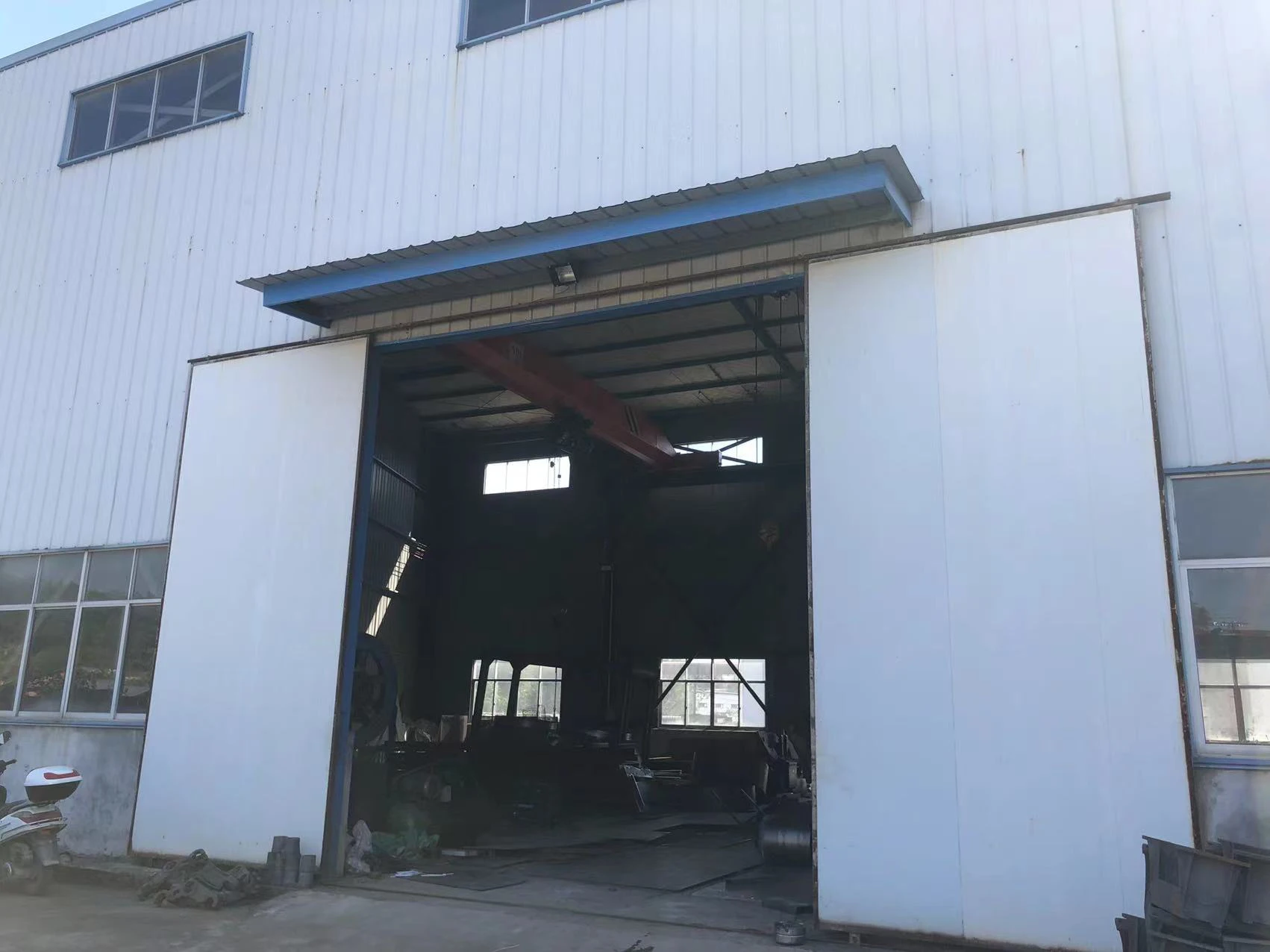

Company Profile
Shicheng Yishengkang Mining Machinery Co., Ltd. is specialized in researching,manufacturing, sales and door tracking service as one of the metallurgical mineral processing machineryenterprise, our company is engaged in the mineral processing equipment product design and production for several years history,has accumulatedrich experience in design and production. Enterprise in m- ineral processingequipment industry has had a positive effect,set up the good reputation. The company constantly with technology innovation, hard to develop the countrygeneration into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table,flotation equipment,crushing(powder)equipment, magnetic separation equipment,screening equipment,ore washer classifying equipment,agitation equipment, spiral chute equipment, gravity separation jig,feeding equipmentmilling equipment.And we can manufacture various types of mineral processing machinery and equipment according to our customers'requirements.Our products are widelyused for sorting gold,silver, copper, iron, tungsten, lead,zinc,tin,molybdenum,nickel,tantalum,niobium,manganeseore,coal,monazite,rutile,diamonds, other precious metals and precious metals mine, and for the flotation colored,black metal,precious metals and other mineralsCompanyhas won the Outstanding Business Award,and many times as honesty,service and advanced company, is the back bone of the metallurgical industry,mineral processingmachinerybusiness.The company has export qualifications, our products sell well all over the world for many years,especiallyexported to Brazil,India,Indonesia,South Africa,Somalia,Philippines, Malaysia, Sudan, Kazakhstan,Kyrgyzstan,Cambodia,Vietnam,Korea,Mongolia,Myanmar and other countries.














Packing&Delivery




FAQ
1. who are we?
We are based in Jiangxi, China, start from 2019,sell to Africa(40.00%),South Asia(27.00%),Southeast Asia(11.00%),South
America(10.00%),Central America(5.00%),Oceania(5.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Shaking table,Spiral separator,Sawtooth wave jig,Drum sieve,Ball mill

4. why should you buy from us not from other suppliers?
We have 20 years of design and development experience Quality, reputation, service and innovation are our company's consistent
management style

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
