coffee plastic cups with plastic thermoforming machines made coffee lids making equipment

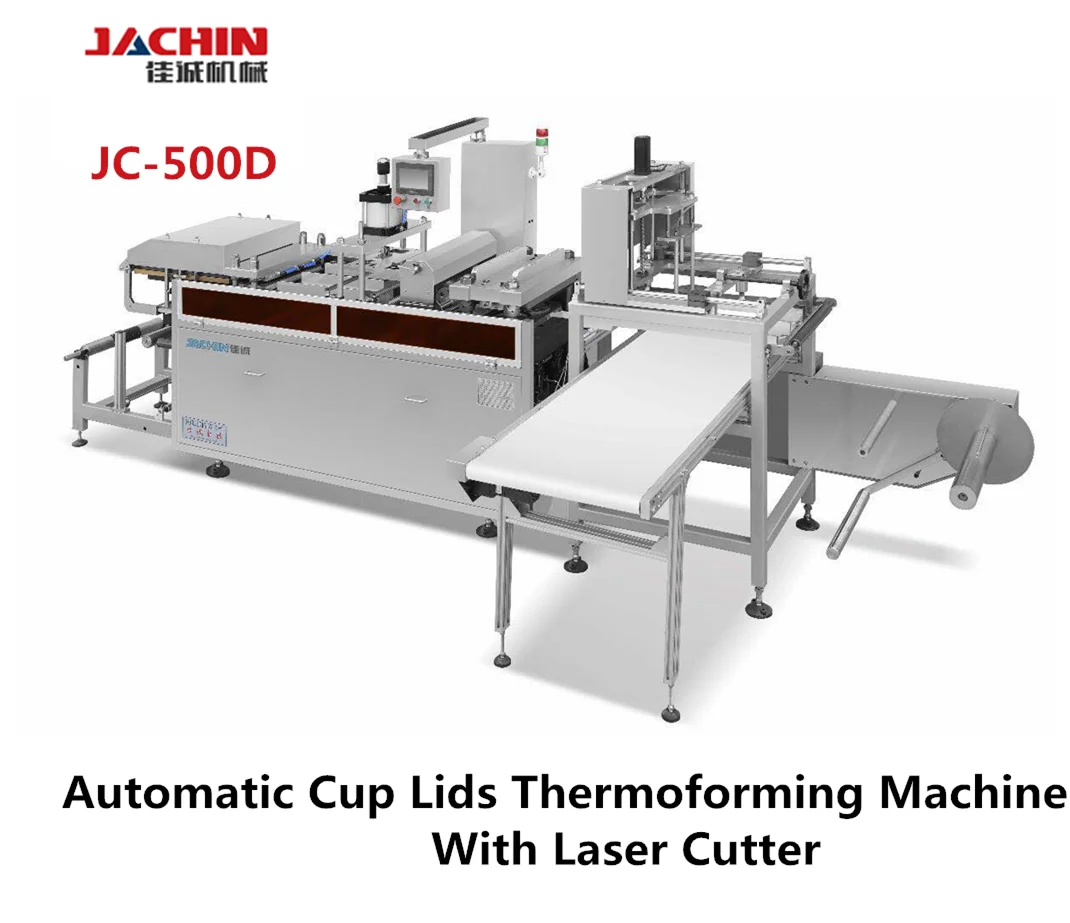

 JC-500D Automatic Cup LIds Thermoforming Machine are developed by our research and develoment department, according to the demand of packing market. Absorbing the advantages of aluminum-plastic blister packaging machine and plastic molding machine, the new machine developed according to the requirements of medical "GMP" and food " QS" standards.

Machine adopts automatic forming, punching and cutting as the special properties of product requires of the users. With advanced technology, safe and simple operation, avoiding the consumption of labor caused by manual punching and the pollution caused by the employees during work, guarantee the quality of products. The machine equipped with panels heating, low power consumption, small external footprint, economical and practical. So the machine is widely used in manufacturing lids, covers, trays, plates, boxes.

Technical Parameters

 Features

1.The automatic control is realized by the combination of programmable controller (PLC), man-machine interface, photoelectric system and three-servo system, digitization operation is simple  and intuitive.

2. Automatic lifting and loading material system is safe and labor-saving, plate type upper and low preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, servo traction are intelligent and reliable, punching and punching knifie are durable and no burr, strong pressure cutting laser knife has low cost and good effect, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.

3. The roller servo traction system makes the machine run more stable and reliable, increases the traction length and can directly set the traction length and traction speed in the man-machine interface through PLC programming, which increases the forming area and expands the applicable range of the machine.

4. Adopt planar linkage mechanism is to make larger transmission force, smaller inertia effect, stable operation, and larger pressure cutting force. Equipped with intelligent servo control system, laser knife is small in size, low in cost, convenient in adjustment and replacement, after the finished product is cut, the product is smooth and no burr.

5. The whole body is welded by steel box, the structure is firm and no deformation, the bracket and the box are under pressure molding, high density and no air holes, and the appearance is evenly wrapped with stainless steel, which is beautiful and easy to maintain.

6. This machine is also equipped with a powerful automatic servo stacking system, which can save labor costs for users.

7. Can be equipped with the function of cursor-to-page.

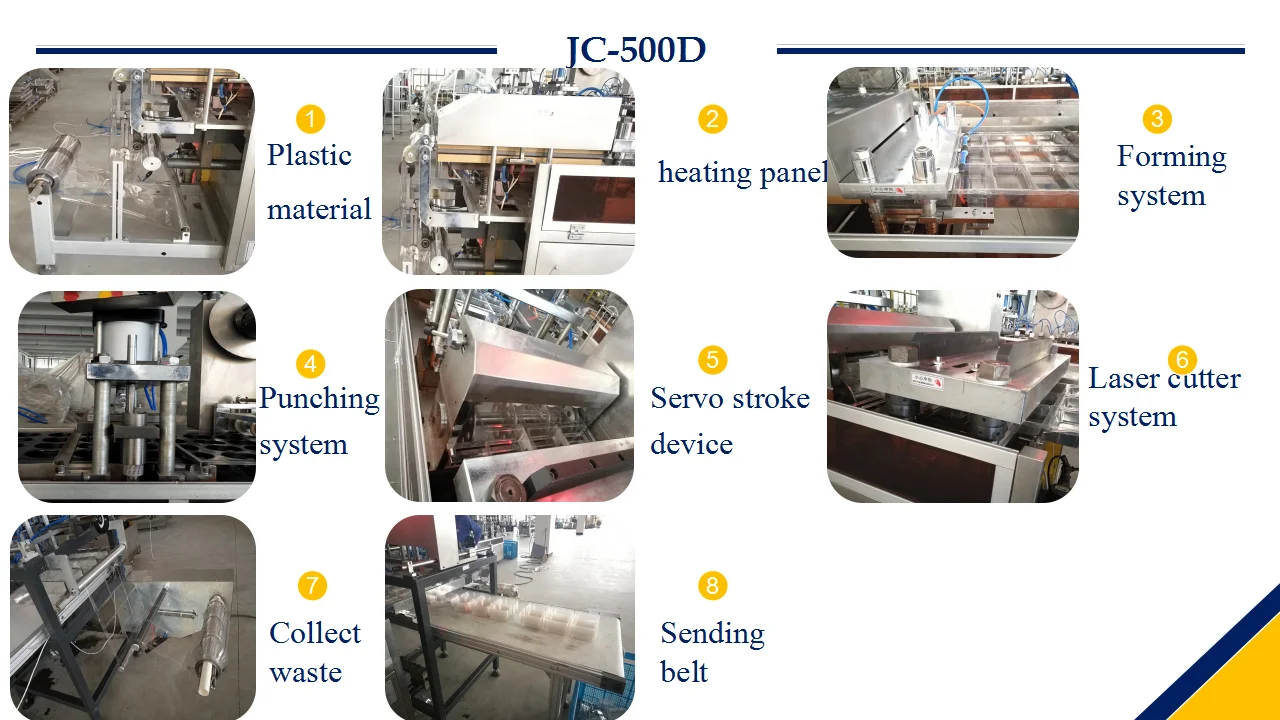

Detailed Images

Application

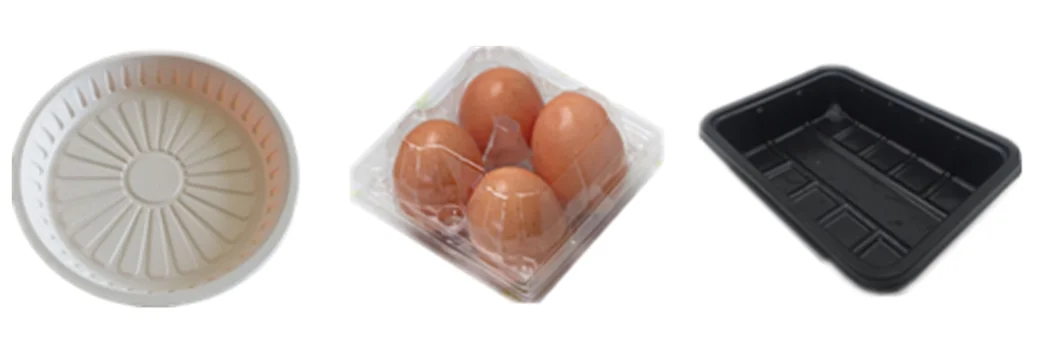

PVC,PET,PS,  as raw material, manufacturing lids, covers, trays, plates, boxes, food and medical trays, etc. Welcomed by our customers.

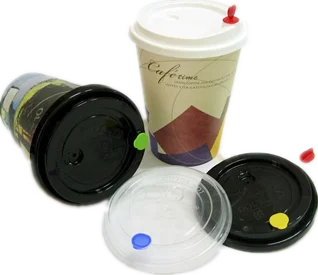

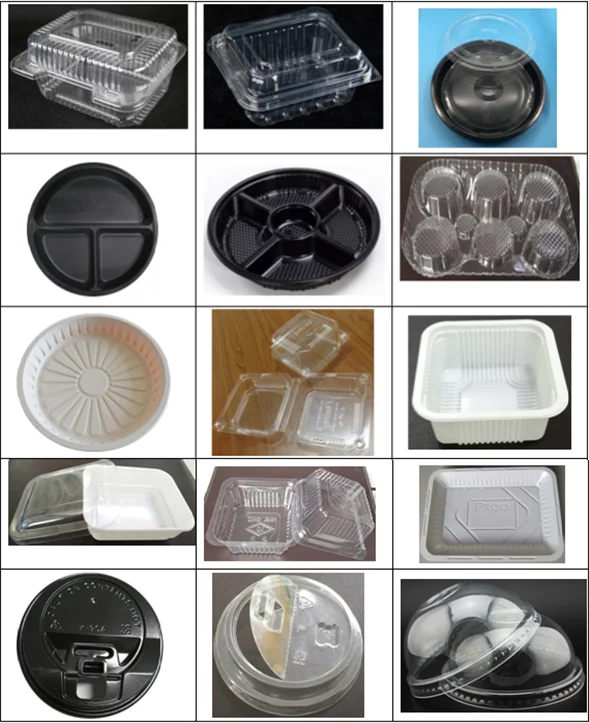

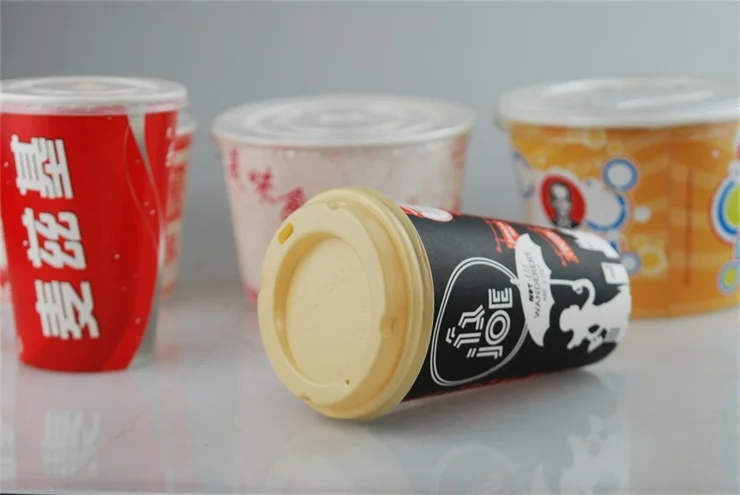

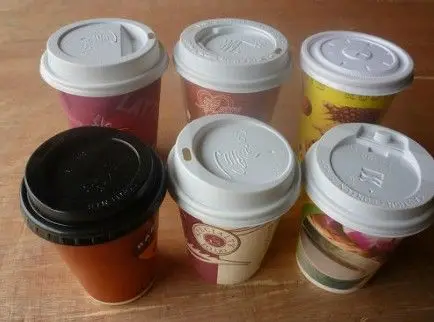

Samples

Remarks: The price is including one set of mold cost

Delivery time : 45 working days after payment and drawing confirmed

Term of payment: 30% ($) T/T in advance, and the balance 70% ($)T/T payment before shipment

Price terms: FOB Ningbo

Transportation: By sea

Warranty: We will provide the English operation manual part list and all thing come with the machine to our customer and shipped them with the machine

 Q: Are you a factory or a trading company ?

 A: Manufacturer

Q: What’s you MOQ of this term ?

 A: 1 SET

Q: Where is your loading port ?

A: Ningbo and Shanghai port, China

Q:What price terms your company can offer?

A: FOB

Q: How about the packing of this model ?

A: Wooden packing
