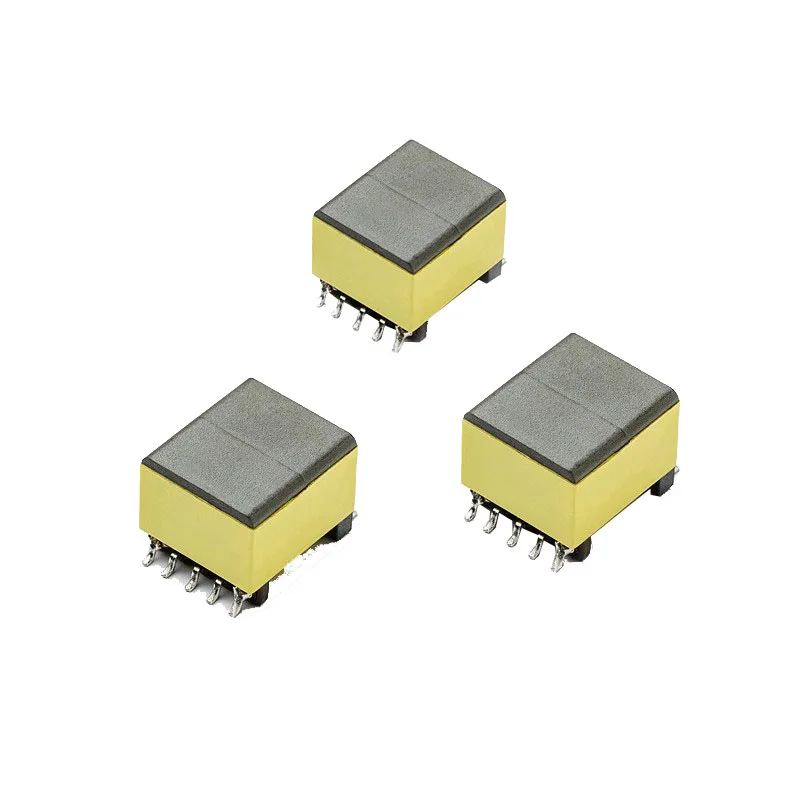

Custom High Frequency Ep Type 220 volt 220V 24V 12V 5V 1amp Power inverter flyback transformer Push Pul Electronic Transformer

Product Overview

Description

Product Information

Custom High Frequency Ep Type 220 volt 220V 24V 12V 5V 1amp Power inverter flyback transformer Push Pul  Electronic Transformer

What is Ferrite Core Transformer?

Ferrite Core Transformer is non-conductive, ferromagnetic compound that has its winding made from ferrite cores. They are used for high-frequency applications because they carry low coercivity and offer low eddy current losses.

Why are Ferrite Core Transformer in High Demand?

Ferrite core transformers are usually higher in demand than iron core transformers because they carry several benefits of ferrites.

Ferrites are ceramic materials, formed using manganese and zinc compounds. They act as insulators in transformers and offer high resistance to high currents.

Another advantage is that ferrites ensure low eddy current losses over several frequencies and have high permeability so they are ideal for high-frequency transformers and adjustable inductors.

Not only this, the high magnetic permeability and low electrical conductivity of ferrites help to prevent eddy currents in transformers. So, you don’t need to laminate the cores before using them for transformers.

On the other hand, conventional iron core transformers have an iron core built-up with laminations to prevent losses due to eddy currents in them. It becomes impossible to make the laminations thinner to make them effective at higher frequencies.

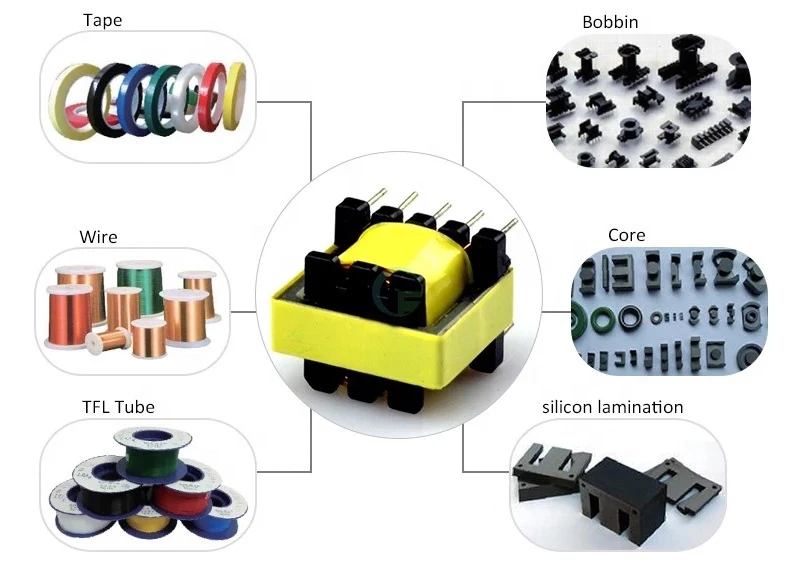

Components	bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy
Bobbin Material	bakelite/ phenolic/ plastics
Shape Type	horizontal / vertical / SMD
Inductance Range	1uH-100H
Working Frequency Range	50Hz --300KHZ
Test Items	Ø Turns ratio
	Ø Inductance
	Ø Phase test
	Ø Inductance leakage
	Ø DC resistance test
	Ø Withstand voltage
	Ø Insulation resistance
Package	EPE foam + export carton, or  plastic tray+export carton
Delivery time	15-18 working days against deposit
Features	Large transmission power
	Low loss
	Low temperature rise
	Stable performance

Ferrite Core Transformers Types

Ferrite Core Transformers are of different types, including:

1. Manganese Zinc (MnZn): They have higher saturation levels and higher permeability than NiZn ferrites. These are suitable for applications that have an operating frequency of less than 5MHz. Also, their impedance makes them ideal for inductors up to 70 MHz.

2. Nickel Zinc (NiZn): They have higher resistivity compared to MnZn ferrites. They are used in electrical applications when the frequency ranges between 2 MHz to several hundred MHz and are suitable for inductors above 70 Mhz.

3. Sand Dust: These are high-frequency Choke Coils ideally used with ferrites only.

4. Lamination/ Amorphous & Nanocrystalline: The lamination transformers are primarily used in inverters, welding sets, and UPS.

The Benefits of using Ferrite Core Transformer

Ferrite Core Transformer offers a range of benefits that makes them ideal for various electrical applications. Some of their major benefits include:

1. High Magnetic Permeability: Ferrite core transformers have high magnetic permeability which is one reason they are used in high-frequency transformers.


2. Low Electrical Conductivity: The high permeability along with low electrical conductivity helps the ferrite cores to prevent eddy current losses. Owing to this, the cores deliver outstanding performance at higher frequencies.


3. Higher Coercivity: Soft ferrite cores have a higher coercivity as compared to hard ferrite cores. Also, they can change their magnetic direction while ensuring negligible hysteresis losses.

Besides the benefits mentioned above, the cores also offer High Q values, Low DC sensitivity, Low hysteresis factor, and Low signal distortion for the electrical industry.

Material Science

Production process

Major Applications

• Power Electronic Circuits: They are used in all power electronic circuits like switch mode power supply inverters and pure sine wave inverters for high frequency.


• DC to DC Converters: They are used in DC to DC Converters to increase or decrease the DC voltage.


• Solar Panels: They are used for increasing low DC voltage of battery and solar panels.


• Lighting: They are used in lighting LED segments as a driver transformer to provide the required voltage in them.


• Home Appliances: They are used in major home appliances such as Washing Machine, TV, AC, and Refrigerator to ensure they work efficiently. The transformers also help in EMI filtration to suppress the noise levels while they are operating.


• Electrical Vehicles: They are used in the chargers and engine motors of electrical vehicles.


• Mobile Chargers: Every mobile charger has a different voltage and ampere. These transformers help to step up and down the voltage as per requirement.


• Brushless DC Inverters: They are used in Brushless DC Inverters to convert AC to AC or AC to DC in an electrical circuit.


• Basically, wherever there is an electronic circuit containing a Printed Circuit Board (PCB), ferrite transformers are the first choice.
