Detergent Raw Material Salt Industrial Food V Mixer Machine Factory Direct Powder Mixing Equipment
- Category: >>>
- Supplier: Foshan,Xingle,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

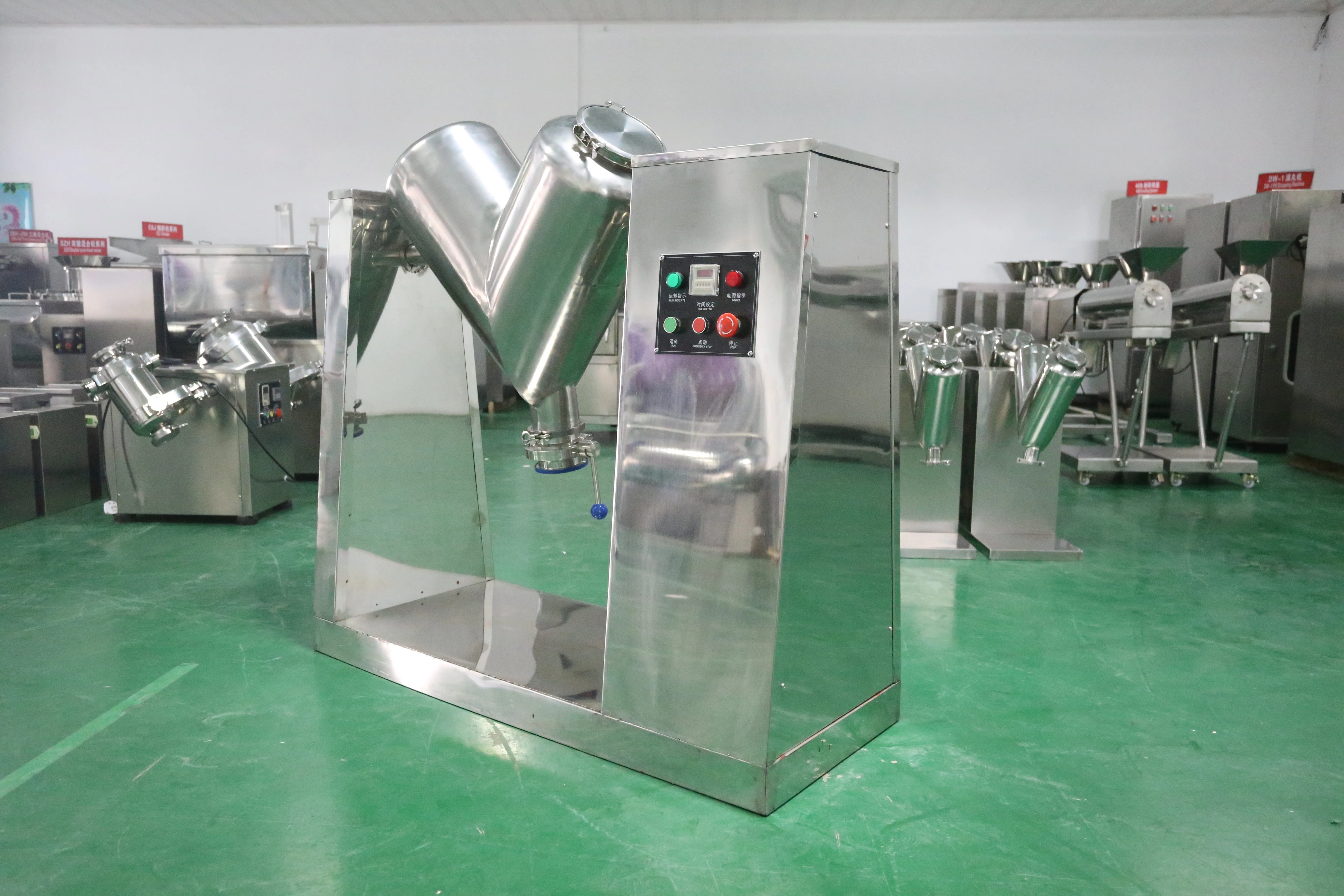

V type mixer machine
Main application:
The machine through the reducer drives the cylinder to rotate,asymmetric formed by mixing machine two cylinder length is not equal to the mix,when the decomposition to the portfolio,because of potential difference,creates a lateral force,lateral push material exchange.When the material from thecombination to the decomposition,due to the material plane is different,there is a lateral force and promote the lateral exchange of materials.The cylinder to rotate about a week,the 25% materials from a cylinder to another cylinder;and the cylinder to rotate and make the material of radial flow,so that the material of transverse and radial decomposition,combined alternately,the material achieves very uniform effect.
The machine has simple structure and easy operation. The external surface and material contact parts are made of high quality stainless steel,beautiful appearance, convenient maintenance and cleaning.
The machine through the reducer drives the cylinder to rotate,asymmetric formed by mixing machine two cylinder length is not equal to the mix,when the decomposition to the portfolio,because of potential difference,creates a lateral force,lateral push material exchange.When the material from thecombination to the decomposition,due to the material plane is different,there is a lateral force and promote the lateral exchange of materials.The cylinder to rotate about a week,the 25% materials from a cylinder to another cylinder;and the cylinder to rotate and make the material of radial flow,so that the material of transverse and radial decomposition,combined alternately,the material achieves very uniform effect.
The machine has simple structure and easy operation. The external surface and material contact parts are made of high quality stainless steel,beautiful appearance, convenient maintenance and cleaning.
Main Parameter
Model | XL-VH50 | XL-C1000 | |
Barrel volume(L) | 50 | 1000 | |
Material | SS304 | 24 | |
Working volume(L) | 20 | 5-20 | |
Maximum loading(Kg) | 20 | 11 | |
Motor Power (kW) | 0.75 | 2.2 | |
Hybrid speed (r/min) | 20 | 1200 | |
Gross weight(KG) | 16 | 2280*1100*1500 | |
Packing size | 1455*560*1430mm | ||
Model | XL-VH5 | XL-VH8 | XL-VH14 | XL-VH-20 |
Full Volume(L) | 5 | 8 | 14 | 20 |
Max.Charging Quantity(L) | 2 | 3 | 5.5 | 8 |
Outline Dim.(mm) | 560*270*560 | 660*300*630 | 900*380*900 | 1090*340*885 |
Feed Port Dia.(mm) | 76 | 76 | 108 | 133 |
Discharge Port Dia.(mm) | 76 | 76 | 76 | 76 |
Barrel Rotary Speed(r/min) | 24 | 24 | 20 | 20 |
Motor(kw) | 0.25/0.55 | 0.25/0.55 | 0.37/0.55 | 0.55/1.1 |
Model | XL-VH100 | XL-VH200 | XL-VH300 | XL-VH500 |
Full Volume(L) | 100 | 200 | 300 | 500 |
Max.Charging Quantity(L) | 40 | 80 | 120 | 200 |
Outline Dim.(mm) | 1900*800*1190 | 2010*850*1440 | 2220*900*1470 | 2300*910*2050 |
Feed Port Dia.(mm) | 250 | 300 | 300 | 330 |
Discharge Port Dia.(mm) | 80 | 100 | 100 | 200 |
Barrel Rotary Speed(r/min) | 15 | 15 | 15 | 13 |
Motor(kw) | 1.1/1.5 | 1.5 | 1.5 | 1.5 |
Q: Why choose us?
A: We have been supplying pharmaceutical machine including tablet press machine,blender, capsule flling machine
,counting machine,blister packing machine etc for over 14 years. What we offer is a good product at a reasonably price.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
,counting machine,blister packing machine etc for over 14 years. What we offer is a good product at a reasonably price.
Q: Can I customize the product?
A: Abosolutely. We can customize machine according to your need. Also we can the package the products according to your request.
Q:What's the delivery time?
A:if machine we have in stock we ship in 7 days ,if not have in stock producing time it is around 15- 45days depends on different machine.
