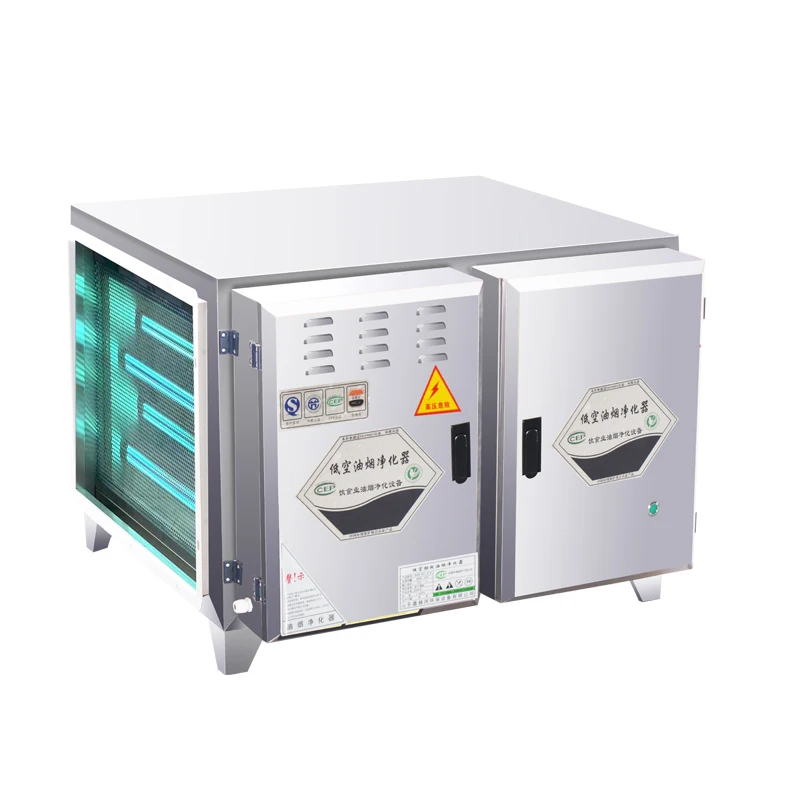

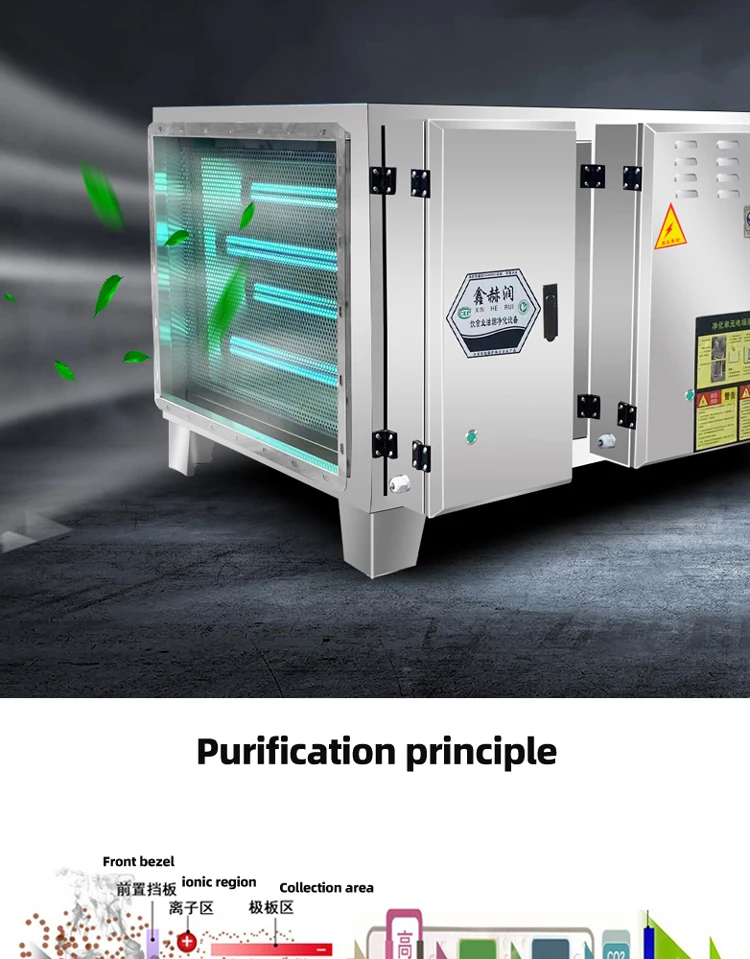

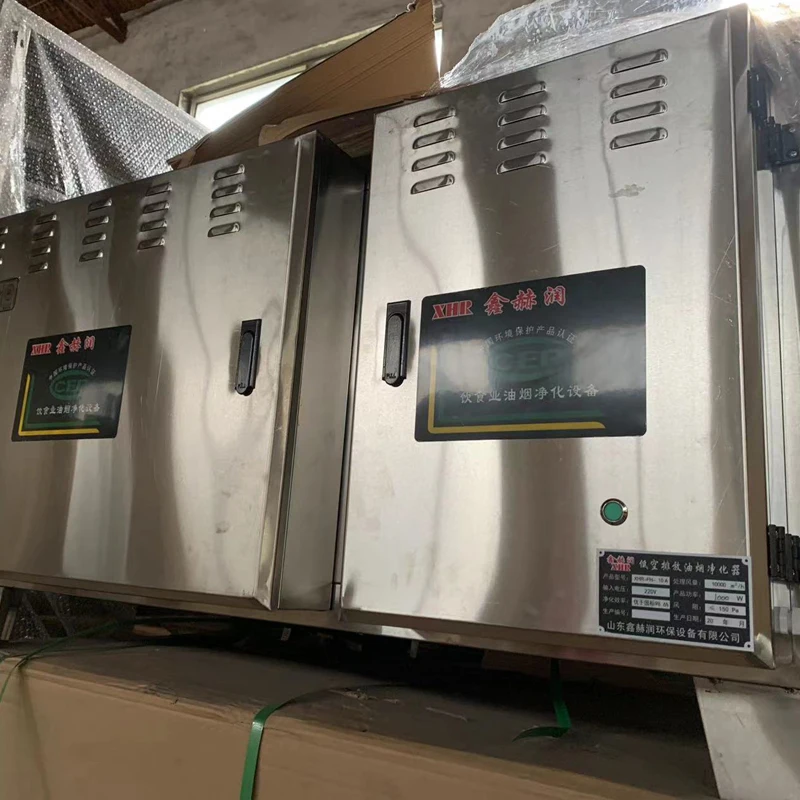

Kitchen oil fume odor treatment electrostatic precipitator high efficiency oil fume deodorization filter
- Category: >>>
- Supplier: Shandong Qimei Kitchenware Co. Ltd.
Share on (1600616334031):
Product Overview
Description
Product Description
Please choose the appropriate size machine according to your applicable scope

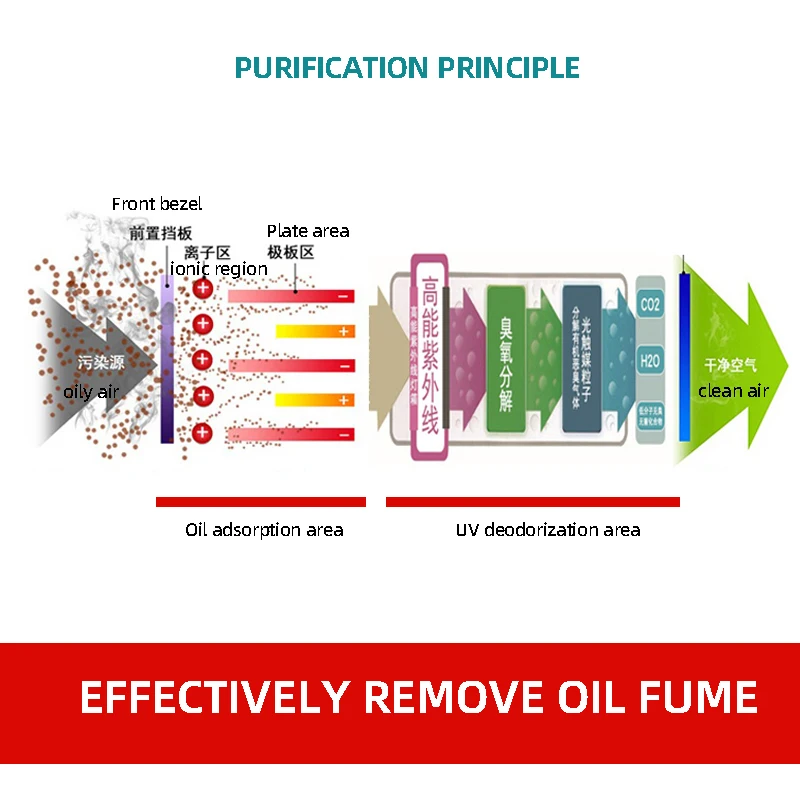

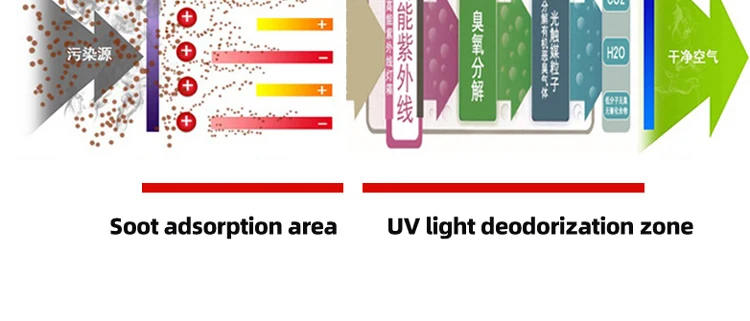

WORKING PRINCIPLE

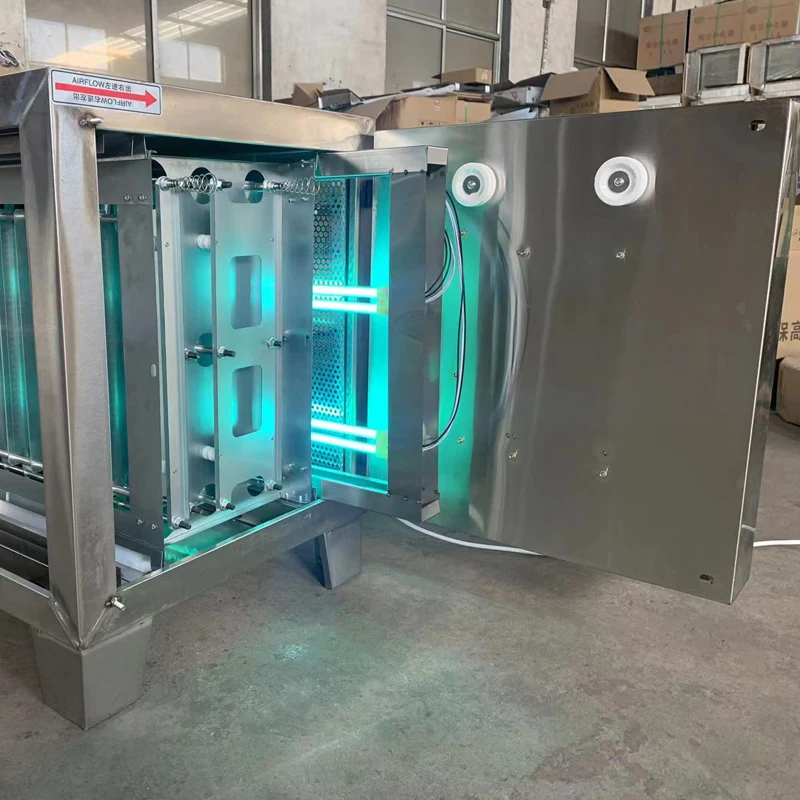

1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4 UVC-ultraviolet light produces OZONE and undergoes chemical processes such as Photolysis and Ozonolysis that breaks down grease and odour containing compounds produced during cooking.
5. The cleaned air exits through the cabinet
Product parameters
Product number | Voltage | Power(W) | Air volume(m³/h） | Product Size(mm） | Flange size(mm） | Airflow(CMH/H) | ||||
SDRH-K-4000 | 220V/50HZ | 400 | 4000 | 830*710*680 | 480*500 | 4000 | ||||
SDRH-K-4500 | 220V/50HZ | 400 | 4500 | 930*790*680 | 560*500 | 4500 | ||||
SDRH-K-6000 | 220V/50HZ | 600 | 6000 | 930*870*680 | 640*500 | 6000 | ||||
SDRH-K-8000 | 220V/50HZ | 800 | 8000 | 930*1020*680 | 790*500 | 8000 | ||||
SDRH-K-10500 | 220V/50HZ | 1000 | 10000 | 930*1180*680 | 930*500 | 10500 | ||||
Remark | The default UV deodorant lamp is provided, you can bring it or not according to your needs | |||||||||
Product Advantage
2. Modular Design: Modular units allow vertical/horizontal stacking combinations based on different airflow or removal efficiency requirements.
3. Intelligent electrostatic power control system electric intensity automatic control function to ensure kitchen ESP collector unit
It still maintains a high purification rate after long-term use.
4. Light to remove odor: high-power UV tube can more effectively remove food odor.
Packing & Delivery
Certificate
