High precision processing metal CNC machine magnesium Aluminum Zine
Product Description
High precision processing metal CNC machine magnesium Aluminum Zine

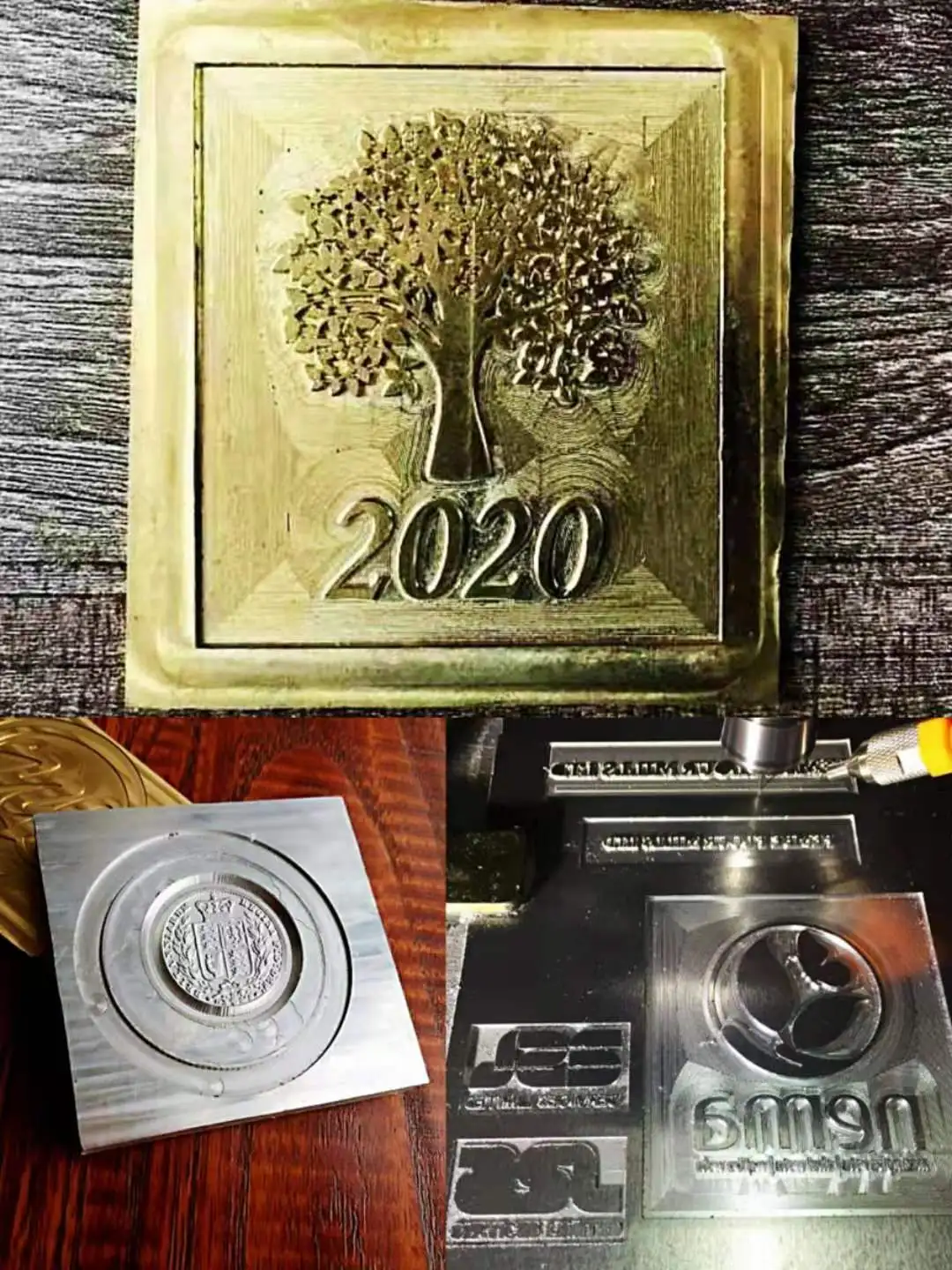

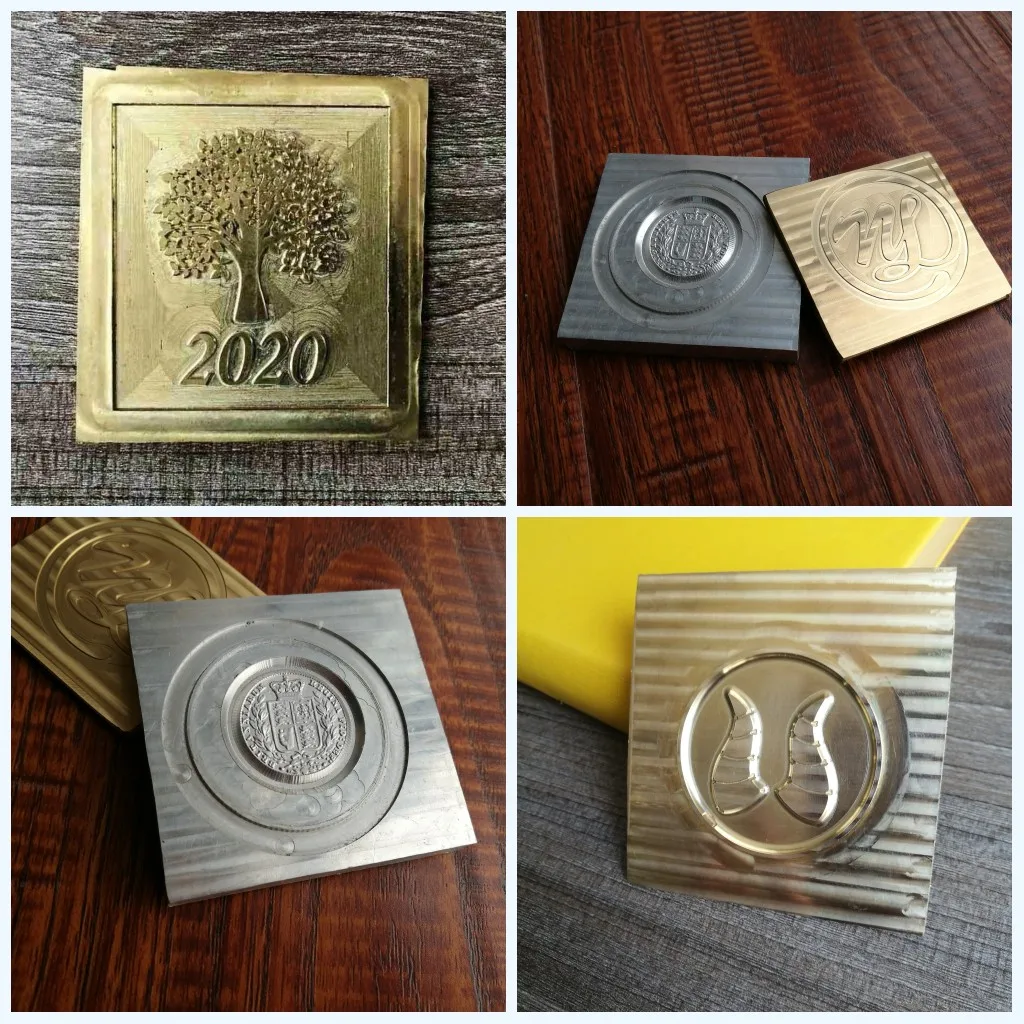

Our products focus on hot stamping dies, flexible dies and other precision dies.Used in packaging printing and precision mold industry.
TECHNICLA PARAMETER

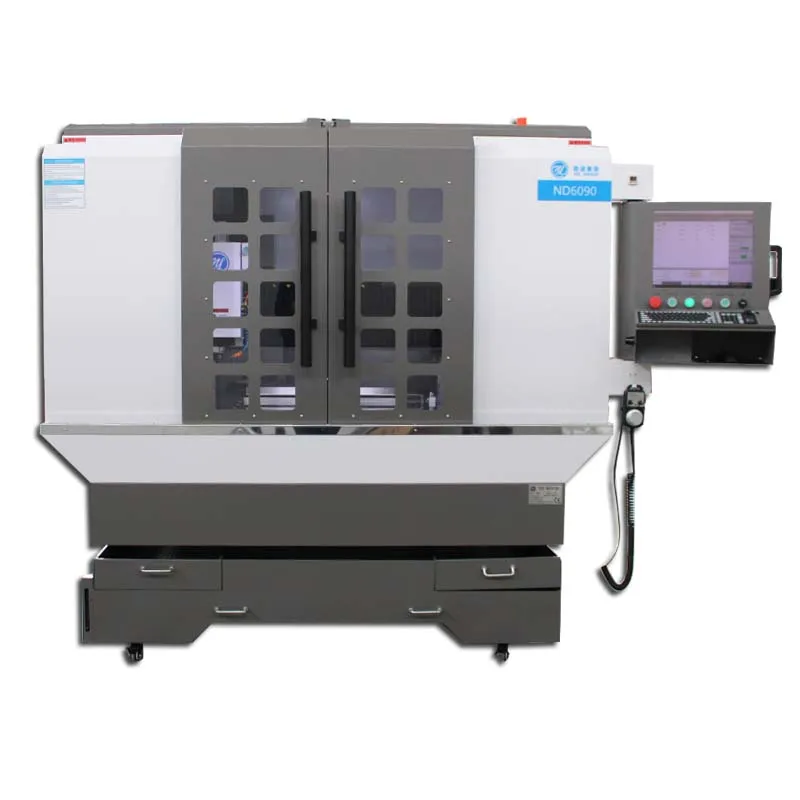

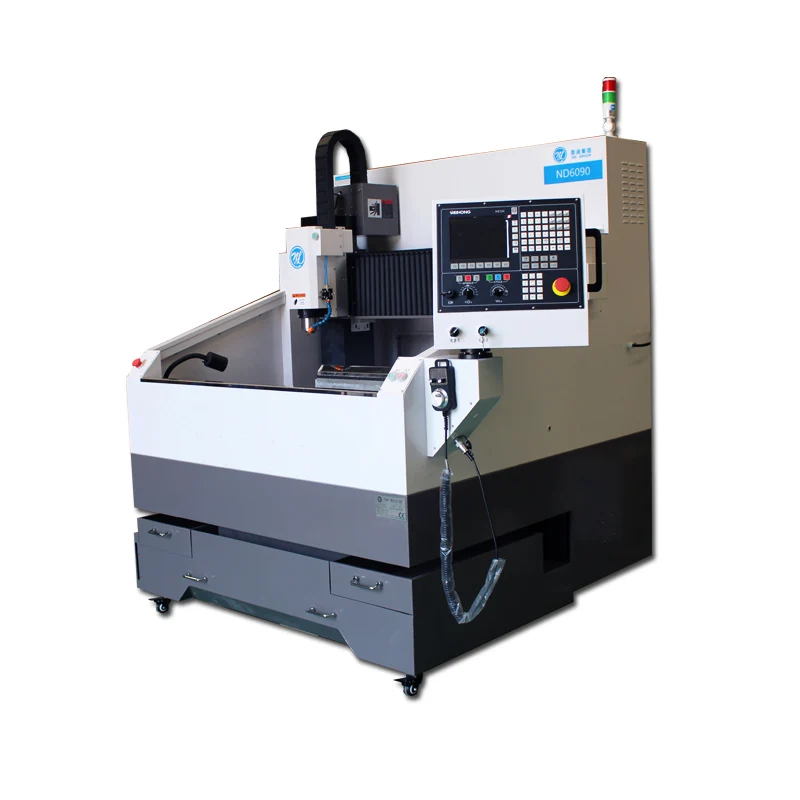

Model | ND6090 series |
Application | Metal,such as stainless steel ,carbon steel,copper,aluminum ,etc. |
Working Area | 600x900x165mm |
Spindle Power motor | 1.8/4.0kw(high speed,higt precision, higt stable) |
Spindle Speed | 0-60000/0-40000RPM |
Machine dimension | 2270*16800*2050mm |
| Drive motor | servo system |
Repeatability Positioning Accuracy | X,Y,Z:≤0.005mm |
Max Moving Speed | 15m/min |
Max Machining Speed | 10m/min |
Lubrication System | Automatic Oil Feeding |
Spindle Cooling System | Water |

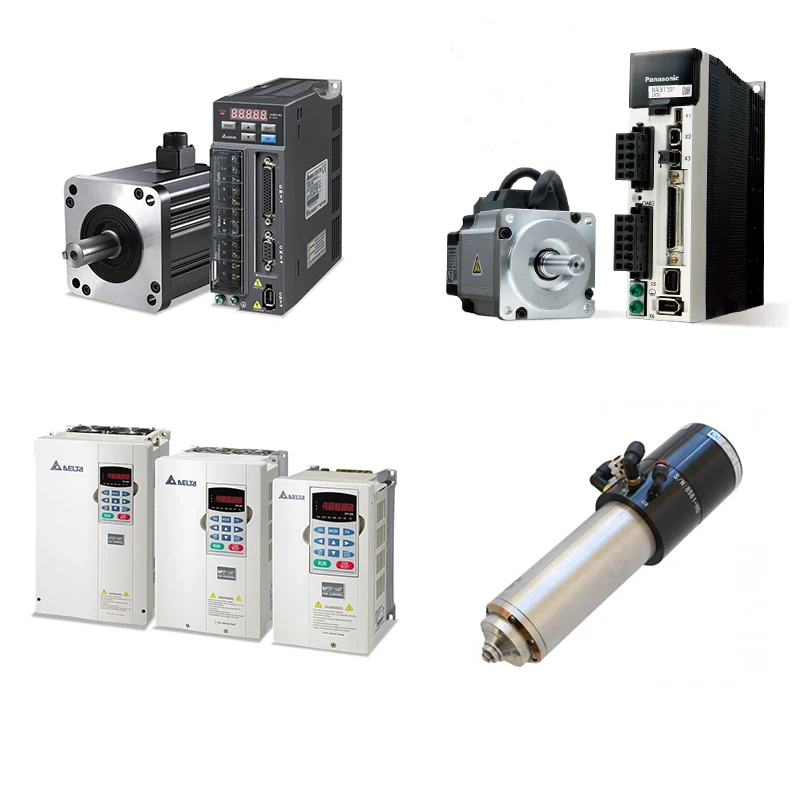

Drive System | Panasonic Servo Motor and Driver |
Weight | 3000kg |
Machine Bed Material | granite |

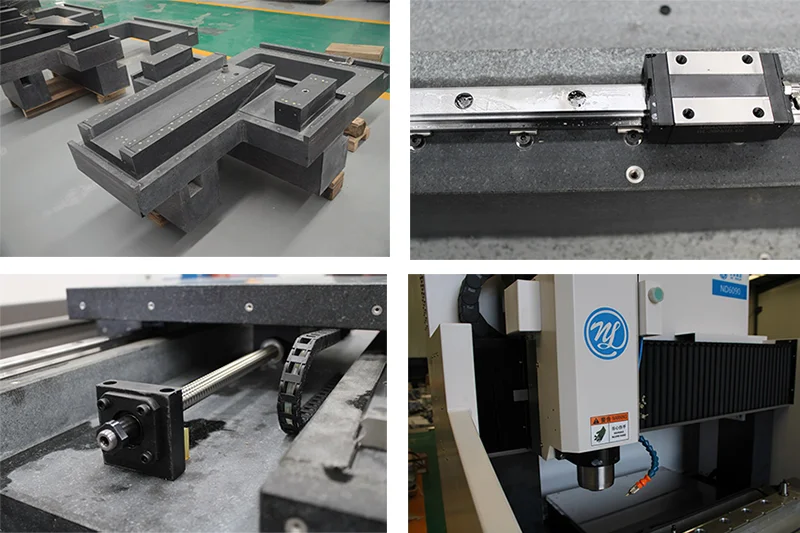

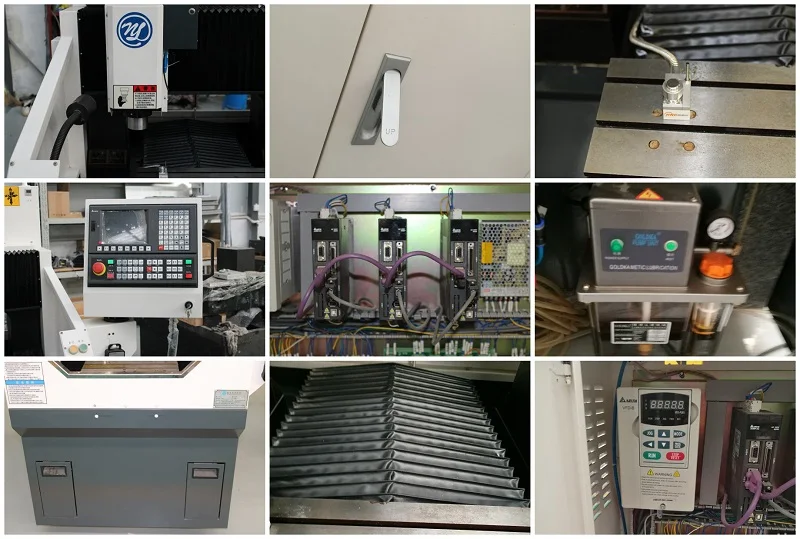

WE ADOPT
"Jinan Black" granite base
Natural granite in a quality of a fine-grained structure with an extremely low contenet of quartz, which offers excellent machanical properties.It can ensure the high-precision and stable operation of the machine
Taiwan C3 grind level boll screw
These superior quality components complement the overall construction by providing smooth play-free motion. This results in superior cut quality, requires minimal maintenance, and increases the machines longevity.
Taiwan P level rails
The transmission efficiency is high.
High sensitivity.
High positioning accuracy.
Long service life.
Spindle

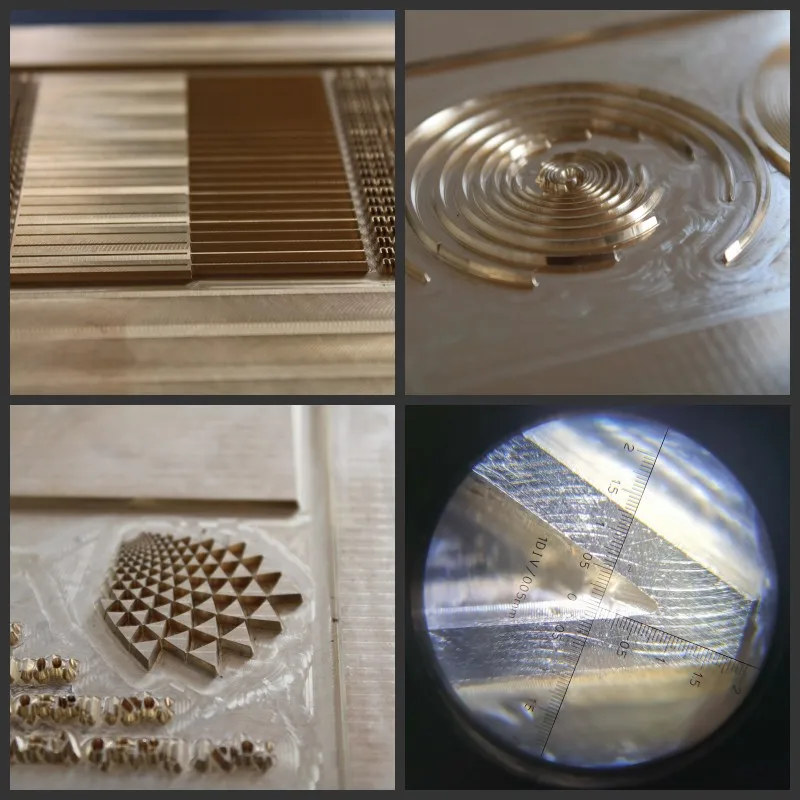

High rotating precision, good rotating with low noisy, it engraves without any ripple but with smooth bottom level and clear outline.
FAQ
Q: What materials can this machine process?
A: Our machine is suitable for copper, zinc, aluminum, iron, stainless steel and other materials, which can meet your processing needs of different materials
Q:What specifications can this machine process?
A: 400*400*165mm
Q:What is "ATC"?
A: ATC means Automatic Tool Change magazine system, there are safety sensors and fully enclosed sheet metal to prevent debris from entering
Certifications
The certificates and patents are the performance of the company ability.
We have 2 R&D teams and 3 engineering Teams,professional on granite design and manufacturer.
Brand companies will have the strength of trust.
Up to now,we have passed all of these certificates such as ISO and CE ,TUV these quality certificates.

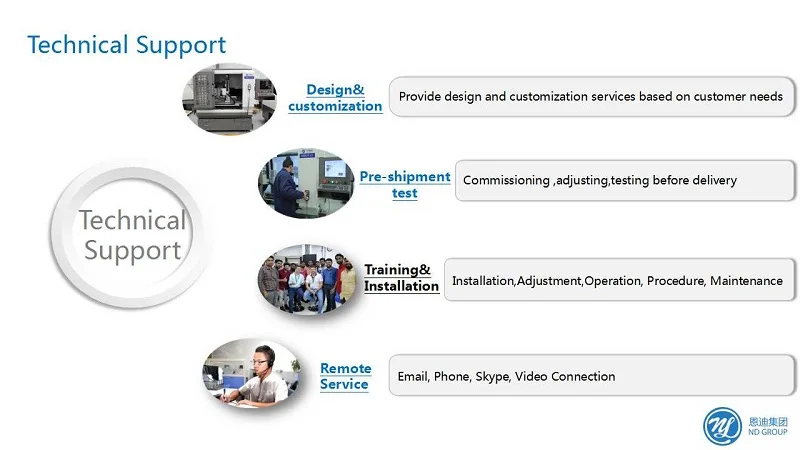

Our Services
SERVICE PROESS
A. ND remote training service: support 24 hours -7 days technical support by call or email
B. Support online text&video instruction via Skype, whatsapp, wechat, viber etc
GUARANTEE
13 months guarantee of the whole machine.
All parts shall be changed free of charge if there is any problem during the warranty period.
We will provide consumable parts and raw material at an agency price.
AFTER SALES SERVICE
Contact our after sales engineers by email / skype / whatsapp / wechat or mobile phone, service(AT)nd-cnc.com
Provide your PI number and briefly describe the problem, it’s better to provide pictures or videos to explain.
All of engineers can speak English, will reply you within 2 hours(include public holiday and weekend), basic problem will reply solution within 4-8 hours, complexity problem will reply solution within 12 hours.

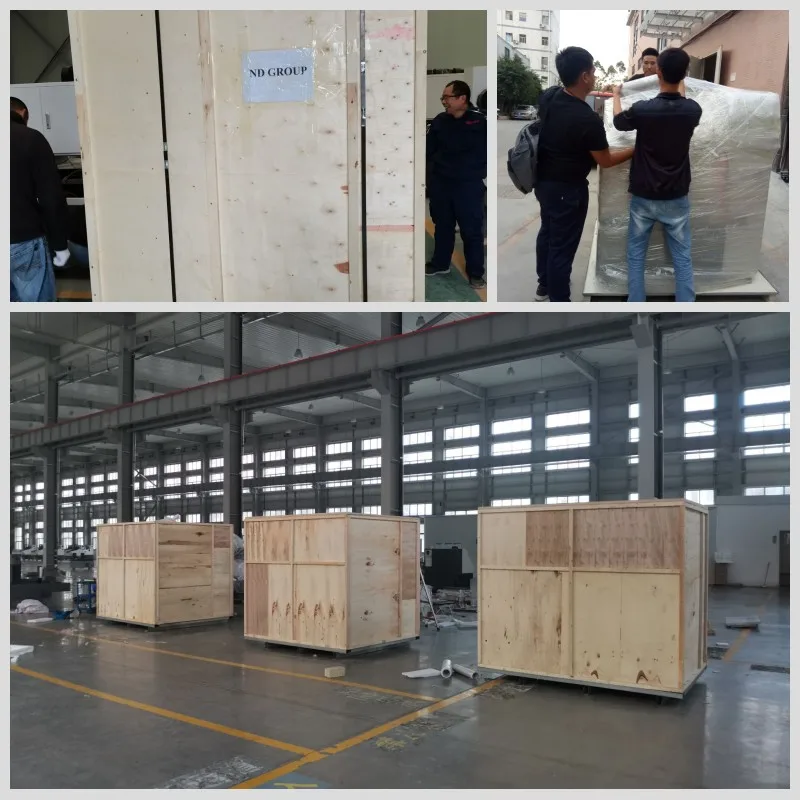

DELIVERY
Firstly, the cnc center is to be packed with plastic sheet for cleaning and damp proofing.
Secondly, the cnc machine is to be put in the plywood case for safety and clashing.
Thirdly, the plywood case is transported into the container.
