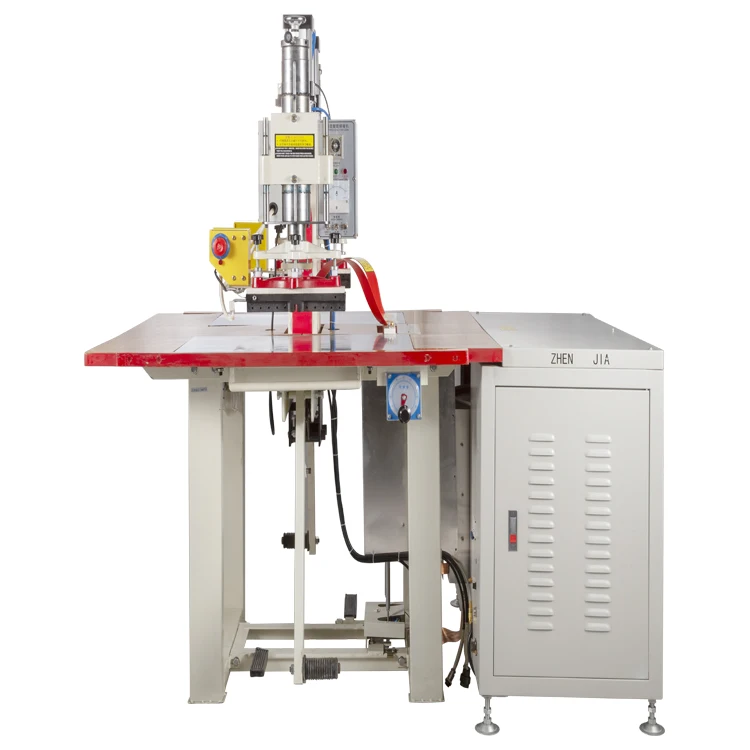

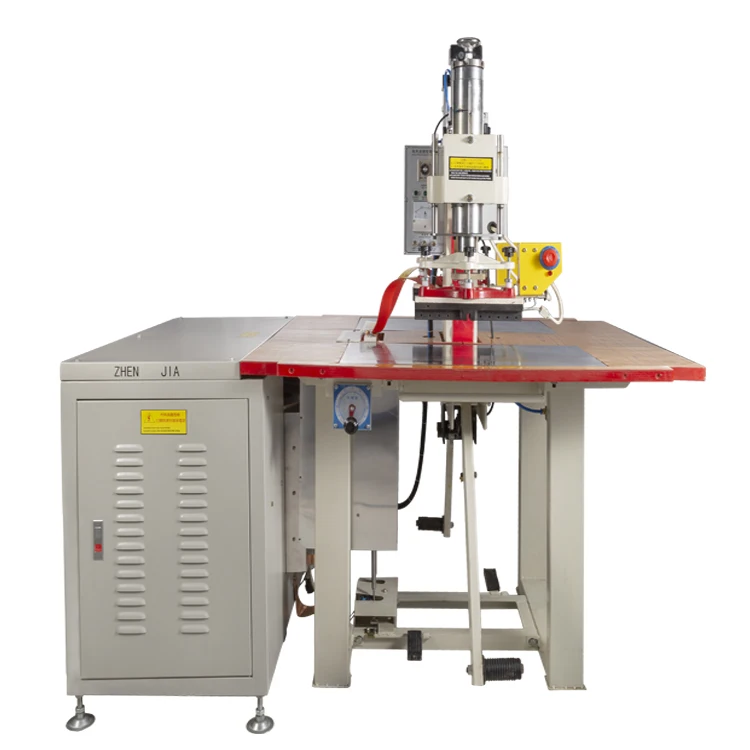

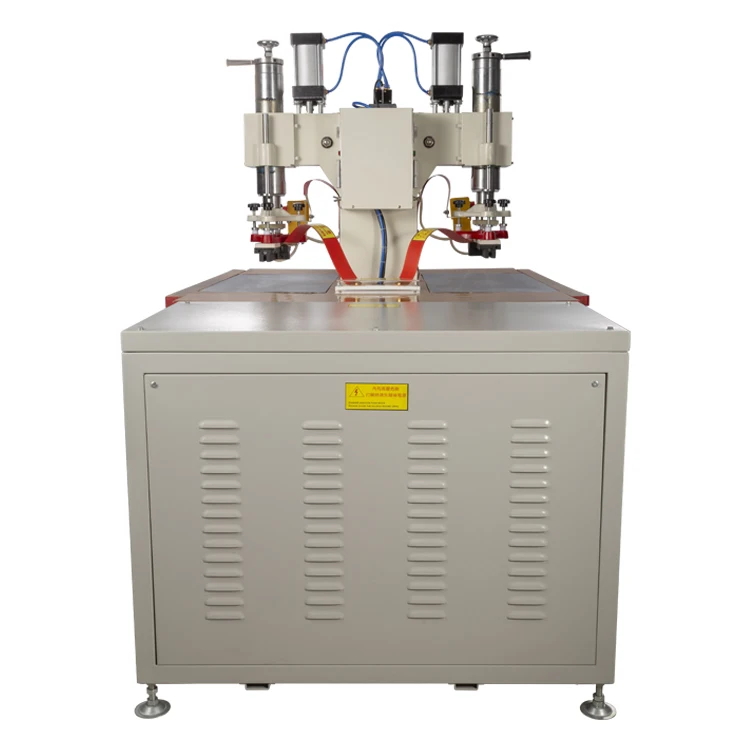

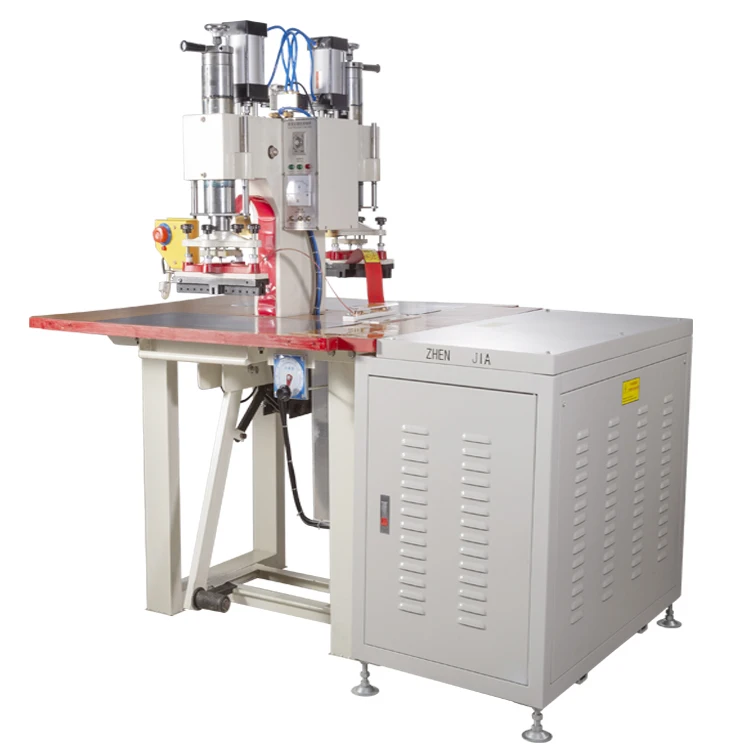

5KW Double Heads HF tarpaulin welding machine
- Category: >>>
- Supplier: Foshan Zhenjia Machinery Co. Ltd.
Share on (1600616346569):
Product Overview
Description
Product Description
5KW Double Heads HF tarpaulin welding machine
Model | ZJ-5K-TR | ||||||
Type | PVC High Frequency Welding Machine | ||||||
Power | 5KW | ||||||
Voltage | 220/380V | ||||||
Input Power | 8.5KVA | ||||||
Frequency | 27.12 or 40.68MHZ | ||||||
Rectifier | Silicon diode | ||||||

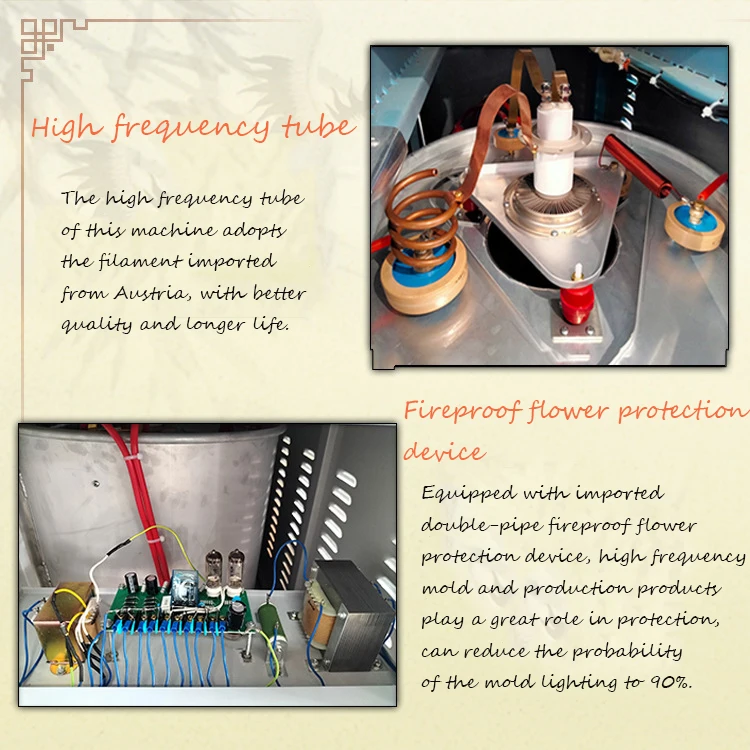

Oscillation Tube | 7T85 | ||||||
Maximum Electrode Spacing | 160-220mm | ||||||
Working Desk | 350*700mm or 400*700mm | ||||||
Mold Installation Form | Cross chuck 30cm | ||||||
Pneumatic Cylinder | 80*75 | ||||||
Temperature Control Range | 50-300°C Adjustable | ||||||
Welding Time | 0-10s Adjustable | ||||||
Electric Box Size | 670*960*800mm | ||||||
Table Size | 1070*1210mm | ||||||
Dimension | 1070*1680*1560mm | ||||||
Machine Weight | 420KG | ||||||
Air Compressor Suggestion | 60L gas tank | ||||||
Machine Trachea | dia 8cm | ||||||
Floor To Machine Working Table | 800mm | ||||||

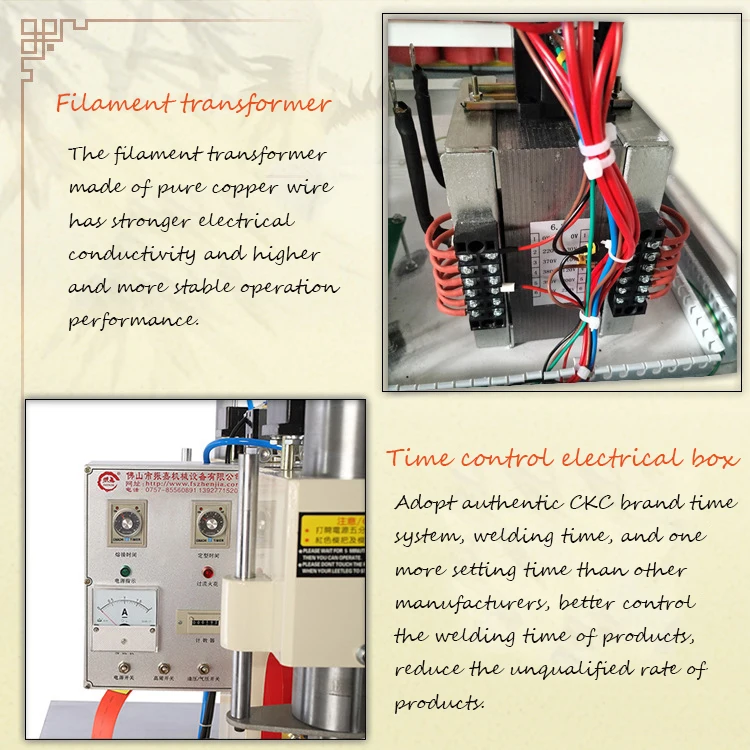

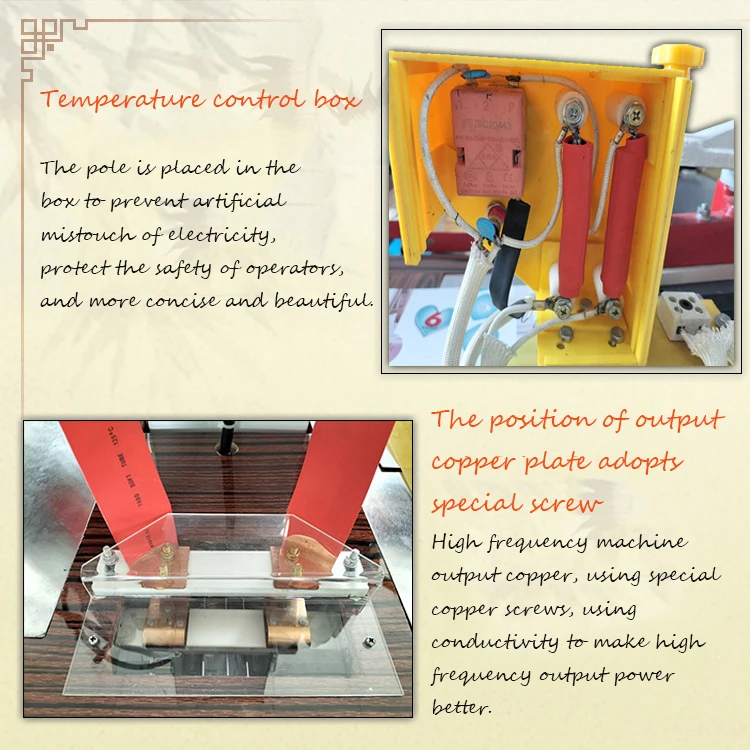

5KW Double Heads HF tarpaulin welding machine Inner Image:
We can offer optional moulds for the PVC high frequency welding machine, pls click to view more.
Recommend Products
Factory Advantage
ZhenJia Machinery Equipment Co.,Ltd
Our factory has specialized in automatic high frequency machine, automatic blister packing machine , ultrasonic welding machine and automation equipment for 19 years.
Our machines exported to the Southeast Asia, the Middle east, Europe, the United states and other countries and regions, won the widely praise from domestic and foreign customers.
We strictly carries out 21 quality inspection procedures for all delivered equipment, and uphold the quality of development, insist to the innovative refinement of the company philosophy to do the industry benchmark. We have high precision molds CNC processing machine and other equipment for customer to produce high frequency molds, ultrasonic molds, blister bakelite molds.
Our cooperation manufacturer include Hisense Group, Big Yangtze River Group, Shenzhen DJ
Innovation company, Foshan Electrical Lighting Company and other well-known enterprise.
Zhenjia has obtained multiterm national patents and own independent “Zhenjia” brand. All the quality of our machines has passed CE certification and ISO9001 certification.
CE and ISO9001 certification
1. Wooden frame packaging is adopted to prevent the machine from being damaged by collision during transportation.
2. Professional stevedore to ensure the safety of the machine.
3. Fast and safe transportation channels to ensure that you can receive your goods on time.
2. Professional stevedore to ensure the safety of the machine.
3. Fast and safe transportation channels to ensure that you can receive your goods on time.
Q1. Why our price is so lower?
A1: we are one factory, we seek for long time cooperation. no just one time. Keep little profit, also we are glad to do business
with every customer.
Q2. How to ensure the cargo quality?
A2: The main control of the machine are using Europe, the United States and Japan imported components, with high stability, all systems are self-developed. All machines hold the CE certification issued by the European Union countries. Machinery exported to Southeast Asia, the Middle East, Europe and the United States, Nepal and other countries and regions.
Q3. The warranty of machine?
A3: All machine will be one year warranty .
Q4. It is the first time that i order this machine , How can i operation it?
A4: Don't worry , We will send you manual , operation video ,calling or E-mail to you This is a simple machine , it is very easy to operation it .
Q5. How can I have a Proforma Invoice or Quotation?
A5: PI and quotation we will send,i send the quotation for you when i quote the price,if you confirmed the order,i will send the PI for you.
Q6. Is this machine need mould ?
A6: Yes, it is. any machine all need to make the molding can work.
A1: we are one factory, we seek for long time cooperation. no just one time. Keep little profit, also we are glad to do business
with every customer.
Q2. How to ensure the cargo quality?
A2: The main control of the machine are using Europe, the United States and Japan imported components, with high stability, all systems are self-developed. All machines hold the CE certification issued by the European Union countries. Machinery exported to Southeast Asia, the Middle East, Europe and the United States, Nepal and other countries and regions.
Q3. The warranty of machine?
A3: All machine will be one year warranty .
Q4. It is the first time that i order this machine , How can i operation it?
A4: Don't worry , We will send you manual , operation video ,calling or E-mail to you This is a simple machine , it is very easy to operation it .
Q5. How can I have a Proforma Invoice or Quotation?
A5: PI and quotation we will send,i send the quotation for you when i quote the price,if you confirmed the order,i will send the PI for you.
Q6. Is this machine need mould ?
A6: Yes, it is. any machine all need to make the molding can work.
