0.1 0.22 Micron Absolute Rating PES Folding Filter Cartridge For Wine And Beer
- Category: >>>
- Supplier: Shantou Yalida Filtration Equipment Co. Ltd.
Share on (1600616349502):
Product Overview
Description
Details Images

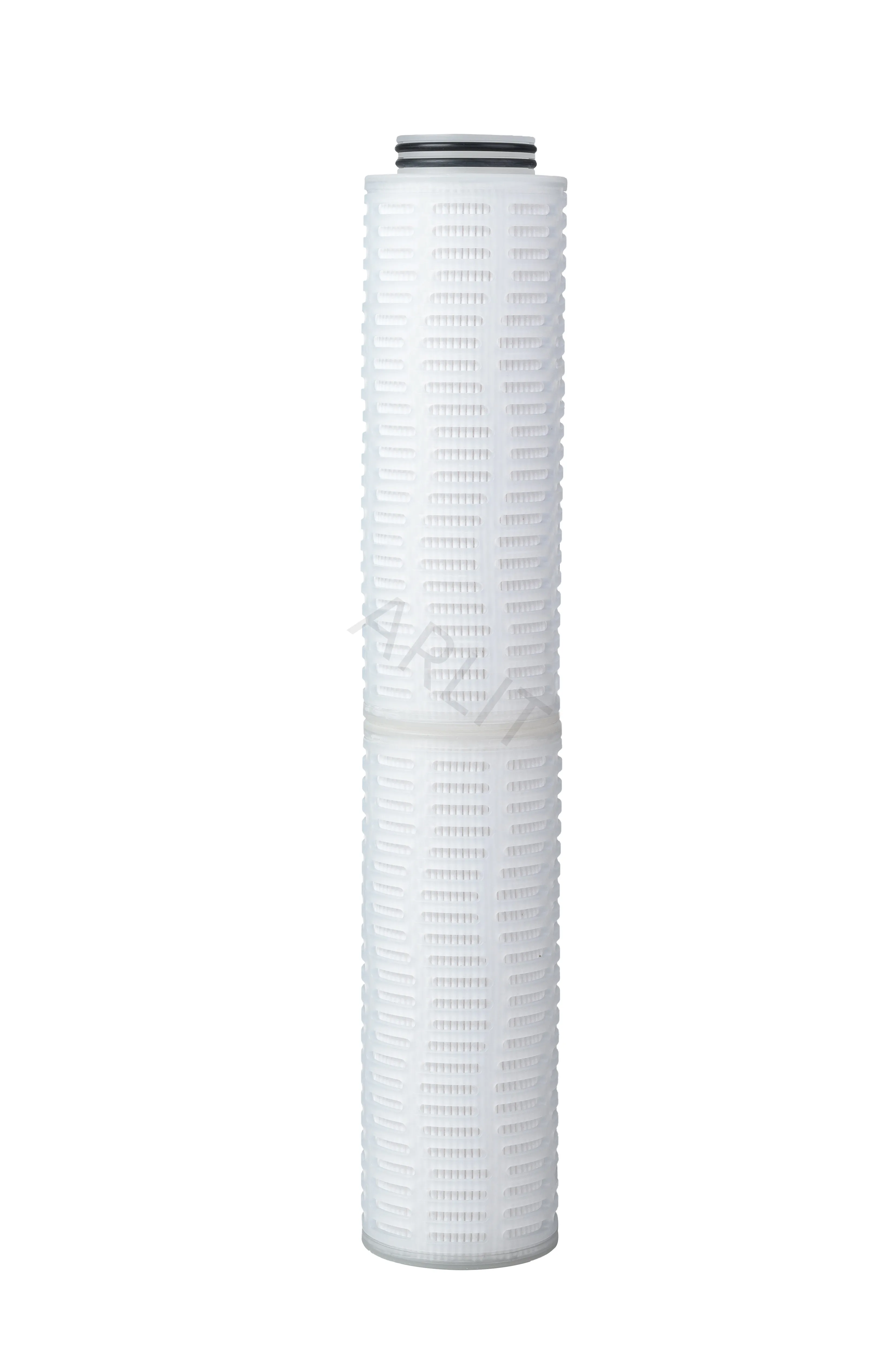

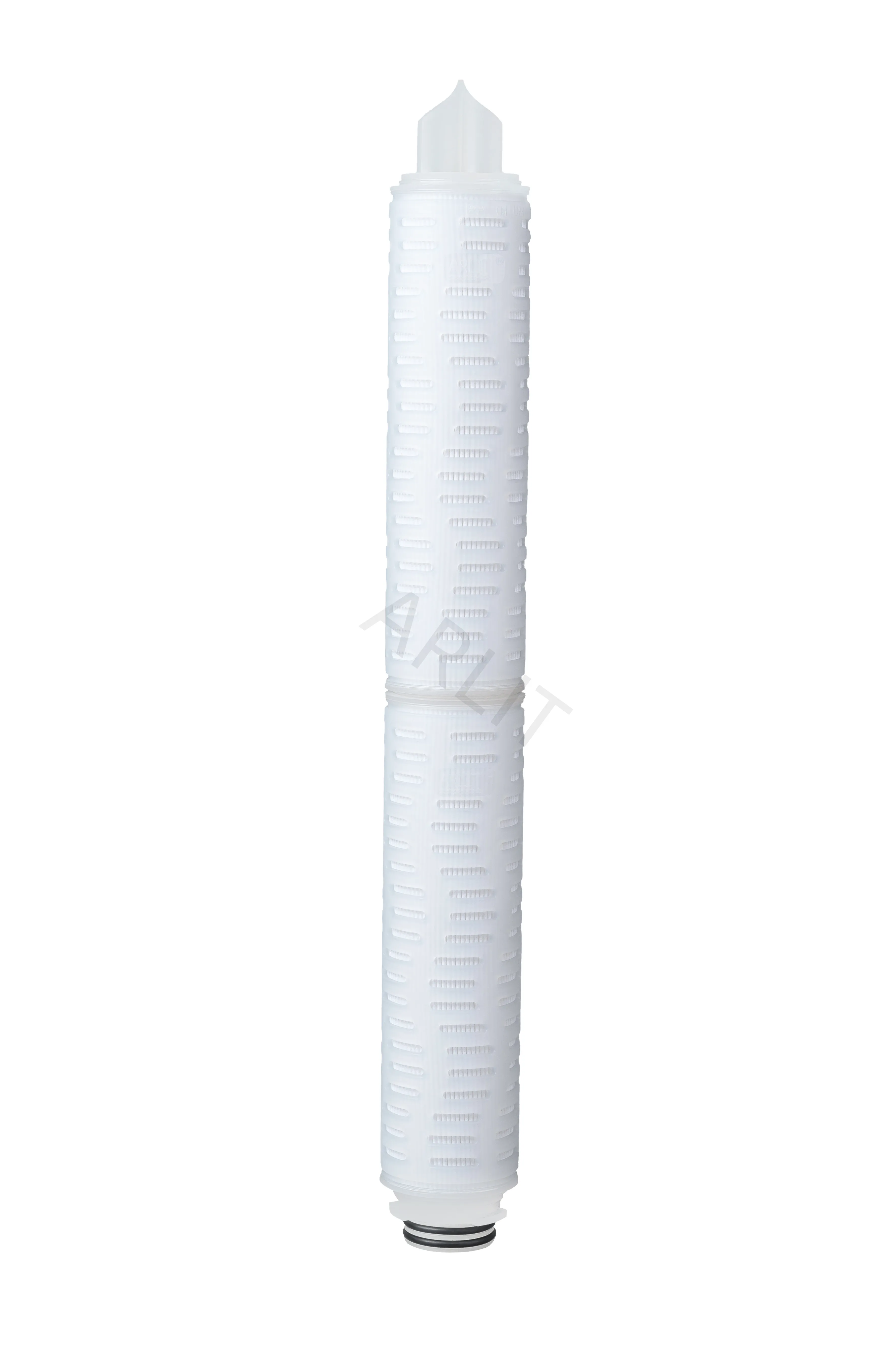

0.1 0.22 Micron Absolute Rating PES Folding Filter Cartridge For Wine And Beer
Production Introduction

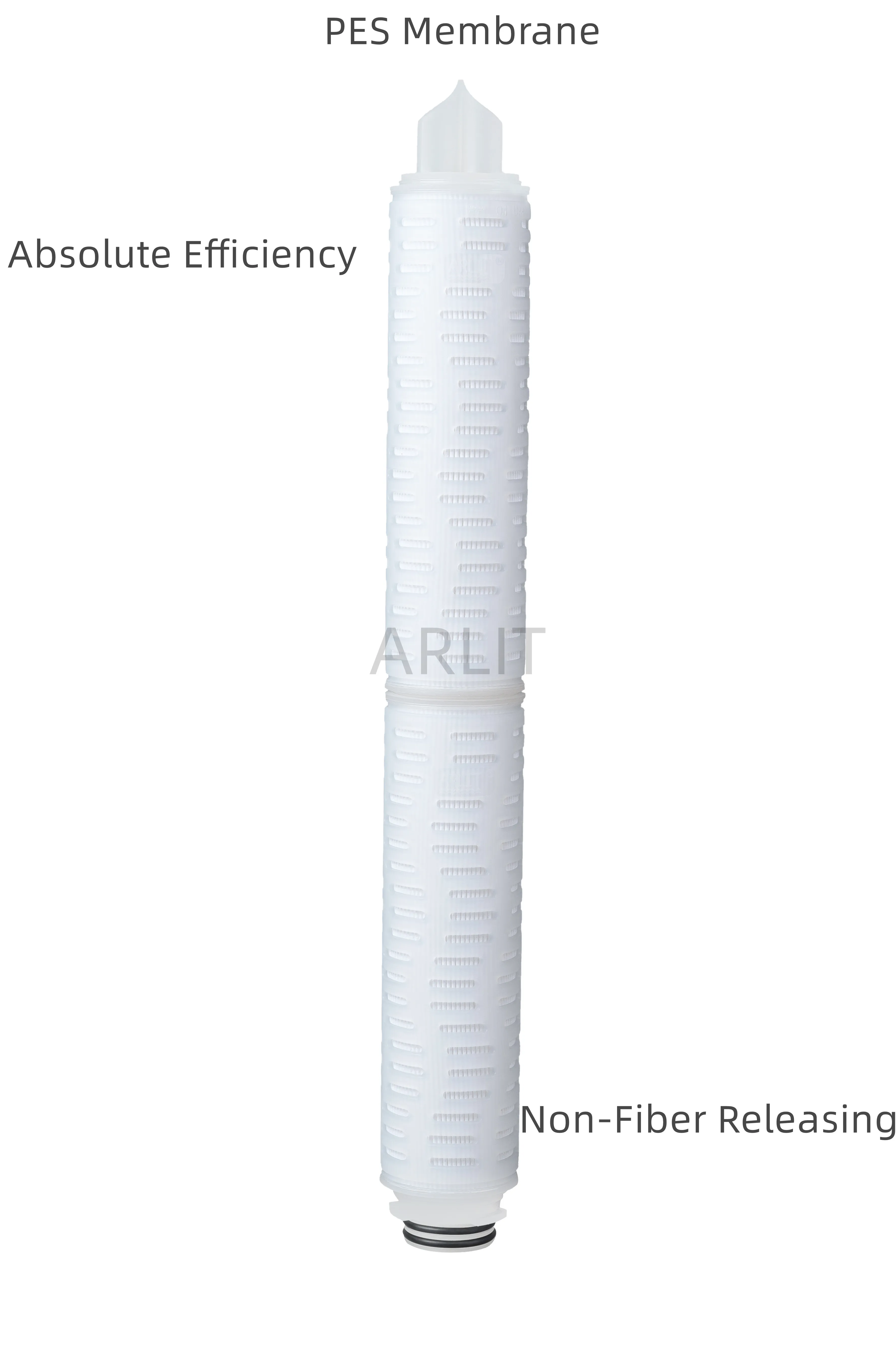

The filtration media of PES micropore filter cartridge is import hydrophily polyethersulfone (PES) membrane.

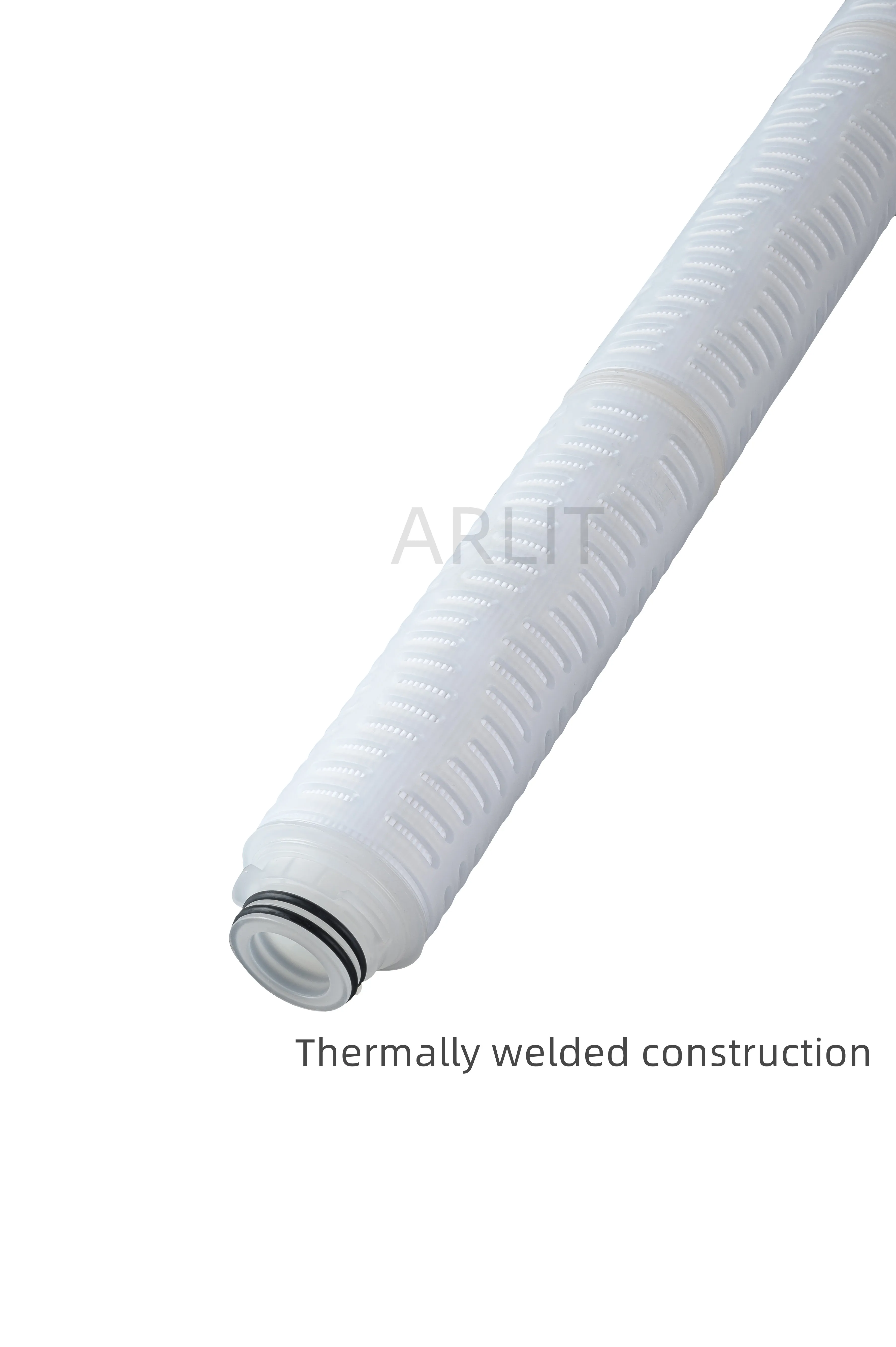

The adaptors are thermally welded with media, so it is no possibility to cause pollution.
It is constructed of two materials PES and PP to meet high standards of chemical and pharmaceutical industry.
Benefits
Unique hydrophily, no including surfactant and lubricant
High level of filtration pore size and flow rate
Achieve to 99.99% retention rate of bacterium
Wide range of PH values and lower adsorbance of protein and valuable biologicals
The filtration media of PES micropore filter cartridge is import hydrophily polyethersulfone (PES) membrane.
The adaptors are thermally welded with media, so it is no possibility to cause pollution.
It is constructed of two materials PES and PP to meet high standards of chemical and pharmaceutical industry.
Benefits
Unique hydrophily, no including surfactant and lubricant
High level of filtration pore size and flow rate
Achieve to 99.99% retention rate of bacterium
Wide range of PH values and lower adsorbance of protein and valuable biologicals
Specification
Filter medium | PES Fibre Membrane |
Support layer | Polypropylene (PP) |
Filter cage | Polypropylene (PP) |
Pore size | 0.1,0.2,0.45,0.65,1µm |
Length | 5/10/20/30/40 inches |
OD/ID | 68±1mm |
Gasket / O - rings | Silicone, NBR, EPDM, Viton |
Interface | DOE,215,222,226flat/fins |
End caps | DOE,0050,0050A,0050B |
Sealing method | thermal bonding technique |
Effective filtration area | 0.6 m2/10" |
Max. operating temperature | 140℃, 0.28 Mpa |
Max. forwarder differential pressure | 0.42 Mpa (25℃) |
Max. reverse differential pressure | 0.21 Mpa (25℃) |
Sterilizing temperature | 121℃ 30min |
Others | special requirement of diameter and end caps can be customized. |
Typical Applications
Pharmacy industry:final filtration of injecta, eye drops, non-high temperature sterilization products, biologicals, vaccine, serum
Food industry: wines, mineral water, drinking water, beverage
Electronic industry: final filtration of high purity water and chemical raw materials
Pure water flow rate reference table: the initial value of 10" cartridge L/min (△P=0.01MPa, 1cP, 25℃)
Micro rating (μm) | 0.1 | 0.2 | 0.45 | 0.65 | 1 |
Flow rate (L/min) | 11 | 21 | 27 | 33 | 40 |
Our services
1.We are a manufacture,can offer competitive prices.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
2.ARLIT branded series of filter cartridge and filter bag been widely applied in industries of medicine,bacterin,electronics,chemistry,electroplate,petroleum,foods,brewage,drinking water,environmental protection and water treatment.
3.We have monthly production volum,with large output capacity,we can promise short delivery time.
4.We have entire seal asepsis production workshop,manual production and automatic production can promise all products are inspected 100% inspected before shipment.
5.We have large inventories for common items which also contribute to shorten delivery time.
Company Profile
Shantou Yalida Filtration Equipment Co.,Ltd. was established in 2005, which specialized in liquid and air filtration equipment manufacturer.Our company has introduced the advanced production equipments, quality control instruments and manufacture technology for micropore filter cartridge since it was found.
