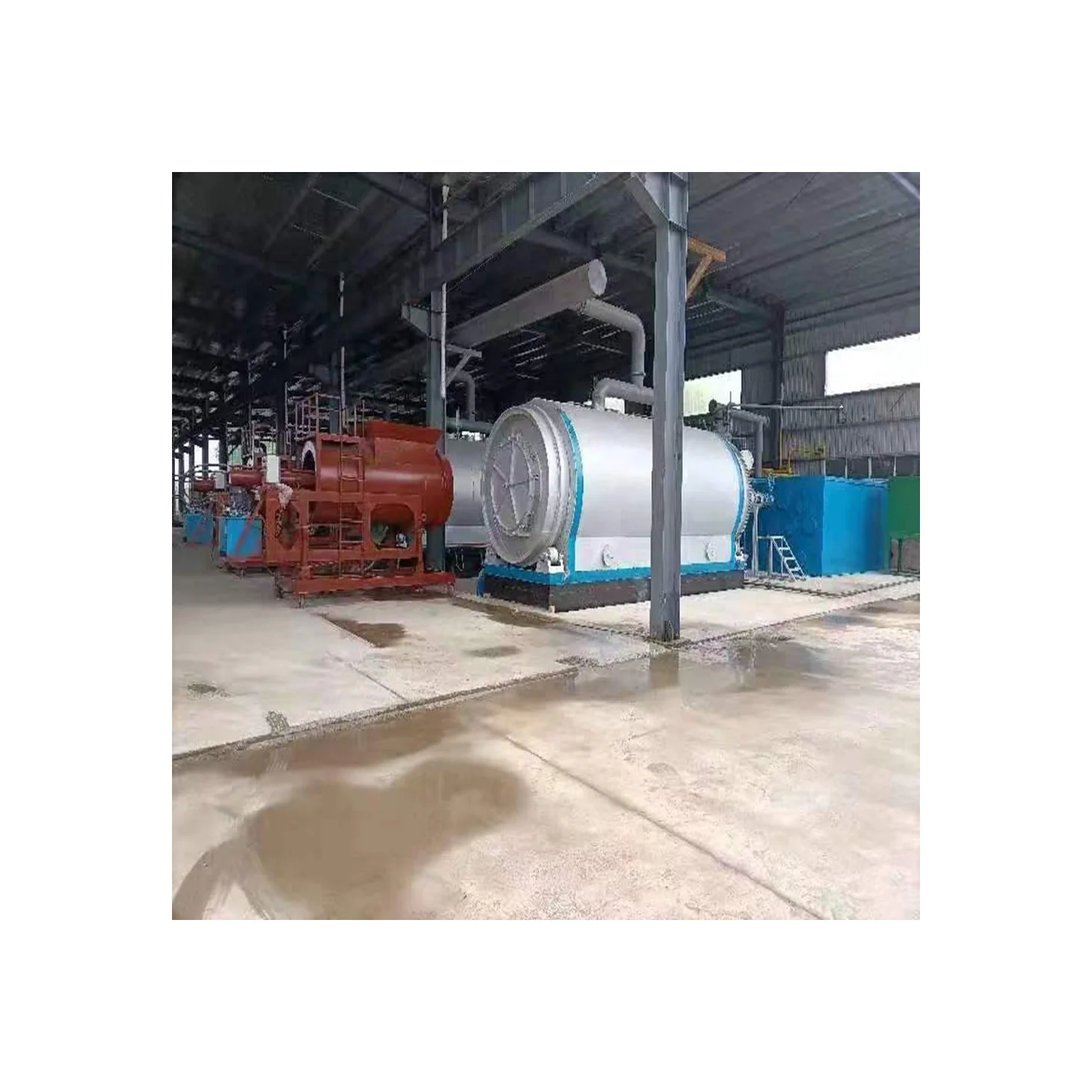

Turnkey project fully continuous tyre scrap pyrolysis plant and recycling plastic to fuel oil machine for sale
- Category: >>>
- Supplier: Shangqiu Yueda Environmental Technology Ltd.
Share on (1600616356740):
Product Overview
Description
Product Description
Turnkey project fully continuous tyre scrap pyrolysis plant and recycling plastic to fuel oil machine for sale
Shangqiu Yueda Environmental Protection Technology has been commited to the research of waste tire and plastic pyrolysis and waste oil distillation/refinery technology from the begining of its establishment ,pyrolysis occurs in the reactor at high temperature of 550~800 and decompose into pyrolysis oil which is used as fuel in ceramic factory ,glass factory ,power factory ,steel factoy ,boiler factory ,to realize the recycling of waste resources .
| CAPACITY | 15TPD |
| Reactor materials | Q345R.Alloy Steel , Stainless Steel |
| Reactor Thickness | 20mm |
| Total weight | 39ton(Varies by design and capacity) |
| Working power | 15-30KW (Varies by design and capacity) |
| Labor QTY | 2-3person for per set machine (More machine fewer labors) |
| processing time | feeding 1.5hour,process 9hours, cooling 4hours ,carbon black and steel wire discharge 2hours (take 15TPD capacity as example ) |
| heating fuel | pyrolysis oil ,natural gas electricity coal,firewood ect |

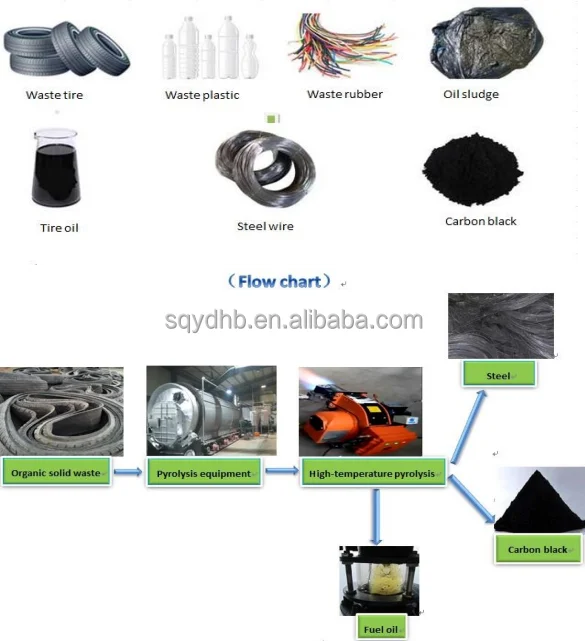

| ITEMS | OUTPUT | USAGE | |||
| Fuel oil | 40%-45% |
| |||
Carbon Black | 35% | Crude carbon black can be used for construction bricks | |||
Steel Wire | 15% | can be sold directly | |||
syngas | 6% | recycle as fuel through gas burner system (we supply gas burner for free of charge) |

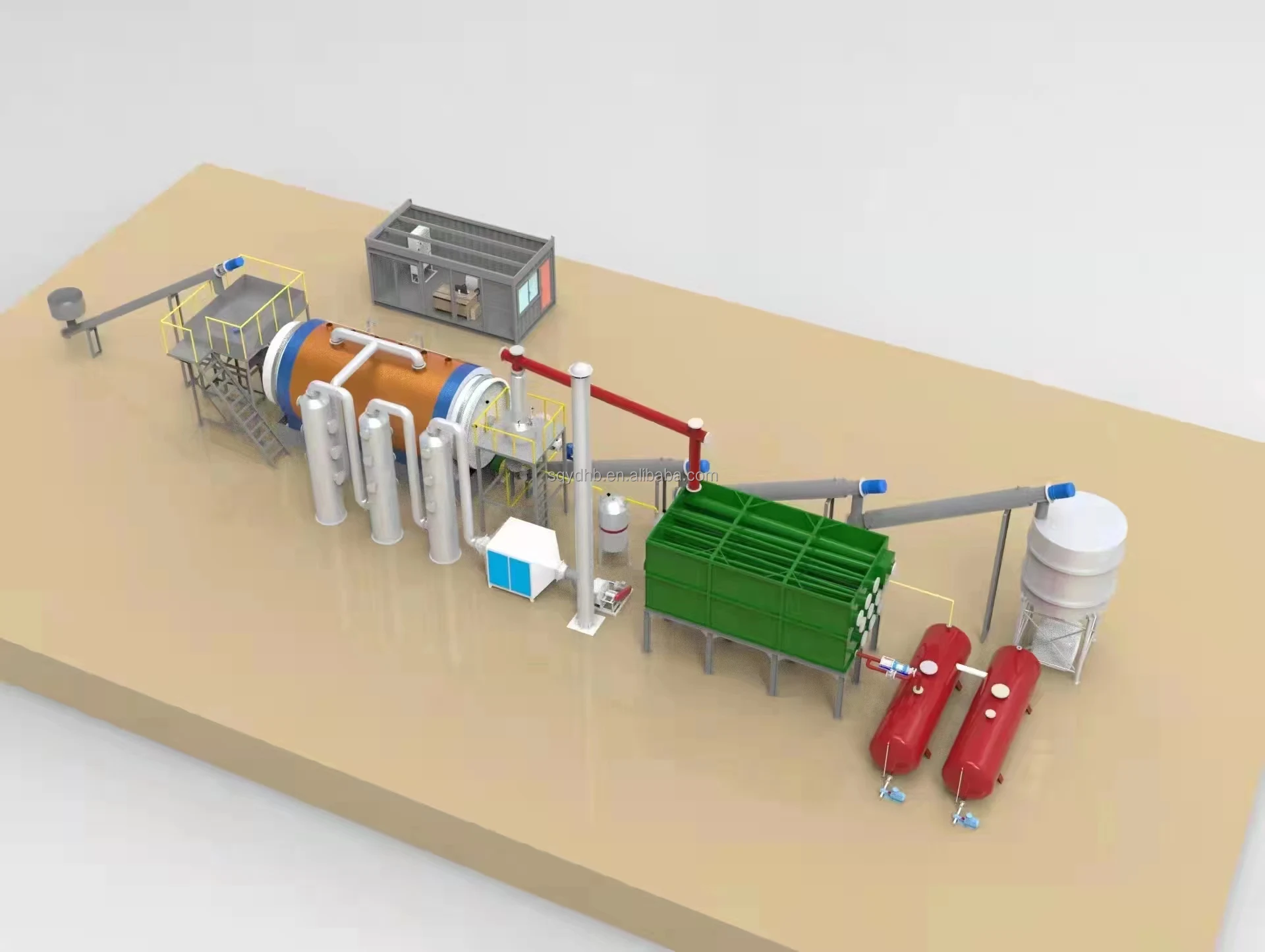

Choices of waste pyrolysis plant
MODLE 1:ECONOMIC TYPE PYROLYSIS PLANT
Capacity :5TPD .10TPD ,12TPD 15TPD PER BATCH
Features:Horizontal condenser &cost saving
Modle 2:Quicker installation pyrolysis plant
Capacity :5TPD 8TPD 10TPD 12TPD 15TPD
Features:High emmission control &square box condenser&Modular design
Modle 3.Quicker installation pyrolsis plant
Capacity 1ton ,2ton ,4ton
Feature :Installation free,Lower Shipping cost ,Squre box condenser
Specification For Waste recycling pyrolysis machine
| CAPACITY | 1Tpd~20TPD |
| Reactor materials | Q345R.Alloy Steel , Stainless Steel .Q245R |
| Avaliable input raw materials | waste tire ,waste plastic ,PP,PE,PS,ABS ,PMMA/acrylic scrap ,aluminium scrap,oil sludge ,drilling mud |
| Reactor Thickness | 20mm |
| Total weight | 39ton(Varies by design and capacity) |
| Working power | 15-30KW (Varies by design and capacity) |
| Labor QTY | 2-3person for per set machine (More machine fewer labors) |
| processing time | feeding 1.5hour,process 9hours, cooling 4hours ,carbon black and steel wire discharge 2hours (take 15TPD capacity as example ) |
| heating fuel | pyrolysis oil ,natural gas electricity coal,firewood ect |
Our advantage
1. Pyrolysis reactor
The pyrolysis reactor is manufacturer with good materials of Q345boiler plate ,which is external from the heating area to bring perfet roating balance and long service life

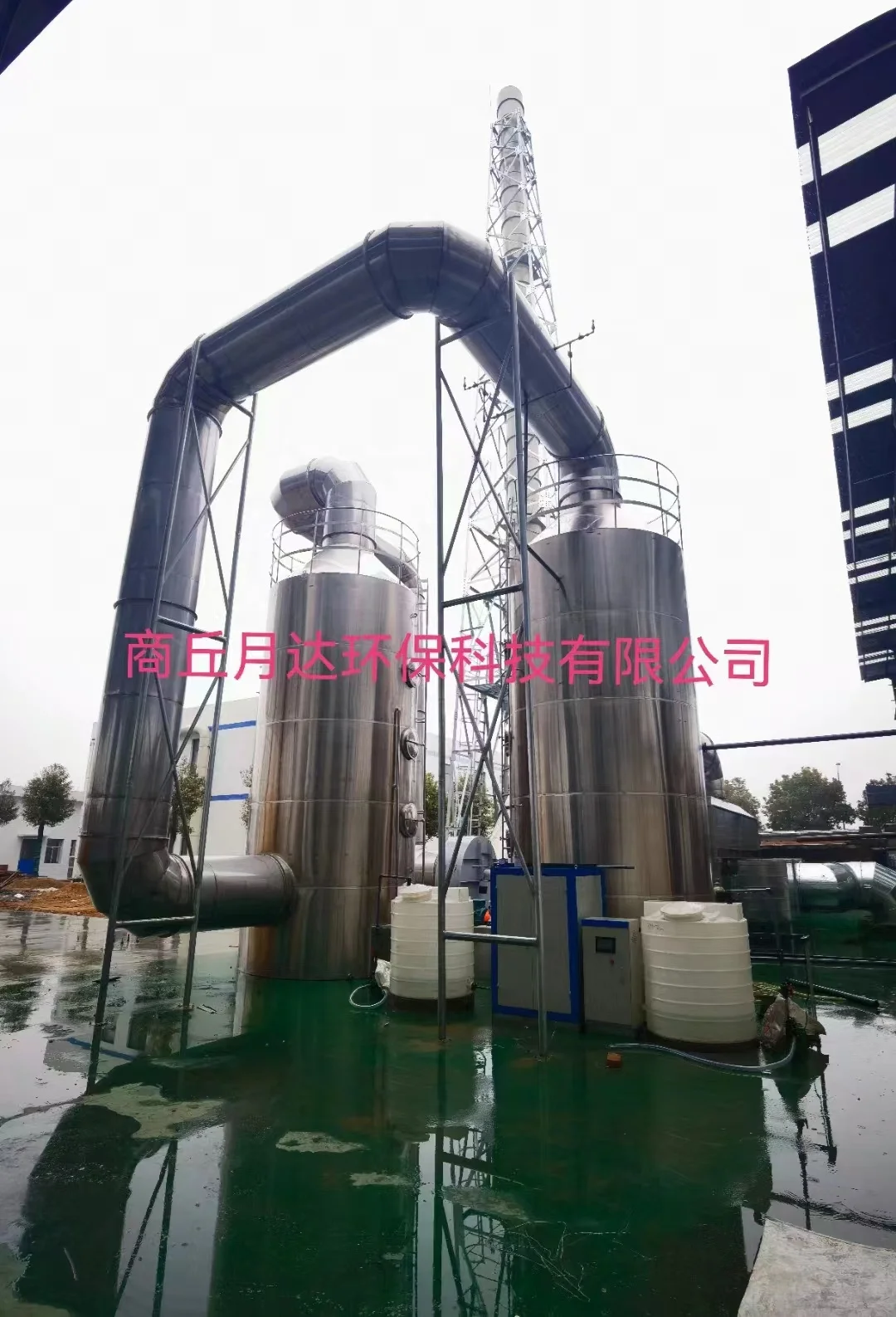

2.Dedusting system :
The stainless steel deduster is filled with ceramic filters inside which bring it strong dust adsorption,capacity and good dust control effect ,stainless steel materials provide long life span .

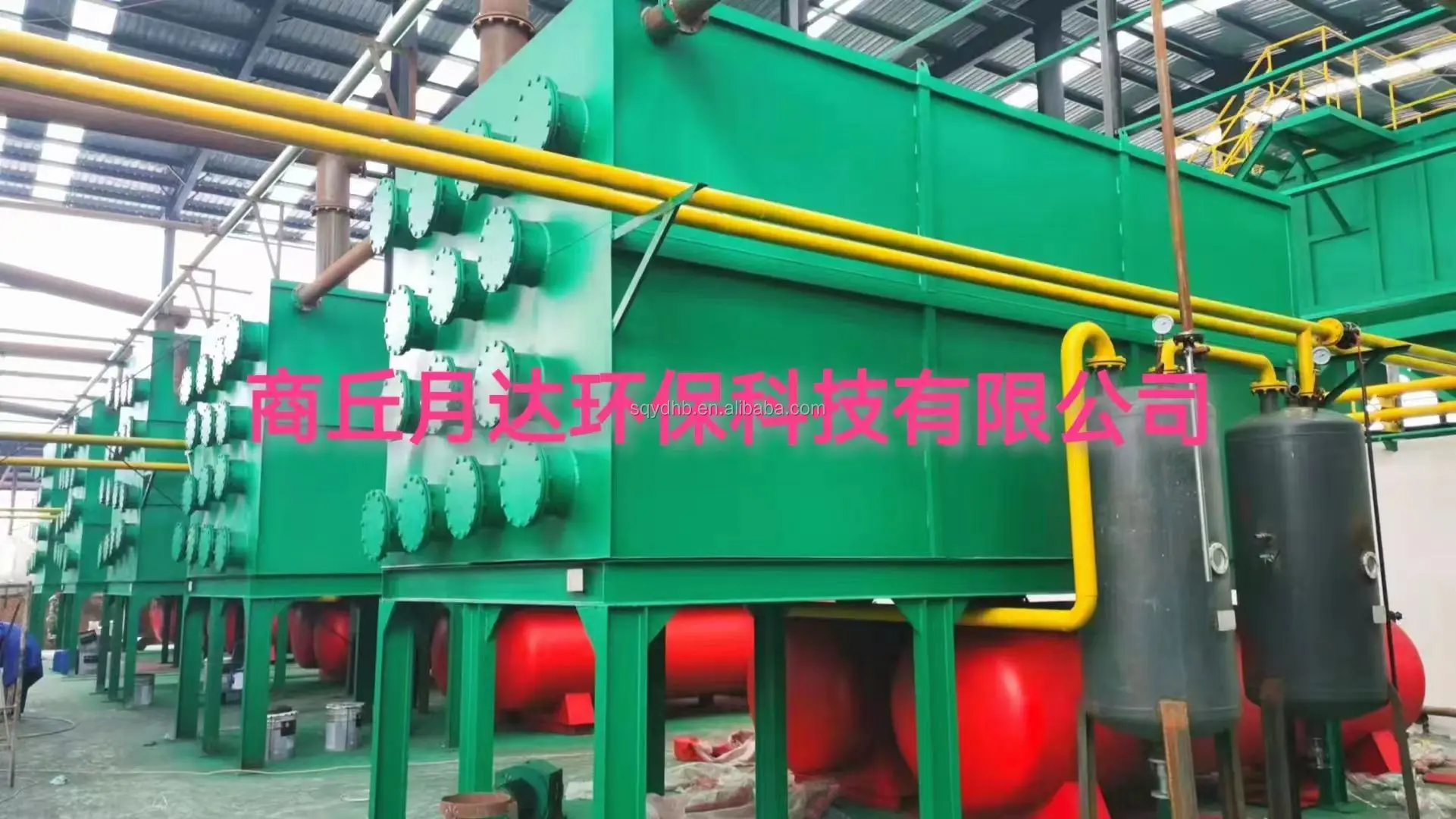

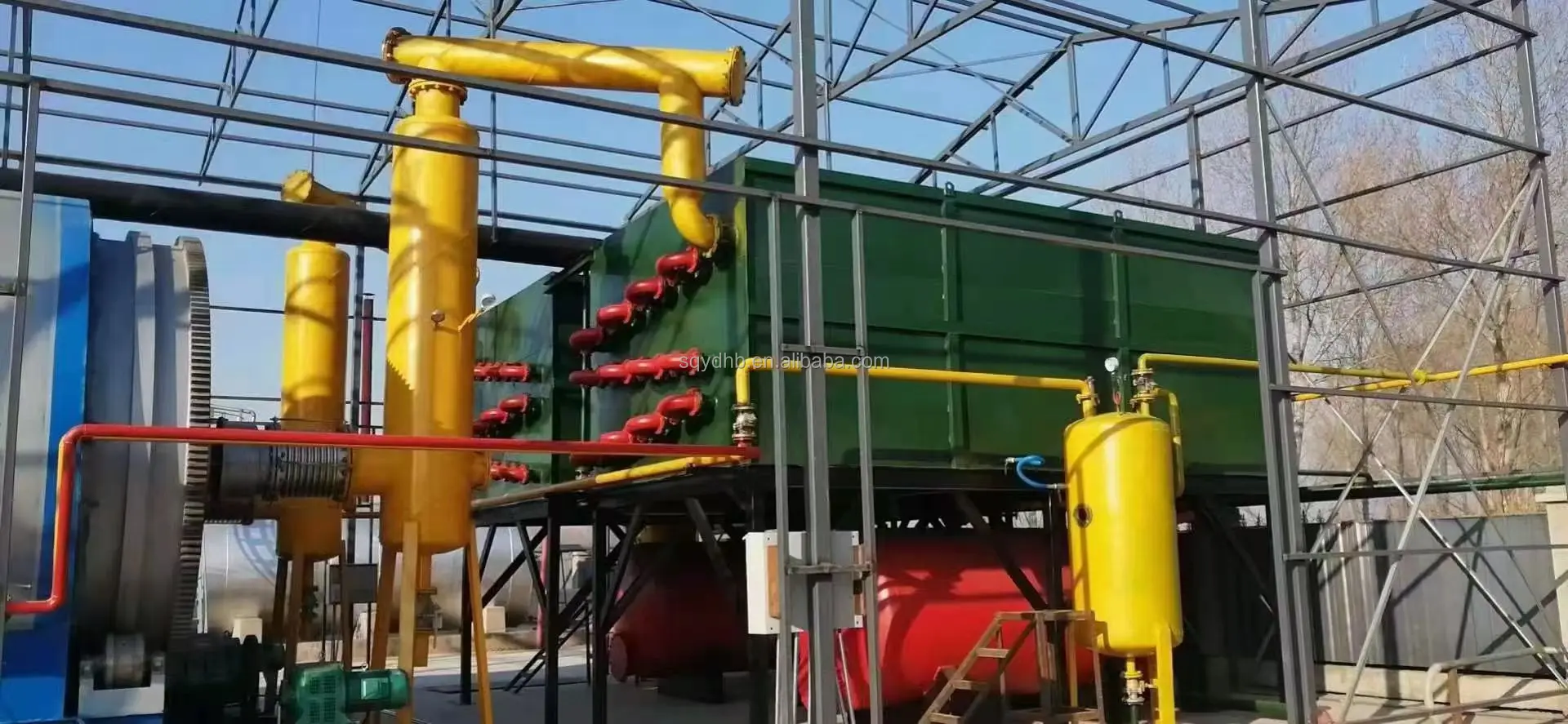

3.High efficiency condensing system
Squre box condenser offers a long condensing distance of 120 meters in total ,the diameter of condensing pipe not only bring large heat exchange area,but also make maintenance easier .
Why Choose US
Trustworthy Company-Shanqiu YUEDA
| 1 | 18Years Manufacturer ExPerience |
| 2 | Constant Updating in each detailed parts |
| 3 | Lifetime responsible for machine running and maintenance |
| 4 | Trustworthy service installation quality and after-sale service ,Free installation training and Debugging , |
| 5 | 2Year Warranty for whole set machine |
| 6 | Reactor lifetime warranty to be more than 5years |
| 7 | Discharging time require only 2hours fully sealed to ensure environmental process |
| 8 | Running machine can be visited before confirming cooperation |
About us
| Company name | Shangqiu Yueda Environmental Protection Technology Co.,LTD |
| Covering Area | 100000m² |
| Certification | ISO ,CE,SGS ,SASO |
| Main production | Waste tyre /Plastic /ACRLIC/Oil sludge ect....Pyrolysis machine . USED Engine oil /pyrolysis oil/Crude oil other waste oil distillation machine |
| Engineer Service | 6R&D Engineer .20 Techincians |
| International market | 15%Europe ,17%Southeast Asia ,50%Chinese Mainland ,7%Africa.9%Middle east,10%Central Asia |

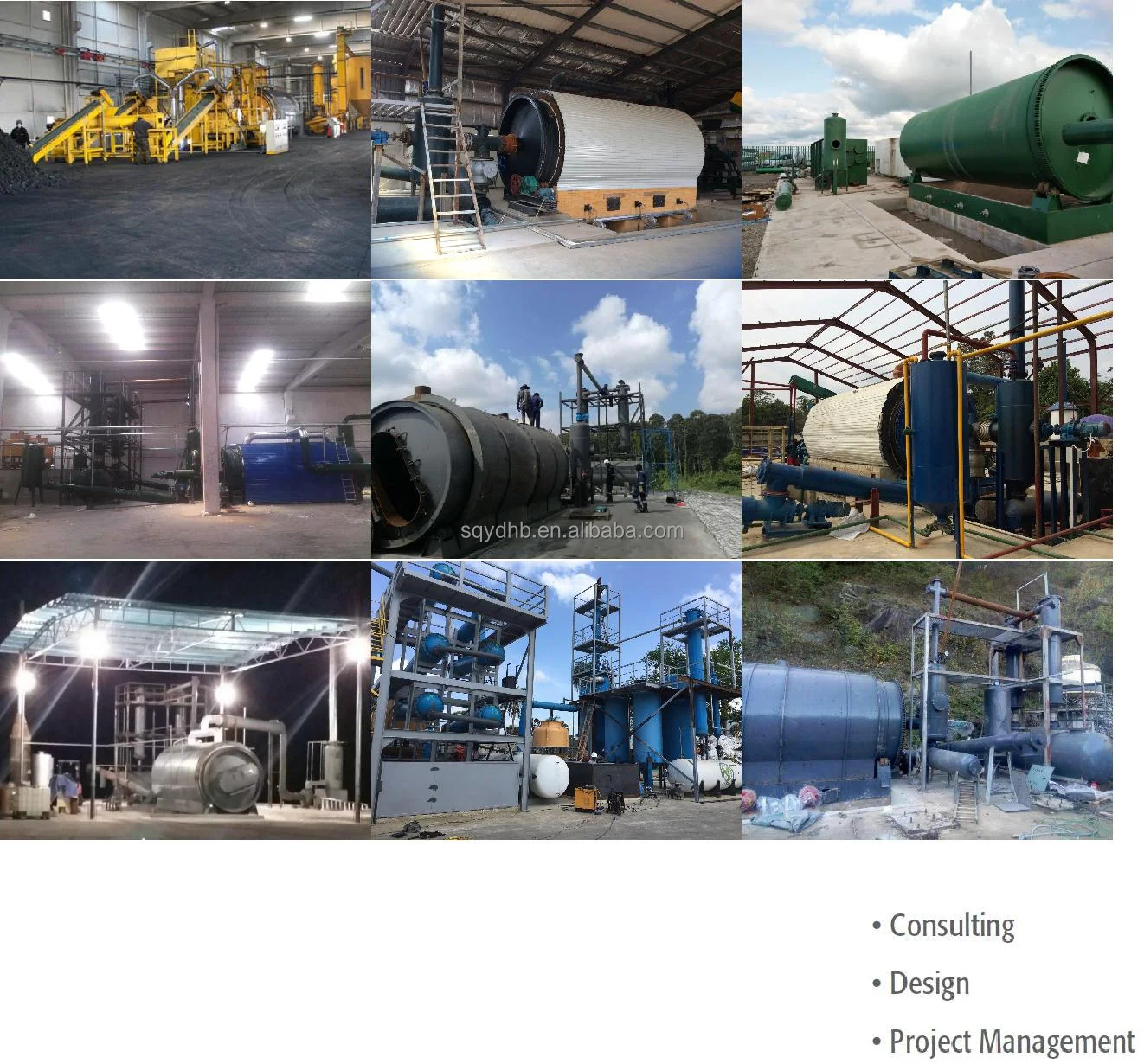

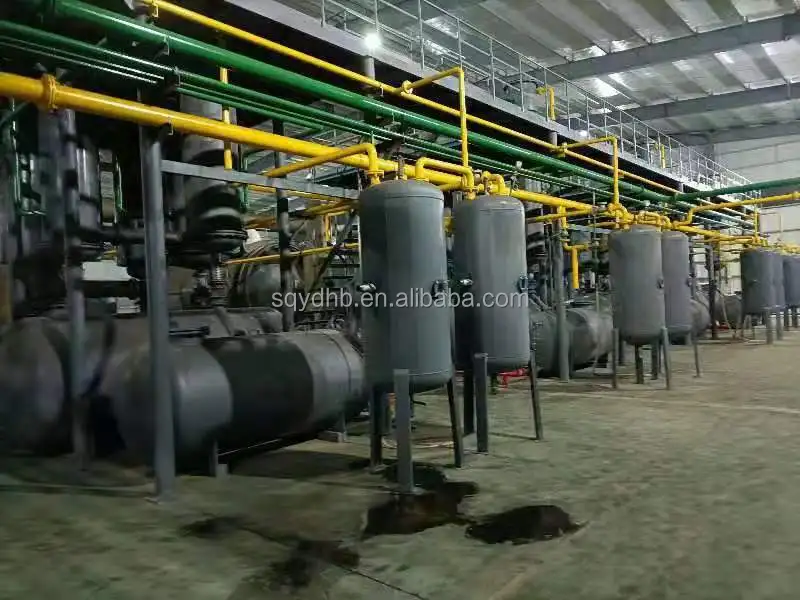

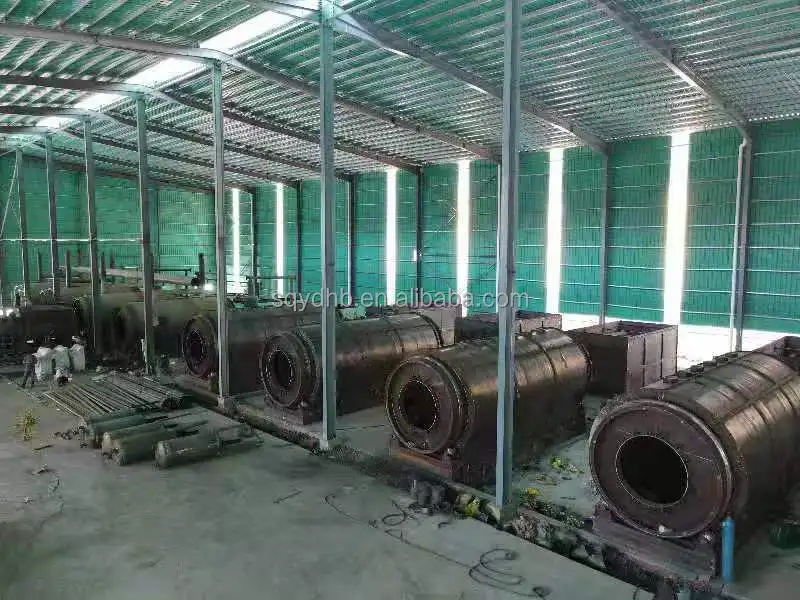

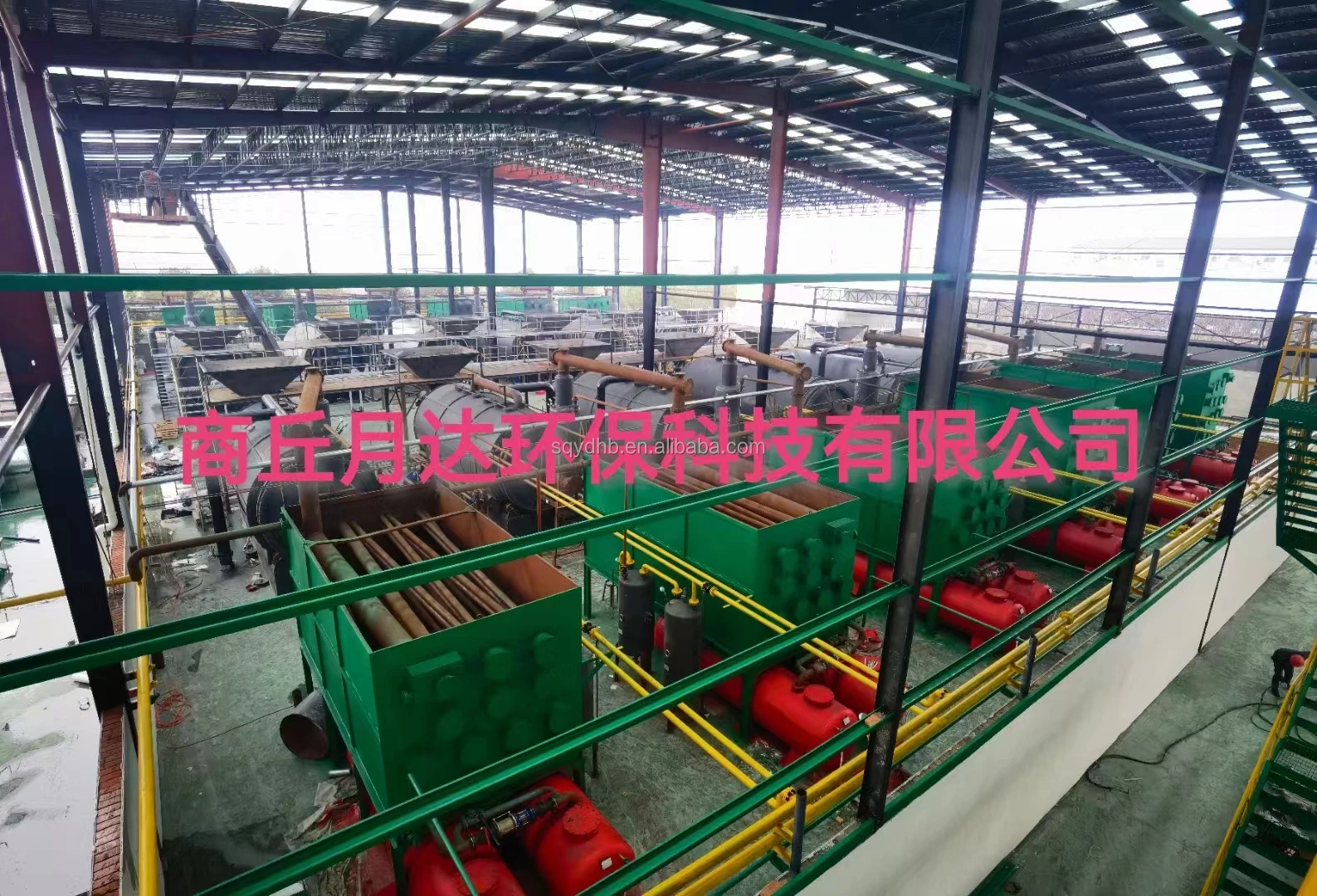

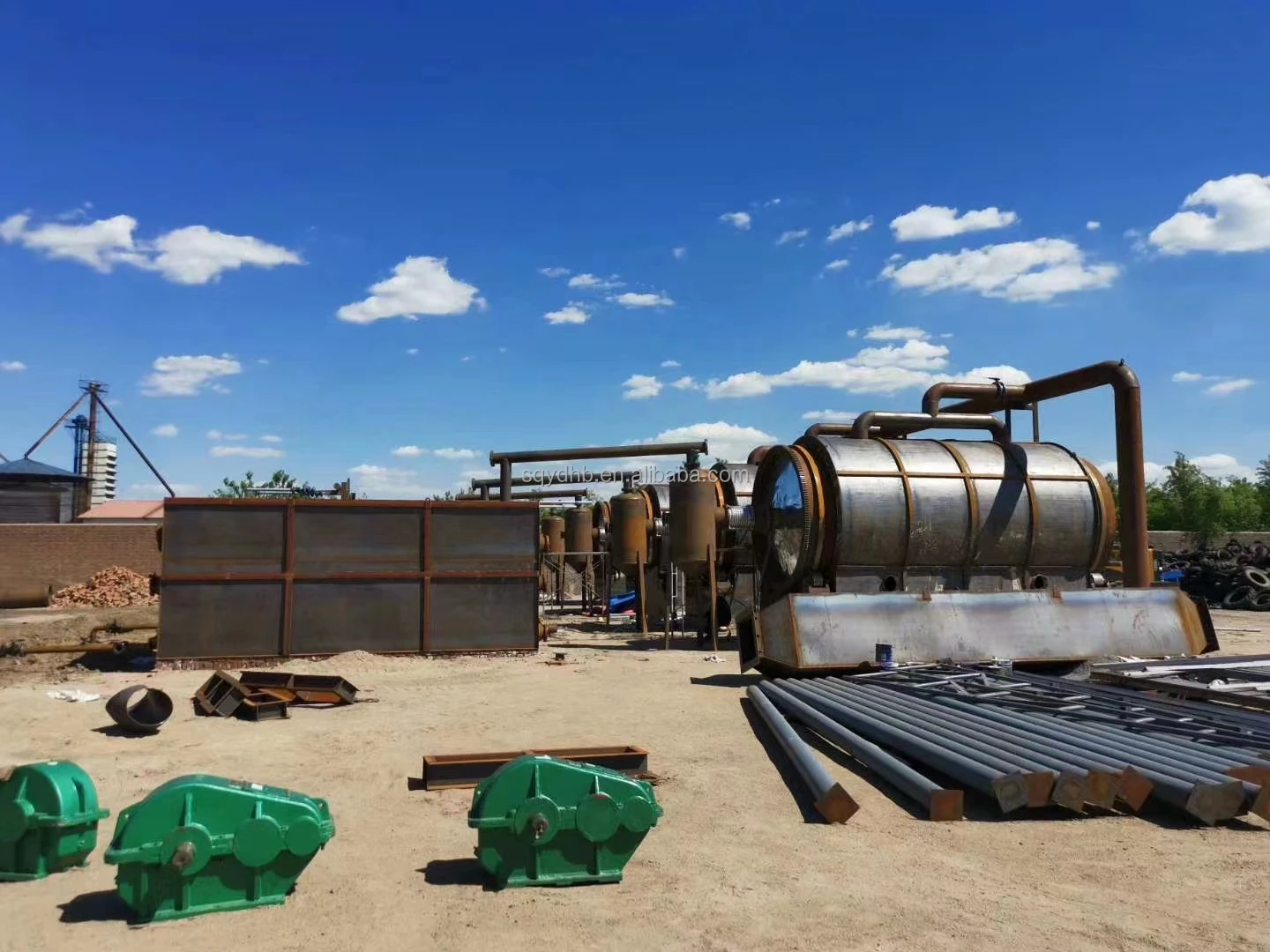

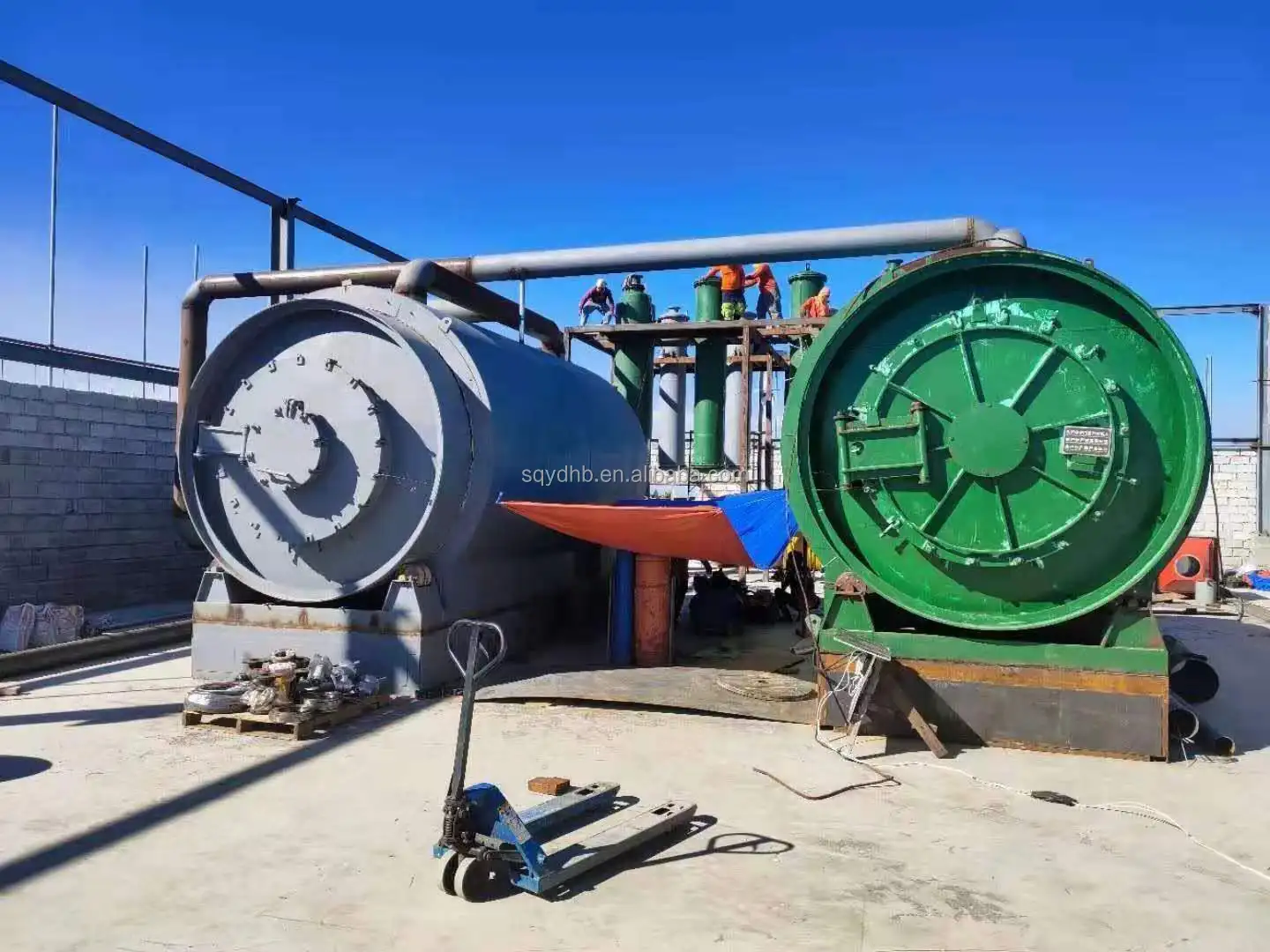

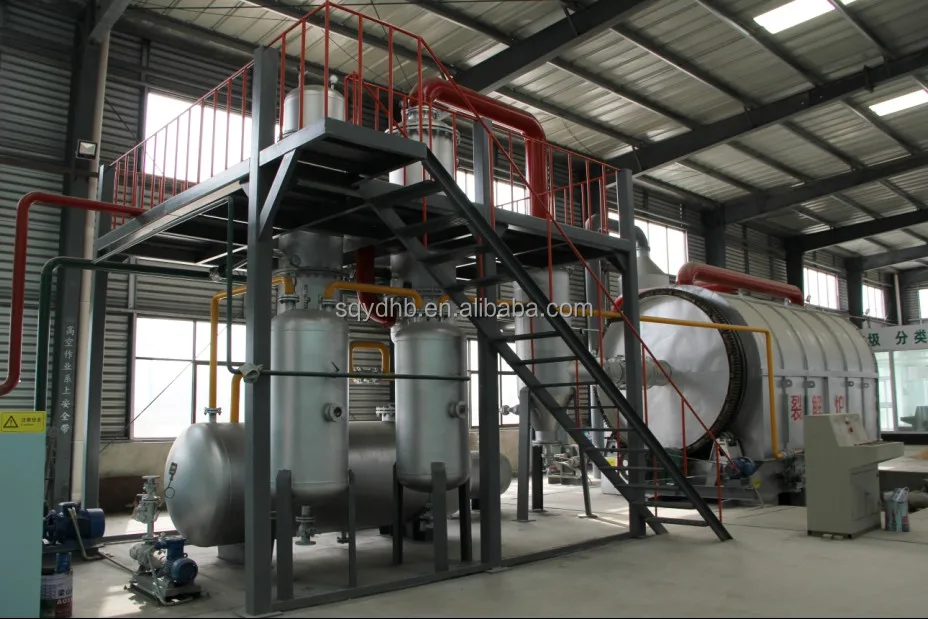

Our success case

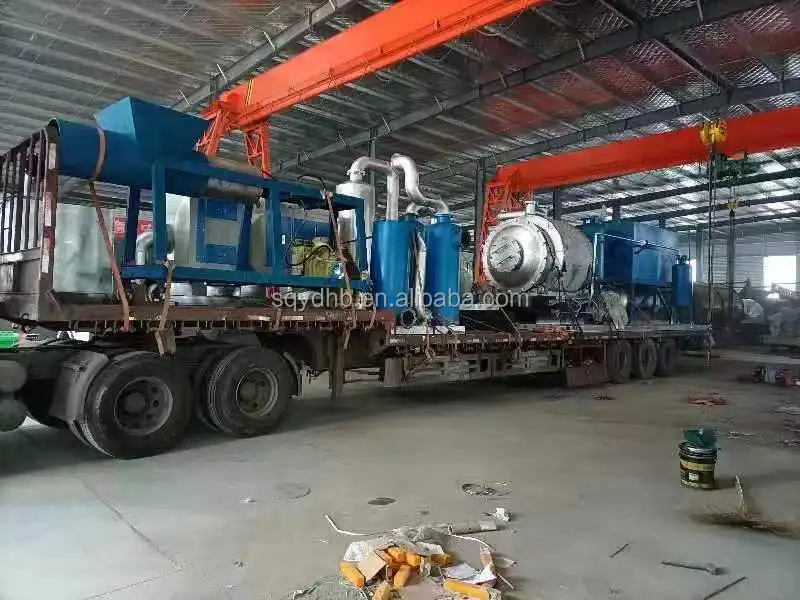

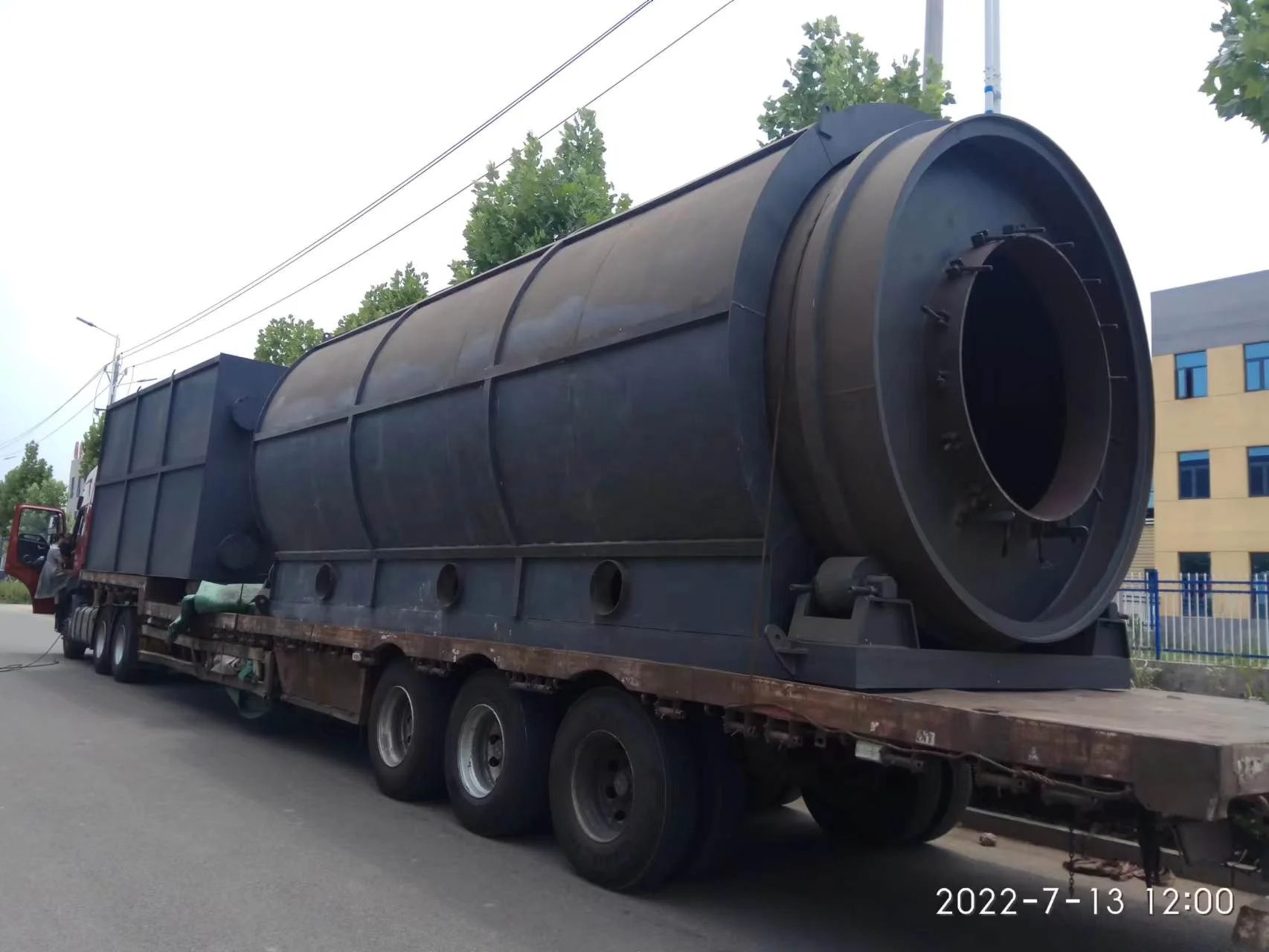

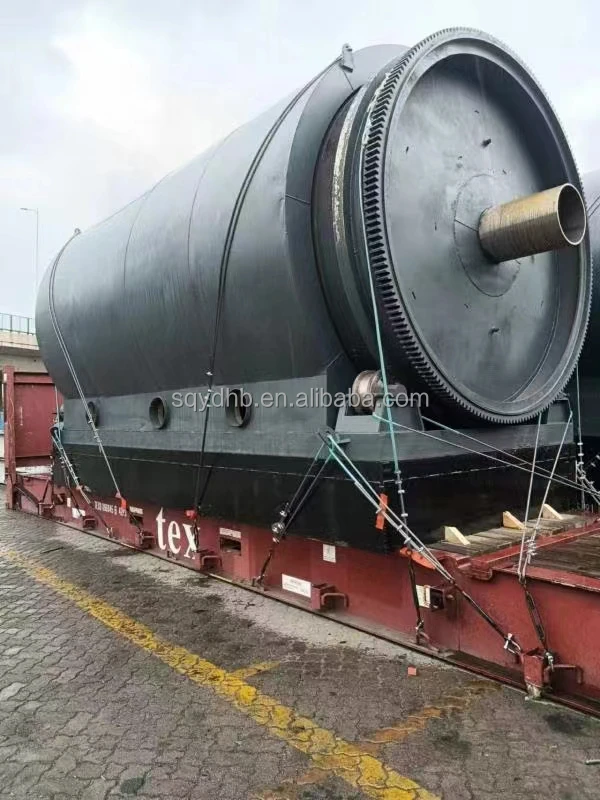

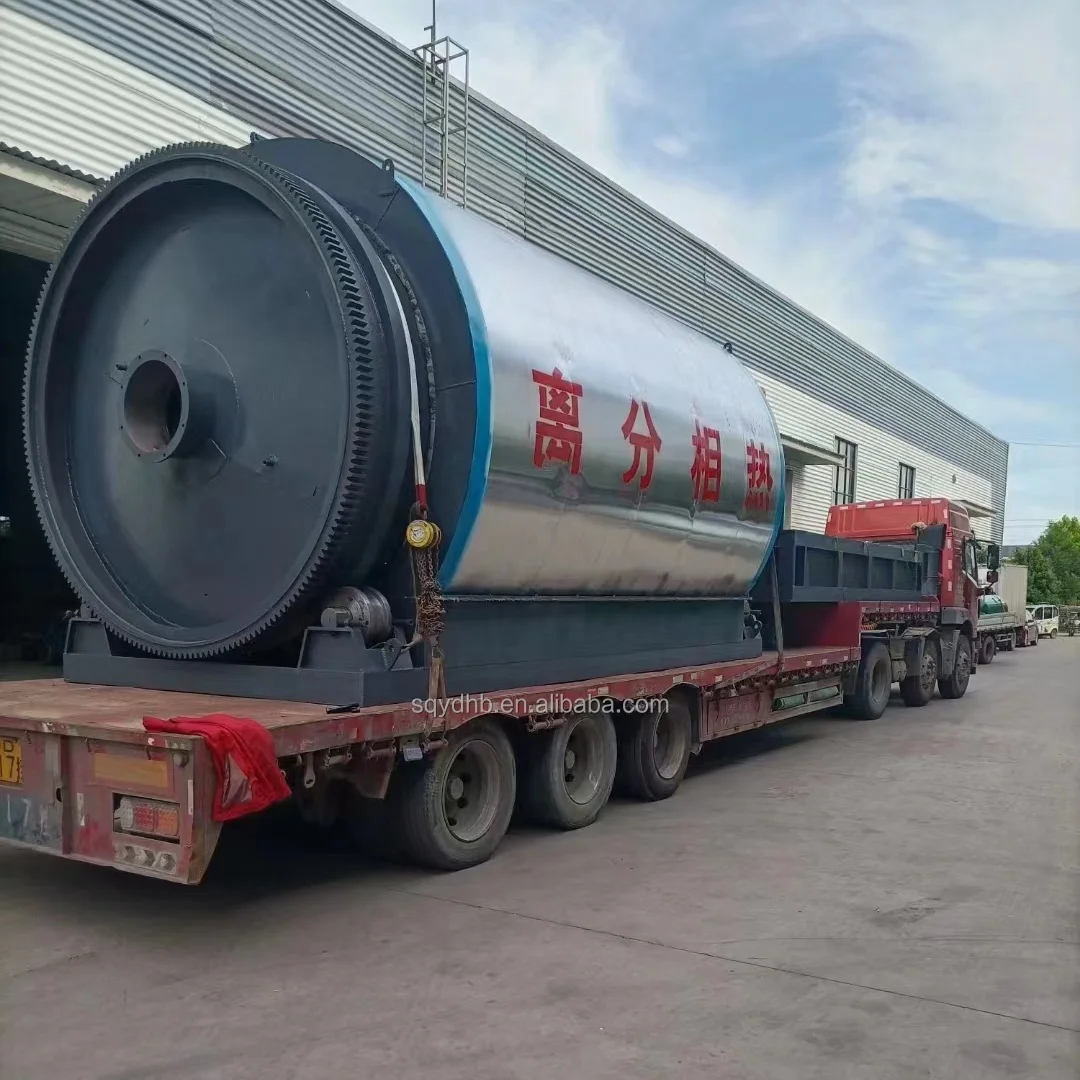

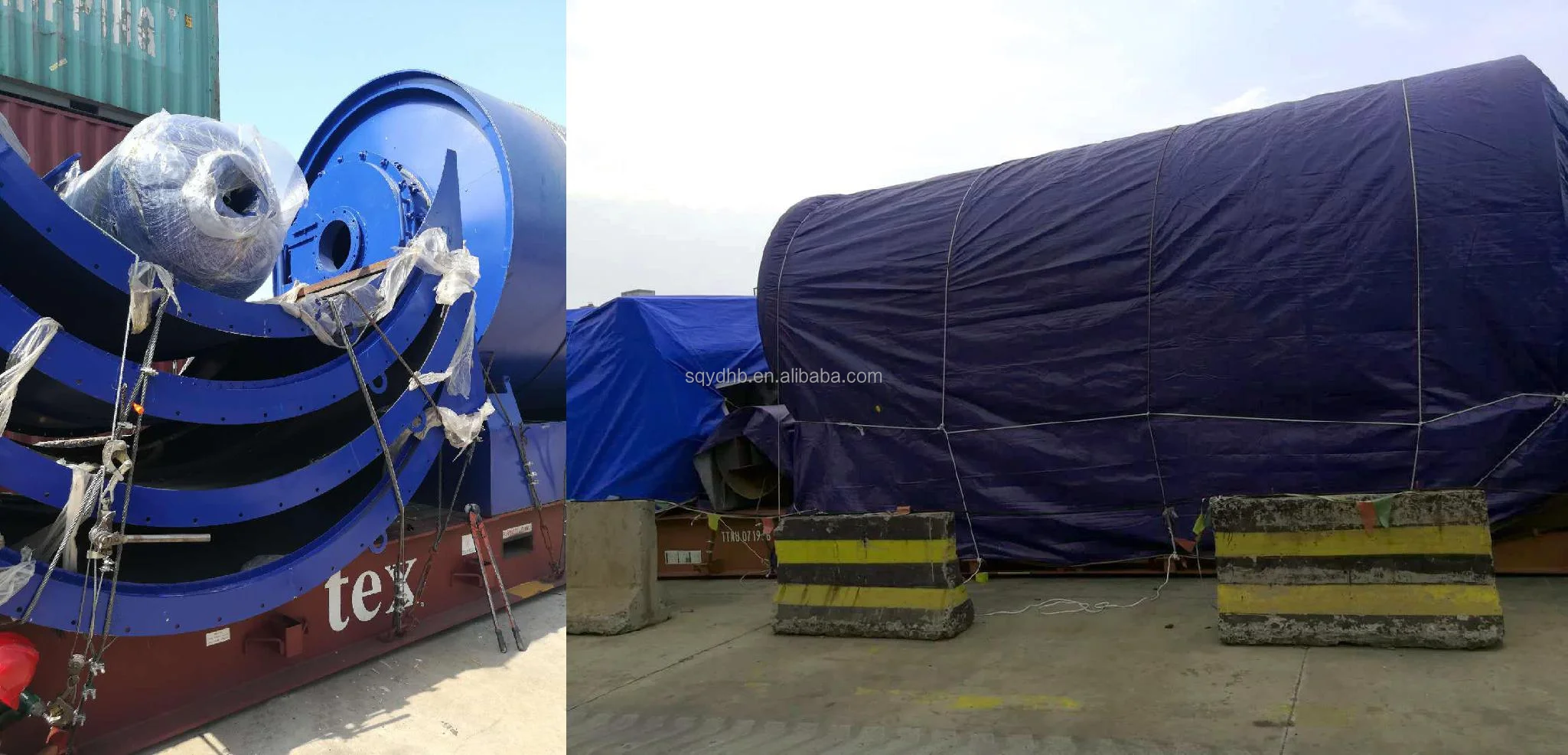

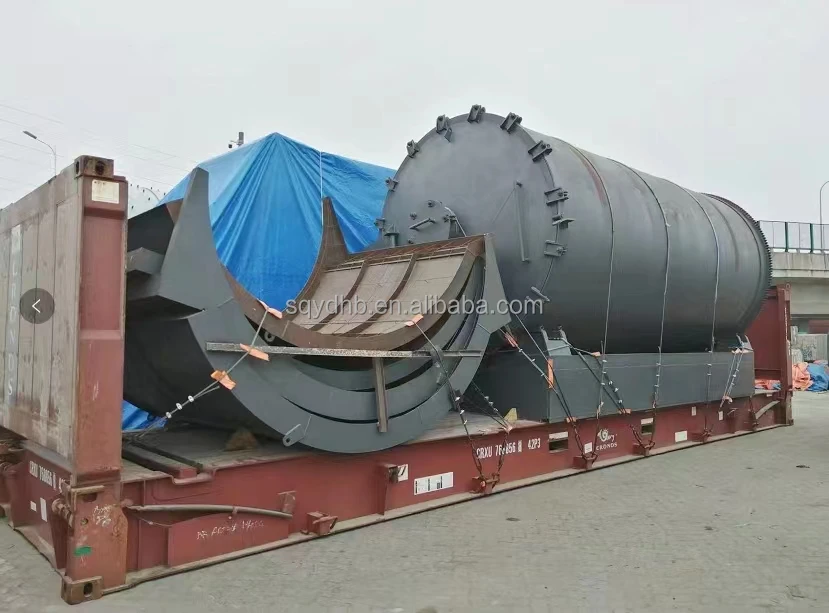

Packaging & Shipping
FAQ
1.
Q: What's The Raw Material Can be processed?
A: Waste Tyre, Used rubber, Waste plastic, OIl sludge, Crude heavy oil
2.
Q:What's the Output after pyrolysis ?
A: Fuel oil , Carbon black, waste gas
3.
Q: What's the daily processing time ?
A: 7-16Hours for pyrolysis time with different processing capacity
4.
Q: Is there any installed machine can be visited ?
A: There are many sets of installed pyrolysis plant in China and there are 2 sets plant nearby our factory. Most welcome to visit
