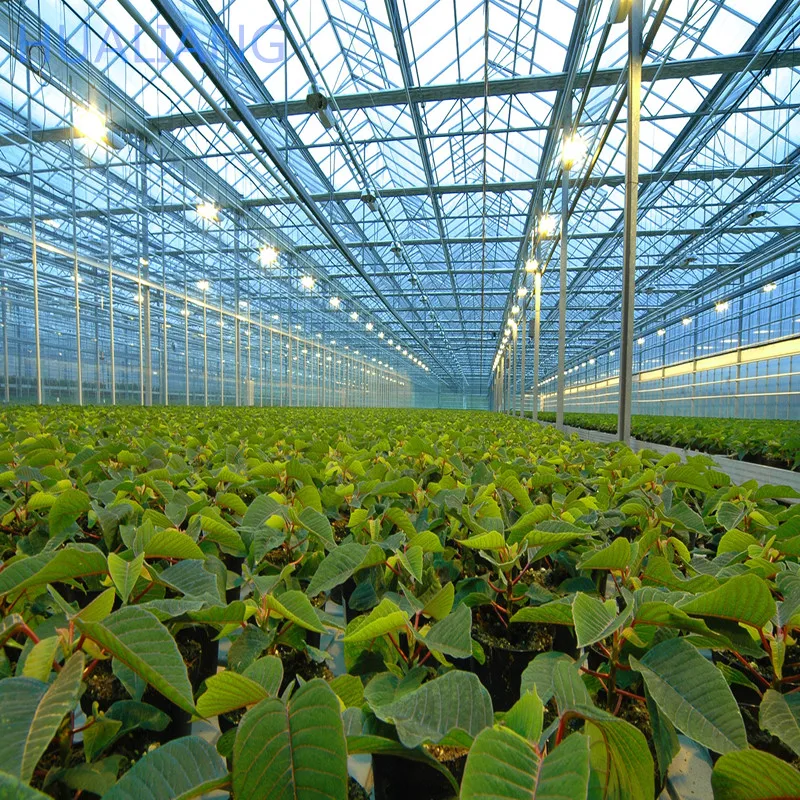

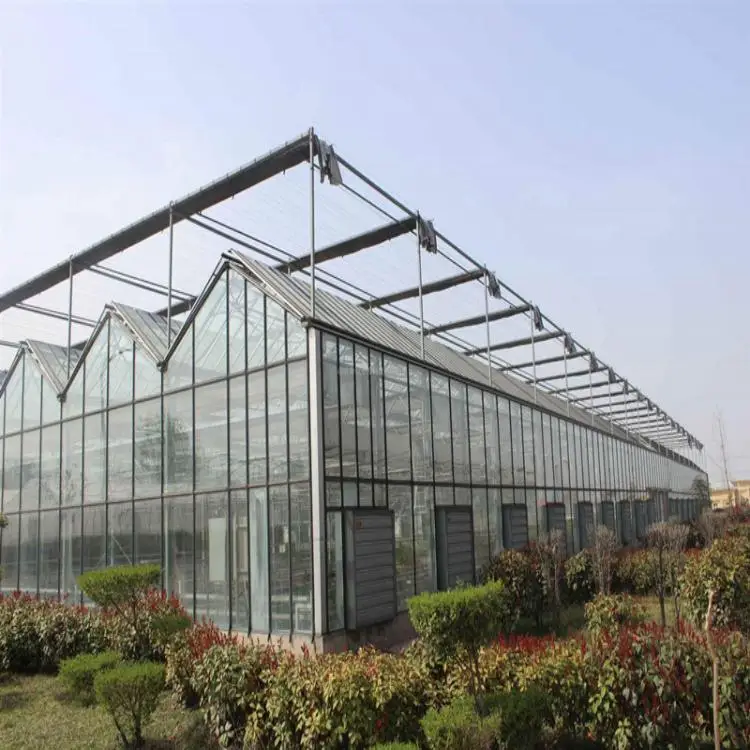

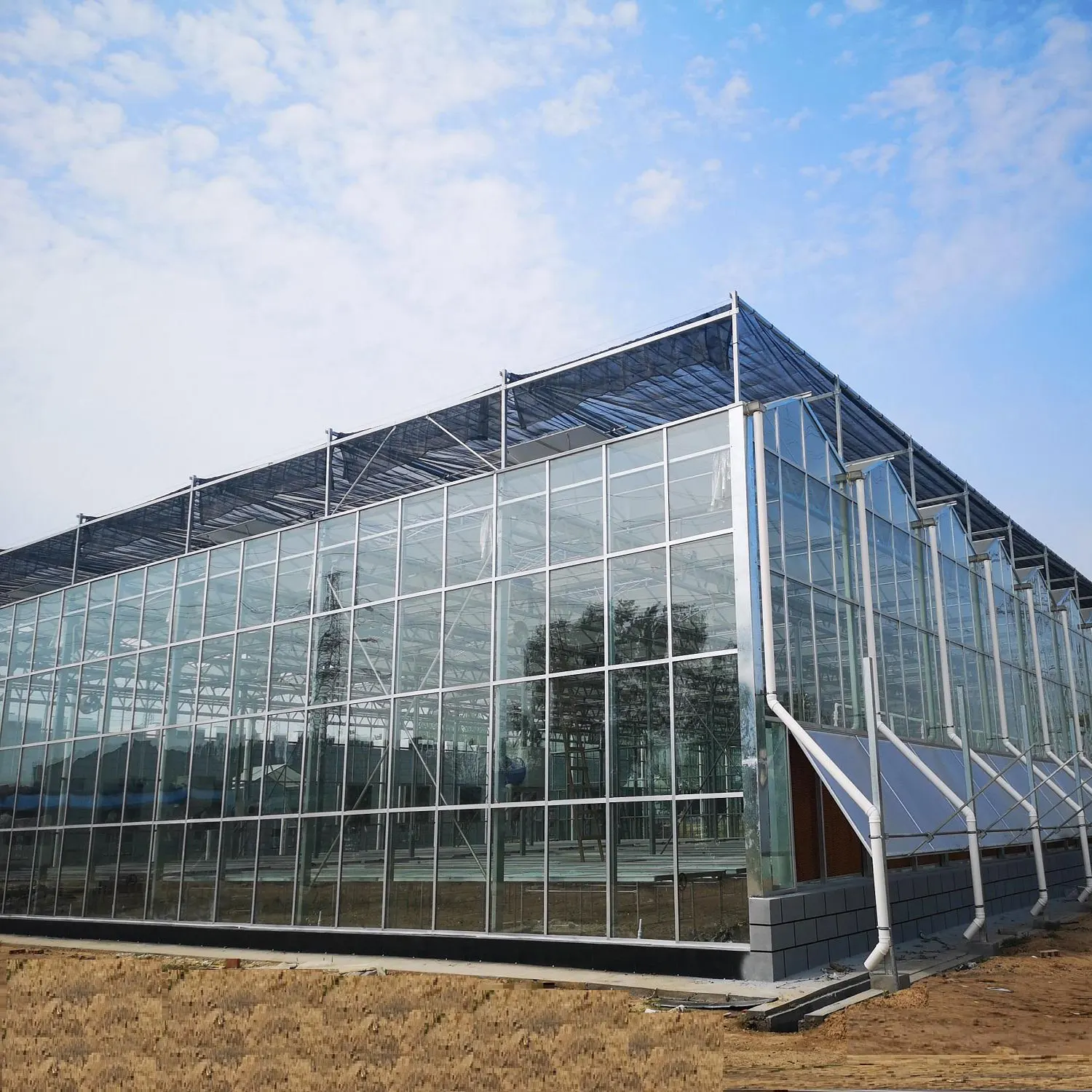

Wind resistant prefabricated one stop gardens greenhouse parts greenhouse victorian glass green house
- Category: >>>
- Supplier: Shandong Hualiang Heavy Industry Machinery Co. Ltd.
Share on (1600616426090):
Product Overview
Description
Greenhouse –One Stop Service
Characteristic&Parameters
Characteristics Of Glass Greenhouse
1. Glass greenhouse has a good light transmittance, single-layer float glass, the transmittance of more than 90%, double layers hollow glass transmittance of more than 80%;
2. Light transmittance stable, no water vapor entering, anti aging;
3. Anti-dew;
4. Large area of greenhouse lighting, indoor light uniform;
5. The interior is spacious and bright, and the operating space is big, and the utilization rate of the greenhouse is high;
6. Looks beautiful, and has a strong ornamental;
7. Greenhouse drainage capacity is very strong, and it can be a large area of multi-span.
2. Light transmittance stable, no water vapor entering, anti aging;
3. Anti-dew;
4. Large area of greenhouse lighting, indoor light uniform;
5. The interior is spacious and bright, and the operating space is big, and the utilization rate of the greenhouse is high;
6. Looks beautiful, and has a strong ornamental;
7. Greenhouse drainage capacity is very strong, and it can be a large area of multi-span.

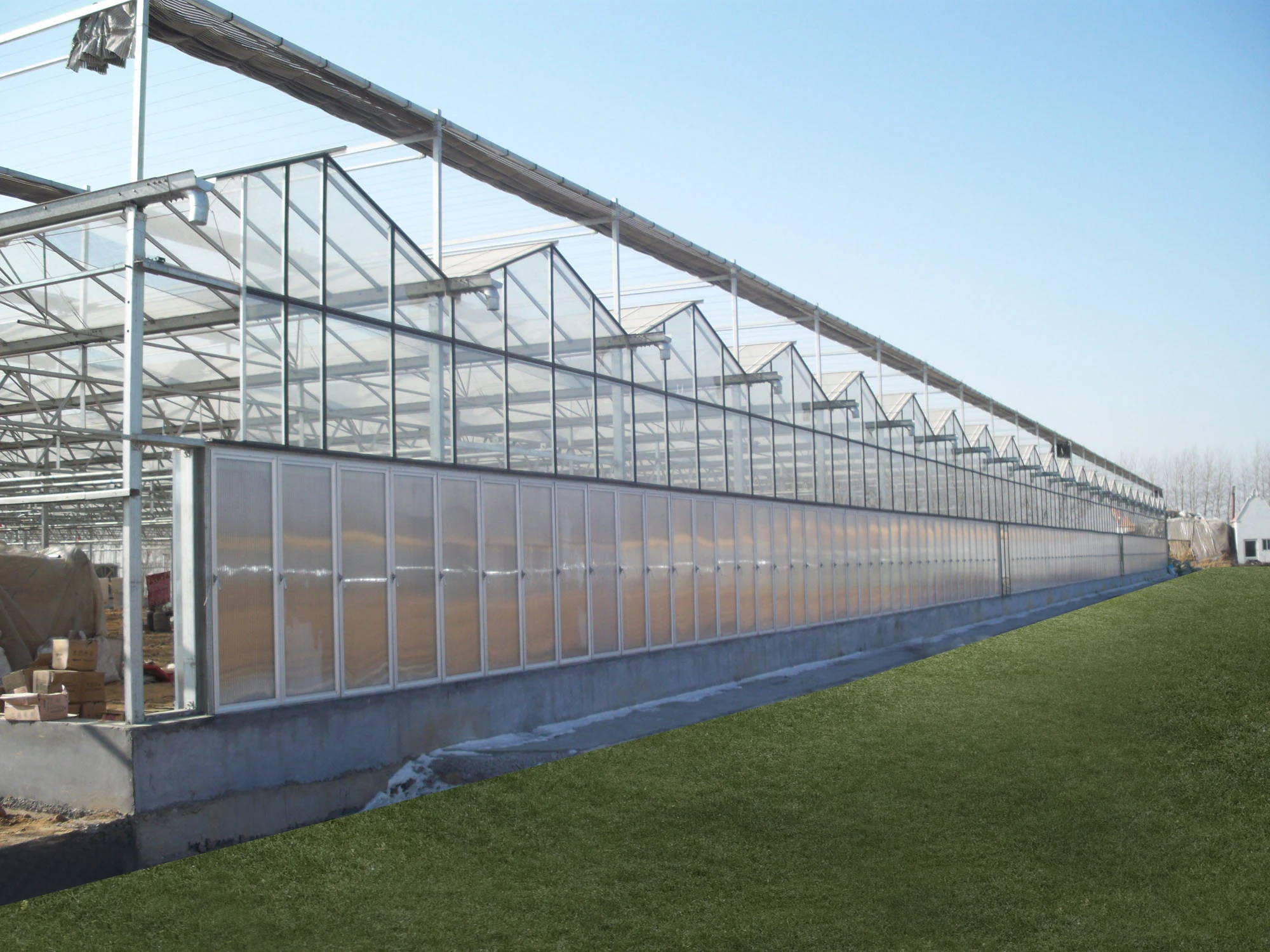

Type | Multi-Span Glass Greenhouse |
Span Width | 8m/9.6m/10.8m/12m |
Bay width | 4m /8m |
Gutter hight | 3-8m |
Snow load | 0.5KN/M2 |
Wind load | 0.6KN/M2 |
Hanging load | 15KG/M2 |
Greenhouse Cover&Structure
Steel Structure
The steel structure is made of high-quality carbon steel that meets national standards, and the parts and fasteners are processed according to specific technical requirements for hot-galvanized steel production. The hot galvanized steel should meet national standards for quality products, with the galvanized layer having uniform thickness, no burrs, and a minimum thickness of 60um.
Cover material
The glass covering typically consists of tempered glass panels with thickness options of 4mm, 5mm, or 6mm for the roof, and hollow glass panels with float glass or tempered glass and thicknesses of 4+6+4mm or 5+6+5mm for the sides. Specialized aluminum profiles are used to securely fasten the glass components in place.

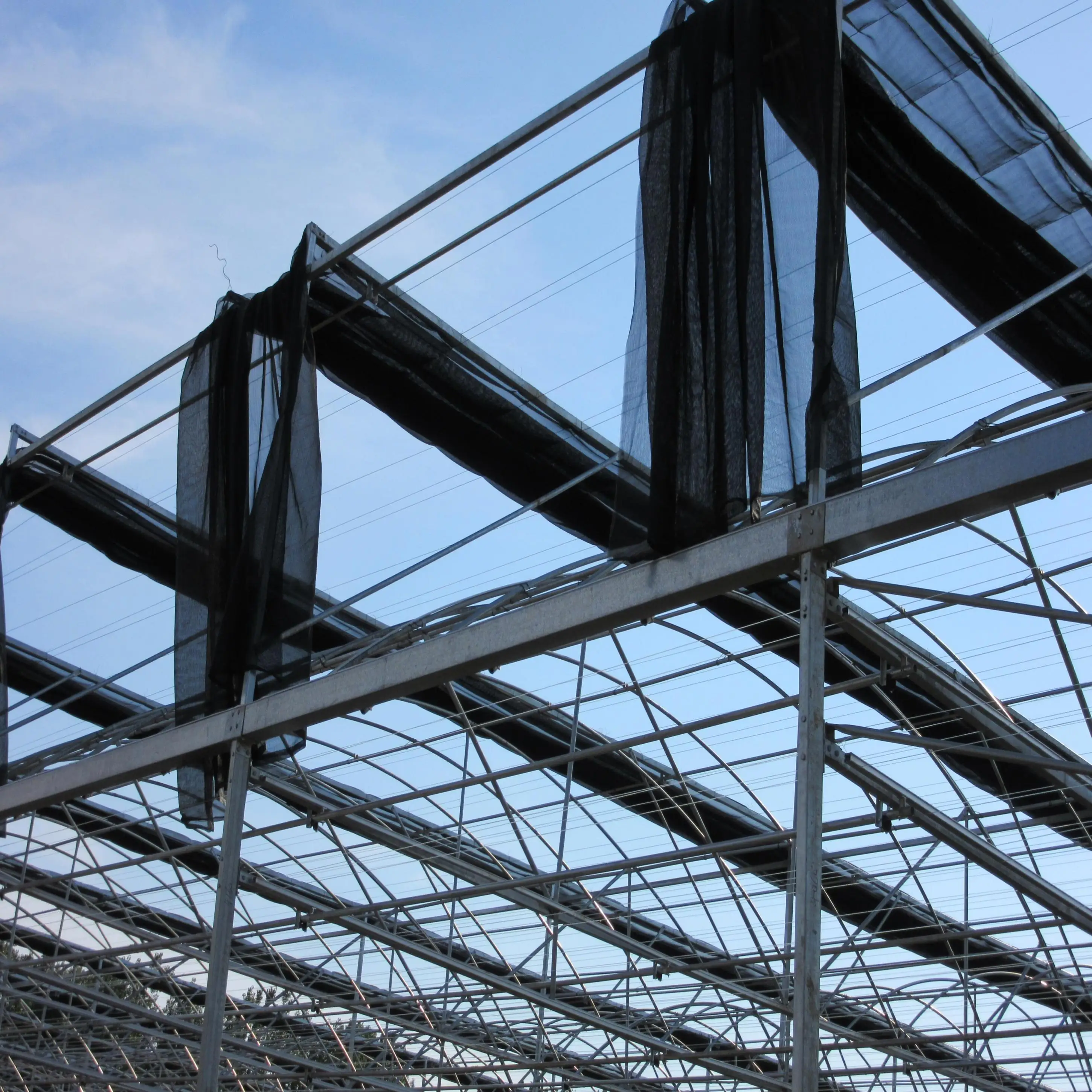

Outer Sunshade System
In the summer when indoor temperature rise to a certain value, it can reflect a part of the sun and diffuse sunshine into the greenhouse according to the different shading rate, achieving the purpose of cooling temperature. Close sunshade screen, at the same time the greenhouse temperature drop 4 ~ 6℃, reduce temperature in the greenhouse. By choosing different shading rate

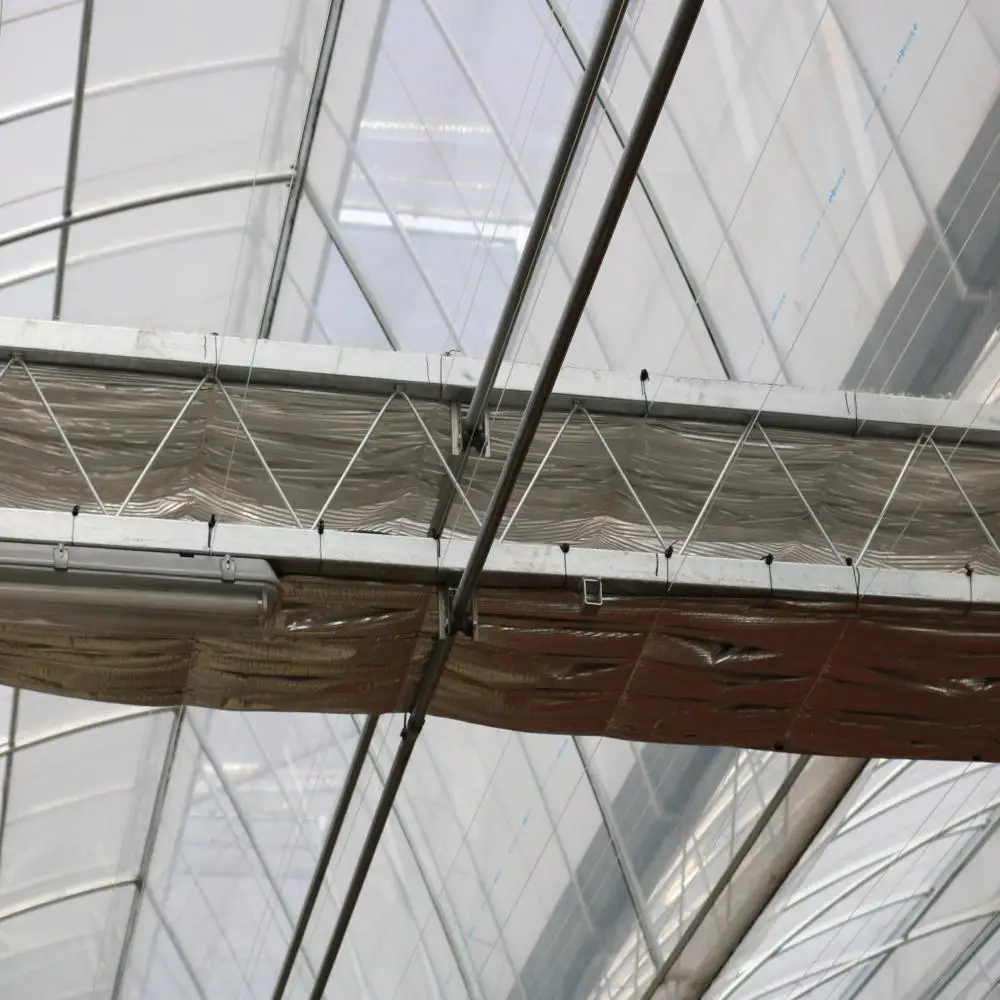

curtain, it can meet the sunshine demand of different crops.Inner Sunshade&Warming System
The system involves the installation of an inner sunshade net in the greenhouse to provide temperature control. During the summer, it has the ability to lower the internal temperature, while in winter and at night, it functions to retain heat.
An internal thermal insulation curtain system is mainly used in cold regions with temperatures below 5°C. It helps to reduce heat loss through infrared radiation during cold nights, which in turn lowers surface heat loss and decreases energy consumption for
heating. This can result in reduced operating costs for greenhouses.
An internal thermal insulation curtain system is mainly used in cold regions with temperatures below 5°C. It helps to reduce heat loss through infrared radiation during cold nights, which in turn lowers surface heat loss and decreases energy consumption for
heating. This can result in reduced operating costs for greenhouses.

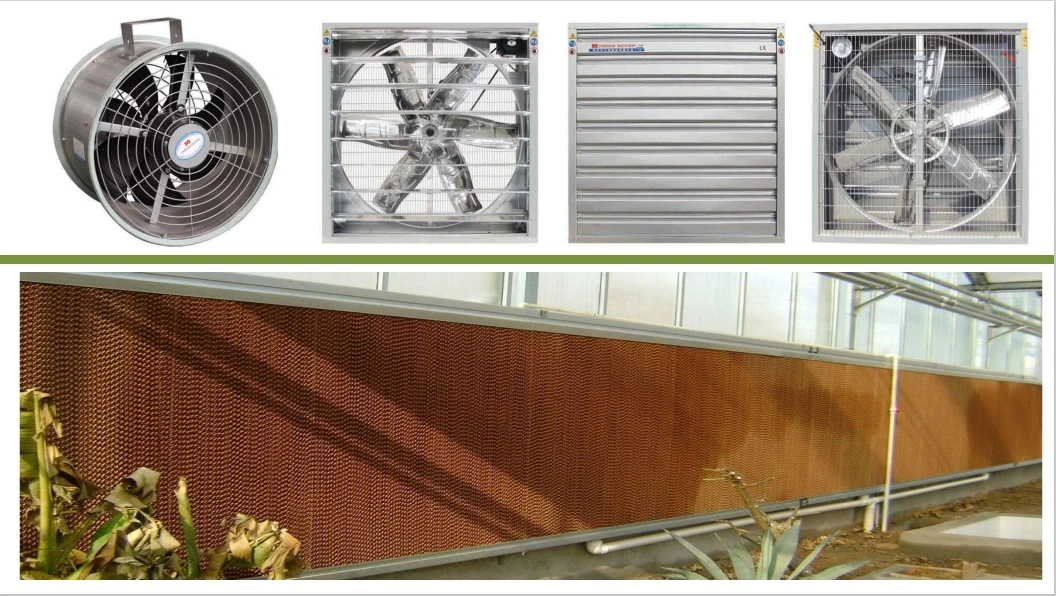

Cooling System
The cooling system utilizes water evaporation to reduce temperature. It includes high-quality cooling pads and powerful fans. The central component of the cooling system is the evaporative cooling pads, made of corrugated fiber paper that is corrosion-resistant and long-lasting due to a special chemical composition in the raw material. These pads ensure thorough saturation with water. As air passes through the pads, the exchange of water and air transforms hot air into cool air while also humidifying and cooling the air.
Ventilation System

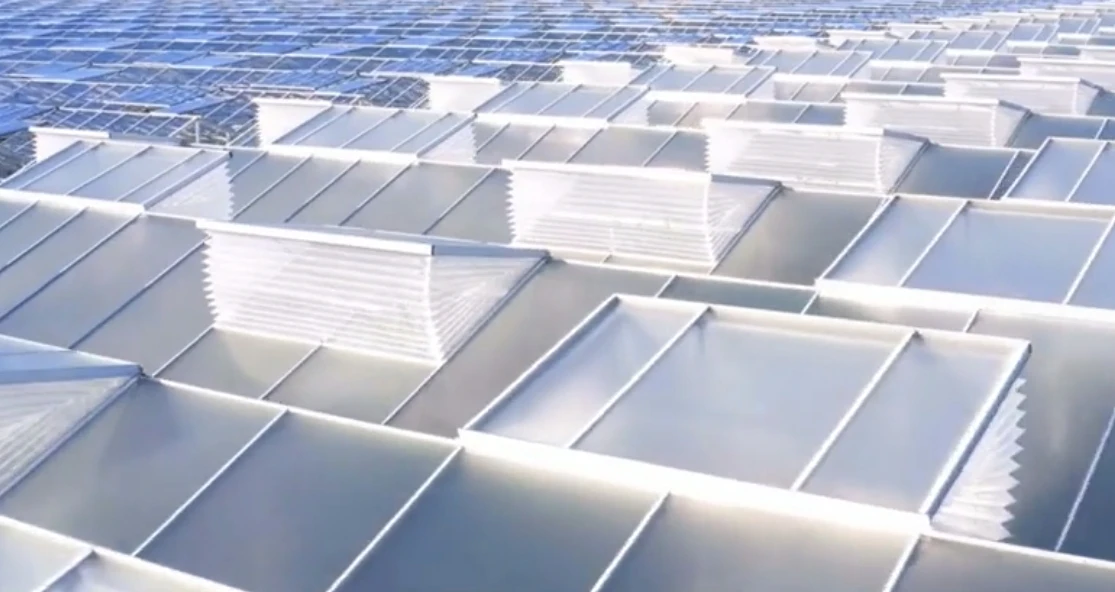

Greenhouse ventilation system is divided into two kinds, natural and forced ventilation. Glass greenhouse natural ventilation is opening staggered windows on the roof. Forced ventilation is achieved through installing blowers. In general, we install the cooling system of fans and cooling pad.
Other Systems

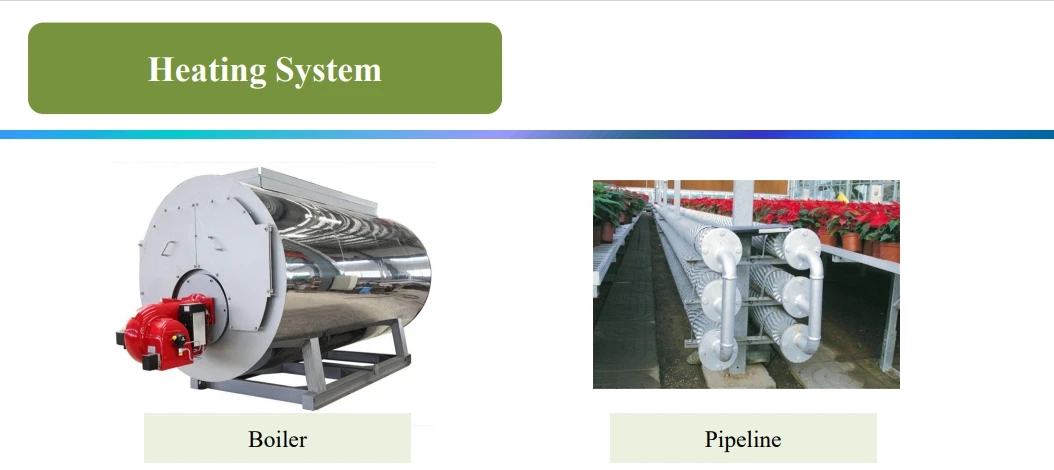

Types of heating systems can be divided into two groups, Central and Local. Central heating systems consist of a Boiler in a central location. Boilers heat with steam or hot water and can burn a variety of fuels. Local heating systems are usually placed at one end of the greenhouse. They can be unit heaters, convection heaters or radiant heaters. Central heating systems are used most commonly in larger commercial greenhouses due to cost. Local heating systems are more suitable for smaller greenhouses.

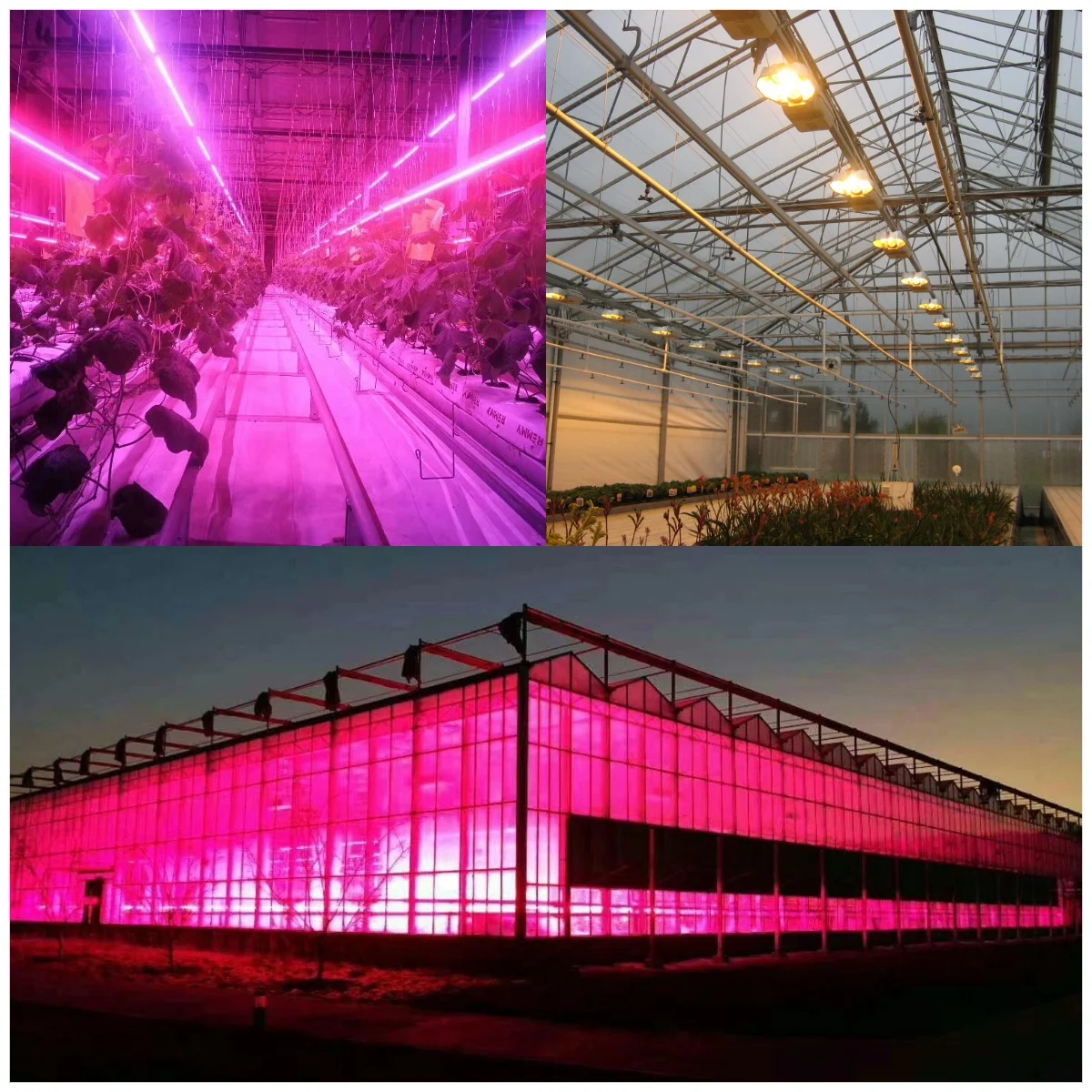

Light Compensating System
Greenhouse compensating light, also known as plant light, is a necessary artificial light source used to provide plants with the light they need for growth and development when natural sunlight is not available. This concept is based on the natural laws of plant growth and the principle of plants using sunlight for photosynthesis. Currently, the majority of farmers rely on high pressure sodium lamps and LED lamps to provide this crucial light to their plants.

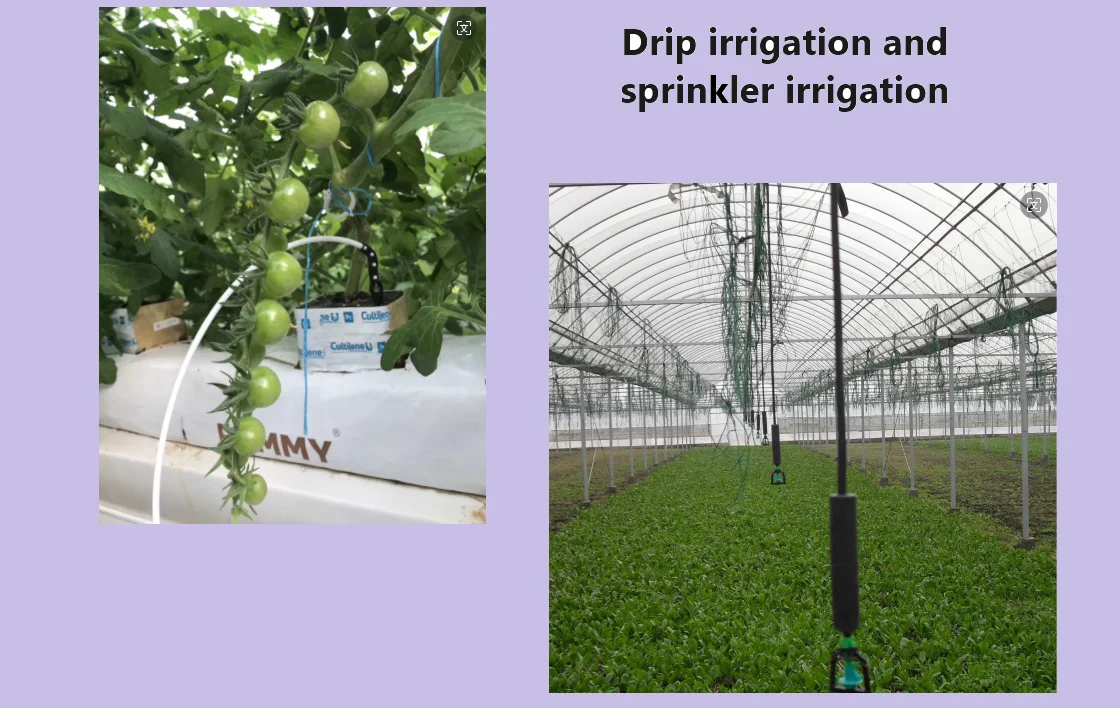

Irrigation System
The greenhouse irrigation system consists of a water purification system, water storage tank, irrigation system, and water and fertilizer integrated machine. We offer two types of irrigation systems: drip irrigation and spray irrigation, allowing you to select the most suitable option for your greenhouse.

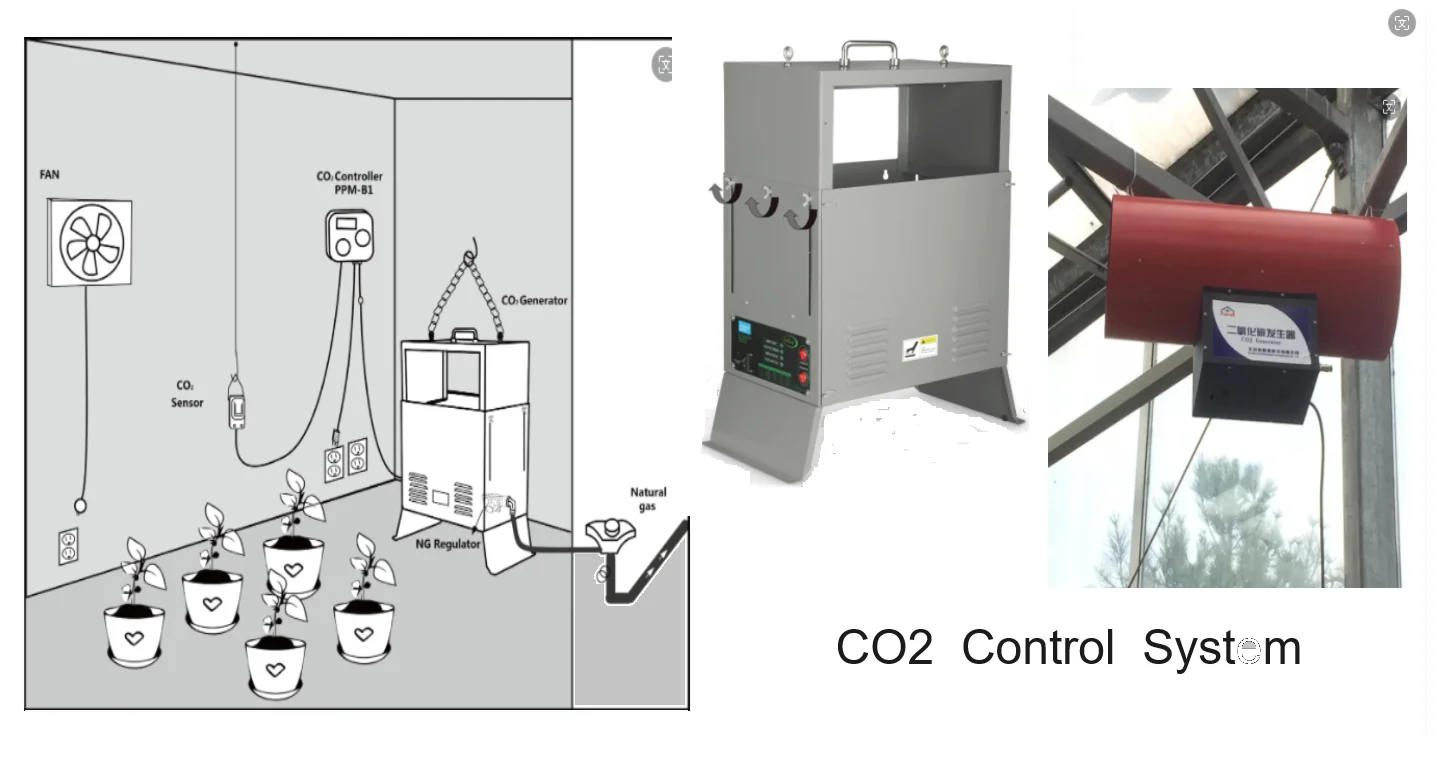

CO2 Control System
The primary goal is to monitor the CO2 concentration in the greenhouse in real-time to maintain levels suitable for crop growth.
This is primarily achieved through the use of a CO2 detector and a CO2 generator. The CO2 sensor is a device designed to detect CO2 concentration, allowing for continuous monitoring of environmental parameters within the greenhouse and enabling adjustments
to be made based on the monitoring results to create an optimal environment for plant growth.
This is primarily achieved through the use of a CO2 detector and a CO2 generator. The CO2 sensor is a device designed to detect CO2 concentration, allowing for continuous monitoring of environmental parameters within the greenhouse and enabling adjustments
to be made based on the monitoring results to create an optimal environment for plant growth.
Hydroponic System
NFT hydroponic
DWC Hydroponic
Dutch Bucket Culture
Aeroponic Cultivation System
Rock Wool Substrate Culture
Aquaponics Culture
Company Profile
Main workshop
We have structure workshop, tempered glass workshop, hydroponics pipe workshop, boiler workshop, aluminum profile workshop.
Packaging & Delivery
Agriculturial Greenhouse
1. All the steel material is nude packing.
2. motor and electric machines are put in carton.
3. small steel parts are put in bag.
4.The glass is boxed in a wooden box.
FAQ
Q: Are you trading company or manufacturer ? |
A: We are factory. |
Q: How long is your delivery time? |
A: Generally it is 30-45 days after order. |
Q: How to install the greenhouse? Do you provide installation service? |
A: We will send engineer to do installation guidance. |
Q: What preparations I should be before installation? |
A: First finish the greenhouse building authorization from the government if required. |
Second prepare the tools as per the tool list we send to you. |
Third prepare the workers. |
Forth prepare the power supply if needed. |
Fifth prepare one place that can store the greenhouse materials after arrival to protect it from rain if needed. |
