ignition electrodes 95% alumina ceramic igniter for spark plug gas furnace oven stove burner
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1600616475065):
Product Overview
Description
Product Description

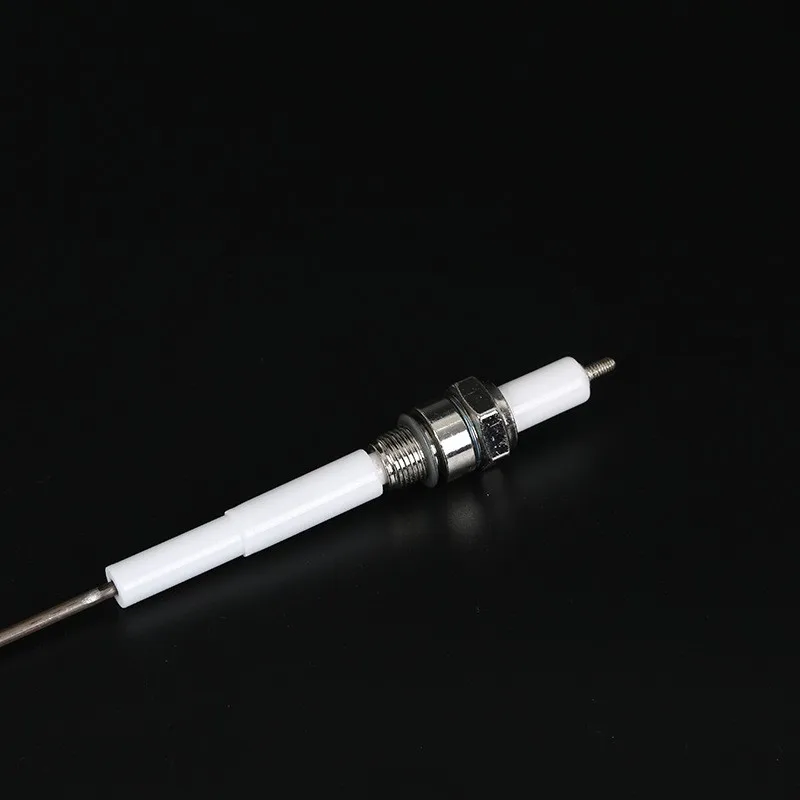

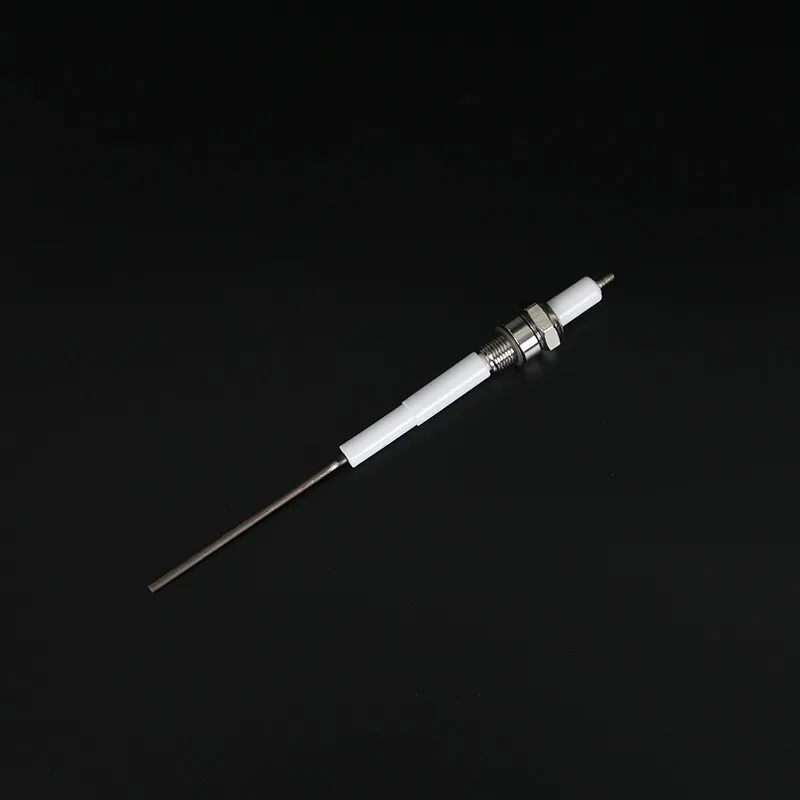

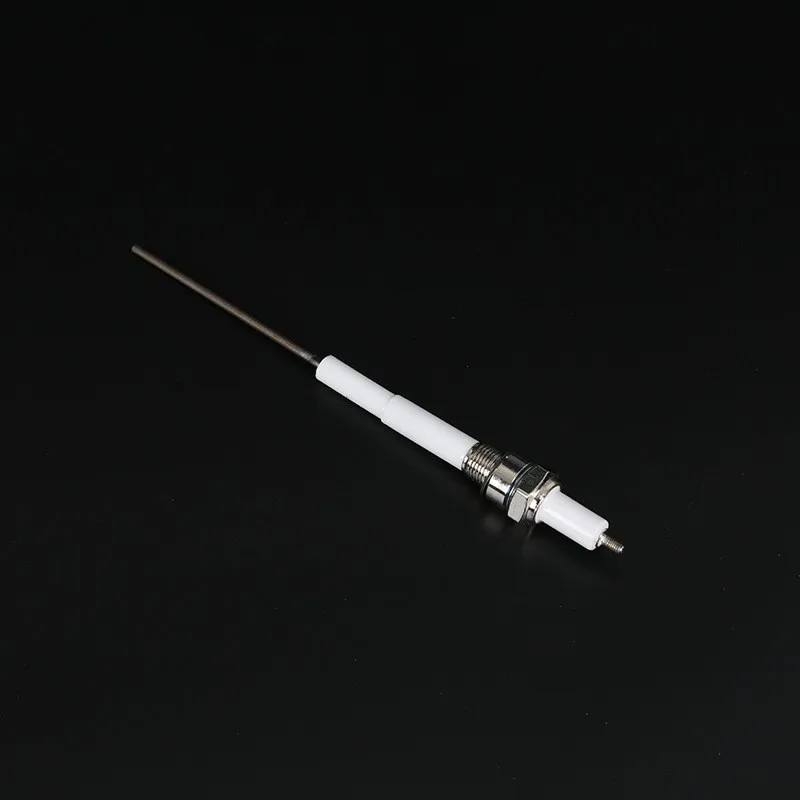

The 95 % alumina ceramic spark ignition rods are widely used in ignition devise of combustion machine, boiler, etc. The electrode needle length can be produced according to customer requirements, the ceramic parts of electrode needle can be assembled according to the different requirements of customers.
All kinds of pipeline gas, liquefied petroleum gas, natural gas and electrical water heater, stove, gas oven ect with similar
purpose.
All kinds of pipeline gas, liquefied petroleum gas, natural gas and electrical water heater, stove, gas oven ect with similar
purpose.
Features:
- High Temperature Ability
- Abrasion Resistant
- Wear Resistance
- Chemical Resistance
- Electrical Insulator
- Corrosion resistant
- High compressive strength
- High mechanical Strength
- Resists strong acid and alkali attack at high temperatures
- Excellent electrical insulation properties
- Decent thermal conductivity
- High Temperature Ability
- Abrasion Resistant
- Wear Resistance
- Chemical Resistance
- Electrical Insulator
- Corrosion resistant
- High compressive strength
- High mechanical Strength
- Resists strong acid and alkali attack at high temperatures
- Excellent electrical insulation properties
- Decent thermal conductivity
Alumina , also known as aluminum oxide (Al2O3), is the most mature and commonly used technical ceramics. With excellent electrical
insulation properties together with high hardness and good wear resistance but relatively low strength and fracture toughness.
Alumina content ranging from 80% to more than 99% according to different application.
It's widely used in automotive, petro-chemical, fluid contro, material transfer, industry, electrical and electronic,
semiconductor,etc...
insulation properties together with high hardness and good wear resistance but relatively low strength and fracture toughness.
Alumina content ranging from 80% to more than 99% according to different application.
It's widely used in automotive, petro-chemical, fluid contro, material transfer, industry, electrical and electronic,
semiconductor,etc...
Specification
Properties | Units | Steatite Ceramic | Cordierite Ceramic | Mullite Ceramic | 95% Al2O3 | 99% Al2O3 | Zirconia Ceramic | Silicon Nitride |
Colour | White | Yellow | White | White | Ivory | White | Grey | |
Density | g/cm3 | 2.7 | 1.9 | 2.6 | 3.5 | 3.85 | 6 | 3.2 |
Flexural Strength | Mpa | 140 | 30 | 120 | 280 | 340 | 1150 | 600 |
Compressive Strength | MPa | 900 | 350 | 500 | 2100 | 2200 | 2500 | 2500 |
Max Use Temperature | °C | 1000 | 1200 | 1300 | 1400 | 1650 | 1500 | 1800 |
Thermal Condutivity | W(m.K) | 2~3 | 1.3~1.8 | 2~6 | 16~28 | 19~30 | 2.5 | 20 |
Thermal Expansion Cofficient | 10-6/°C | 7 ~ 9 | 1.5~3.5 | 5~6 | 6.5~7.5 | 6~8 | 8~10 | 3~4 |
ThermalShock Resistance | △TC | 100 | 300 | 150 | 140 | 150 | 250 | 600 |
Specific Heat | J/kg.K | 850 | 800 | 900 | 950 | 950 | 500 | 500 |
Dielectric Strength | KV/mm | 20 | — | 30 | 12 | 10 | 5 | 20 |
Dielectric Constant | Er | 6 | — | 8 | 9 | 9 | 12 | 6 |
You May Like
Packing & Delivery
Our Service
1.Timely response
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
6. Warm and considerable after-sale service
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
6. Warm and considerable after-sale service
Company Profile
Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,cerami washers,ceramics pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
FAQ
1. What is the location of your company?
Our company is located in Lianyungang,Jiangsu,China.If you would like to have a visit,you are much welcome
2. Are you a trading company or factory?
We're trading company with factory. We manufacture products ourselves.
3. How do I know your quality？
High solution detailed photos and samples will be able to verify our quality
High solution detailed photos and samples will be able to verify our quality
4. How about the samples?
We could send you the samples but the freight are charged.After the order is confirmed, we would pay back the express delivery fee. Please be rest assured of that.
We could send you the samples but the freight are charged.After the order is confirmed, we would pay back the express delivery fee. Please be rest assured of that.
5. What is the shipping port?
We ship the goods from Shanghai or other ports you requested
6. How do I make payment?
We accept 70% T/T in advance,30% in the period of shipment,or L/C at sight.
7. What's the benefit for long term importers or distributors?
For those regular customers, we offer incredible discount, sample free shippingfree sample for custom design, custom packaging and QC as per custom requirements.
