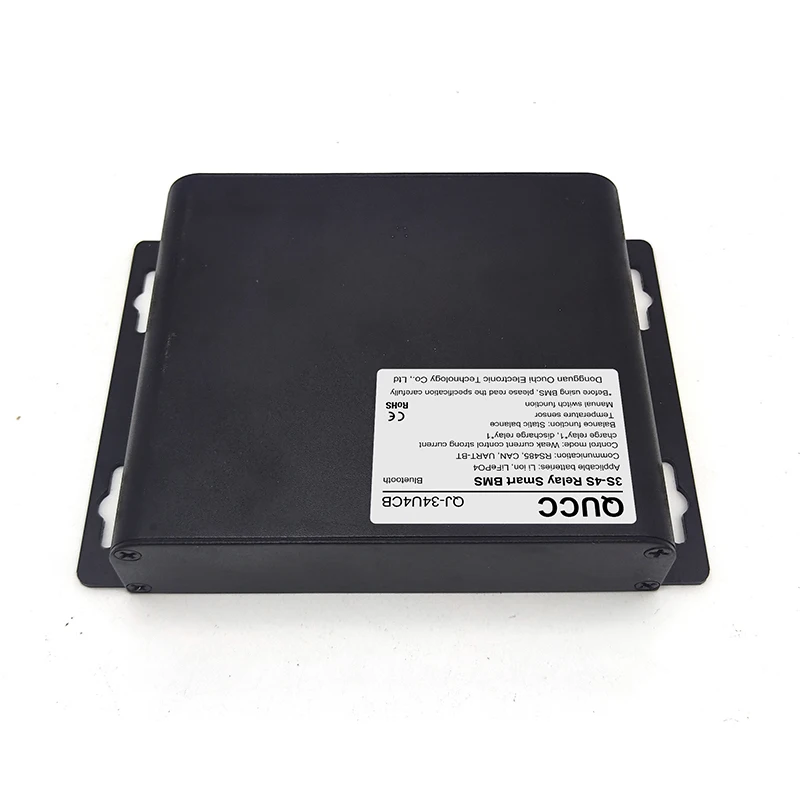

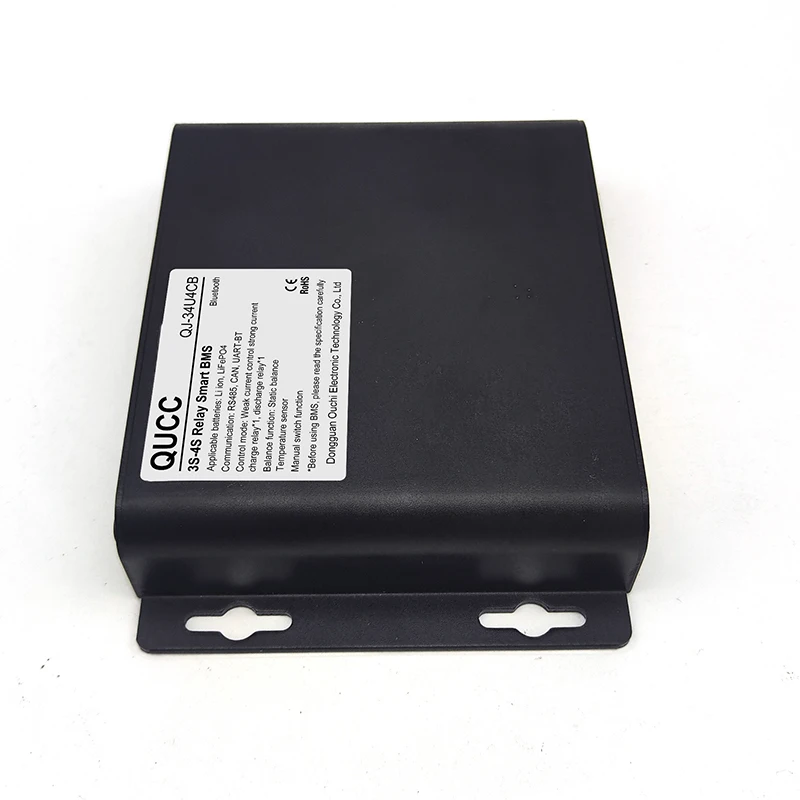

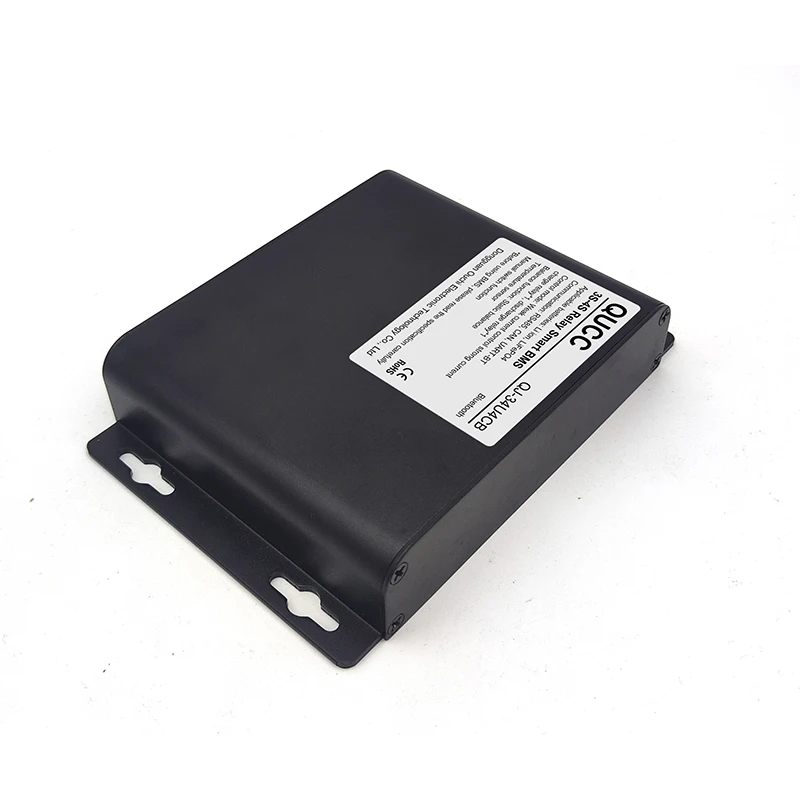

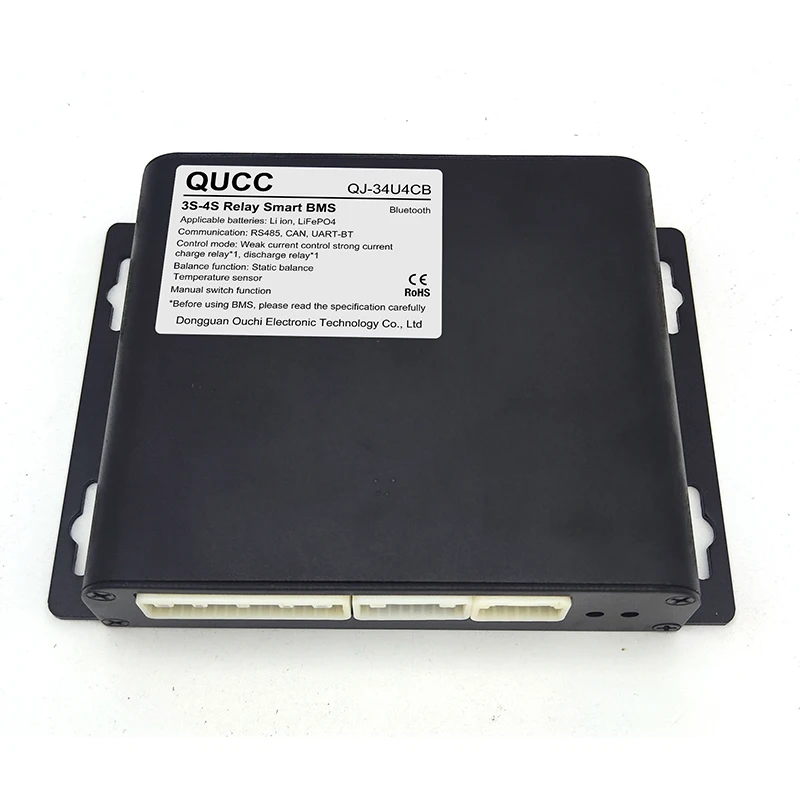

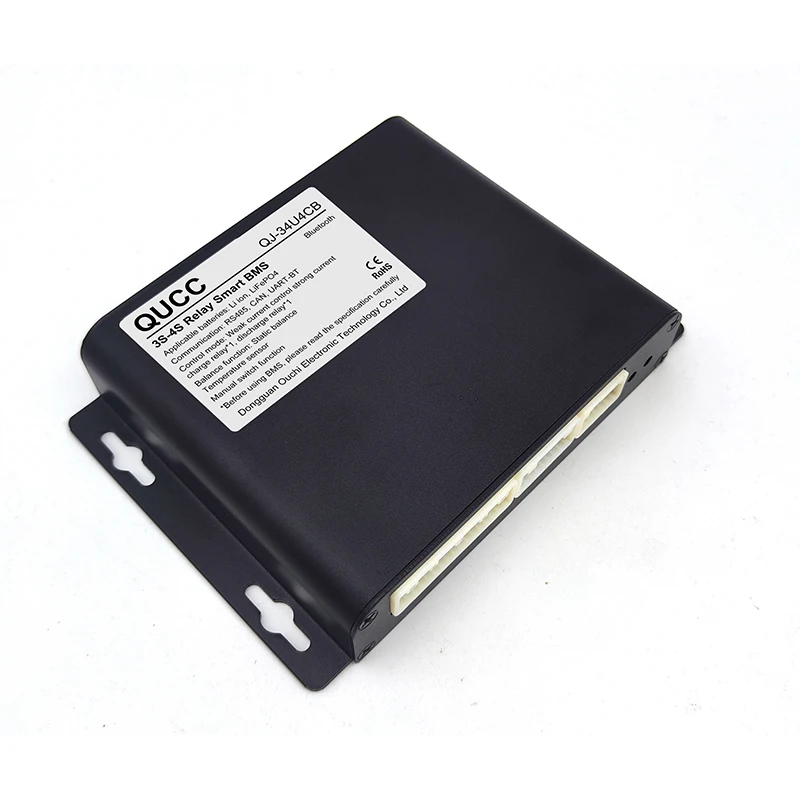

QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS
QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS
QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS
QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS
QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS
QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS
QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS

QUCC Battery Lifepo4 BMS 3S 4S 500A Lithium ion Battery Pack Smart BMS

Share on (1600616494166):


Price:$195.00 - $216.00

Quantity:


Product Overview

Description





PRODUCT DETAILS


Options include products

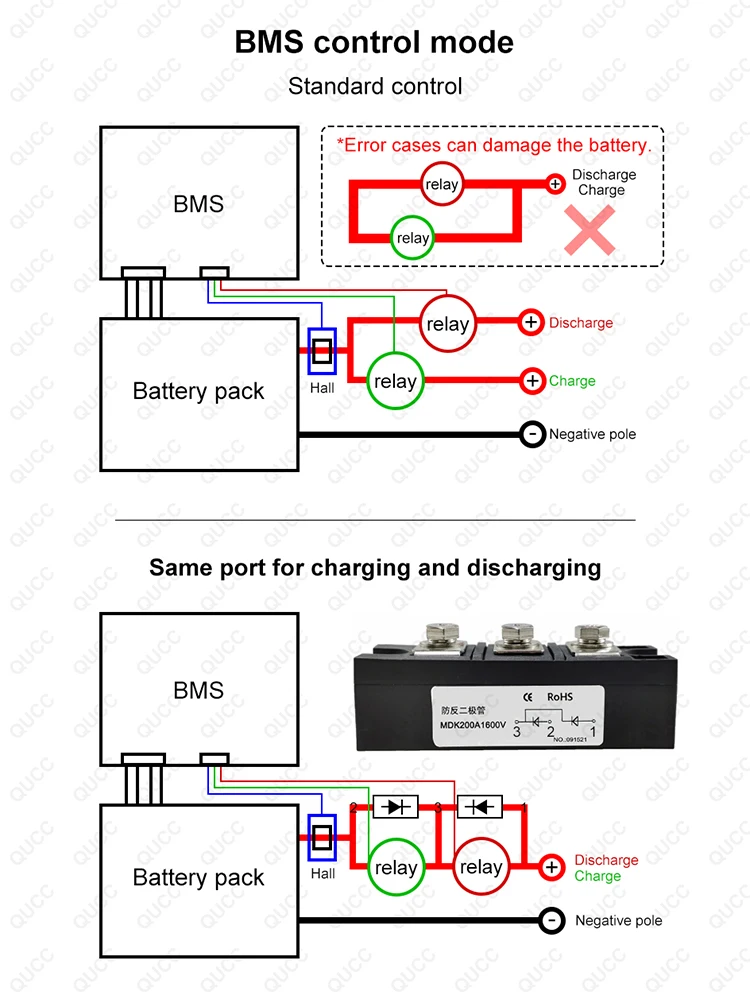

Selected BMS, Hall current sensor, relay *2,MDK 300A diode






Product category


Type
Functional differences
3S~4S BMS
·Hall Current Sensor
·2-way relay control (charging, discharging).
·UART-BT、RS485、CAN.
·Other functions (12V output, switch).
·4-way temperature control
8S BMS
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging).
·UART-BT、RS485、CAN.
·Other functions (12V output, switch).
·4-way temperature control
10S~24S BMS
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging).
·UART-BT、RS485、CAN.
·Other functions (12V output, switch).
·8-way temperature control
25S~32S BMS
·Hall Current Sensor
·3-way relay control (charging, discharging and precharging).
·UART-BT、RS485、CAN*2.
·Other functions (12V output, switch).
·8-way temperature control


Parameters
Indicators
Current switch conductor
High voltage DC relay
Support battery
Li-ion、Lifepo4
Discharge current
500A According to relay selection
peak current
2000A According to relay selection
Charging current
500A According to relay selection
Internal resistance
10mΩ
Input / output mode
Different ports
BMS switch
Passive switch
Working power consumption
50mA
Sleep power consumption
30μA
Balance current
80mA
Communication function
1 UART serial port, Bluetooth.
1 isolated RS485 interface, support Modbus protocol.
1 isolated CAN2.0B interface.
Single cell voltage
Acquisition range
0～5V
Detection error
≤±0.1%
Total battery pressure
Acquisition range
Battery voltage range
Detection error
≤±0.2%
Charge discharge current
Acquisition range
Hall Current Sensor 600A
Detection error
±1 %
temperature
Acquisition range
-40～125℃
Detection error
±1℃

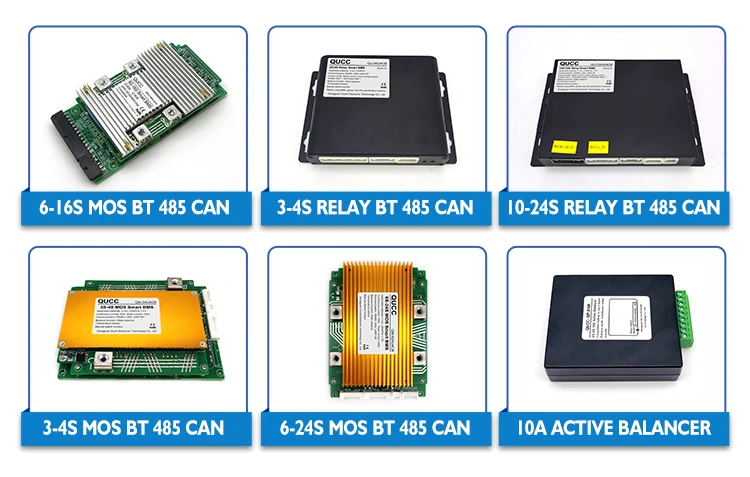

MORE PRODUCTS
