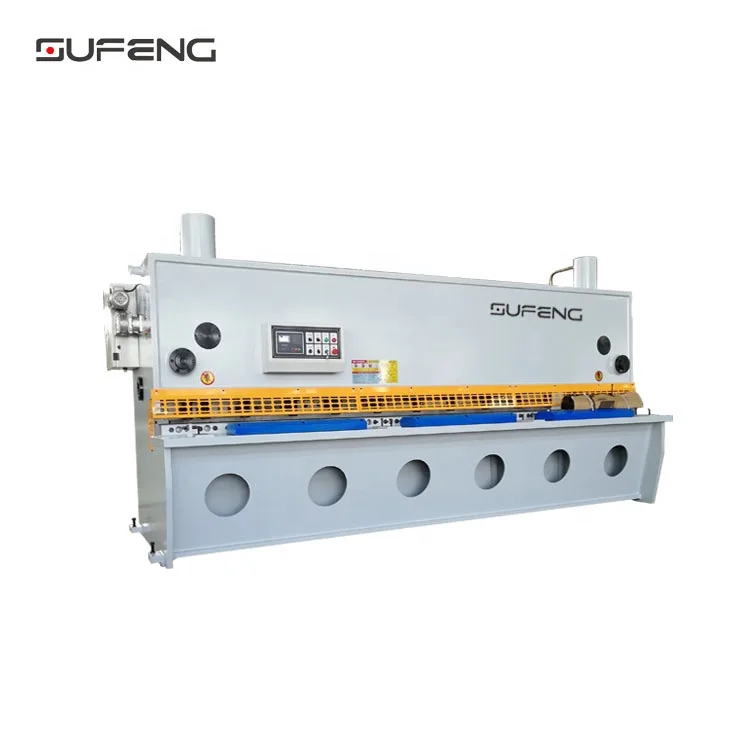

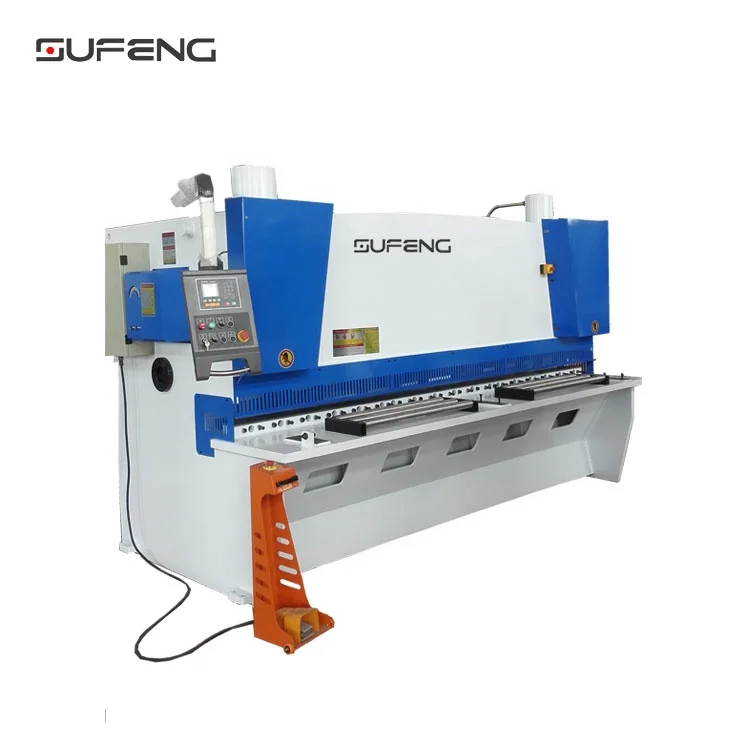

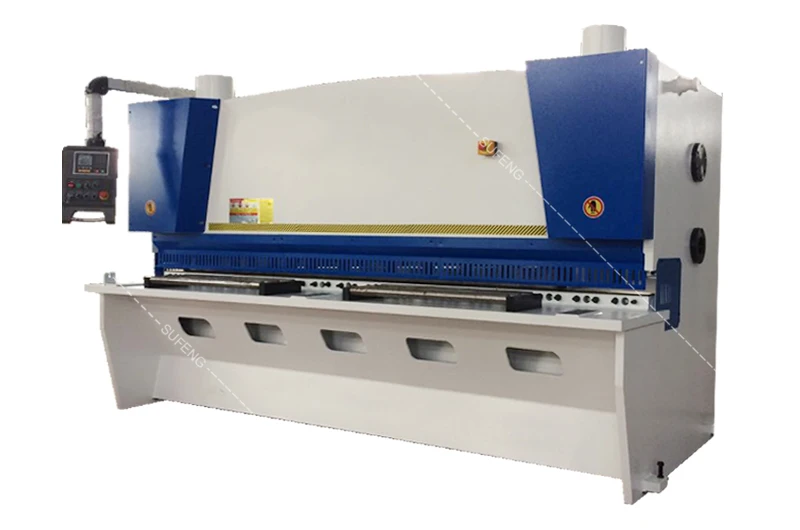

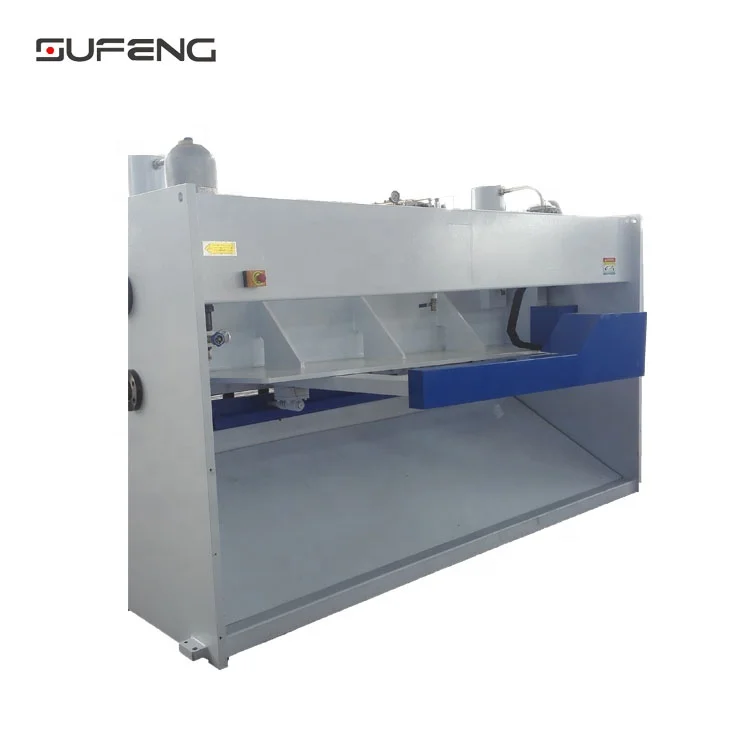

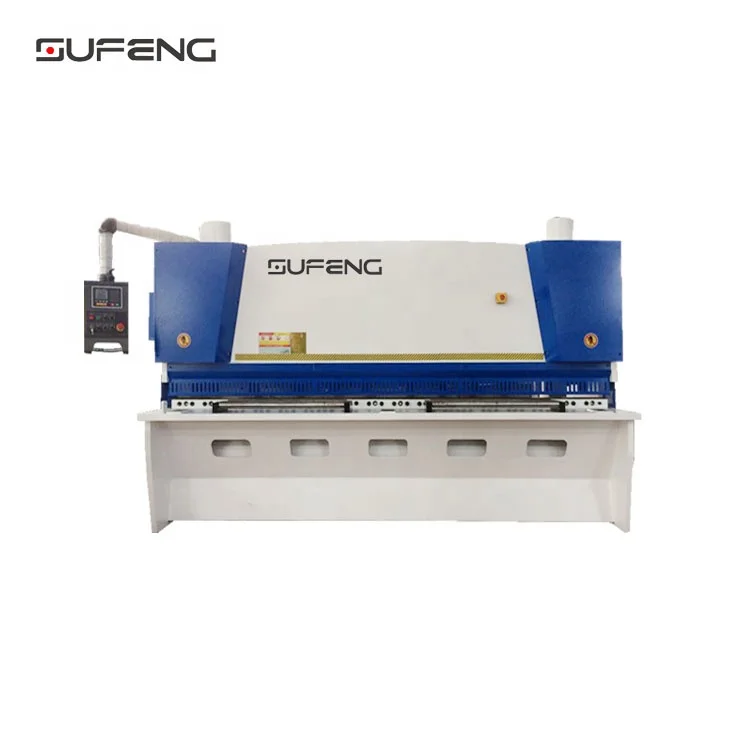

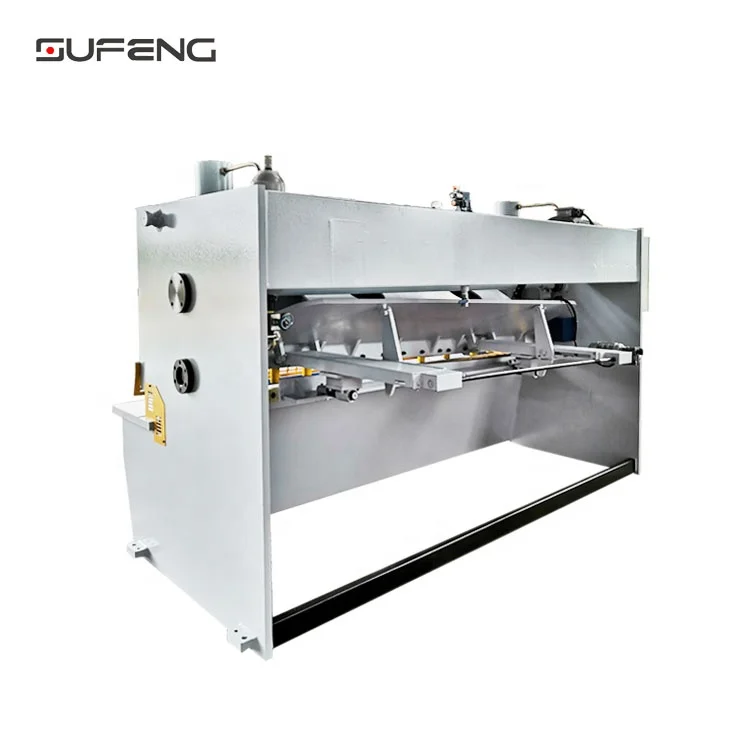

QC11Y QC11K sheet metal punching and shearing machine
1. The second-generation hydraulic gate shearing machine is an ideal replacement product for the hydraulic pendulum shearing machine. It has a double-cylinder series structure, all-steel structure design and production, beautiful appearance and reliable structure.
2. The front supporting material is composed of three groups of rollers, which are easy to adjust and convey.
3. Using the UG (finite element) analysis method, the computer-aided optimization design is carried out. The super-strong steel structure design makes the fuselage extremely small when used at full load, which ensures the durability of the blade.
4. The overall welded structure of Q235 steel plate has good strength, rigidity and vibration resistance. The two cylinders are fixed on the left and right uprights. There is an auxiliary knife seat on the working table, which is convenient for micro-adjustment of the blade. There is also a feeding roller on the working table. , easy to operate.
5. Use tempering technology to eliminate internal stress. The overall frame is derusted by sandblasting and sprayed with anti-rust paint.
2. The front supporting material is composed of three groups of rollers, which are easy to adjust and convey.
3. Using the UG (finite element) analysis method, the computer-aided optimization design is carried out. The super-strong steel structure design makes the fuselage extremely small when used at full load, which ensures the durability of the blade.
4. The overall welded structure of Q235 steel plate has good strength, rigidity and vibration resistance. The two cylinders are fixed on the left and right uprights. There is an auxiliary knife seat on the working table, which is convenient for micro-adjustment of the blade. There is also a feeding roller on the working table. , easy to operate.
5. Use tempering technology to eliminate internal stress. The overall frame is derusted by sandblasting and sprayed with anti-rust paint.
FEATURES AT A GLANCE
Hydraulic system
Adopt integrated hydraulic control system, more reliable and easy for maintenance. America Sunny pump, Germany Bosch-Rexroth valve, all pipes, flange and joint with vibrations proof and leakage proof design and setting All seals in cylinder is Volqua from Japan,the most famous brand,good quality and high performance.
Blade Adjust and Cutting Precision
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal. Function of shearing in sections, function of aligning with light.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
E21S NC controller from ESTUN
E21S Control system, ecnomic price with easy operating, our standard control system. DAC310, DAC360, Cybtouch 8 control system can be
optional.
Siemens electrical components
Use schneider electrics to ensure machine stability, high quality electric parts can perform well even the electrictity is not stable and customers can easily get the replacement anywhere in the world.
Blade clearance adjustment
Motor control blade gap and cuting angle adjustment, it's easy and safe to adjust the blades gap when the thickness of metal sheet is different.
Back guage device
High precision back guage device, fine ball screw and polished rod structure, high performance motor drive, ensuring the positioning accuracy, unique, timing transmission mechanism, reliable and stable.
Rexroth valve
Germany Rexroth valve world famous brand rexroth, sub-brand of bosch, which is the professsional hydraulic valve supplier.
Foot Switch
Enhancing the sevice life and operational sensitivity and never broken up.
PRODUCT SPECIFICATIONS
Type | Cut thickness mm | Cut length mm | strokes mm-1 | Back gauge stroke mm | Shear angle ° | Platform height mm | Motor power Kw |
Qc11k-6/2500 | 6 | 2500 | 12 | 20~600 | 30'~1°30' | 800 | 7.5 |
Qc11k-6/3200 | 6 | 3200 | 12 | 20~600 | 30'~1°30' | 800 | 7.5 |
Qc11k-6/4000 | 6 | 4000 | 10 | 20~600 | 30'~1°30' | 800 | 7.5 |
Qc11k-6/5000 | 6 | 5000 | 8 | 20~600 | 30'~1°30' | 900 | 11 |
Qc11k-6/6000 | 6 | 6000 | 6 | 20~600 | 30'~1°30' | 1000 | 11 |
Qc11k-8/2500 | 8 | 2500 | 12 | 20~600 | 30'~2° | 800 | 11 |
Qc11k-8/3200 | 8 | 3200 | 10 | 20~600 | 30'~2° | 850 | 11 |
Qc11k-8/4000 | 8 | 4000 | 8 | 20~600 | 30'~2° | 900 | 11 |
Qc11k-8/5000 | 8 | 5000 | 6 | 20~600 | 30'~2° | 1000 | 15 |
Qc11k-8/6000 | 8 | 6000 | 6 | 20~600 | 30'~2° | 1050 | 15 |
Qc11k-12/2500 | 12 | 2500 | 10 | 20~800 | 30'~2° | 840 | 18.5 |
Qc11k-12/3200 | 12 | 3200 | 10 | 20~800 | 30'~2° | 900 | 18.5 |
Qc11k-12/4000 | 12 | 4000 | 8 | 20~800 | 30'~2° | 940 | 18.5 |
Qc11k-12/5000 | 12 | 5000 | 6 | 20~800 | 30'~2° | 1000 | 22 |
Qc11k-12/6000 | 12 | 6000 | 6 | 20~800 | 30'~2° | 1060 | 30 |
Qc11k-16/2500 | 16 | 2500 | 10 | 20~800 | 30'~2°30' | 840 | 22 |
Qc11k-16/3200 | 16 | 3200 | 9 | 20~800 | 30'~2°30' | 900 | 22 |
Qc11k-16/4000 | 16 | 4000 | 8 | 20~850 | 30'~2°30' | 940 | 22 |
Qc11k-16/5000 | 16 | 5000 | 6 | 20~850 | 30'~2°30' | 1000 | 30 |
Qc11k-16/6000 | 16 | 6000 | 6 | 20~900 | 30'~2°30' | 1100 | 37 |
Qc11k-20/2500 | 20 | 2500 | 8 | 20~900 | 30'~3° | 900 | 30 |
Qc11k-20/3200 | 20 | 3200 | 8 | 20~900 | 30'~3° | 950 | 30 |
Qc11k-20/4000 | 20 | 4000 | 6 | 20~900 | 30'~3° | 1100 | 30 |
Qc11k-20/5000 | 20 | 5000 | 6 | 20~900 | 30'~3° | 1100 | 37 |
Qc11k-20/6000 | 20 | 6000 | 6 | 20~900 | 30'~3° | 1200 | 37 |
Qc11k-25/2500 | 25 | 2500 | 8 | 20~900 | 30'~3°30' | 900 | 37 |
Qc11k-25/3200 | 25 | 3200 | 8 | 20~900 | 30'~3°30' | 950 | 37 |
Qc11k-25/4000 | 25 | 4000 | 6 | 20~900 | 30'~3°30' | 1100 | 37 |
Qc11k-32/2500 | 32 | 2500 | 6 | 20~900 | 30'~4° | 1000 | 55 |
Qc11k-32/3200 | 32 | 3200 | 6 | 20~900 | 30'~4° | 1100 | 55 |
Qc11k-40/2500 | 40 | 2500 | 6 | 20~900 | 30'~4° | 1200 | 55 |
Qc11k-40/3200 | 40 | 3200 | 5 | 20~900 | 30'~4° | 1200 | 55 |
