Product Overview
Description

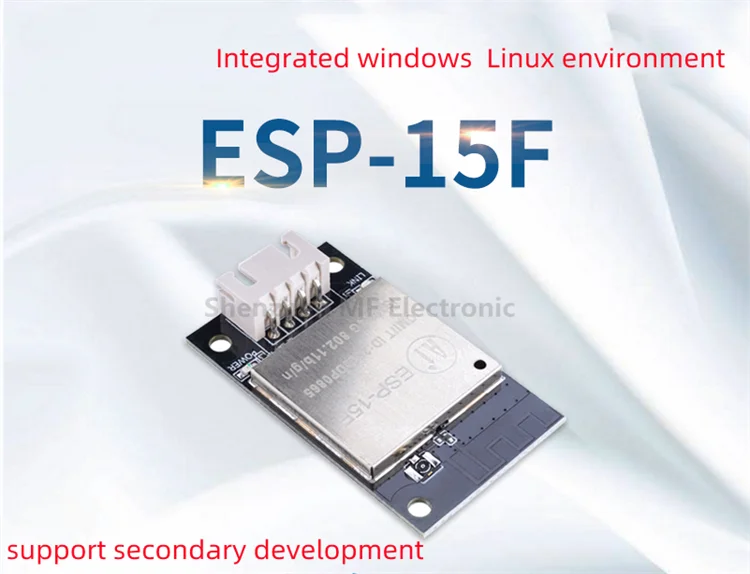

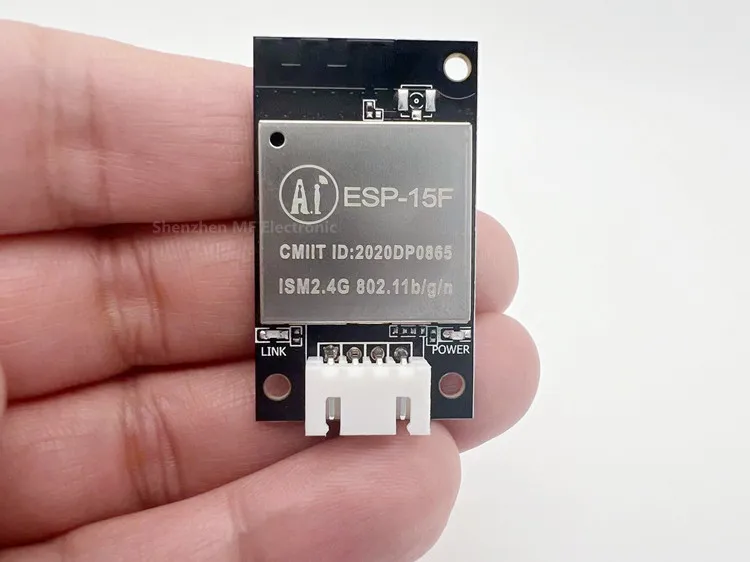

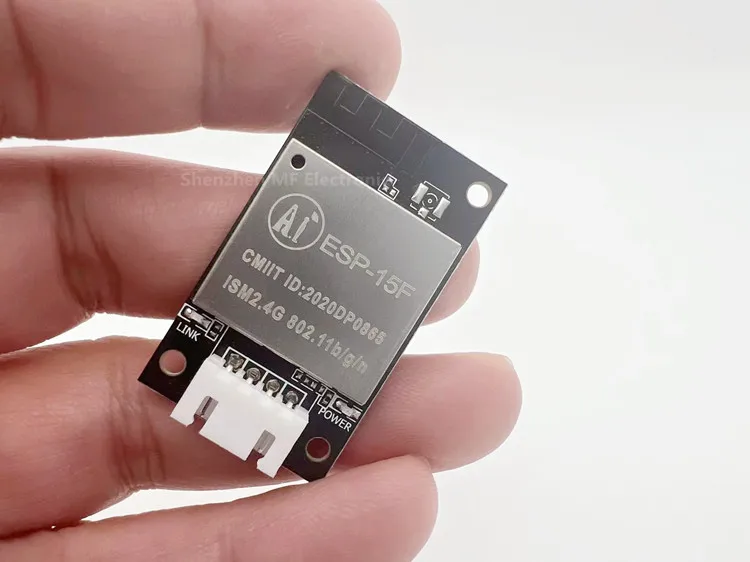

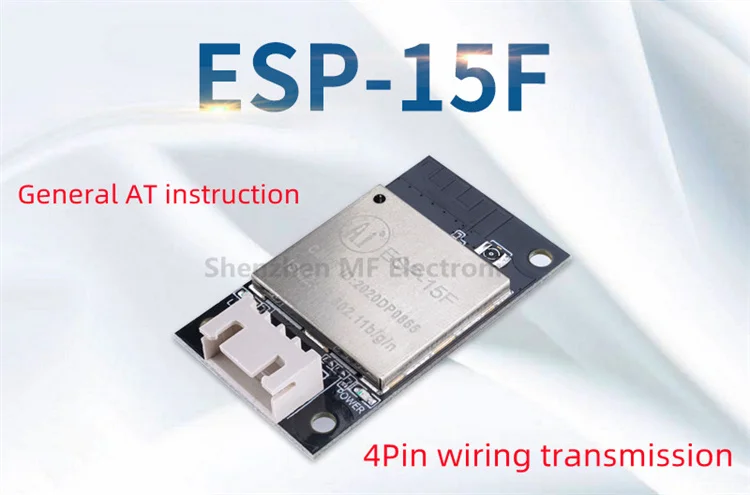

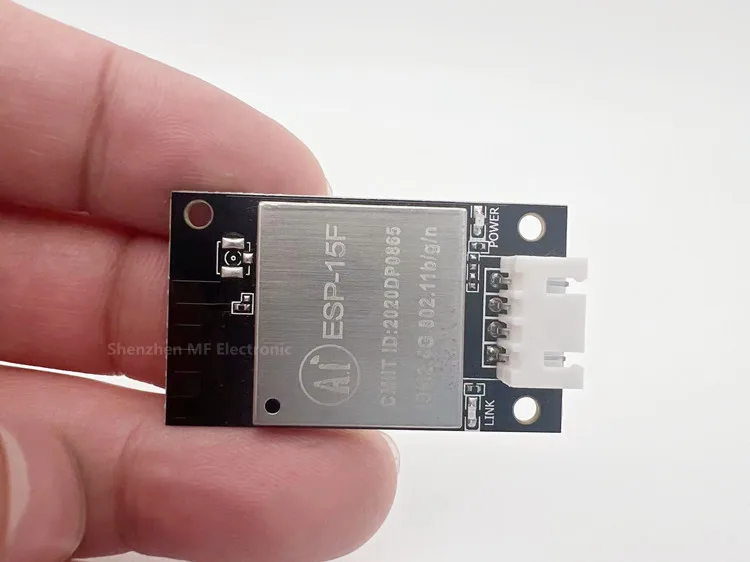

New Product Mini Wholesale ESP8266 ESP 8266 ESP15F WiFi Module Wireless Remote Control ESP-15F For IOT
1. WiFi data transmission module with ESP8266 as the core;

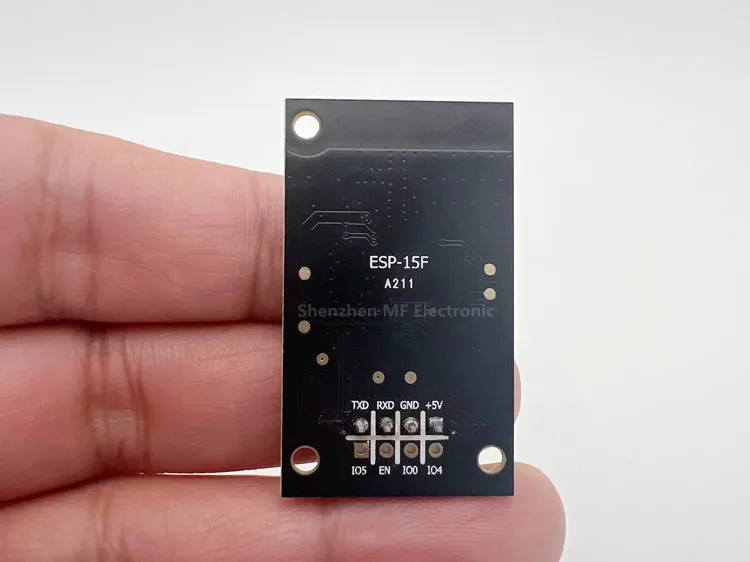

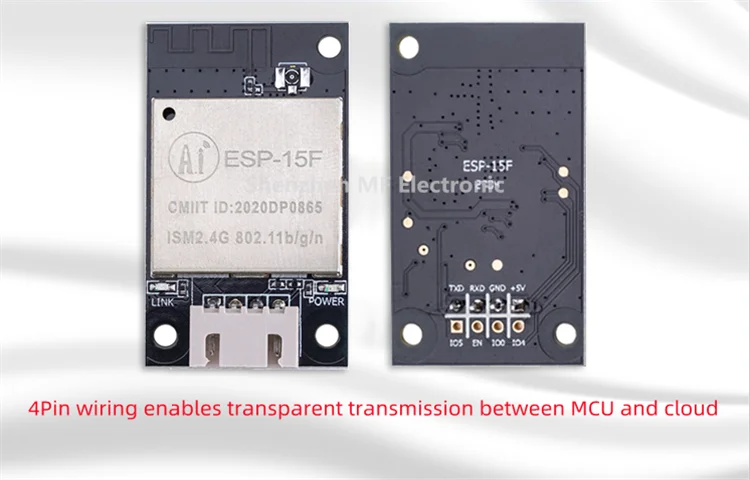

2. There is no need to stick the board design, and 4Pin wiring can realize the transmission of MCU through WiFi.
Model | ESP-15F |

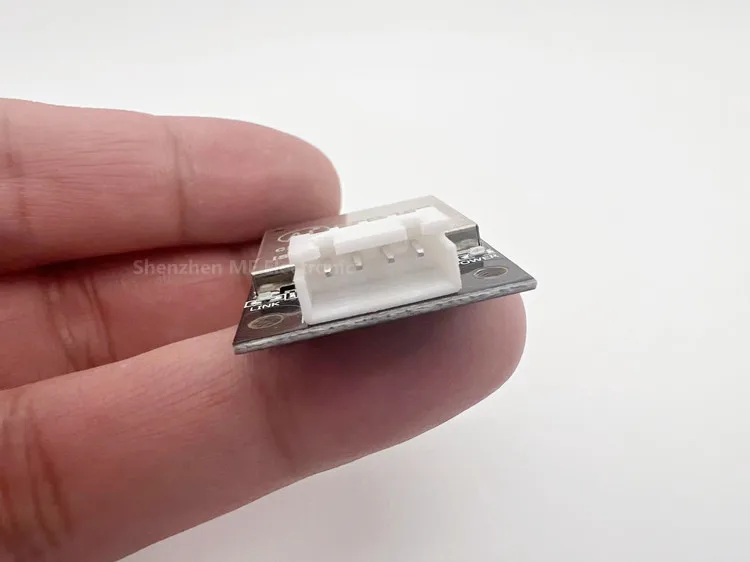

Package | PH2.54 connector /DIP-8 package |

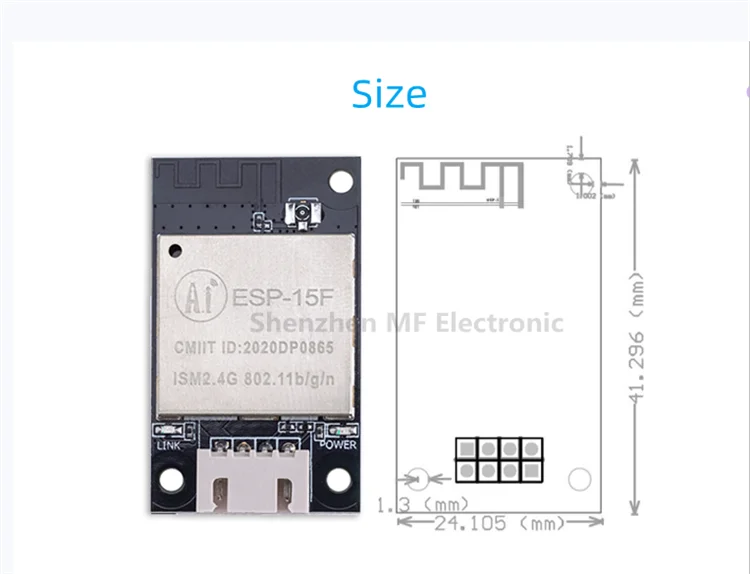

Size | 41.3*24.1*6.6mm |
Antenna Form | On-board PCB antenna/IPEX External antenna |
Spectrum Range | 2400~2483.5MHz |
Working Temperature | -20℃~70℃ |
Storage Environment | -40℃~125℃ , <90%RH |

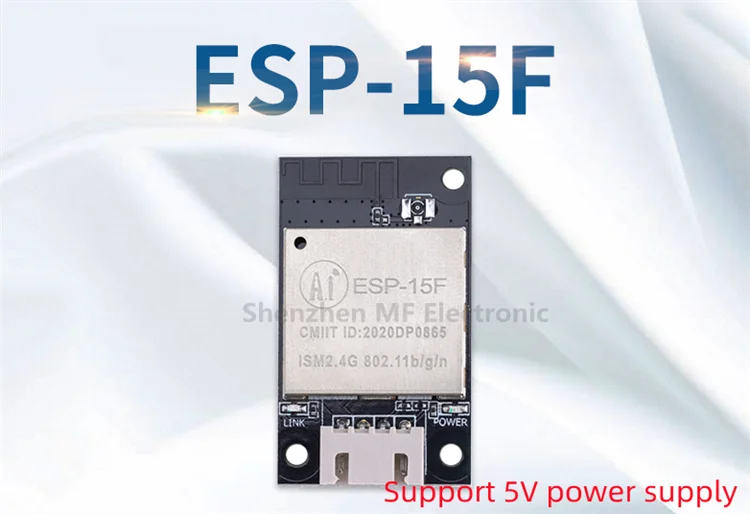

Power Supply Range | Voltage 5V, Current >800mA |
Support Interface | UART only |
Number of IO ports | 3 (reserve) |
Serial Port Speed | Support 110~4608000bps, default 115200bps |
Security | WEP/WPA-PSK/WPA2-PSK |
SPI Flash | 32Mbit (Default) |
