GookiiTech Meters Manual Water Transfer Printing Service Hydrographic Tank WTP Hydro Dipping Machine With Dipping Arm
- Category: >>>
- Supplier: Sino Gookii Tech Co. Ltd.
Share on (1600616518004):
Product Overview
Description
Products Description
Overall Equipment Size | 94.49 in Long x 47.24 in Wide x 37.4 in Tall | ||
2,400 mm Long x 1,200 mm Wide x 950 mm Tall | |||
Internal Processing Area | 78.74 in Long x 43.31 in Wide x 31.5 in Deep | ||
2,000 mm Long x 1,100 mm Wide x 800 mm Deep | |||
Material | Stainless Steel | 2.0mm Thick | |
Water Capacity | 1800 Liters | 475.5 US Gallons | |
Weight of Water | 1800 Kg | 3,968 Pounds | |
Power Configurations | Single Phase 220V, 50 Hz, 7KW | ||
Heating System | Heater 2 Set | Single Phase 220V, 50 Hz, 3KW x 2 | |
Water Circulation System | Pump 1 Set | Single Phase 220V, 50 Hz, 750W | |
(Weak Current 24V) | Power Indicator Pump Switch/ Indicator Water Inlet Switch/ Indicator Drain Valve Switch/ Indicator Bypass Valve Switch/ Indicator Temperature Regulator Emergency Stop Button Dipping Arm Control Panel | ||
Water Inlet Drain Valve Bypass Valve | |||
Net Weight: 270 Kg | Gross Weight: 310 Kg | ||
Package Size: 2,500 mm Long x 1,300 mm Wide x 1,100 mm Tall | |||
Material: Non-fumigation Plywoodcase | |||
What is hydro dipping?

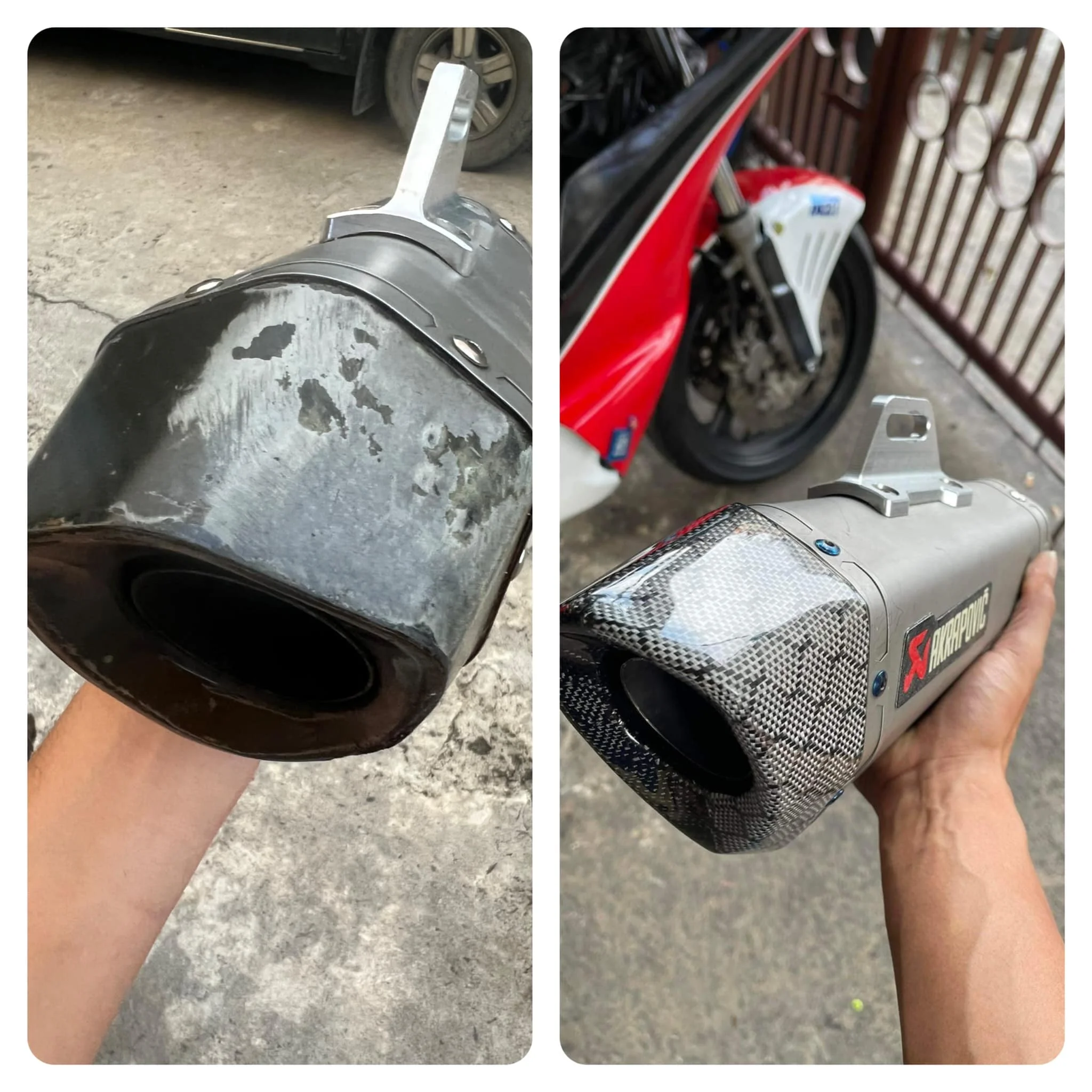

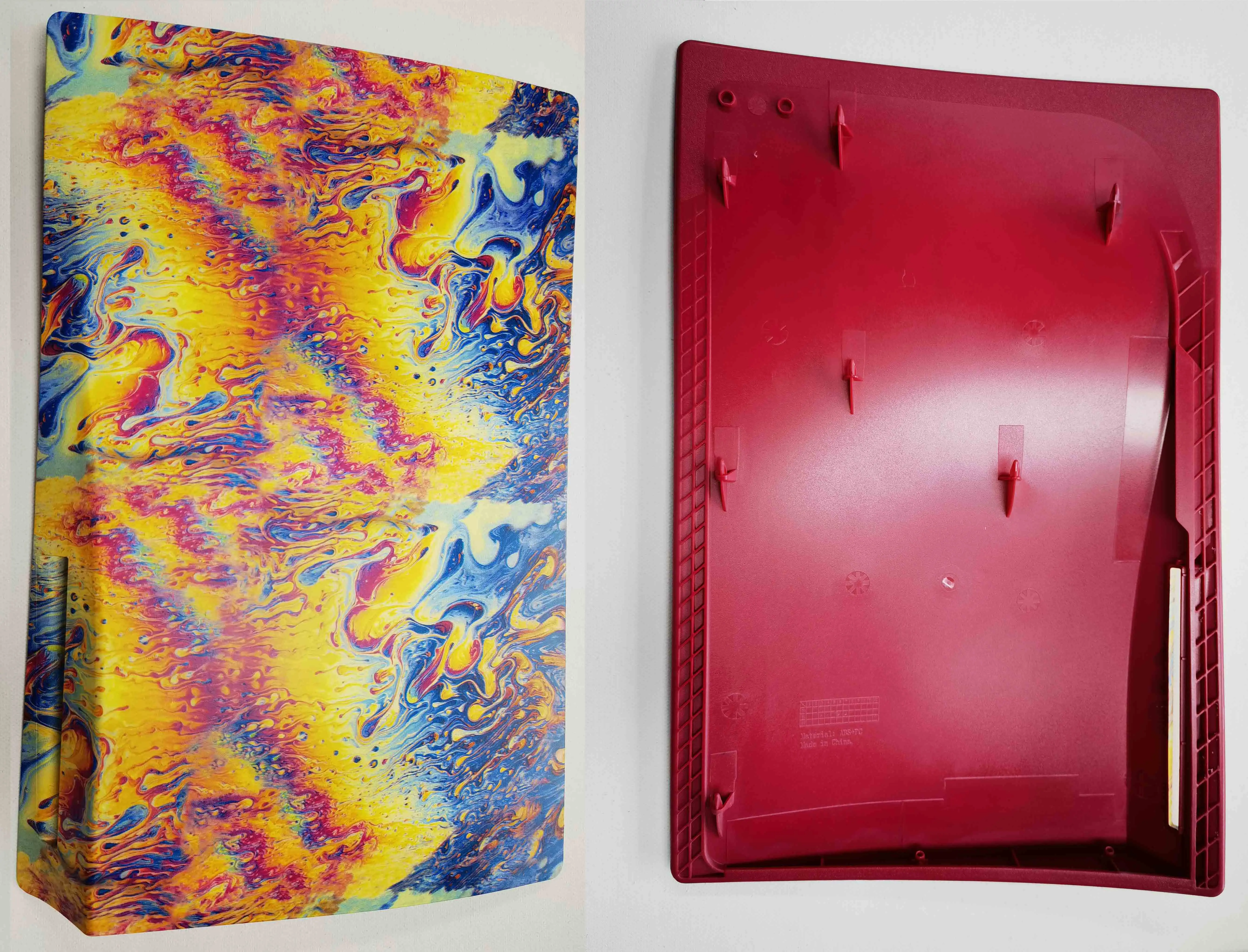

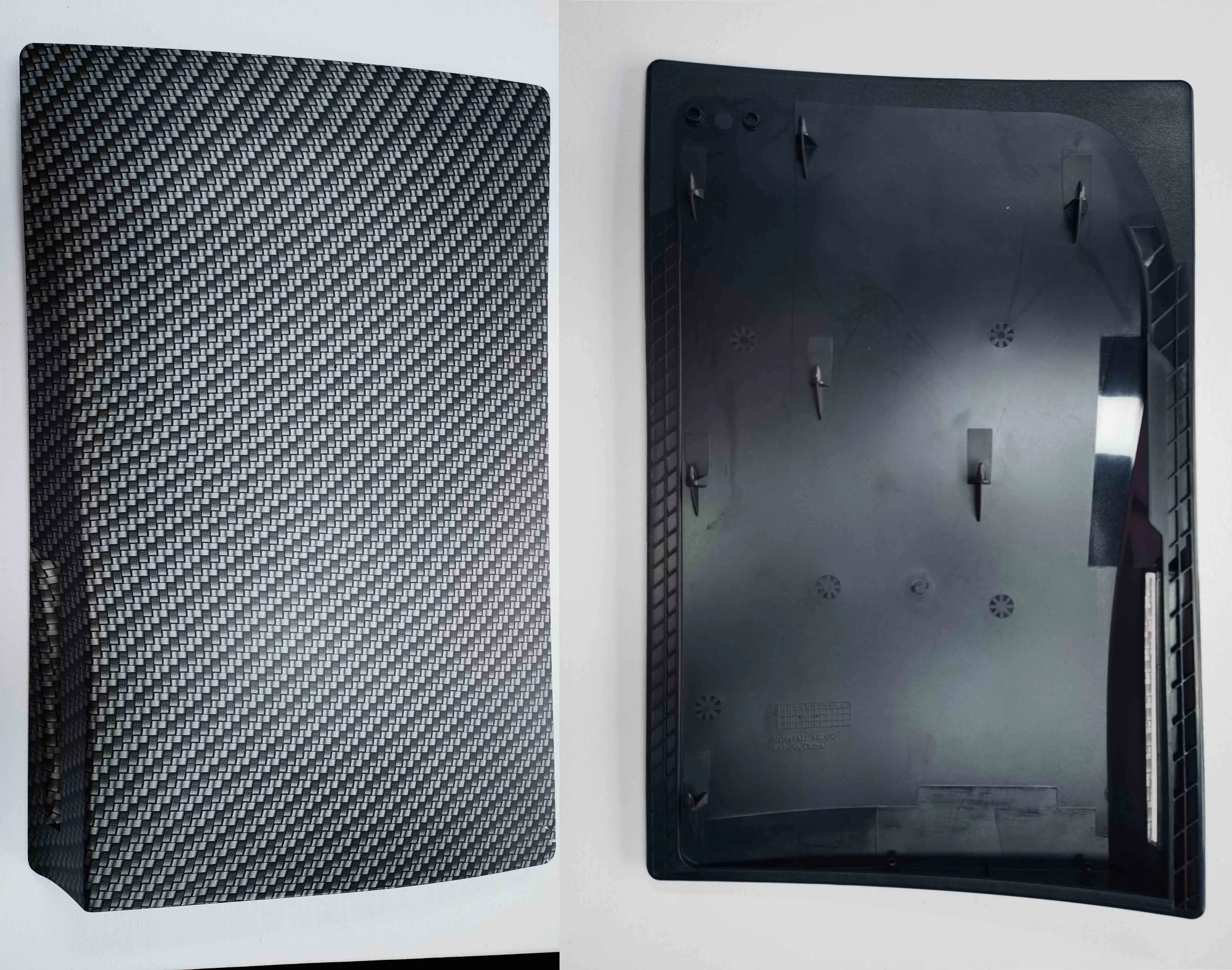

Hydro dipping, also known as water transfer printing, immersion printing, Hydrographics, watermarbling, water transfer imaging, or cubic printing, is a method of applying printed designs to three-dimensional surfaces. The hydro dipping process can be used on metal, plastic, glass, hard woods, and various other materials.
How to work with your machine?

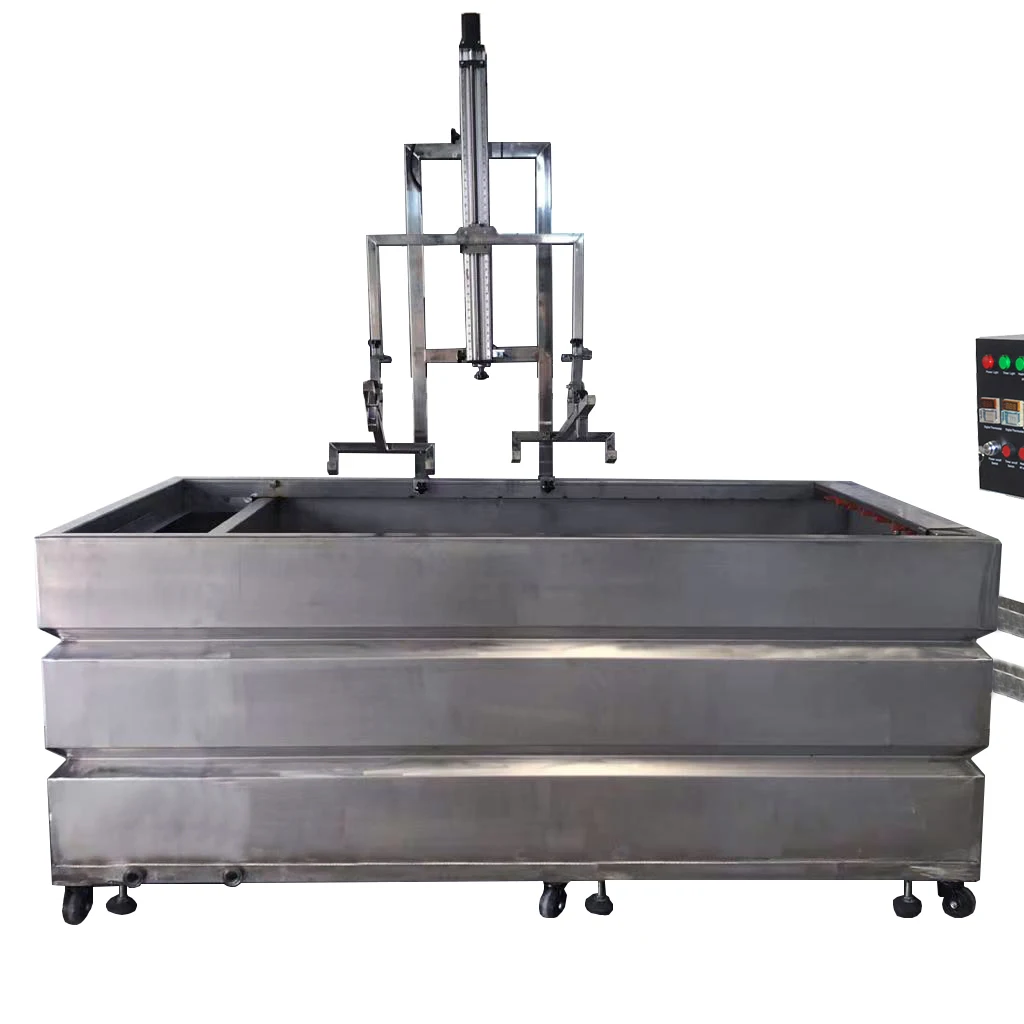

This water transfer printing machine is a very professional machine, with this machine, you can hydro dipping most of the products with the max size of 2,000mm long.
This machine has complete heating, water circulation and control system. We will provide you full catalog and operational manual.
What is your advantage?
12 year of machinery development and manufacturing. We have a team with product managers and tech advisors.
All products must pass testing and inspection before leaving the factory.
We provide customers with product problems and technical problems encountered in the product use process from beginning to end.
Recommend Products
Company Profile
Sino Gookii Tech Co.,Ltd.
Sino Gookii Tech is committed to providing customers with one-stop machinery customization, processing and services. We focus on surface treatment, welding and smart factory related materials and equipments. With 12 years of industry experience, we have provided full range of equipment and technical support to large international companies.
Sino Gookii Tech has 2 self-operated factories to ensure that each equipment and each material are fully developed, tested, and produced before being delivered to customers.
Certifications
Customer Reviews
FAQ
Q1. Do you have all these materials and machines available in your factory?
- A1: We have most of the products in stock, but some customized materials and machines have no stock, we can finish production in 7 to 10 days once you confirmed the order.
Q2. What if I want to have some customization on the machine? Likely to put my own logo, have some paint outside, or add some elements?
- A1: We fully accept customization, we will produce according to your requirements, for the machine, the MOQ of the customization is just 1 set.
Q3. How to place the order?
- A1: Please choose the type you like, and send us your address and contact information, we will check the shipping price and quote everything to you immediately. If you agree the terms, then you can start paying, you can pay by T/T, visa credit card, western union, paypal etc. We will start the production and then arrange the shipping.
Q4. I am new in this industry or it's the first time to use your products, what kind of technical support do you have?
- A1: We guarantee to provide customers with technical services from beginning to end. Our equipment has manuals. In addition, we provide video instructions, remote video and audio technical guidance, free recipes and debugging parameters, etc.
Q5. How many days I can receive my products?
- A1: It depends on your country, and the shipping way you choose, e.g.: to America & Europe, machines will be shipped by sea shipping, about one month you can receive. If Korea and Japan, sea shipping is about one week. Africa and other places also one week. Other Asia countries, about 2 weeks. If some small or light weight products, they can be shipped by air, the shipping time to countries all over the world, is less than 10 days, 6 to 10 days.
Q6. Do you have any quality guarantee for machine products?
- A1: Absolutely. We have a one-year warranty on the machine and provide installation and maintenance guidance throughout.
