QIPANG CNC automatic stainless steel copper aluminum metal pipe straightening machine straightener iron wire
Brief description:
Our plant research and development of CNC three-section clamping die chip free automatic blanking machine is different from the traditional two-half jig steel tube cutting machine, drawing on the structural principle of the lathe head, the use of three-chuck jig, from three angles at the same time to apply the force. When replacing the fixture, there is no need to re-adjust the concentricity of the fixture, so the replacement process is more convenient. When the tube is pulled, the deformation degree of the tube is minimized to ensure the appearance quality of the tube.
Our plant research and development of CNC three-section clamping die chip free automatic blanking machine is different from the traditional two-half jig steel tube cutting machine, drawing on the structural principle of the lathe head, the use of three-chuck jig, from three angles at the same time to apply the force. When replacing the fixture, there is no need to re-adjust the concentricity of the fixture, so the replacement process is more convenient. When the tube is pulled, the deformation degree of the tube is minimized to ensure the appearance quality of the tube.
No | Size | 2300*600*1280mm | Tube material | Copper/aluminum/steel |
1 | Height | 850mm | tube diameter | 4-16mm |
2 | Power | 3KW | Feeding speed | 0-50m/min |
3 | Weight | 500kg | Electric system | 380V 50HZ 3phase |
Product parameter ：

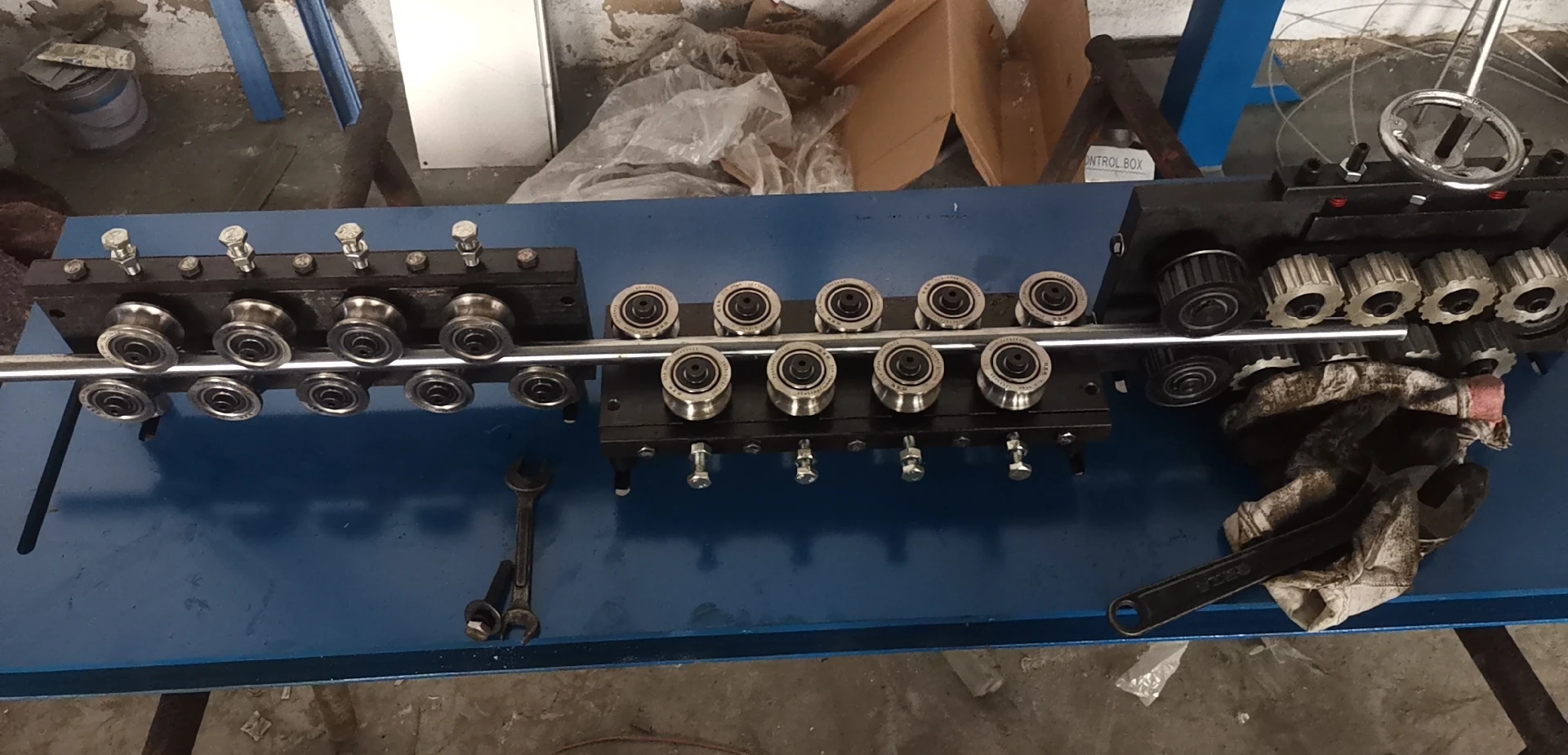

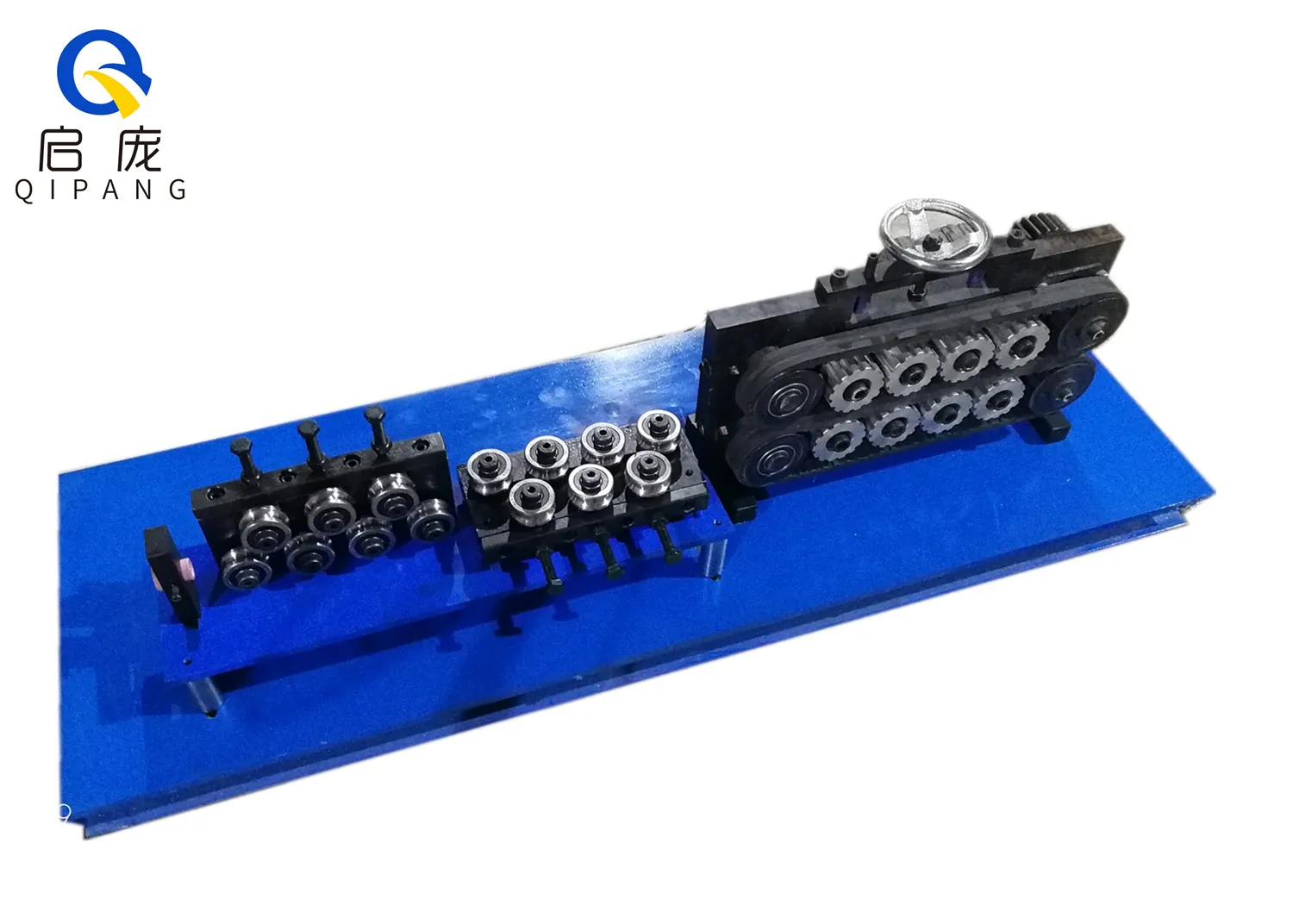

Product picture :

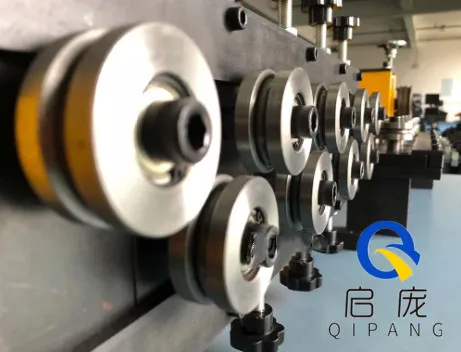

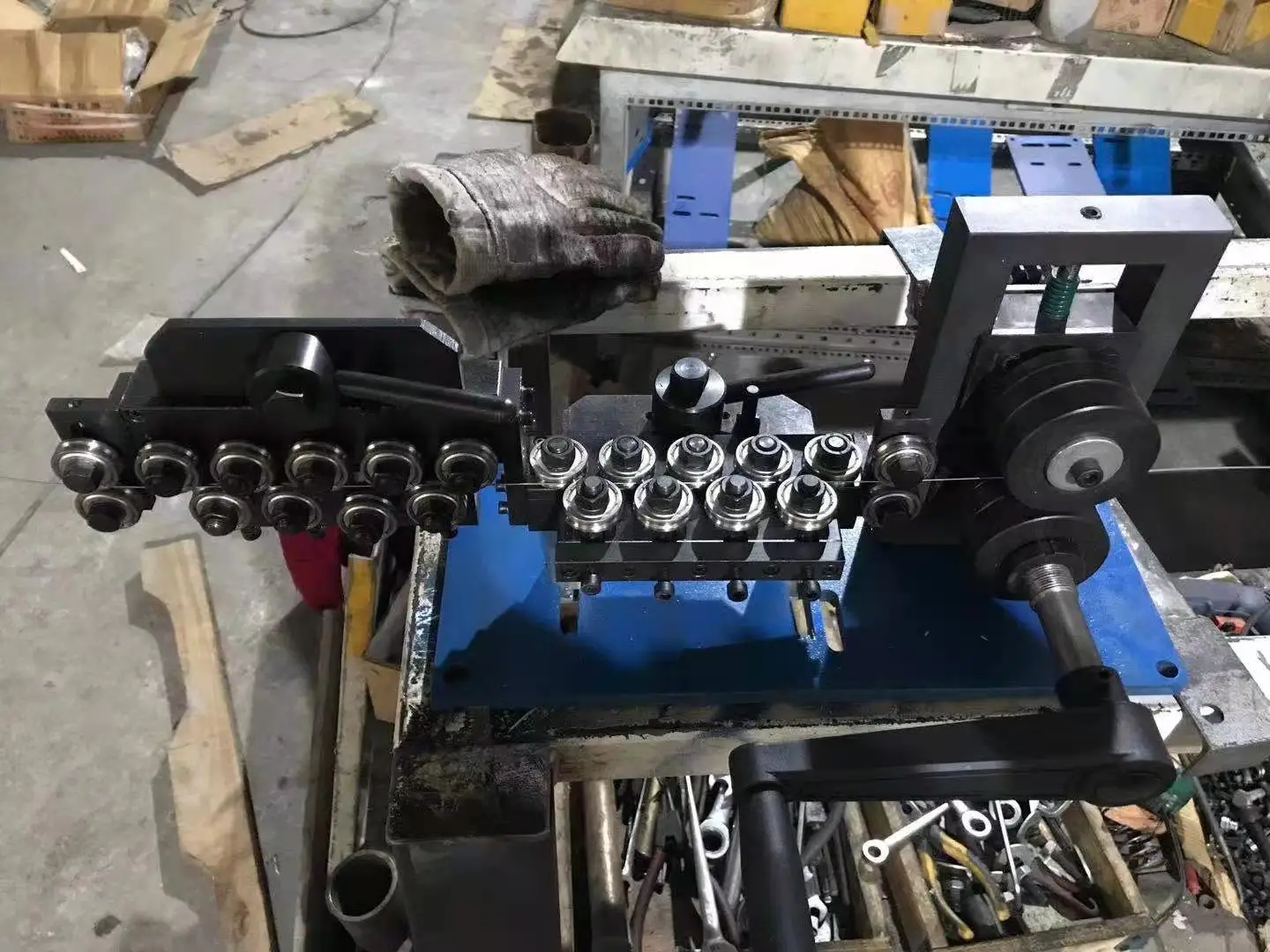

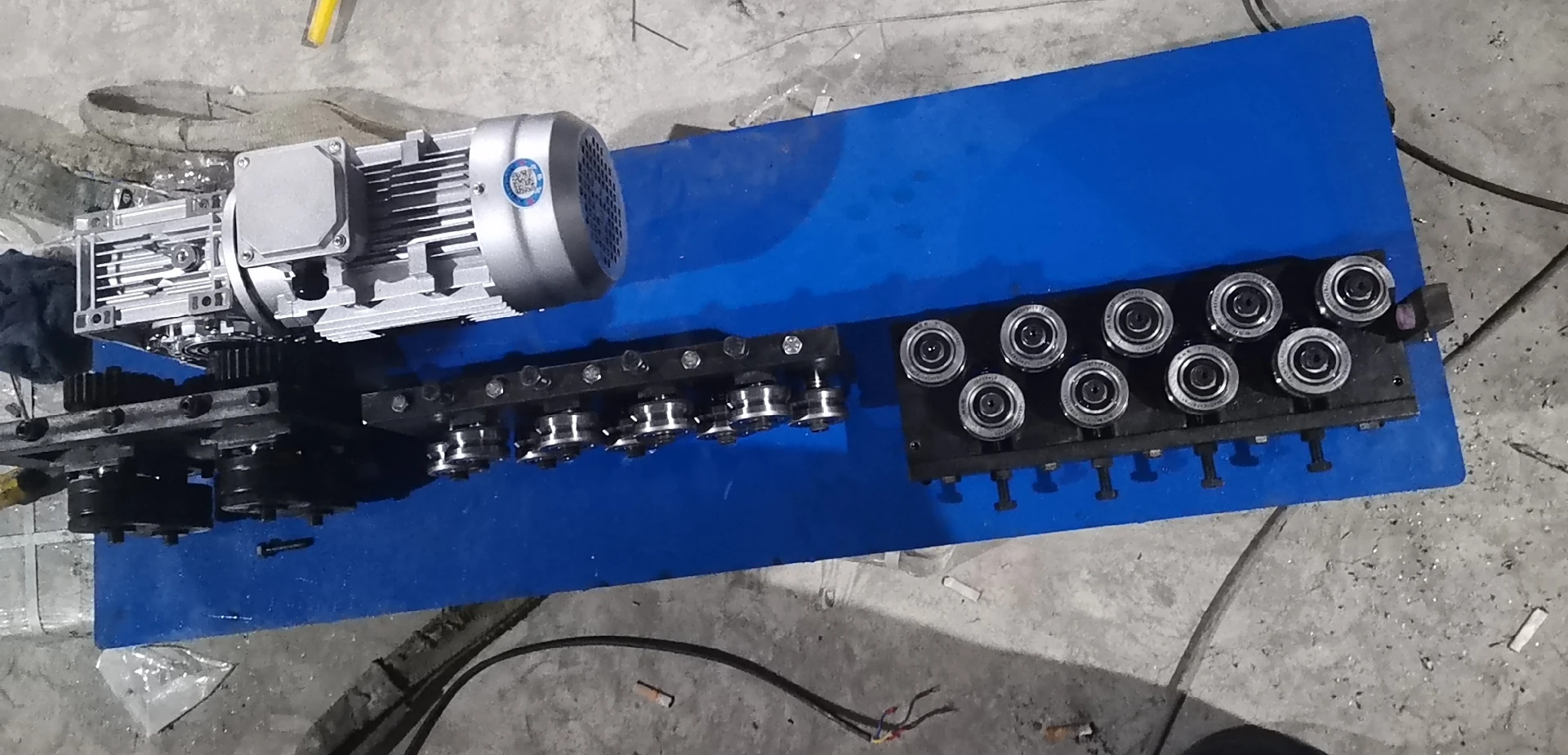

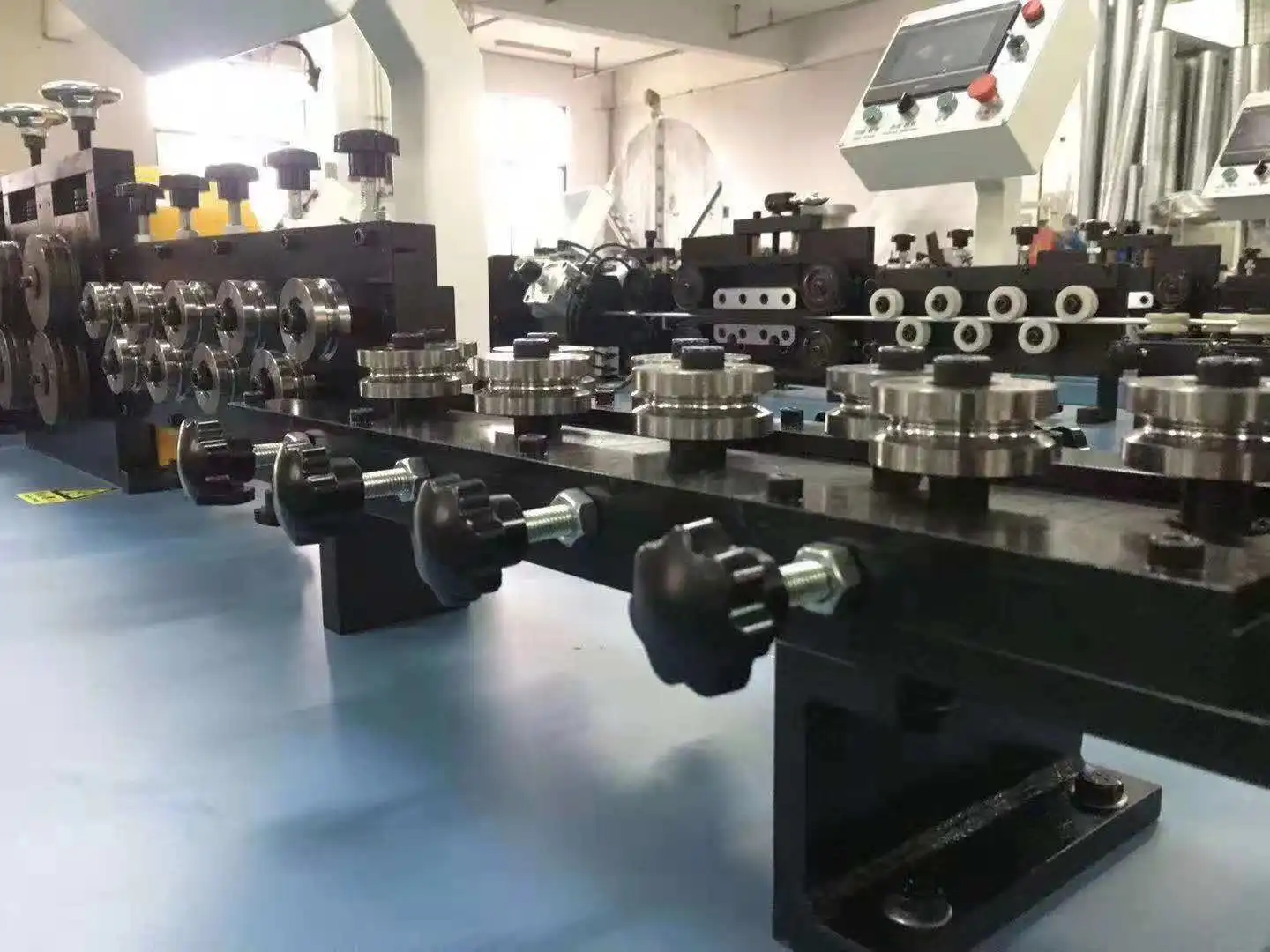

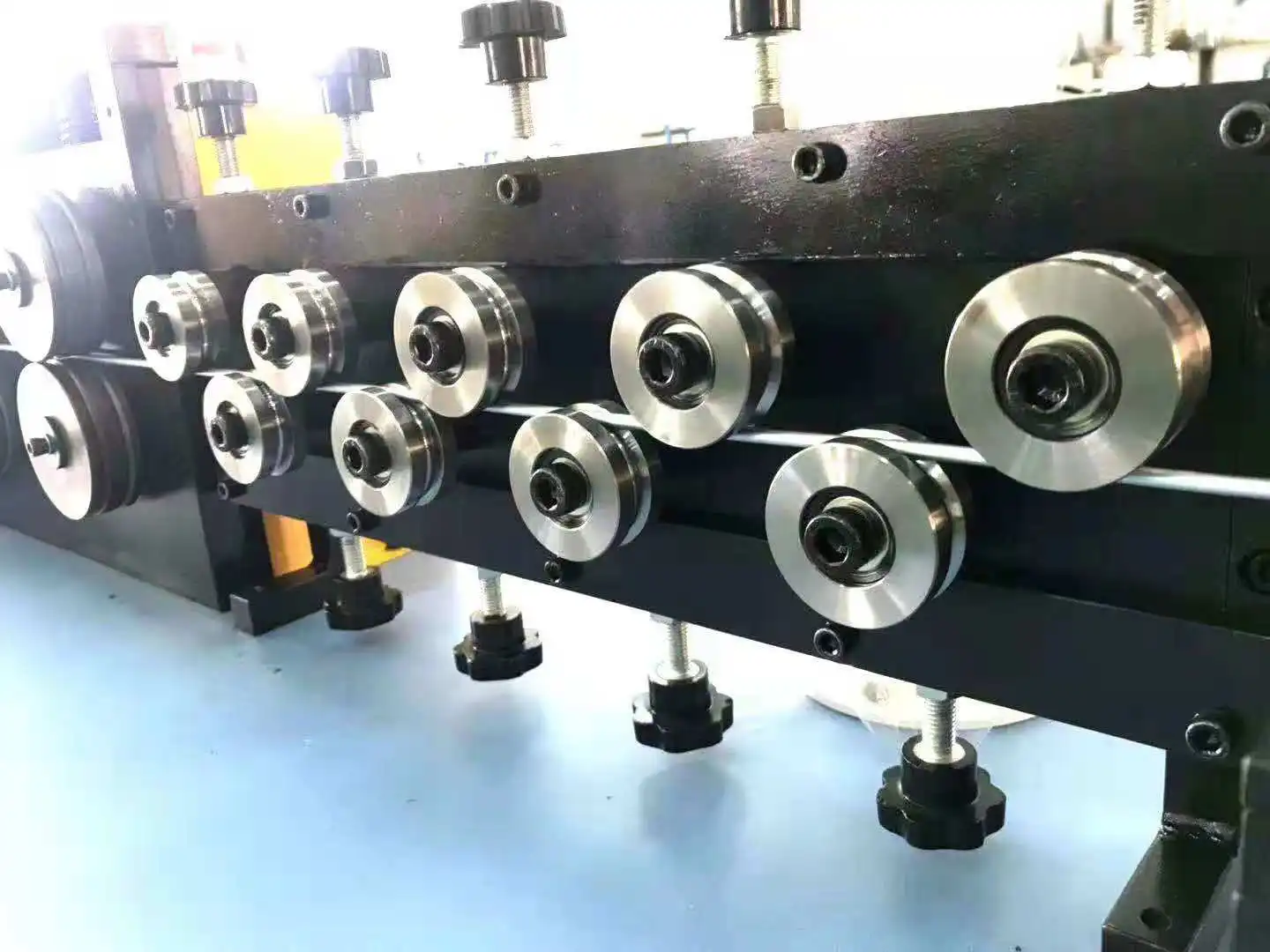

Detailed Images :

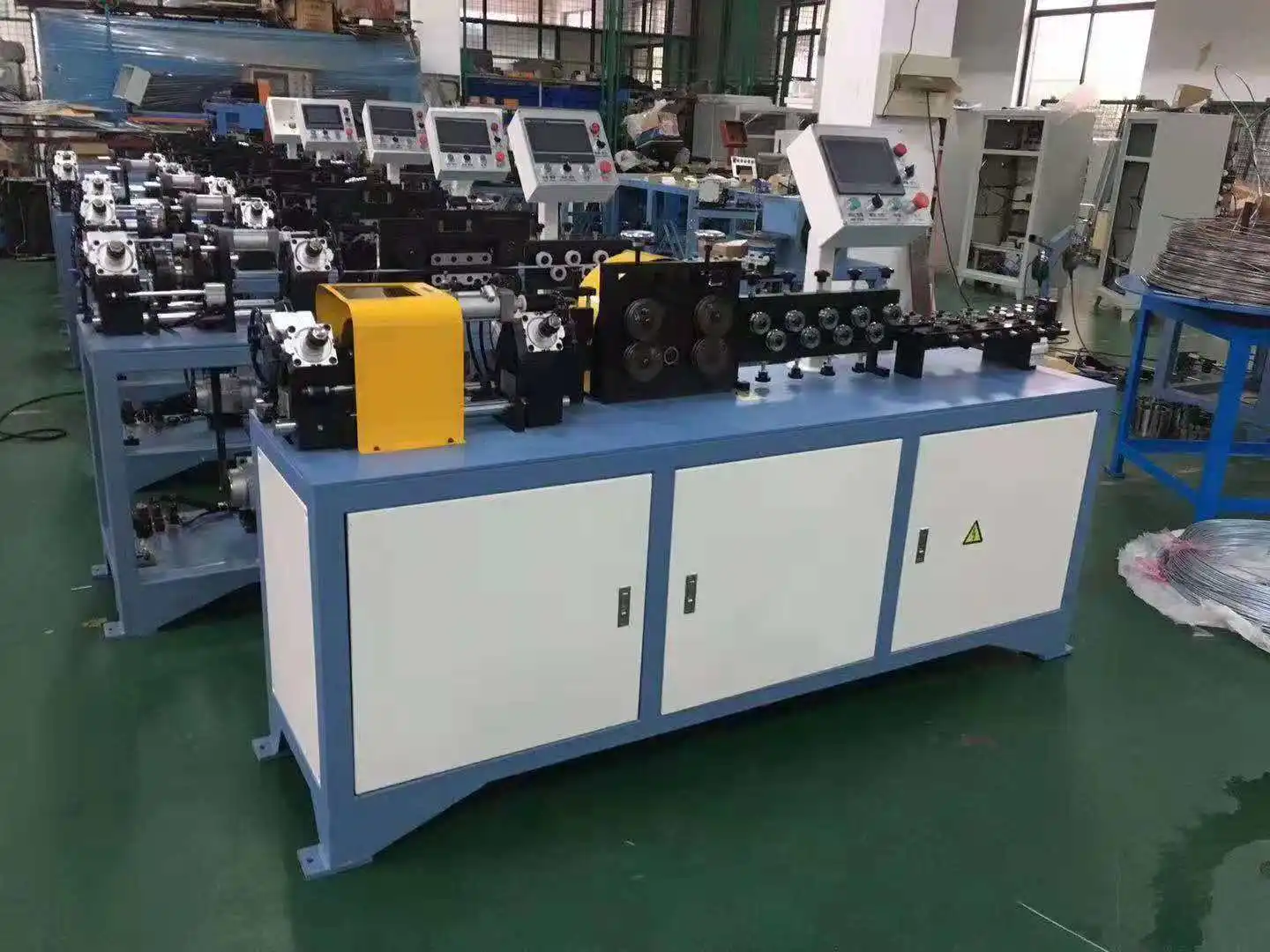

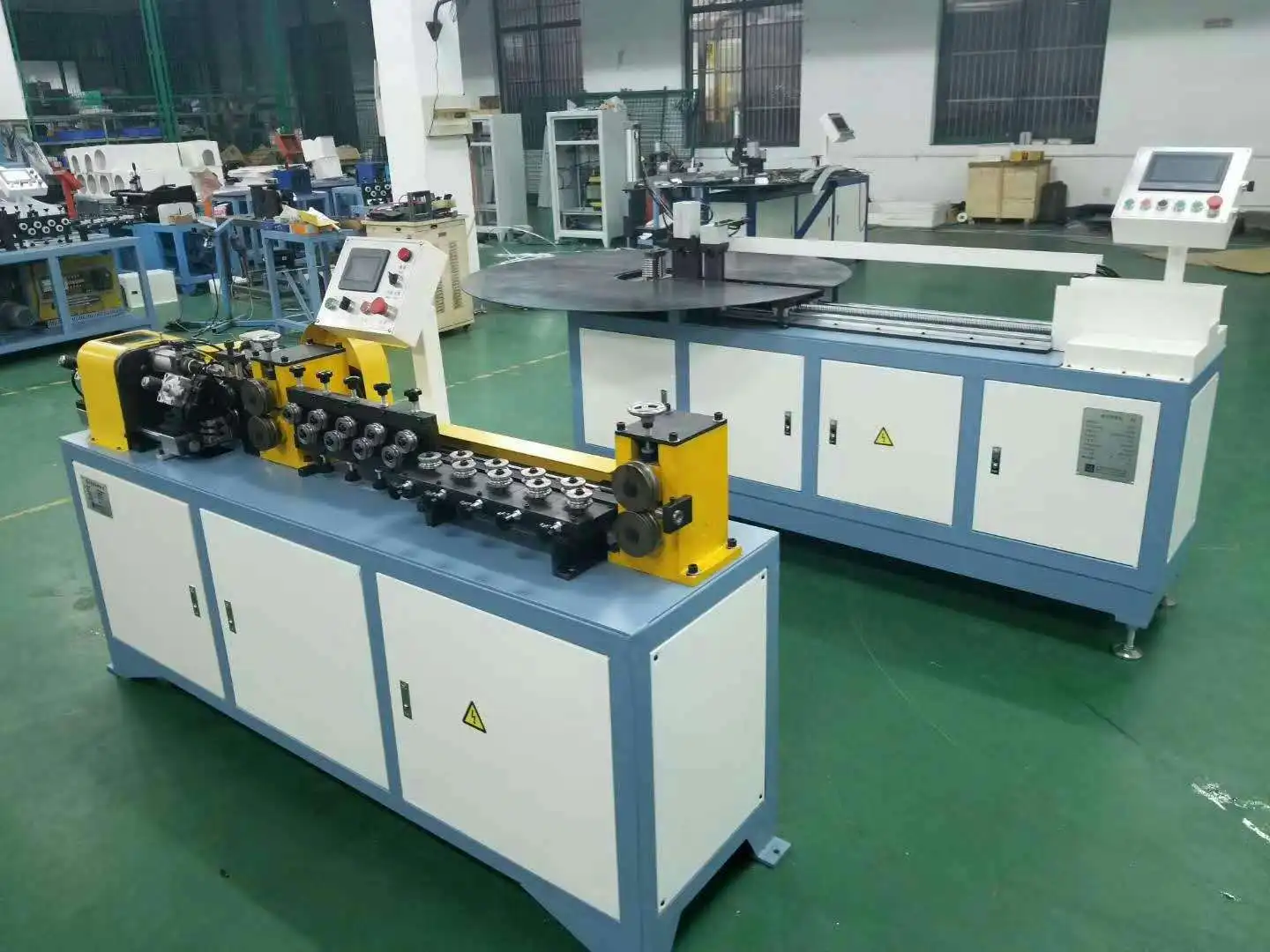

Chipless tube cutting system
Packing & Delivery
Size: 2300 x 650 x 1300 mm
Weight: 460kg
Packaging Details:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Weight: 460kg
Packaging Details:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related products :
Other product
Factory Show
Company Profie
About us :
Shanghai QIPANG Industrial co., LTD is a professional research and development, manufacturing, sales of wire and cable equipment of high and new technology enterprise companies adhering to the loyalty, integrity, wise spirit, advancing with The Times, continuous learning advanced foreign technology, as well as customer feedback in practical operation experience of information, to continuously improve product innovation, the company's main: polished rod line machine, straightening machine, take-up machine, feeding machine, such as wire and cable industry related equipment, as well as the peripheral equipment research and development and manufacturing.
Guarantee
The guarantee period is one year since the date B/L. During this period, we will offer free parts for changing if machine quality problem.
Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.
Also the spare parts can be offered in original cost after that. The freight for part sending will be paid by buyer.
After-Sales Service
We offer free training here in China. Also we can send technicians oversea for whole line installation and training.
The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.
The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.
