Zip Pouch Filling Turkey Tail Mushroom Powder Packaging Machine Premade Bag Doypack Packing Machine
- Category: >>>
- Supplier: Qingdao Eastbest Packing Equipment Co. Ltd.
Share on (1600616603992):
Product Overview
Description
Applicable scope:
suitable for packing coffee powder, spice powder, protein powder, flour, milk powder, and some other powder food.
suitable for packing coffee powder, spice powder, protein powder, flour, milk powder, and some other powder food.
Application
Specification
Name | Powder bag packing machine | ||||
Model | P200 | P250 | P320 | ||
Suitable bag Size | Width: 100-350mm Length: 90-200mm | Width: 120-400mm Length: 100-380mm | Width: 150-500mm Length: 150-380mm | ||
Packing Efficiency | about 40-80 bags per minute (depending on the actual material and weight to pack） | ||||
Packaging Weight | 10-2000 g | ||||
Air Compressed | ≤0.4m³/min | ≤0.5m³/min | ≤0.6m³/min | ||
Voltage | 380V / 220V | 380V / 220V | 380V / 220V | ||
Power | 2.3 KW | 3.5KW | 4.5KW | ||
Gross Weight | 2600 kg | 3000 kg | 3500kg | ||
Work flow
1. Bag taking
2. Code Printing
3. Bag Opening
4. Material Filling 1+Compacting
5. Material Filling 2
6. Thermal Sealing 1
7. Thermal Sealing 2
8. Finished Product Output
Features
* With German Siemens PLC
* All setting in 1 computer

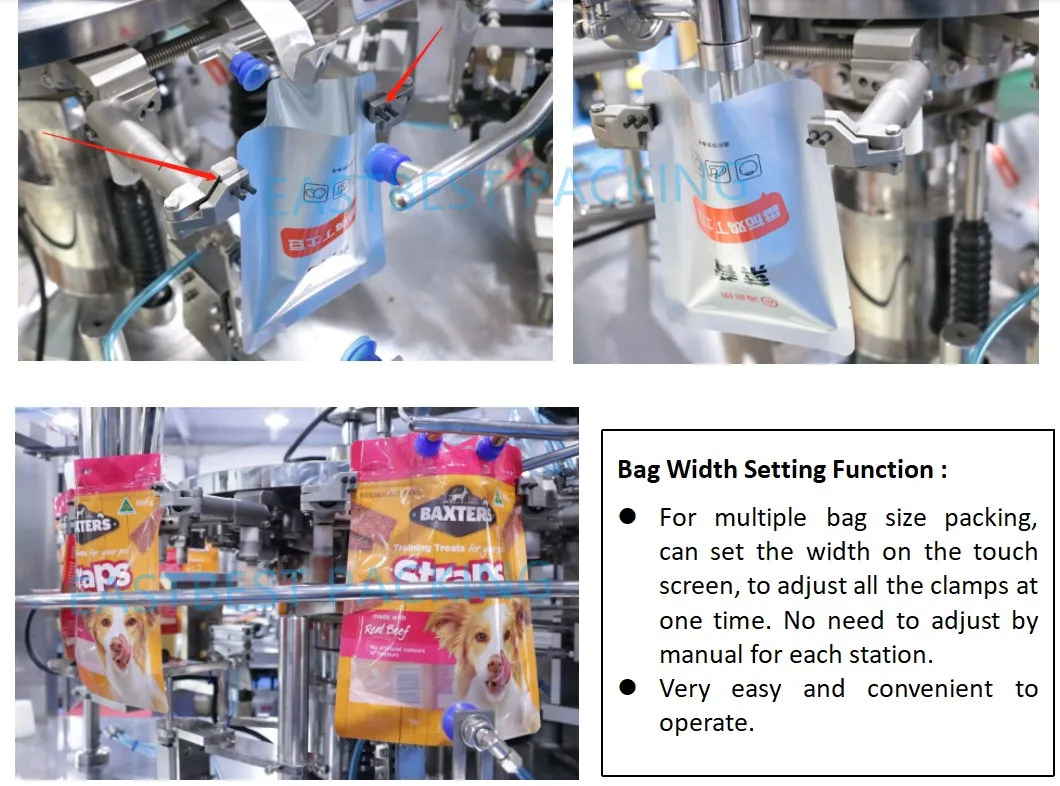

* All clamps with width auto adjustment, suitable for different types of pre-made bags
* All setting in 1 computer
* All clamps with width auto adjustment, suitable for different types of pre-made bags
Production Date Printer
* Maximum 3-row Codes
* Custom Codesavailable for numbers
* Custom Codesavailable for numbers
/letters /specific symbols(dot
/hyphen /slash, etc.)
Bag Opening Detector
* Bag opening detecting in operation
* If a bag cannot be opened properly,
* If a bag cannot be opened properly,
the filling device will skip that single
bag and continue to fill in the next
opening bag.
* Material will not be discharged
without control and waste
unnecessarily.
Filling Detector
* Filling detecting
* If the coming bag is detected without
* The empty bag will go to the next
* If the coming bag is detected without
proper filling, the sealing device will
not seal that single bag.
* The empty bag will go to the next
station and can be reused without
unnecessary
