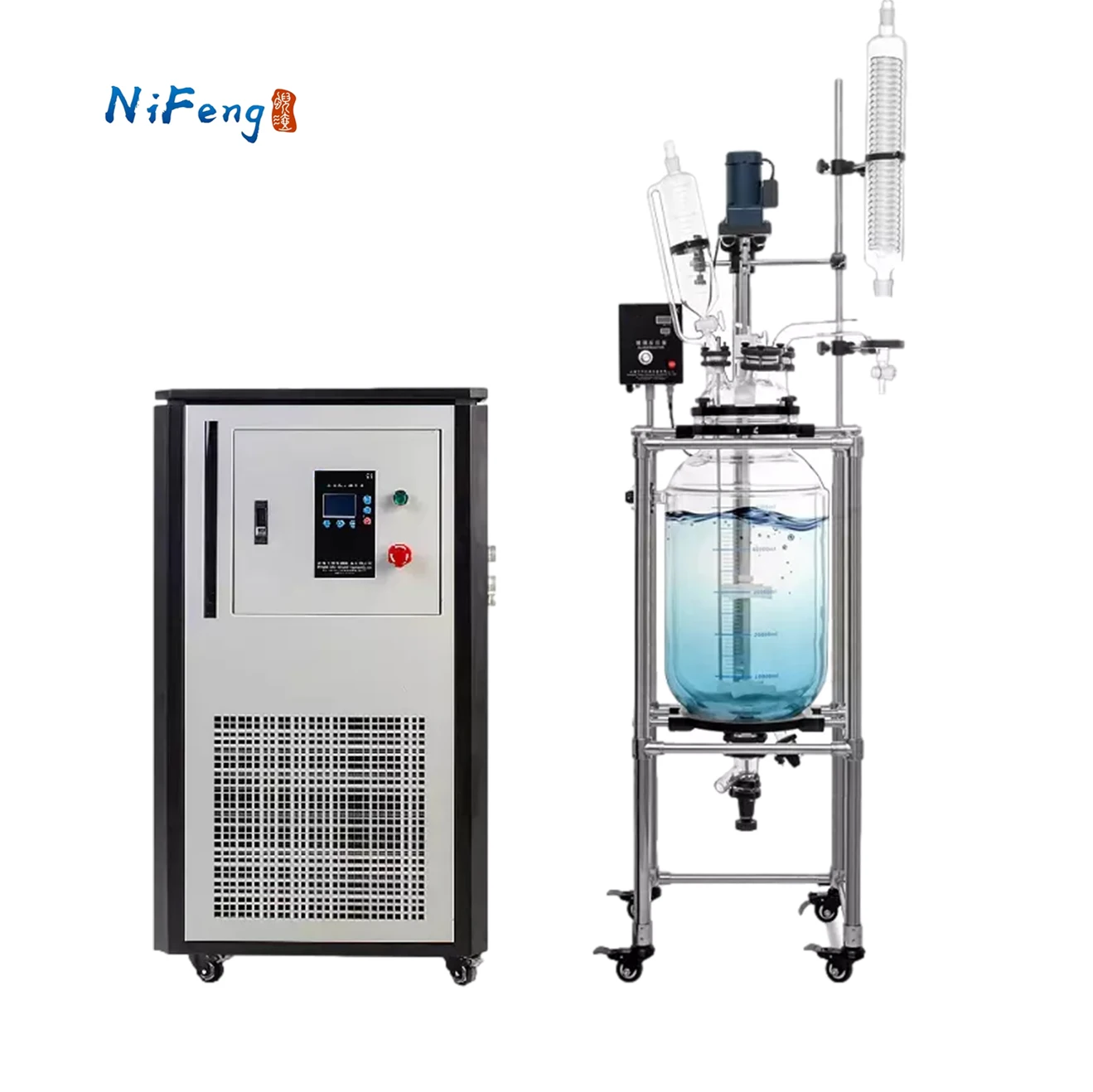

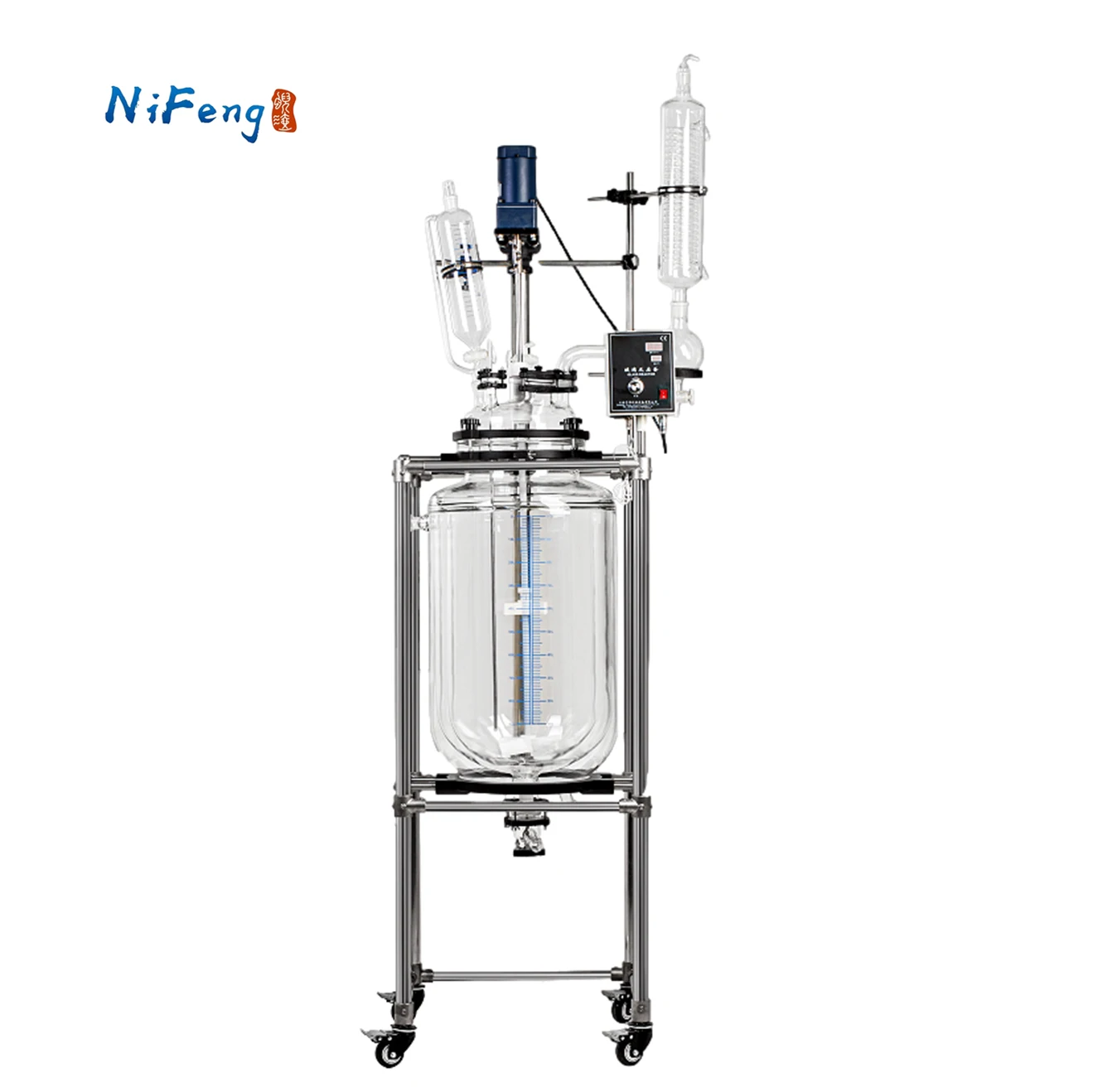

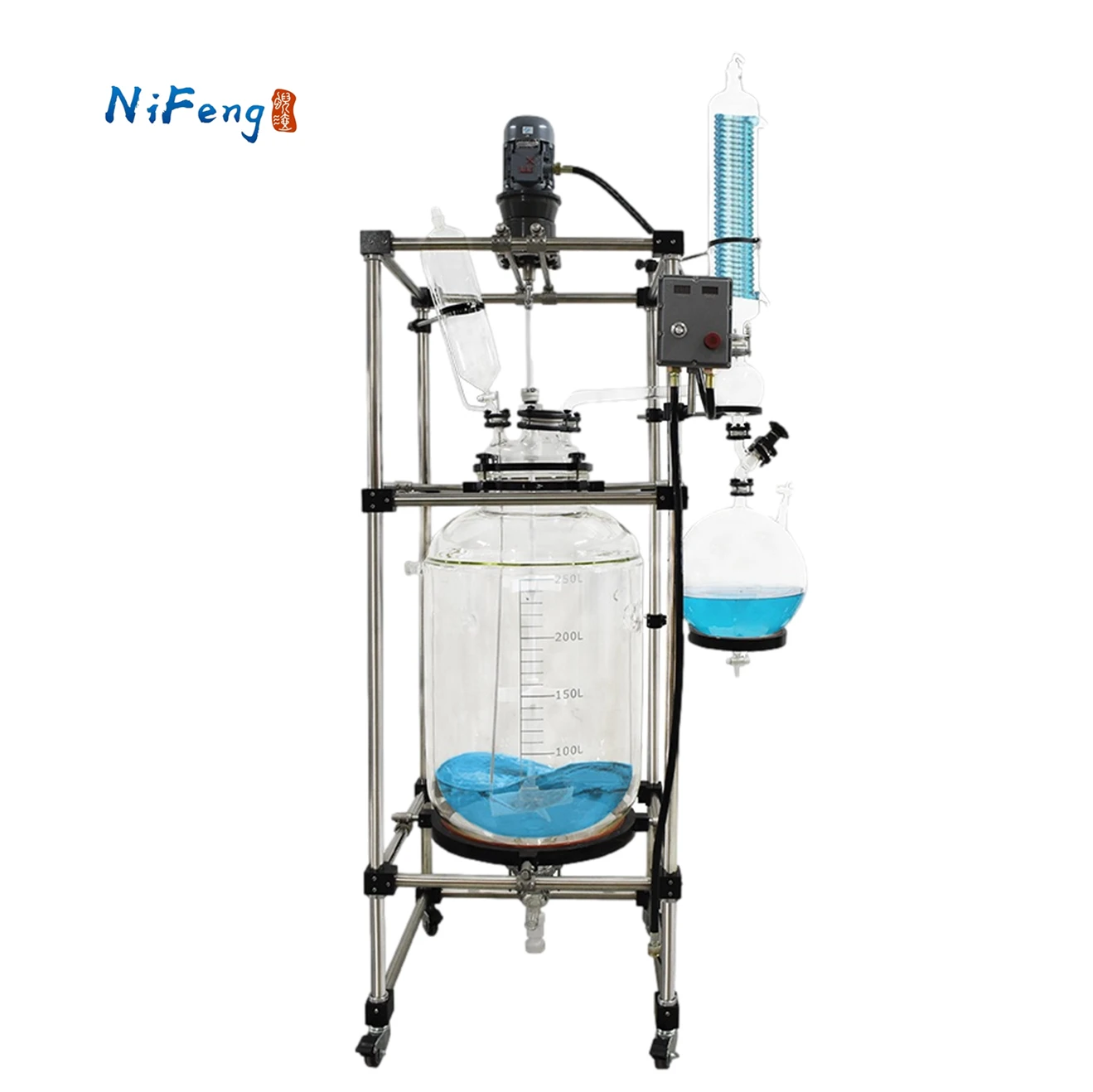

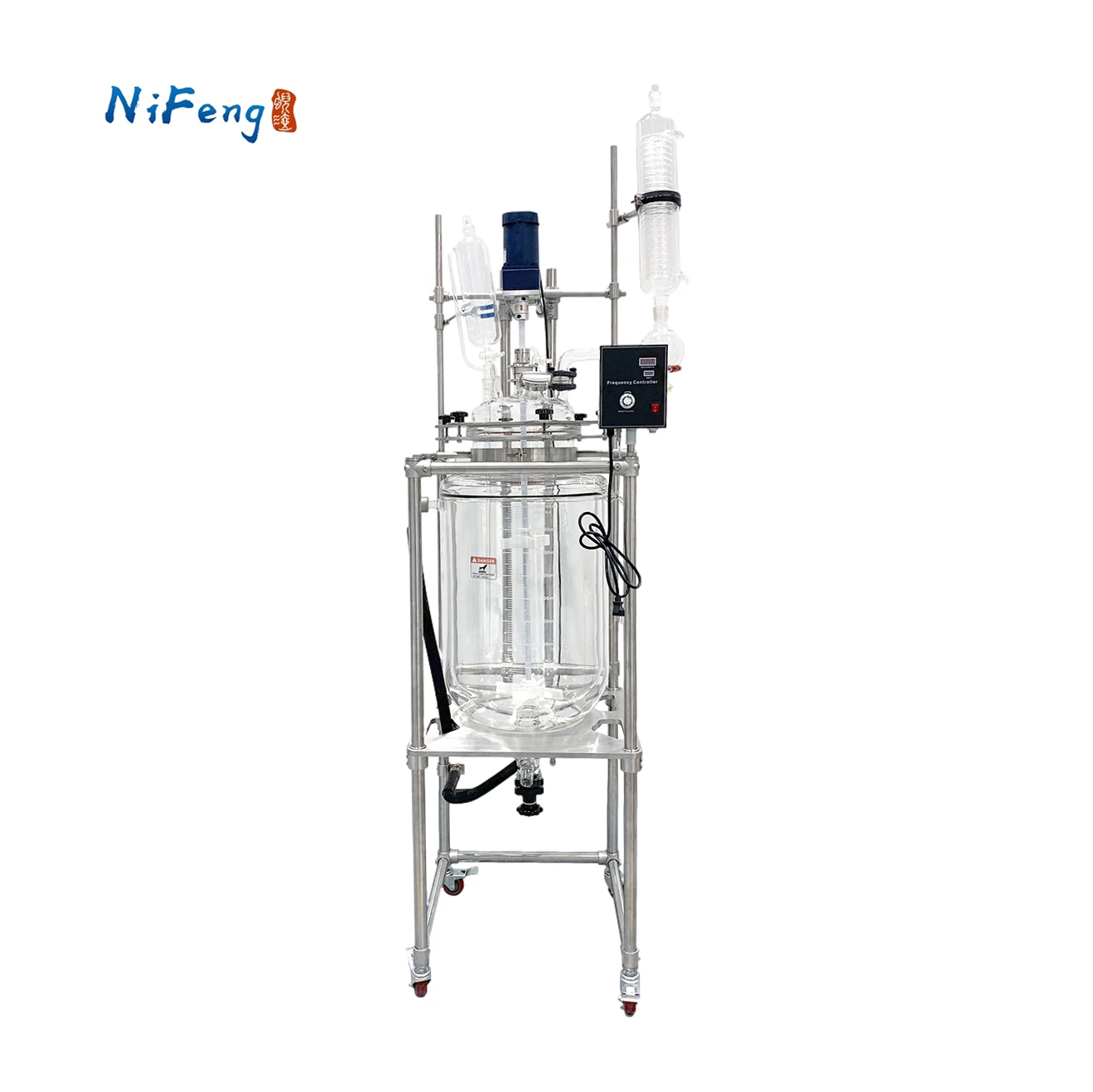

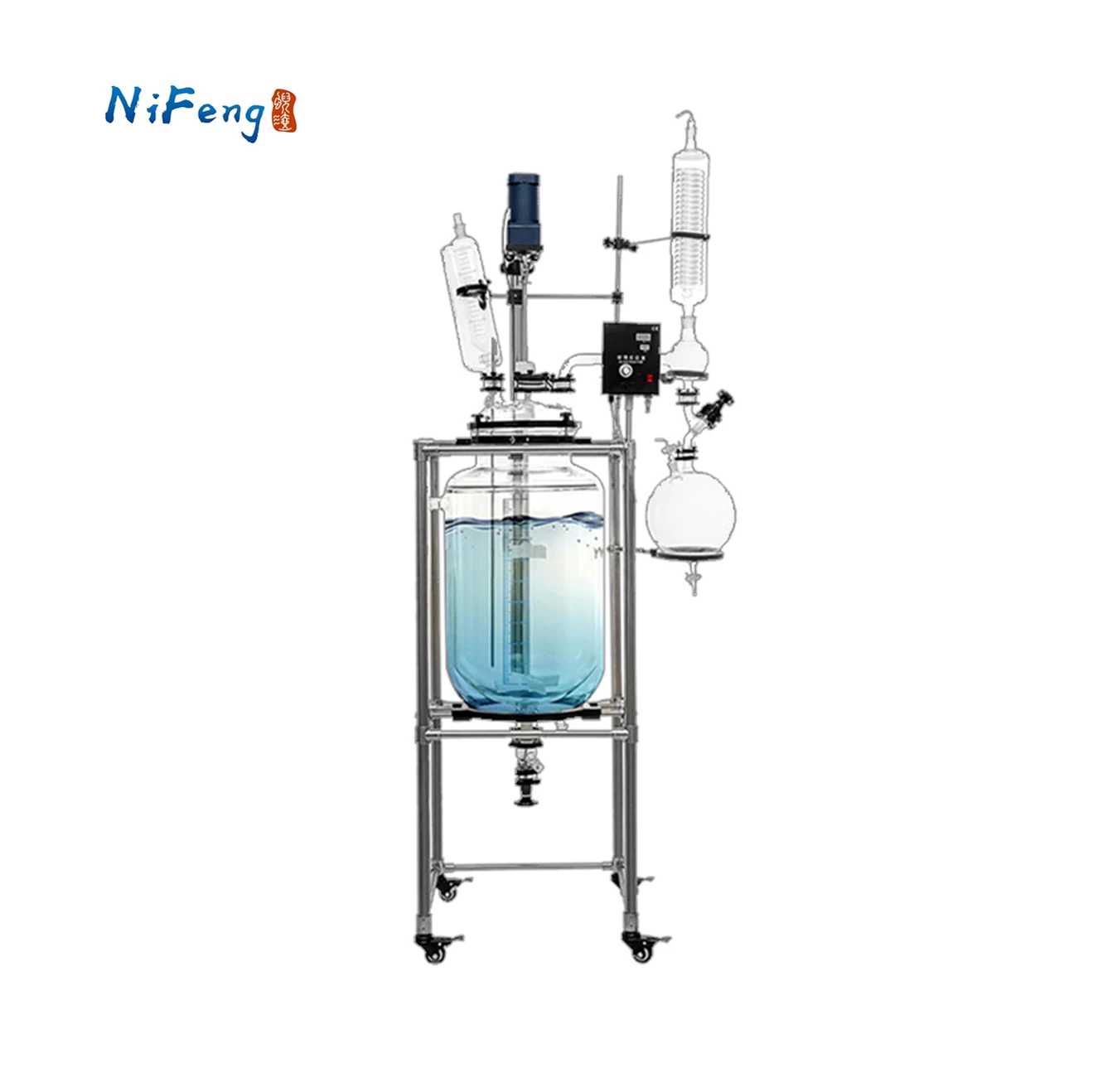

methanol reactor jacket 100 l cosmetic reactor chemical reactor mixer
- Category: >>>
- Supplier: Shanghai Fengxun International Trade Co. Ltd.
Share on (1600616653027):
Product Overview
Description
★ GG-17 3.3 High borosilicate glass material, with excellent physical stability and chemical resistance.
★Maximum temperature range stands -120 °C up to 300°C. Continuous working around 250 °C.
★Ideal for High vacuum pressure application scenario with FKM O ring +PTFE sealing maximum under 1 pa.

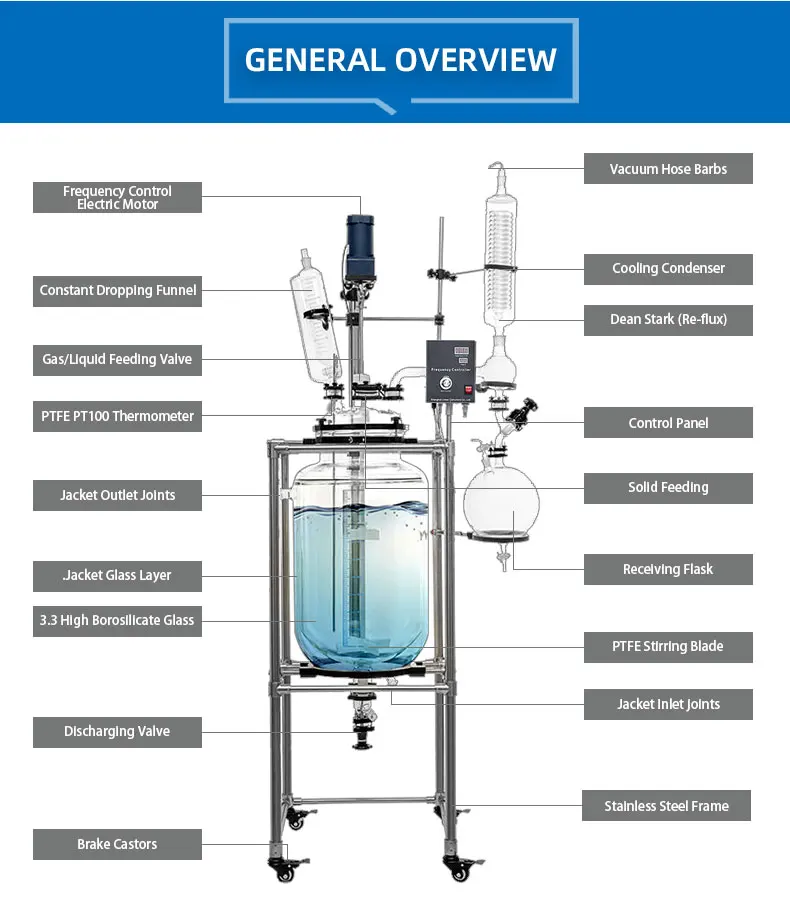

★Multiple openings design, standard six openings with glass/PTFE/stainless steel lid
★PTFE discharge valve, anti-corrosion with strong chemical resistant, no dead space ,no leakage.

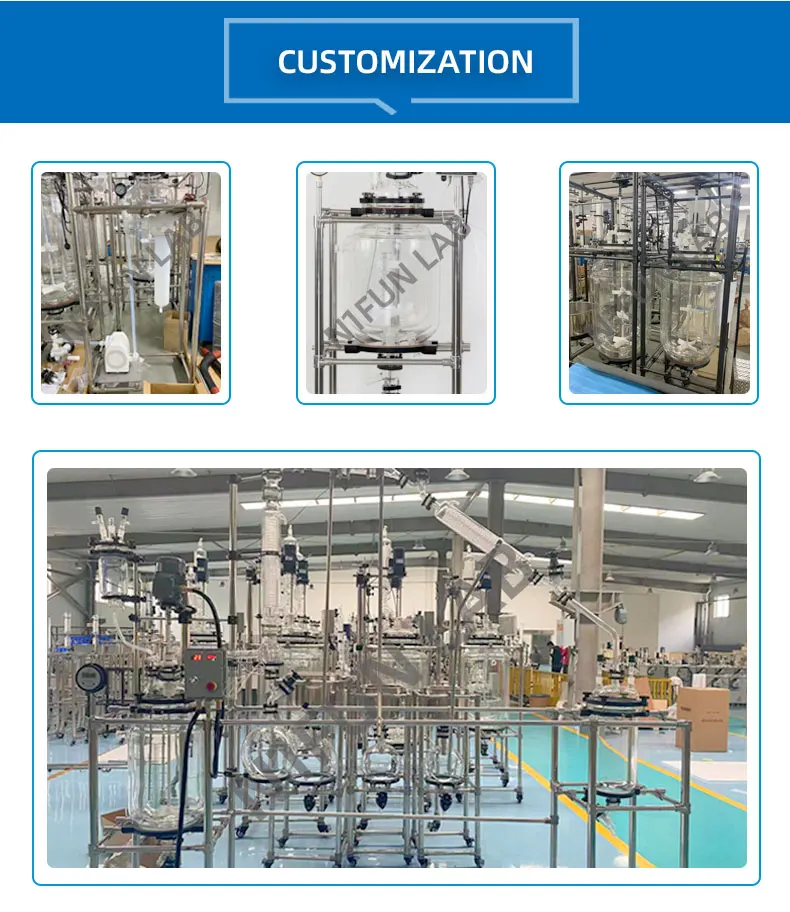

★Various Accessories for full customization, Explosion proof meet C1D2 standard.

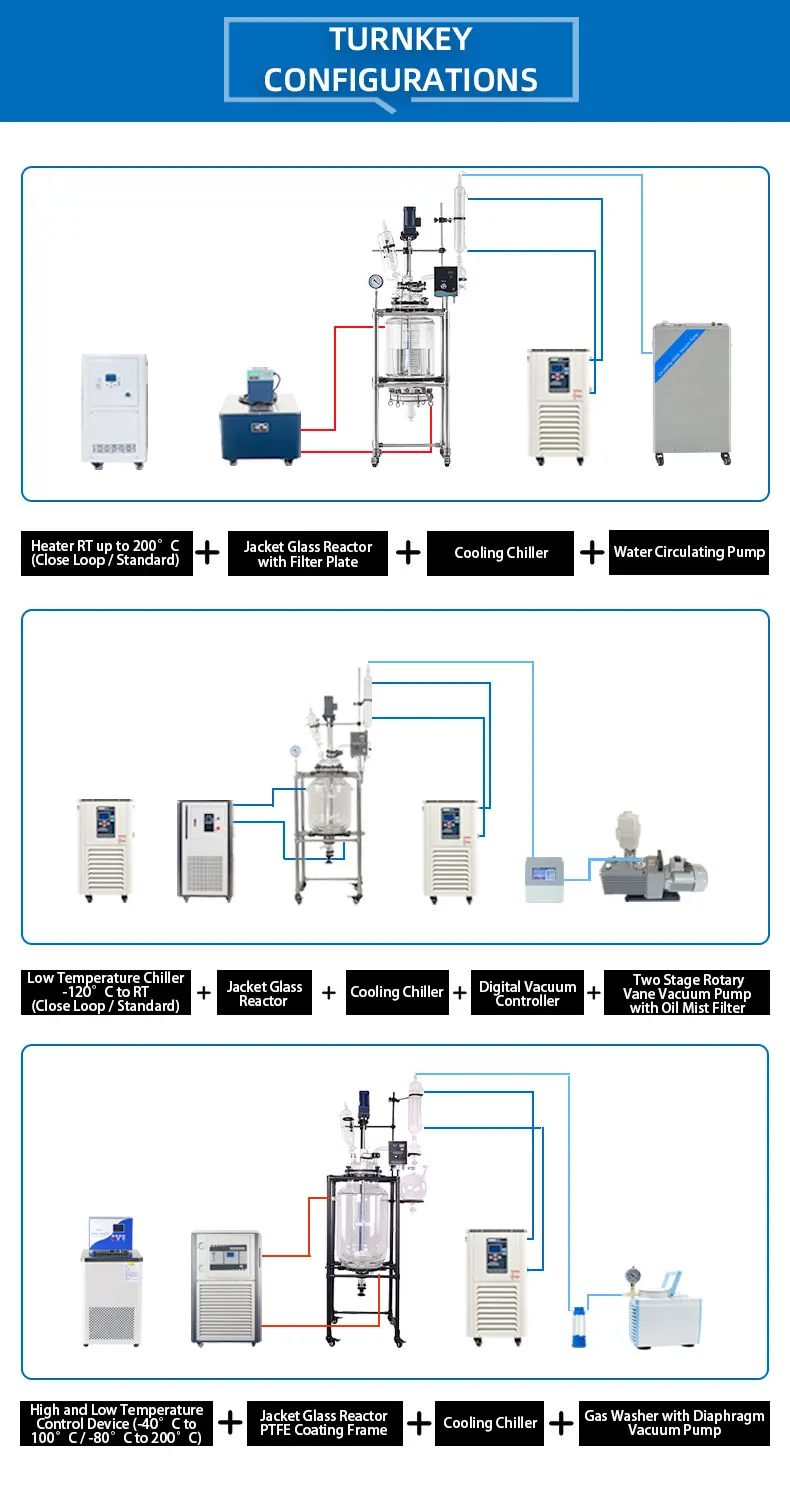

★Turnkey Solutions for chemical synthesis and botanical extraction configurations.
★CE Certified, UL/ETL Certified Motor and Controller also available.
★Maximum temperature range stands -120 °C up to 300°C. Continuous working around 250 °C.
★Ideal for High vacuum pressure application scenario with FKM O ring +PTFE sealing maximum under 1 pa.
★Multiple openings design, standard six openings with glass/PTFE/stainless steel lid
★PTFE discharge valve, anti-corrosion with strong chemical resistant, no dead space ,no leakage.
★Various Accessories for full customization, Explosion proof meet C1D2 standard.
★Turnkey Solutions for chemical synthesis and botanical extraction configurations.
★CE Certified, UL/ETL Certified Motor and Controller also available.

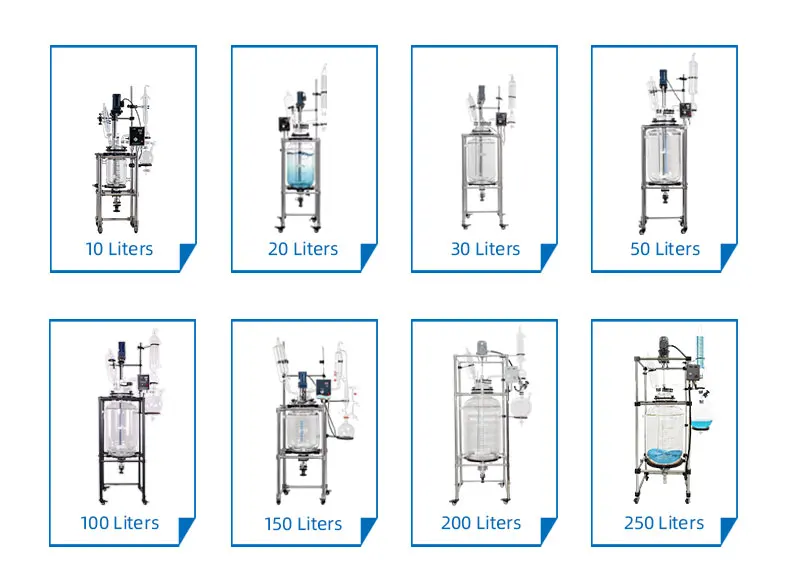

Model | JGR-10L | JGR-20L | JGR-30L | JGR-50L | JGR-100L | JGR-200L | ||||||
Reaction Capacity | 2L-10L | 2L-20L | 5L-30L | 5L-50L | 10L-100L | 20L-200L | ||||||
Jacketed Volume | 3L | 6L | 10L | 16L | 20L | 30L | ||||||
Temperature | -120℃~300℃ (Constant at 250 ℃) | |||||||||||
Maximum Pressure | Maximum ≤ 1Pa | |||||||||||
Glass Wall | 1.5kg f/cm² | 1kg f/cm² | ||||||||||
Glass | GG-17 3.3 High Borosilicate Glass | |||||||||||
Frame | SUS304/SUS316/SUS316L/PTFE Coated | |||||||||||
Motor Power | 120w | 250w | 750w | |||||||||
Rotation Speed | 0-600 rpm（0-1800rpm available） | |||||||||||
Voltage | 220V 50Hz/110V 60Hz Single Phase Or 380V 50Hz/220V 60Hz Three Phase | |||||||||||

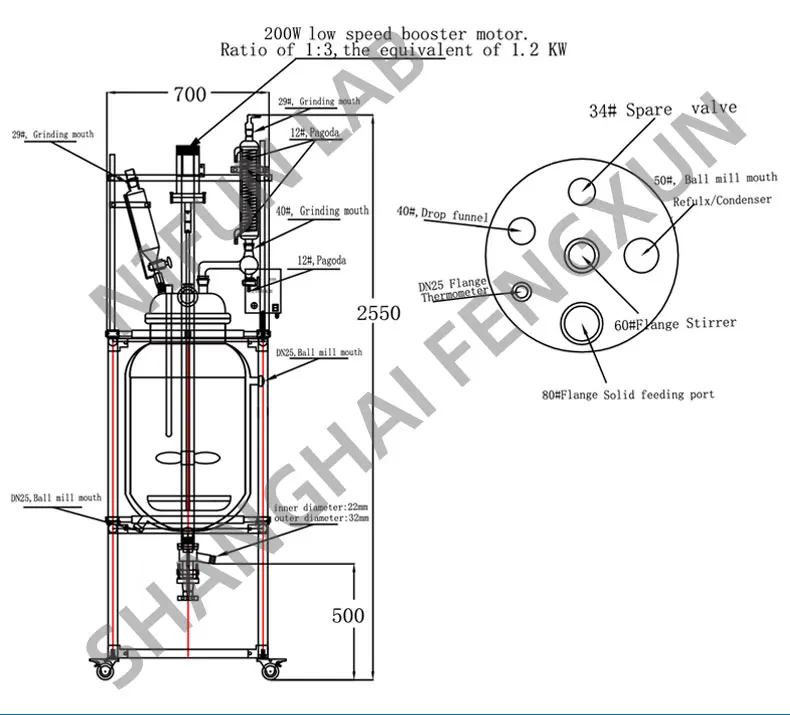

Ports Number On The Lid | Standard 6 Parts(Ports Optional) (Optional Base On Client Needs） | |||||||||||
Stirring PTFE Seal | PTFE + Graphite Sealing Cauted With PTFE Layer | |||||||||||
Dropping Funnel | 1L | 1L | 2L | 2L | 3L | 5L | ||||||
Condenser | φ85*H610 mm | φ85*H610 mm | Φ100*H700 mm | Φ100*H700 mm | Φ120*H700 mm | Φ170*H700 mm | ||||||

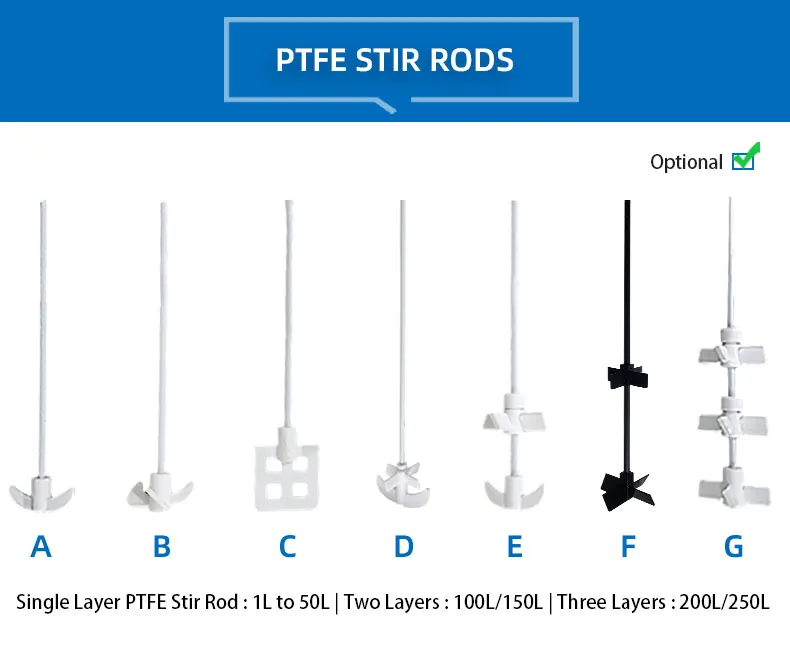

PTFE Stir Rod | Single Layer | Two Layer | Three Layer | |||||||||
Machine Size (L*W*H) | 670*650*1920 mm | 720*700*2020 mm | 750*700*2400 mm | 750*700*2450 mm | 850*700*2550 mm | 1050*900*2600 mm | ||||||

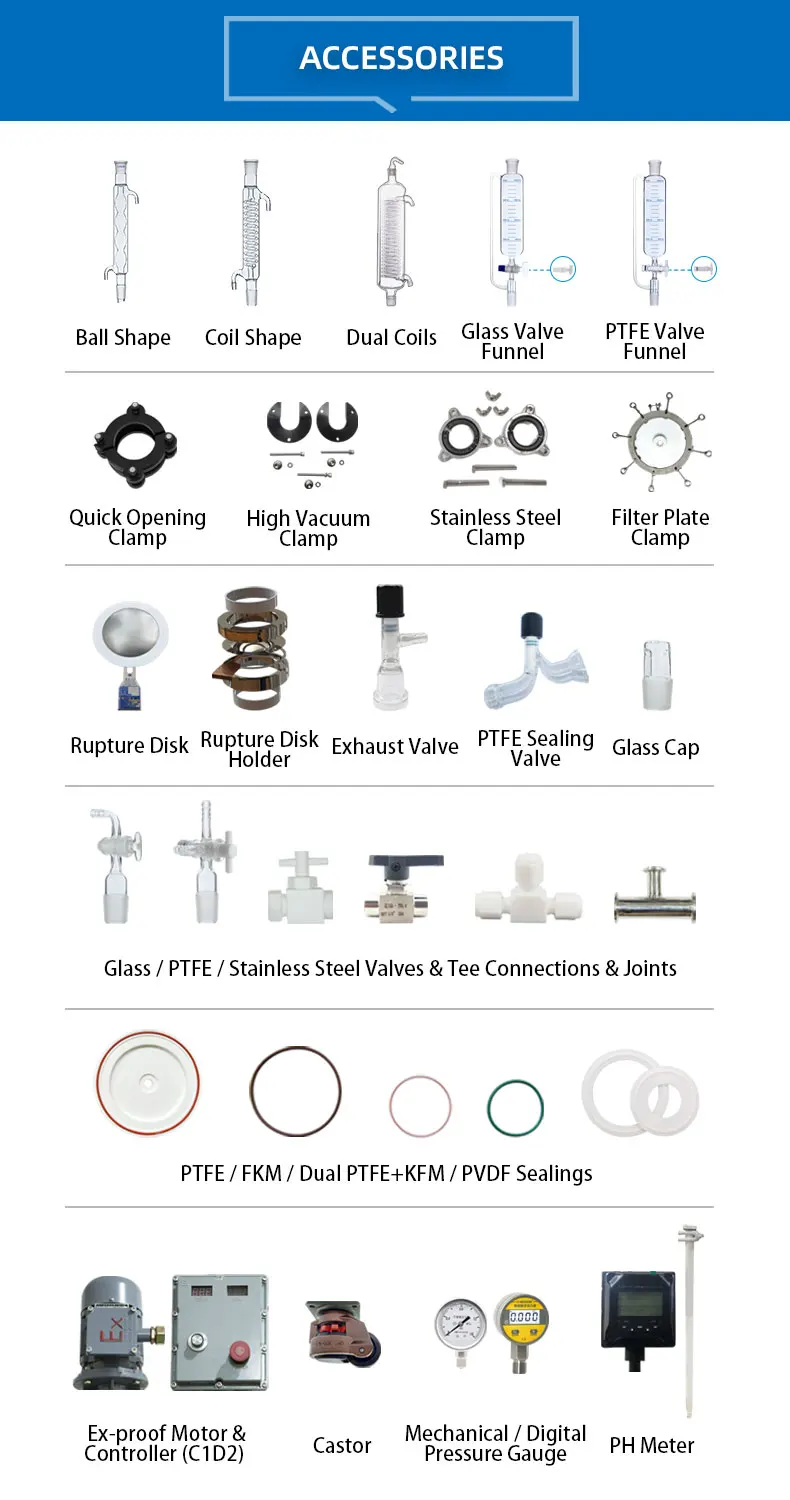

Optional Configuration | ||||||||||||
Anticorrosive Frame | ◎SUS304 With PTFE Coating Or SUS316L Optional | |||||||||||
Explosion Proof | ◎Explosion Proof Motor And Controller; Grade: Ex DIIB T4 Gb/C1D2 | |||||||||||
Receiving Flask Size | ◎2L/5L/10L/Optional | |||||||||||
PH Meter | ◎0-14 PH | |||||||||||
Filtration Plates | ◎PTFE Sand Core Filter Disk(Mesh 1um/5um/10um/50um) | |||||||||||
Inner Glass Baffle | ◎Maximum:Three Baffles for better flows | |||||||||||
Optional | ◎Heating Insulation Cover | |||||||||||
Safety | ◎Pressure Ventilate Valve/Rupture Disk | |||||||||||
