Product Overview
Description
Product Description

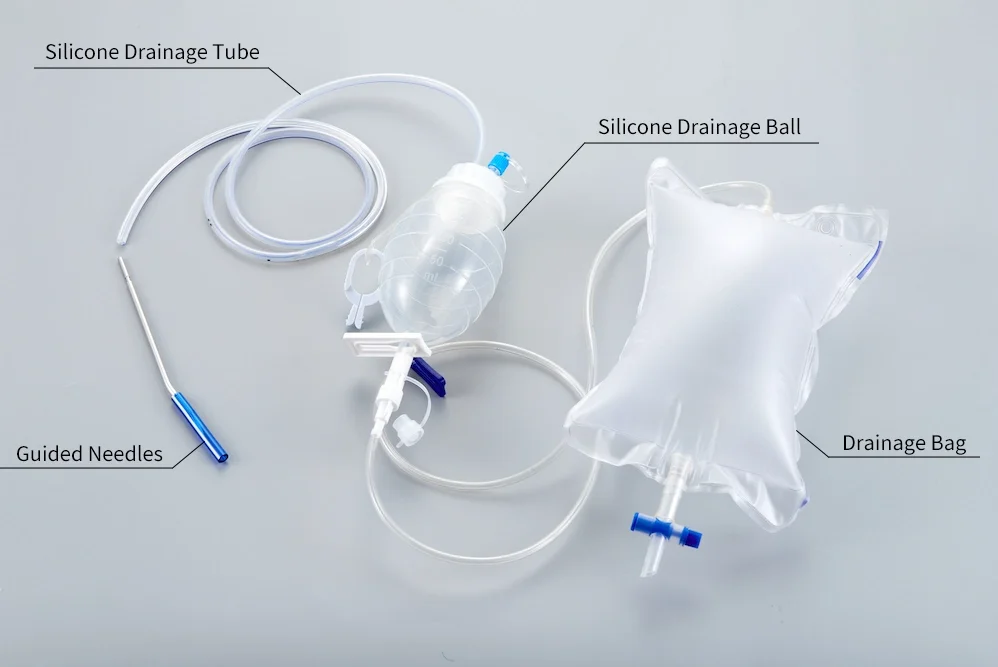

Silicone Drainage Set Product Composition
Guided needles, Silicone drainage ball, Silicone drainage tube, Drainage bag

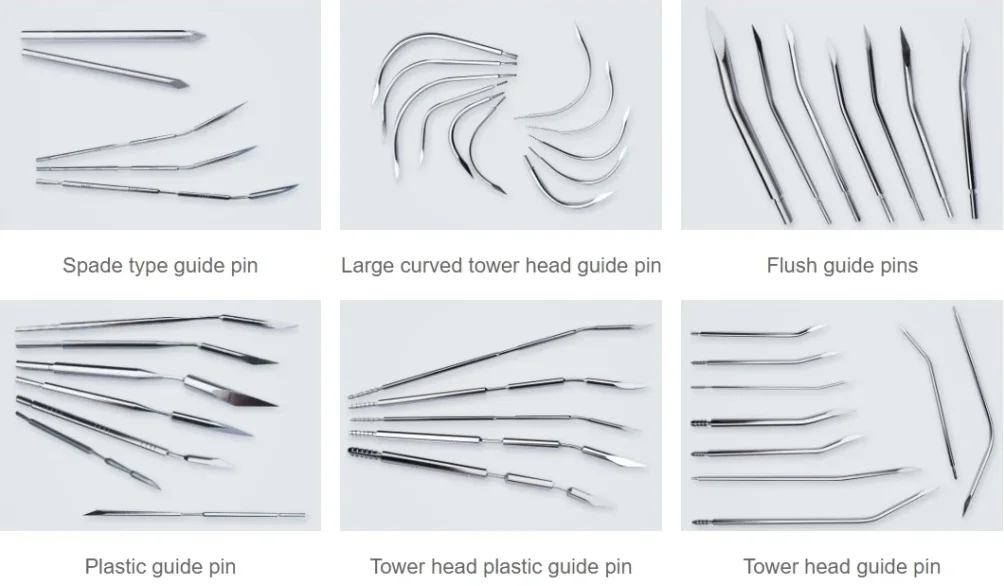

Guided needles: three-edge needle tip sharp, easy to puncture, small wound, to prevent too large wound caused by exudation.
(Customizable on demand Different needles of flat head, tower, plastic and shovel type)

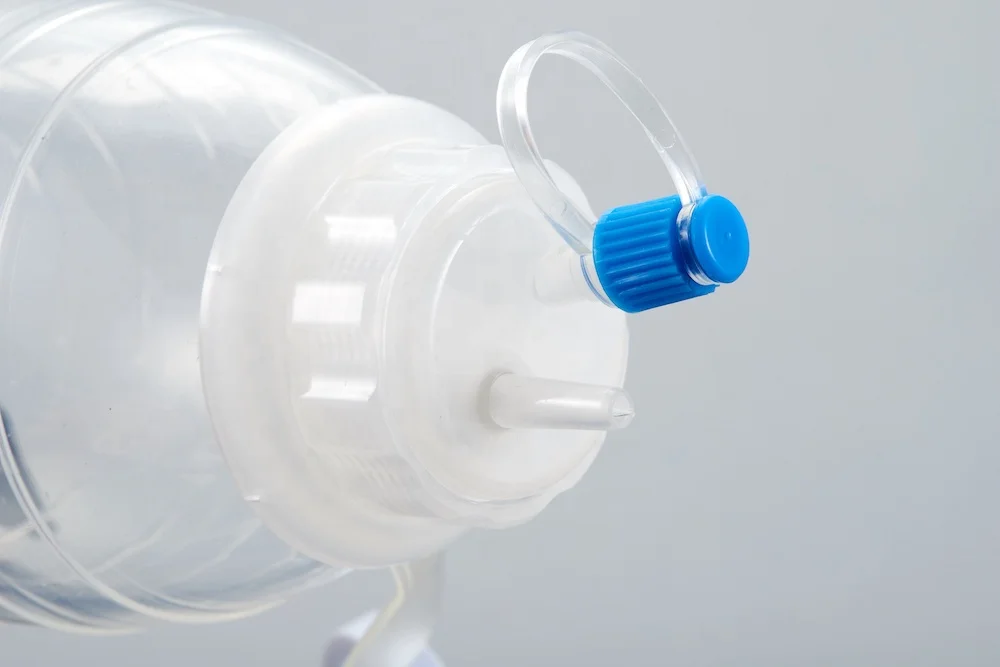

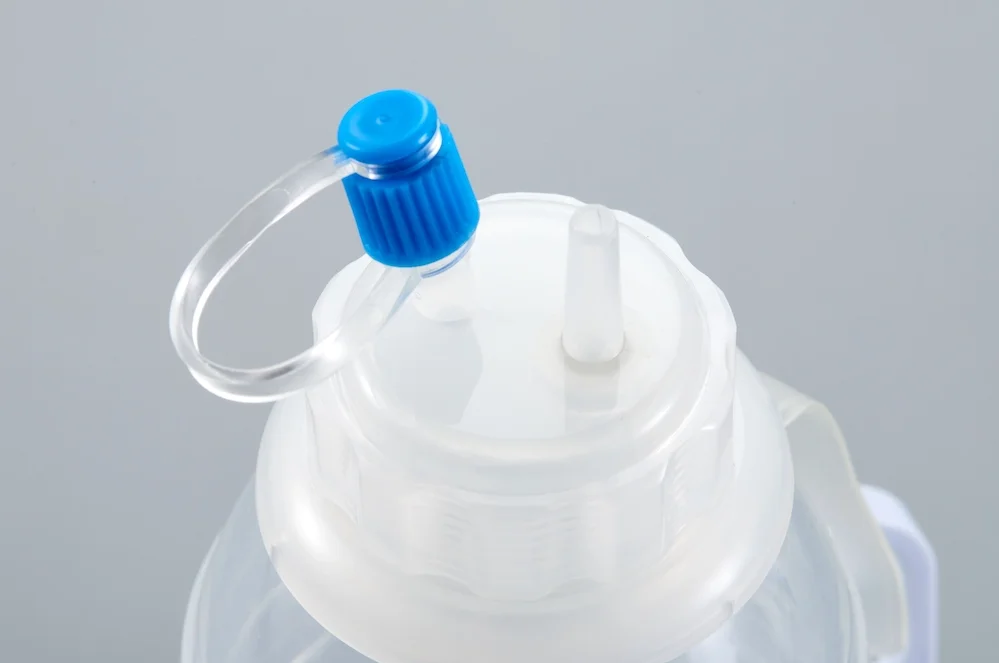

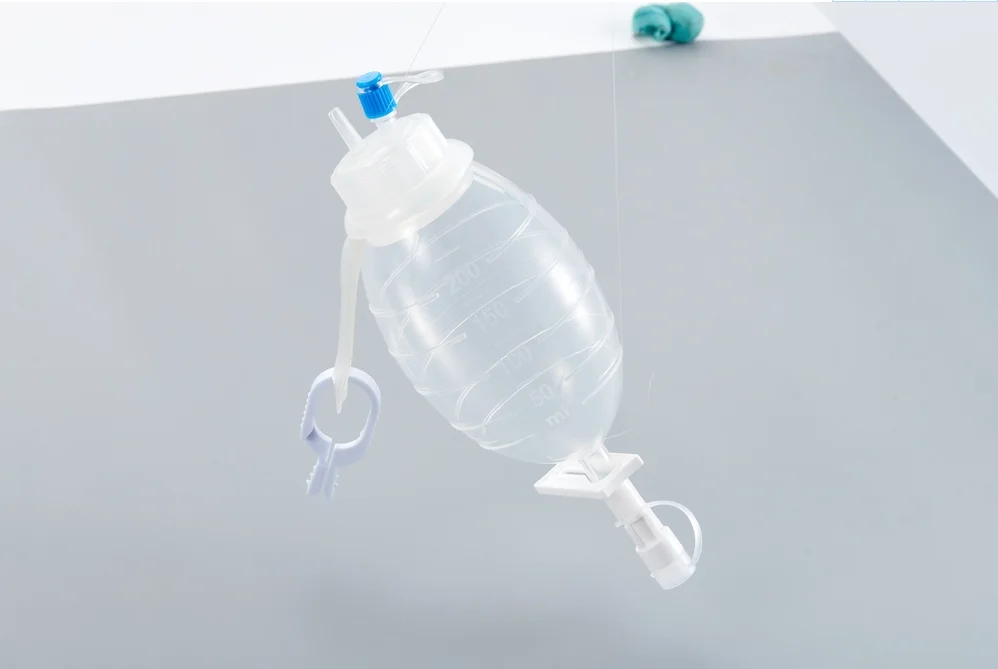

Silicone drainage ball: preferred all silicone rubber material, softball, goodinelasticity, high transparency, easy observation scale, convenient record management;record management.

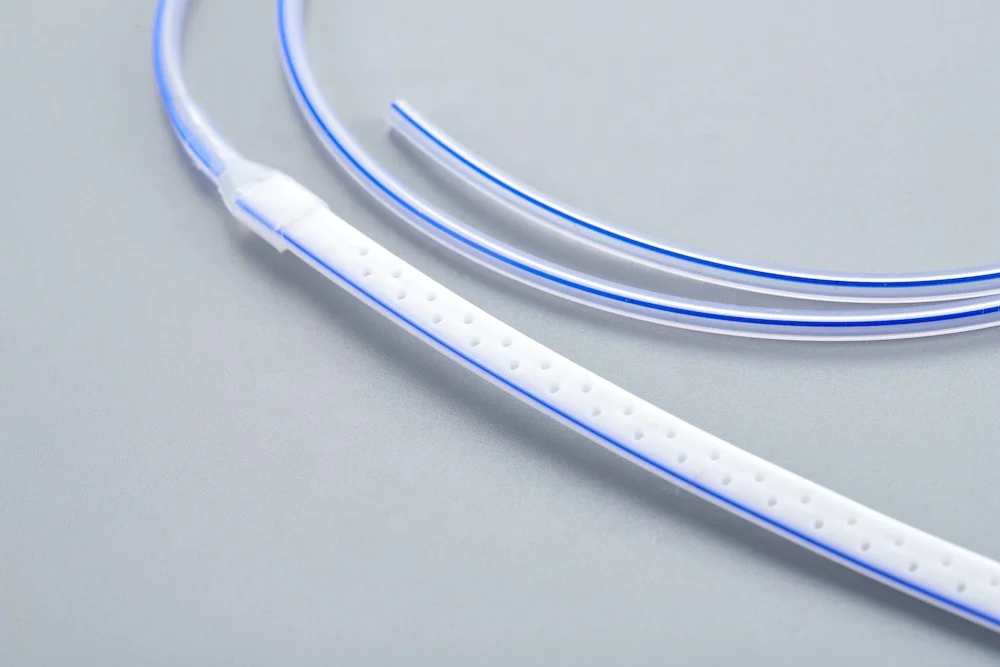

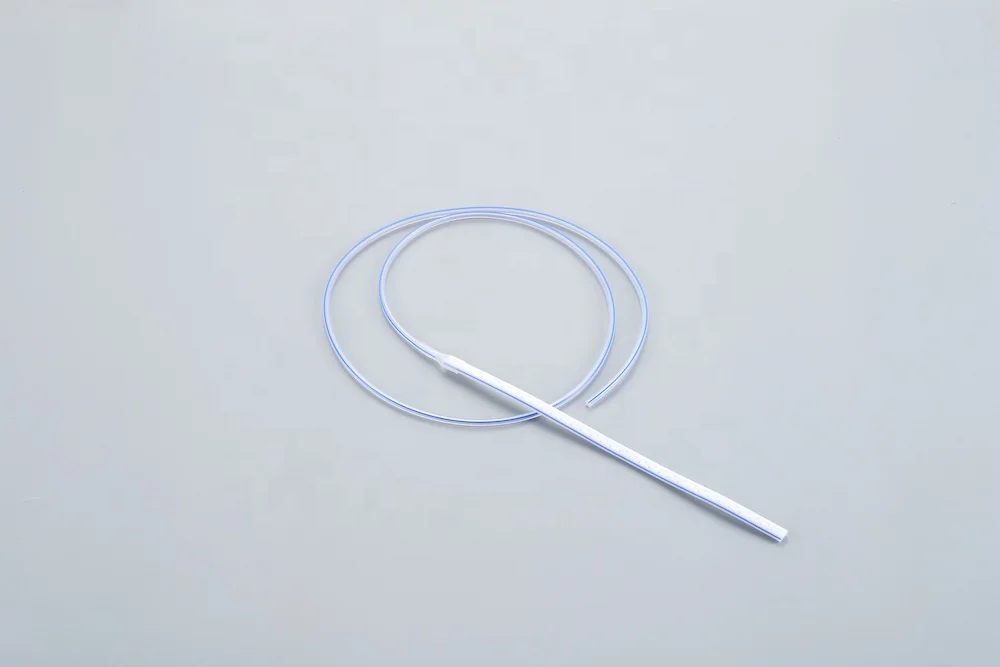

Silicone drainage tube: preferred all silicone rubber material, soft, biocompatible, platinum sulfide system production, no toxic side effects. Drainage bag: preferred PVC material, with anti- reverse flow effect. Scope of application: Donor surface trauma or subcutaneous drainage in clinical surgical procedures.
The size of the drainage tube should be in accordance with the provisions of Table 2.
Table 2 Basic size table of drainage tube (Unit: mm)
| Products | Projects | ||
Specification | Quantity | Remark | |
| Silicone drainage ball | 100mL-1,100ml-2,200mL-1,200mL-2 | 1pc | Self-made |
| Silicone drainage tube | Round silicone drainage tube:Fr8,Fr10,Fr12 Fr14,Fr16,Fr18 ,Fr20,Fr22,Fr24 Crossed silicone drainage tube:Fr8,Fr10,Fr12 Fr14,Fr 15,Fr16,Fr18 ,Fr 19,Fr20,Fr22,Fr24 Flat silicone drainage tube:3×7,4×10 | 1 bar | Self-made |
| Drainage bag | 1000ml | 1pc | Outsourcing |

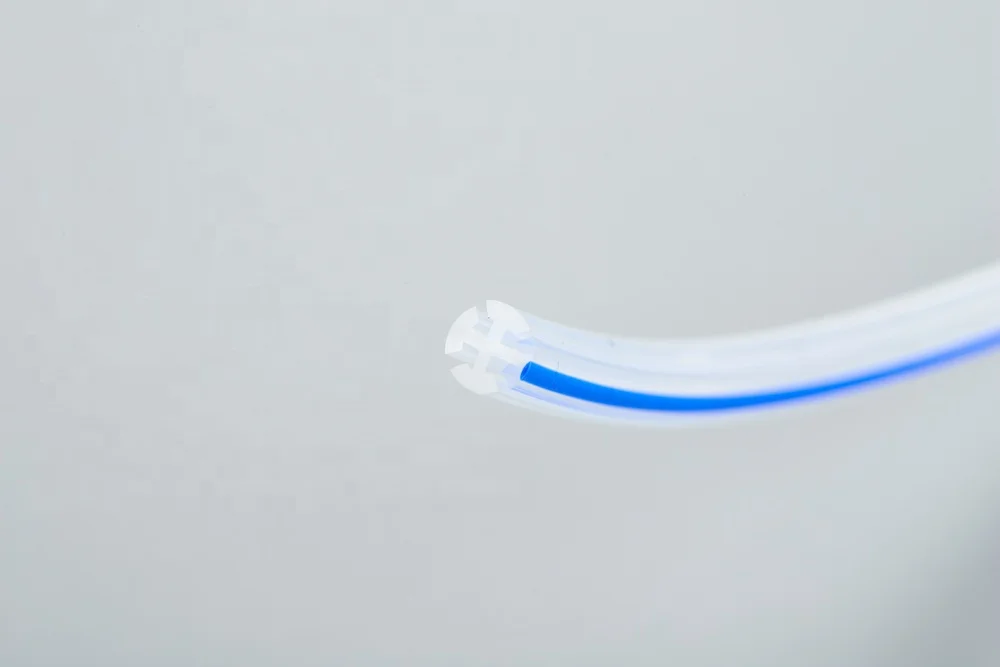

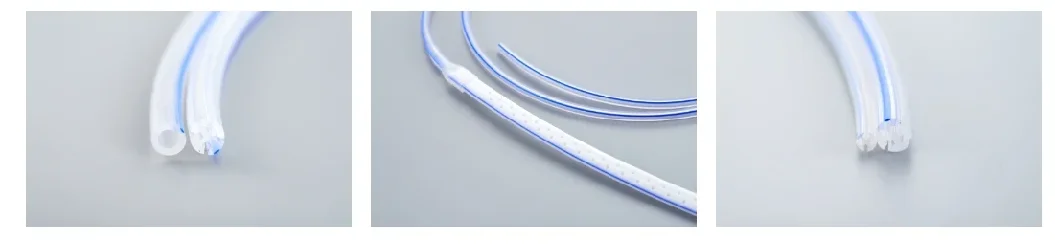

Fig. 1 Structure of round tube Fig. 2 Flat tube structure Fig. 3 Cross tube structure
The size of the drainage tube should be in accordance with the provisions of Table 2.Table 2 Basic size table of drainage tube (Unit: mm)
Specification | Round tube | Cross tube structure | Total length of drainage tube L ±20 | |
Fr | Outer diameter±0.3 | Outer diameter±0.3 | Length of cross section L2 ±20 | |
8 | 2.7 | 2.7 | 300 | 1000 |
10 | 3.3 | 3.3 | ||
12 | 4.0 | 4.0 | ||
14 | 4.7 | 4.7 | ||
15 | / | 5.0 | ||
16 | 5.3 | 5.3 | ||
18 | 6.0 | 6.0 | ||
19 | / | 6.3 | ||
20 | 6.7 | 6.7 | ||
22 | 7.3 | 7.3 | ||
24 | 8.0 | 8.0 | ||
Flat tube | Width a ±0.5 | Height b ±0.5 | Flat tube length L1 ±5 | Total length L ±20 | Round tube inner diameter±0.3 | Outer diameter of round tube±0.3 | |
| Specification Model | 3×7 | 7 | 3 | 220 | 1000 | 3 | 5 |
