New Type Intelligent Digital Electronic Pressure Control Switch For Water Pump
- Category: Pressure Switches >>>
- Supplier: Nanjing,Hangjia,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Overview:
HPM520 Intelligent pressure switch is an intelligent display pressure measurement and control product, which combines pressure measurement, display, output and control together. This product is all electronic structure and adopts silicon piezoresistive pressure sensor with isolation diaphragm at the front end. It uses high-accuracy and exclusive ASIC processing with field display, witch can output IAO and 2DI. With the flexibility, easy operation, safety and reliability, this intelligent digital pressure controller can be widely used in hydropower, petroleum, chemical, machinery and other industries.
Features:
2. 4 bit LED display
3. Control point can be field set
4. Two control points relay output
5. 4~20mA standard signal output optional
6. Strict ageing testing, stable and reliable functions
Specification
Pressure Range | 0~60MPa |
Accuracy | ±0.5%FS |
overload capacity | 200% |
Pressure Type | Gauge |
Stability | ≤0.1%FS/year |
Supply Voltage | 24VDC/220VAC |
Display Mode | 0.56 Nixie tube |
Display Range | -1999~9999 |
Respond Time | ≤30ms |
Ambient Temperature | -20~70ºC |
Relative Humidity | ≤80% |
Interface Material | 304 stainless steel |

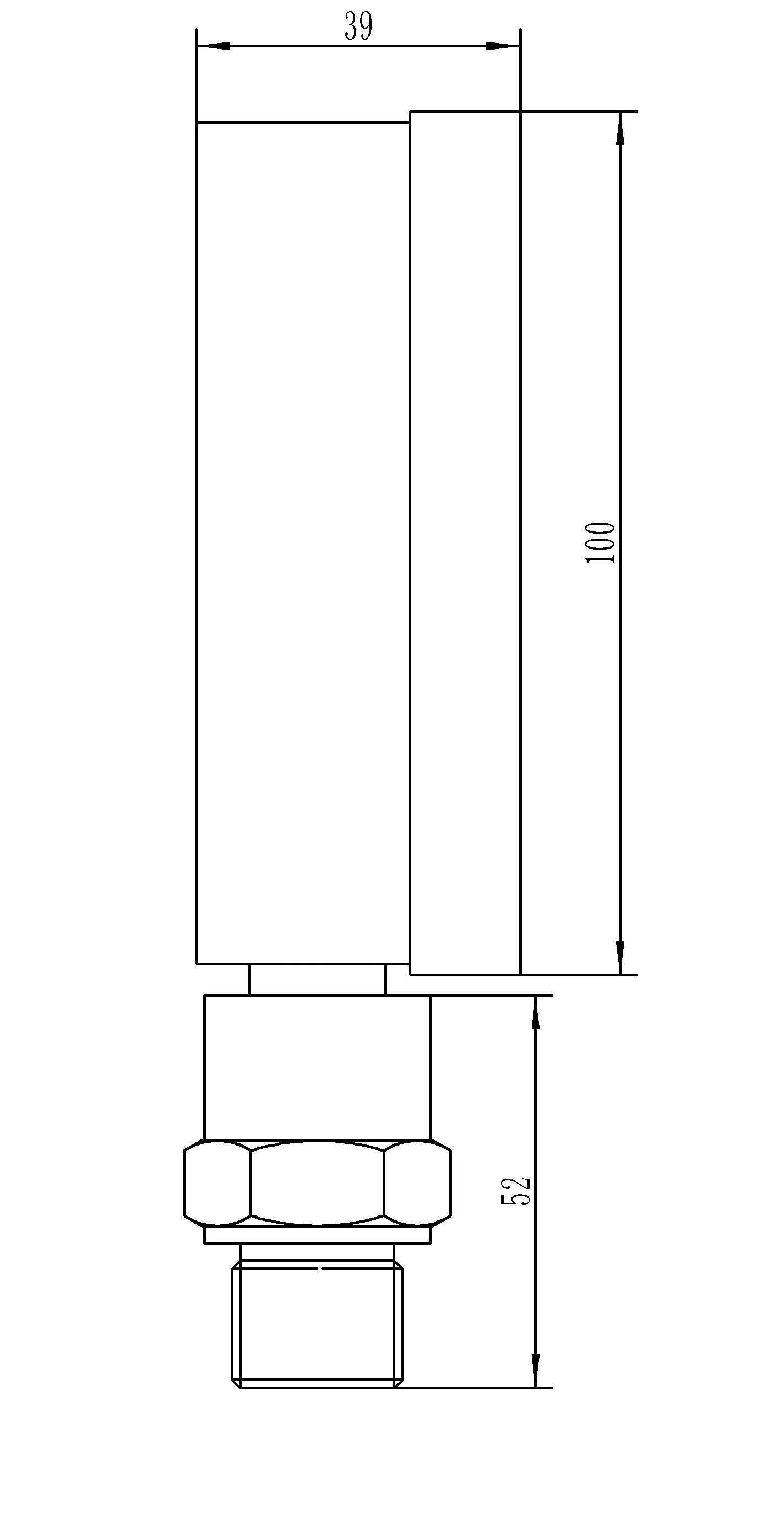

Type A: Φ100 Dial Plate

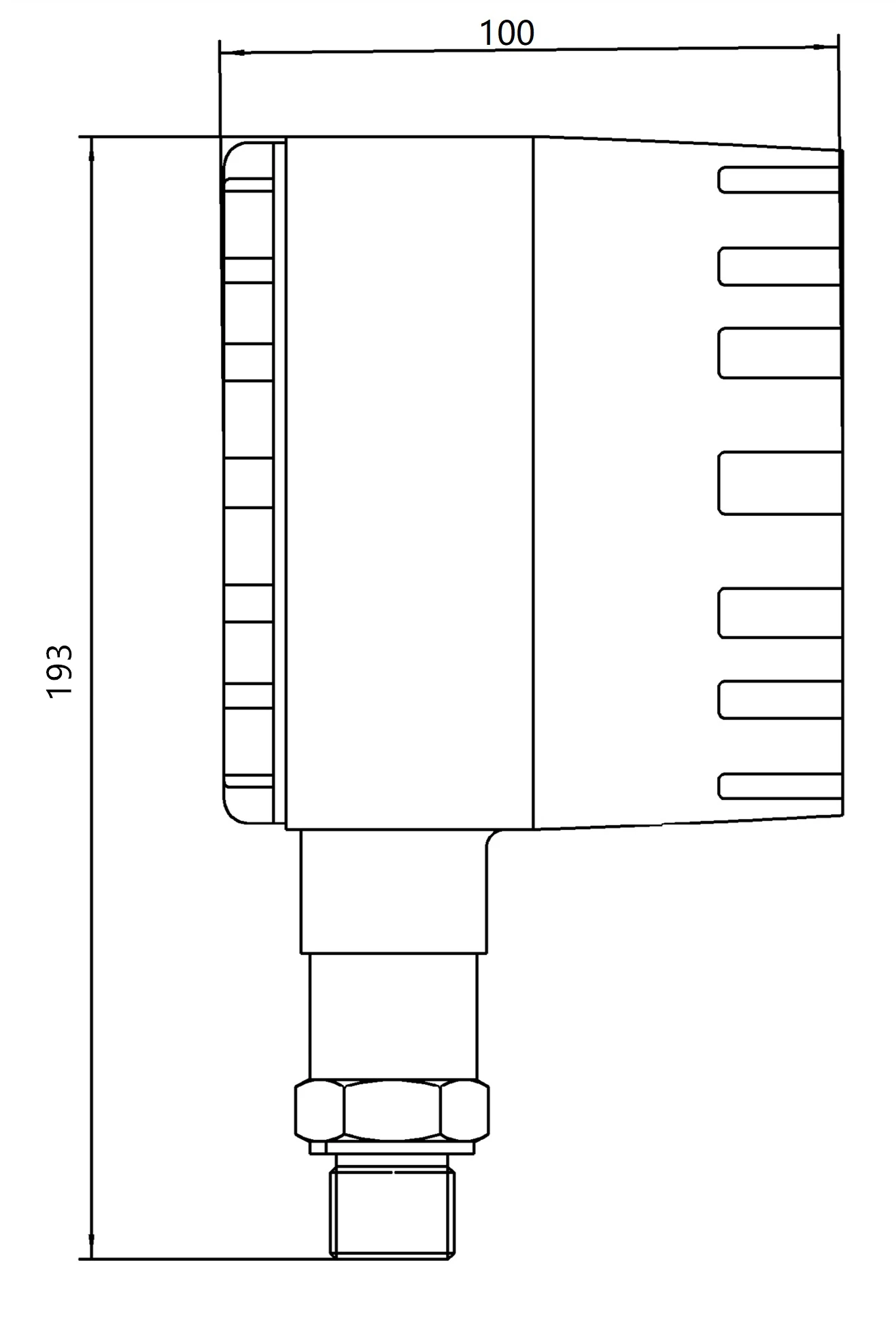

Type B: Aluminum explosion proof housing
Cable connection method
