250L 27 centigrade RH 60% Solar Powered Atmospheric Water Generator Air To Water Machine
- Category: >>>
- Supplier: Hangzhou Neighbor Intelligent Technology Co. Ltd
Share on (1600616708741):
Product Overview
Description
Products Description
GTCOOL Atmospheric Water Generator is focusing on producing clean and potable water by extracting water vapor from air.
Specification | GT-250L | GT-500L | GT-1000L | GT-2000L | |||
Water generation capacity (Liter/24Hour) @27°C & RH-60% | 250 | 500 | 1,000 | 2,000 | |||
Input power (W) | 3,500 | 6,300 | 12,500 | 25,000 | |||
Water generation efficiency (Wh/Liter) @27°C & RH-60% | 336 | 302 | 300 | 300 | |||
Power supply | 3/N/PE AC 220V 60Hz/AC 380V 50Hz /AC 440V 60Hz Three-phase voltage | ||||||
Compressor type | Enclosed vortex compressor | ||||||
Compressor qty | 2 | 2 | 2 | 4 | |||
Refrigerant gas | R410A | R410A | R410A | R410A | |||
Filter system | Air filter+PPF+GAC+PPF+RO+LED-UV | ||||||
Recycle fan | 1 pcs | 2 pcs | 4 pcs | 8 pcs | |||
Heat removal fan | 1 pcs | 2 pcs | 4 pcs | 8 pcs | |||
Control system | PLC | PLC | PLC | PLC | |||
Dimension L*W*H (cm) | 160*110*112 | 160*113*221 | 223*160*221 | 443*215*221 | |||
Net weight (kg) | 380 | 650 | 920 | 2200 | |||
Working temperature | 15°C - 45°C. Higher or lower request, customization will be conducted. | ||||||
Working humidity | RH 25% above | ||||||
Our Advantages
Energy saving and cost effective - 300Wh per 1 liter @27°C & RH-60%
GTCOOL atmospheric water generator rated power consumption can achieve 300Wh per 1 liter @27°C & RH-60%, with GTCOOL unique design allowing the cool and dehumidified air to be drawn back through the opposite side of the heat exchanger where it absorbs heat from incoming air, which is benefit to areas with energy shortages or energy expensive. Other suppliers could be 350-400Wh per 1 liter @27°C & RH-60%, which is 16%~33% higher than GTCOOL
Function modularity design for various capacity demand
GTCOOL function modularity design allows to built various capacity for industrial use to reach a wide range of application scenarios. Currently 250L, 500L, 1000L, 2000L @27°C & RH-60% can be provided directly, other capacity design can be delivered quickly according to customers’ requirement
Guaranteed product quality and high efficiency on water extraction
Water extraction from air is the key progress of atmospheric water generator. To ensure GTCOOL product quality and efficiency of water extraction, GTCOOL is working with parent company which is a leading manufacturer of dehumidification technology in China. We have our own heat exchanger manufacture workshop, sheet metal workshop, equipment installation workshop, environmental
simulation performance testing workshop, safety testing workshop and noise testing laboratory.
simulation performance testing workshop, safety testing workshop and noise testing laboratory.
High quality materials and multi-layer filtration system to ensure high quality potable water
Only high quality stainless steel, aluminum foil, air and water filtration systems are used in GTCOOL atmospheric water generator, since all components contact with potable water are strictly following National Standards for Drinking Water guidelines.
With Air filter+PPF+GAC+PPF+RO+LED-UV sterilizer to filter particles and remove bacteria in air and water effectively, GTCOOL atmospheric water generator can produce high quality drinkable water.
With Air filter+PPF+GAC+PPF+RO+LED-UV sterilizer to filter particles and remove bacteria in air and water effectively, GTCOOL atmospheric water generator can produce high quality drinkable water.
Our Factory
System Design
Copper Tube Mould
Aluminum Foil Thread

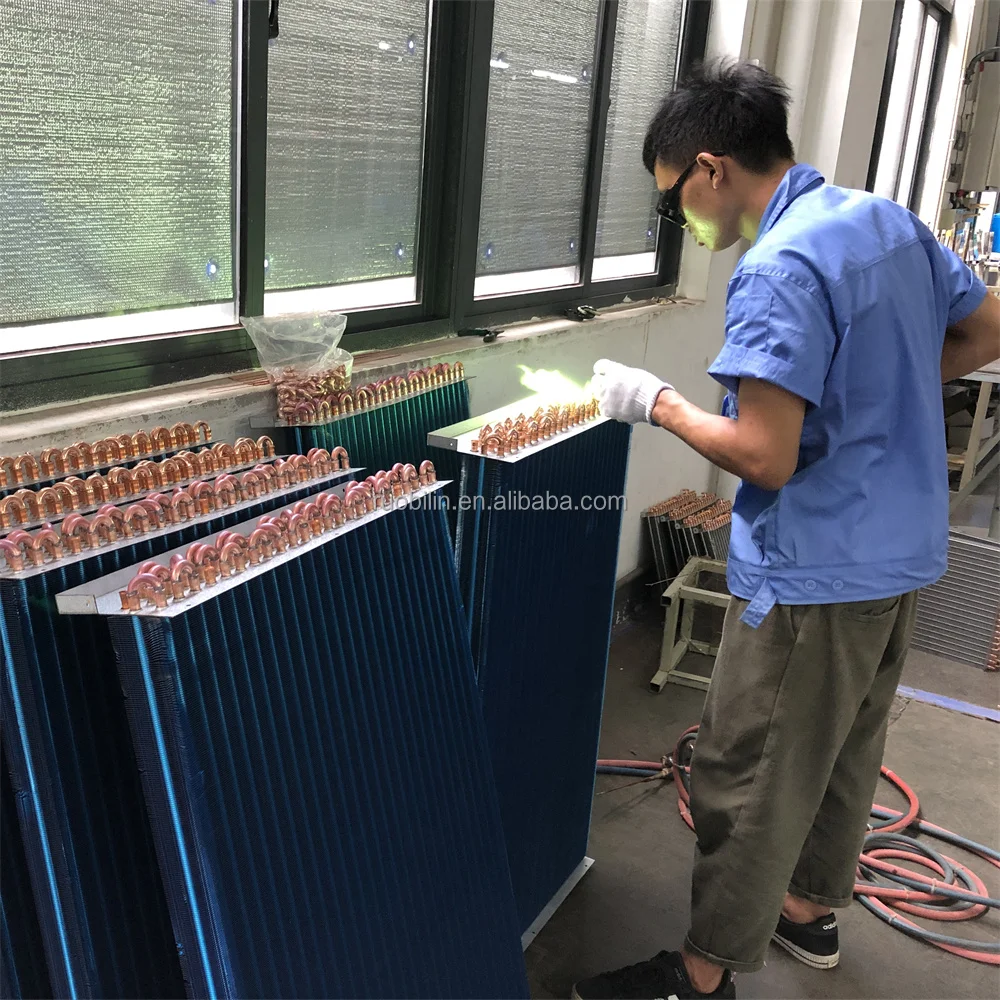

Copper Tube Welding
Sheet Metal Workshop
Equipment Installation Workshop
Compressor Installation
Water Filters Installation
Manufacture Completed
Application Scenarios
GTCOOL atmospheric water generators can be used in those places without access to clean and potable water, such as remote petroleum sites onshore or offshore, large mining sites, construction sites, rural areas, army bases and other decentralized residential places.
Water Bottling Factories
Remote Petroleum Sites
Remote Mining Sites
Residential Areas
Rural Areas
Army Base
FAQ
1. Are GTCOOL atmospheric water generators compatible with solar power system?
A: Sure, our atmospheric water generators are not only compatible with solar power system, but also with wind power system, once they are capable to provide the equivalent power input. You also can find the solar panel, inverter and battery solution in our store.
2. What is the pH value of the water produced by GTCOOL?
A: The pH value is around 6.5-7.6. And the optional mineral filter can be provided if requested by customers.
3. How often should I need to change the filters?
A: We suggest the air filters to be checked once a month and cleaned by washing, if needed. The water filters to be changed every 3-6 months and the reverse osmosis to be changed every 12-18 months after you start to use, also it will depend on the quality of ambient air and the actual usage of atmospheric water generator. The LED-UV light needs to be cleaned or replaced every 12-18 months. Water storage tank needs to be empty and cleaned every 6 months.
4. What’s your warranty policy?
A: The warranty period of overall machine is 1 year. And 3 years warranty for the 4 core parts, compressor, condenser, evaporator and motor.
5. Why GTCOOL atmospheric water generators are based on 27°C & RH-60%?
A: Generally, there are 2 kinds of environment condition assumed when suppliers promote their atmospheric water generators in the market, 30°C & RH-80% and 27°C & RH-60%. GTCOOL prefer to use 27°C & RH-60% since it is more common in the real environmental condition. And the GTCOOL atmospheric water generators can produce around 1.7 times water if base on 30°C & RH-80%.
A: Sure, our atmospheric water generators are not only compatible with solar power system, but also with wind power system, once they are capable to provide the equivalent power input. You also can find the solar panel, inverter and battery solution in our store.
2. What is the pH value of the water produced by GTCOOL?
A: The pH value is around 6.5-7.6. And the optional mineral filter can be provided if requested by customers.
3. How often should I need to change the filters?
A: We suggest the air filters to be checked once a month and cleaned by washing, if needed. The water filters to be changed every 3-6 months and the reverse osmosis to be changed every 12-18 months after you start to use, also it will depend on the quality of ambient air and the actual usage of atmospheric water generator. The LED-UV light needs to be cleaned or replaced every 12-18 months. Water storage tank needs to be empty and cleaned every 6 months.
4. What’s your warranty policy?
A: The warranty period of overall machine is 1 year. And 3 years warranty for the 4 core parts, compressor, condenser, evaporator and motor.
5. Why GTCOOL atmospheric water generators are based on 27°C & RH-60%?
A: Generally, there are 2 kinds of environment condition assumed when suppliers promote their atmospheric water generators in the market, 30°C & RH-80% and 27°C & RH-60%. GTCOOL prefer to use 27°C & RH-60% since it is more common in the real environmental condition. And the GTCOOL atmospheric water generators can produce around 1.7 times water if base on 30°C & RH-80%.
6. Why should I buy GTCOOL atmospheric water generators?
A: GTCOOL atmospheric water generators have unique design to achieve 300Wh per 1 liter @27°C & RH-60%, which lead to a great energy saving and cost effective. And we are capable to support various capacity design for industrial use, working with the parent company which is a leading manufacturer of dehumidification technology in China to guarantee the product quality. High quality materials and multi-layer filtration system to ensure high quality potable water.
A: GTCOOL atmospheric water generators have unique design to achieve 300Wh per 1 liter @27°C & RH-60%, which lead to a great energy saving and cost effective. And we are capable to support various capacity design for industrial use, working with the parent company which is a leading manufacturer of dehumidification technology in China to guarantee the product quality. High quality materials and multi-layer filtration system to ensure high quality potable water.
