Hydrant Valve Machhino Harga Spesial Aluminum Material
- Category: >>>
- Supplier: Jinjiang Newfco Import And Export Co. Ltd.
Share on (1600616735616):
Product Overview
Description
Product Description

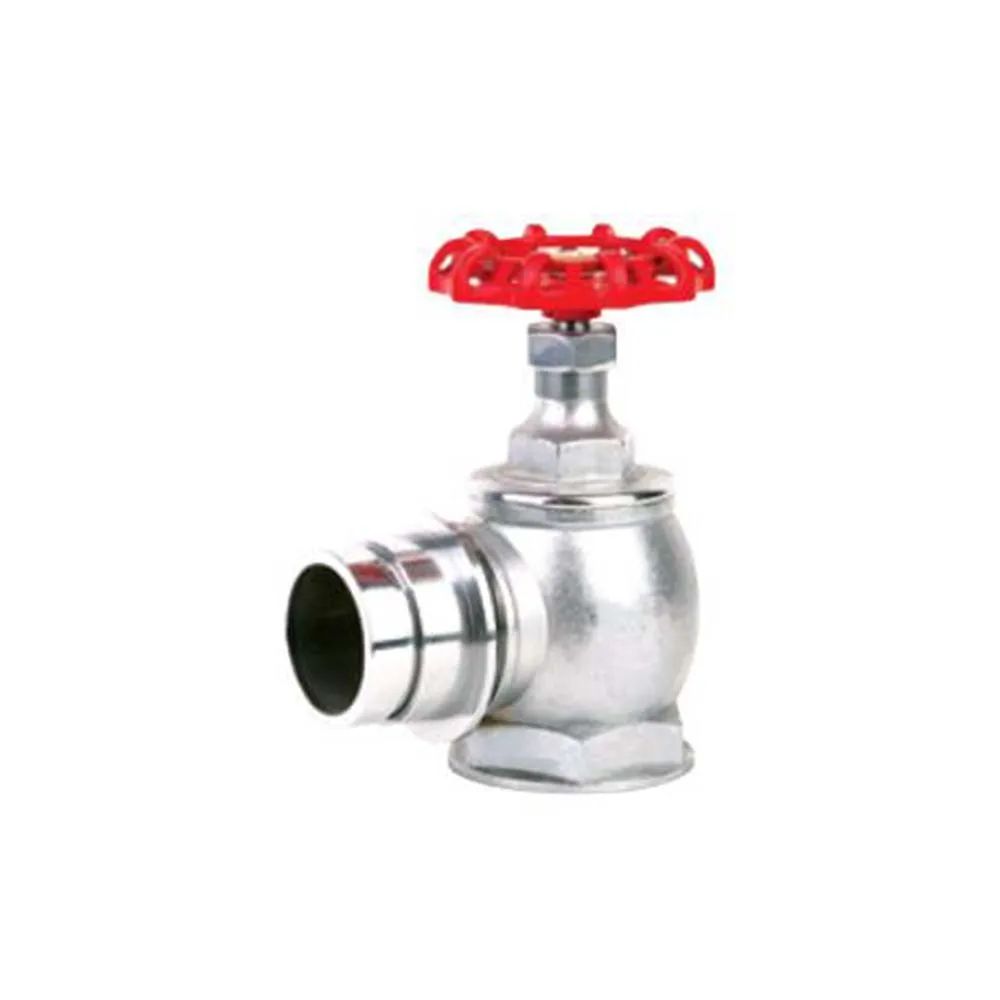

Hydrant Valve Machhino Harga Spesial Aluminum Material
NEWFCO hydrant valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurized supply.
The hydrant valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.
The hydrant valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.
Feature :
Body material made of aluminum material
Hand wheel material made of aluminum with red powder coating
Machhino coupling
Possible to replace the gland seal when under pressure with the valve fully closed
Disc facing rubber is of replaceable type
Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
The hand wheel is red painted
Body material made of aluminum material
Hand wheel material made of aluminum with red powder coating
Machhino coupling
Possible to replace the gland seal when under pressure with the valve fully closed
Disc facing rubber is of replaceable type
Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
The hand wheel is red painted

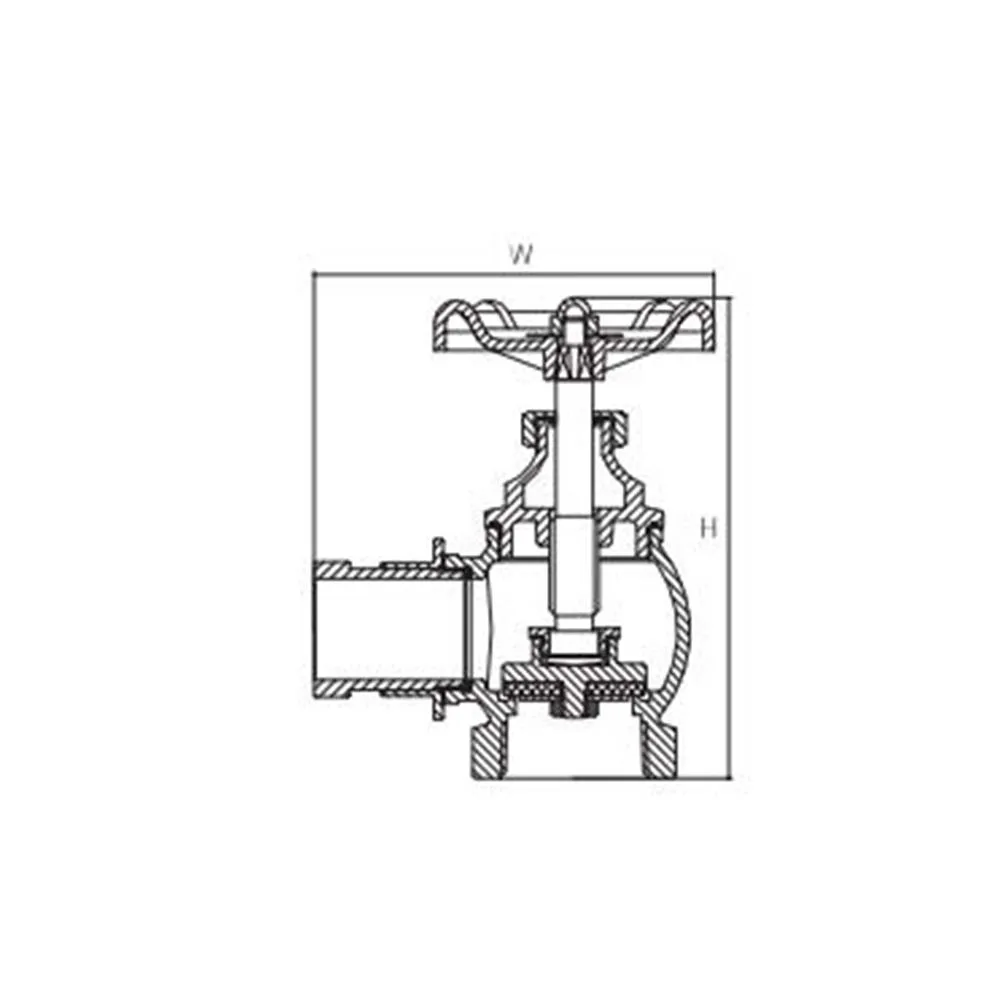

SIZE | H (mm） | W(mm) | Inlet | Outlet |
DN40 | 155 | 130 | 1.5BSPT | Machino |
DN65 | 206 | 143 | 2.5BSPT | Machino |
DN40 | 155 | 120 | 1.5BSP | M48*5 |
DN65 | 206 | 135 | 2.5BSPT | M82.5*7 |
SPECIFICATION OF LANDING VALVE | |
Standard | BS5041-1 |
Licence No | KM583673(approve by BSI) |
Body | Copper alloy ,Thinkness>4mm |
Handwheel | Grey cast iron or Aluminum alloy |
Blank cap | Copper alloy or plastic |
Inlet | Flanged or BSP screwed |
Outlet | Female instantaneous to BS336 |
Surface | Red or yellow painting |
Test pressure | 22.5bar |
Flow rates | More then 8.5L/S |
Fully open | 4.5 turns |
Company Profile
JINJIANG NEWFCO IMPORT AND EXPORT CO.,LTD which is a professional fire fighting equipment export company .And have branch in China welcome for OEM production.
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other country .
We have 37 years experience and advantages in this industry .It is able to quickly develop new design and new products according to our customer’s specific requirement and pricing .
1.Every manufactured product is rigorously tested and all products have a one-year warranty.
2.It has passed ISO9001,CCCF,CE,SGS. Southeast Asia are the main market .
3.The major products is foam system ,water system , valve system .
4.Have a professional R & D team, quality inspection department, and strong after-sales department.
5.Our vision: do not seek the biggest, but the best .
We provided safety products : Fire sprinkler , Fire hydrant , Fire hose , Fire hose reel,Fire coupling , Fire alarm valve , Fire fighting valve ,Fire water monitor , Foam bladder tank , Foam chamber , Foam sprinkler , FM 200 system ,Fire extinguisher and others with CCCF and ISO ,CE approval .
Our products are distributed worldwide to Vietnam ,Philippines,Malaysia ,Indonesia ,Asia , India, Africa , Middle East and other country .
We have 37 years experience and advantages in this industry .It is able to quickly develop new design and new products according to our customer’s specific requirement and pricing .
1.Every manufactured product is rigorously tested and all products have a one-year warranty.
2.It has passed ISO9001,CCCF,CE,SGS. Southeast Asia are the main market .
3.The major products is foam system ,water system , valve system .
4.Have a professional R & D team, quality inspection department, and strong after-sales department.
5.Our vision: do not seek the biggest, but the best .
