oil seal vulcanizer, bracelet making machine, rubber ring Double pump vacuum vulcanizing Hydraulic molding machine
- Category: >>>
- Supplier: Dongguan Kesheng Intelligent Equipment Technology Co. Ltd.
Share on (1600616748613):
Product Overview
Description
Product Description

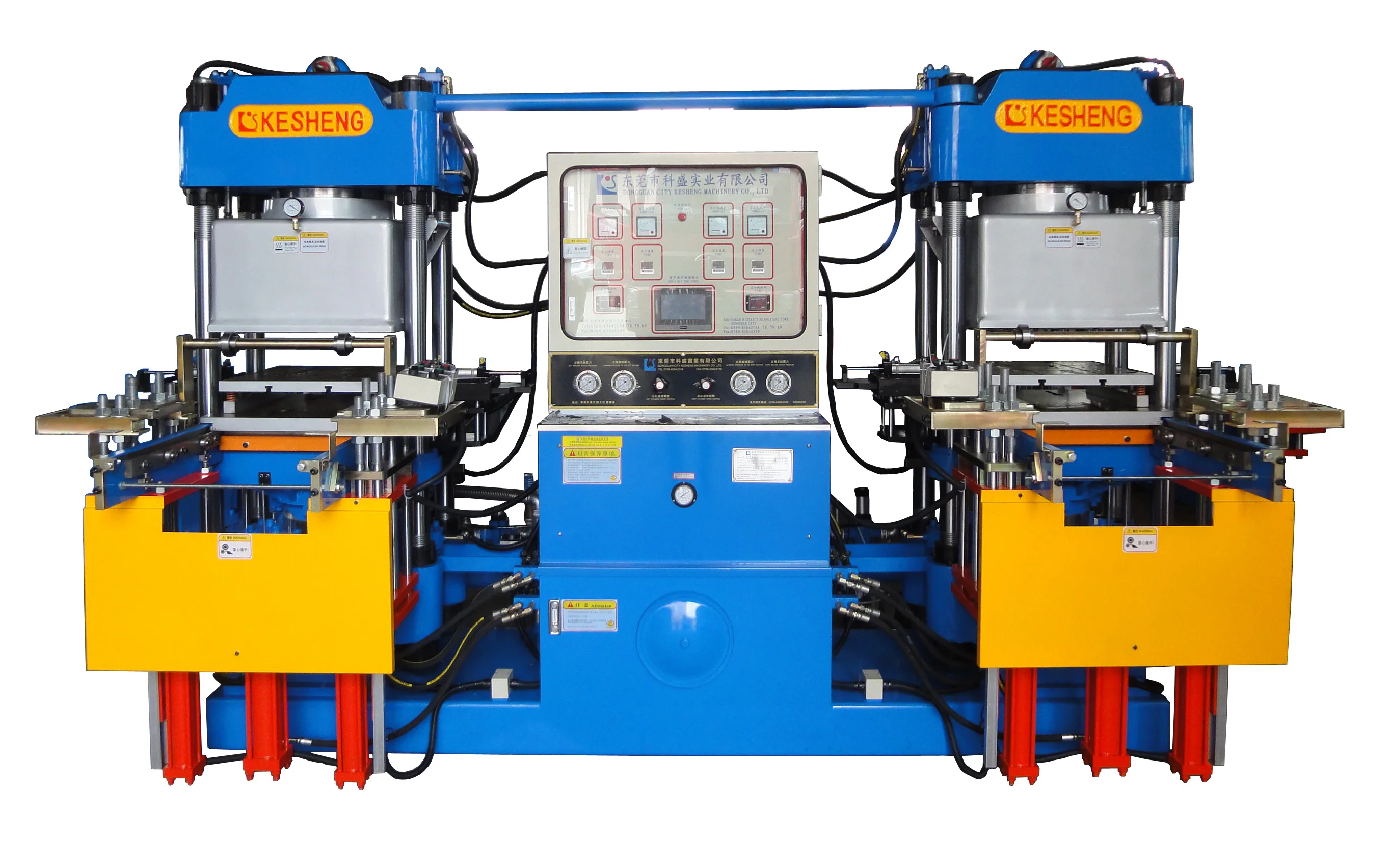

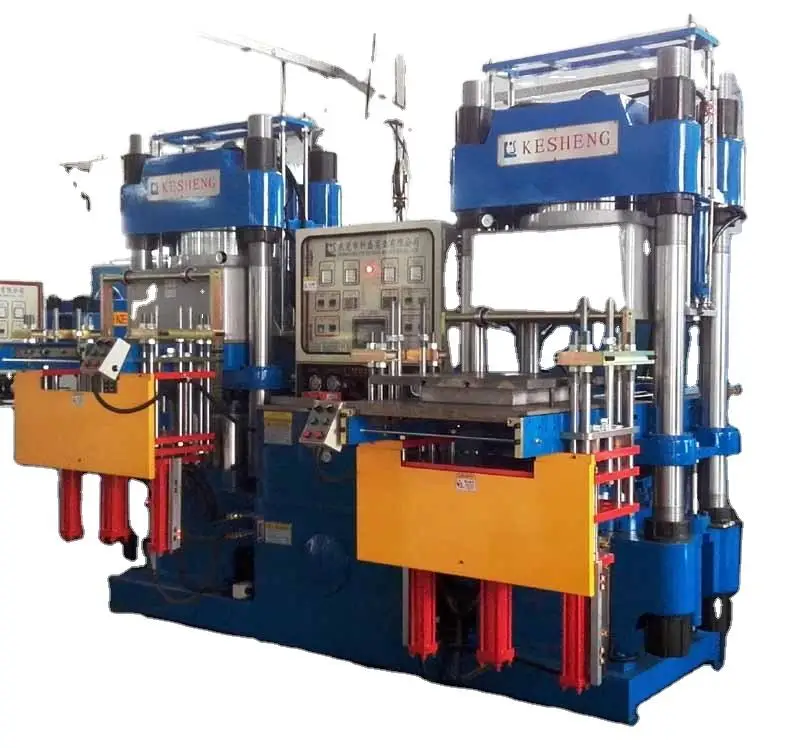

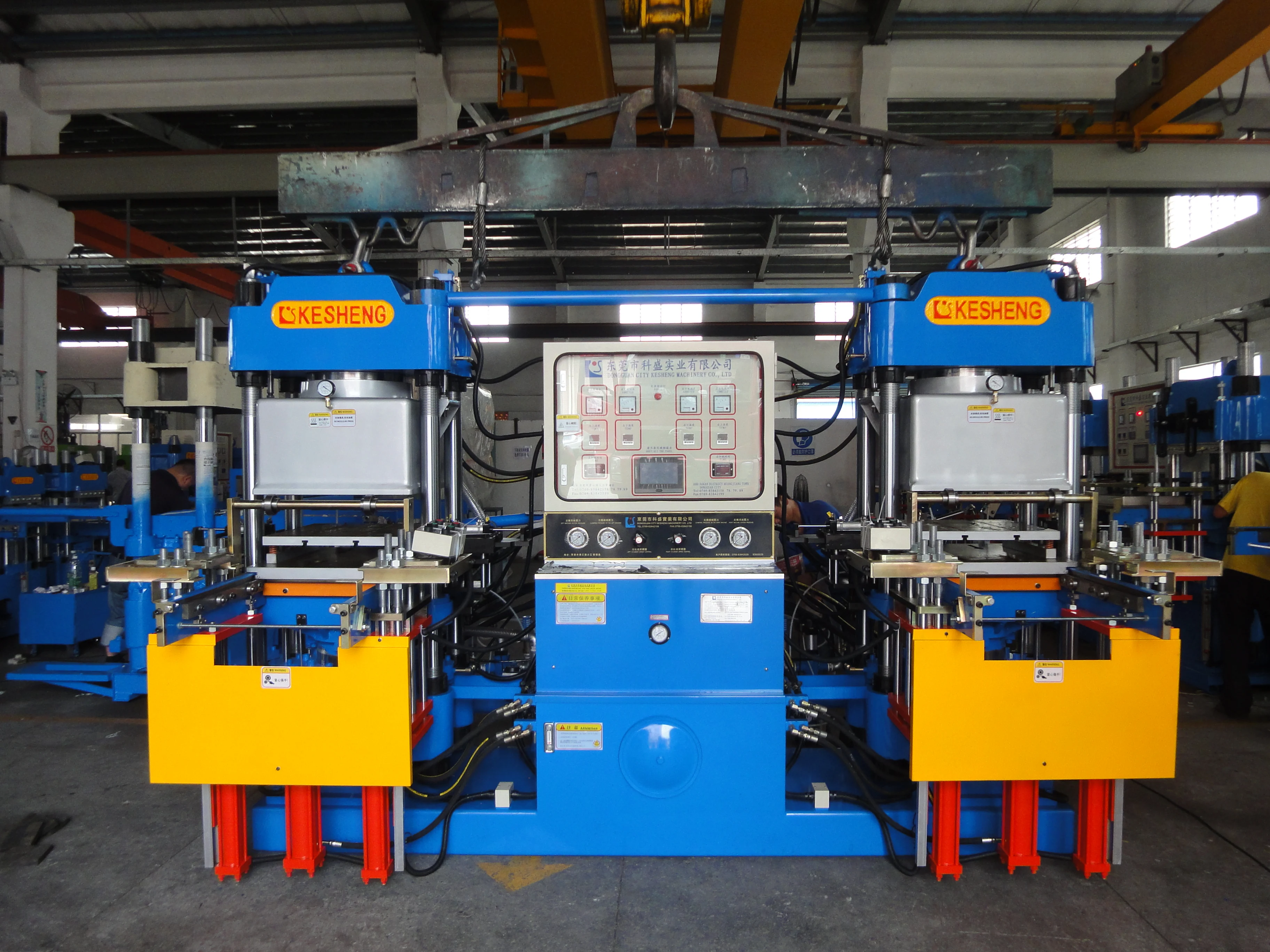

Hign precision rubber vacuum machine, full automatic, fast speed, 3 layer open mould style and rail open style together hydraulic molding machine.
Machine main feature:
1. Adopt dual power individual circuit design, stable, quiet, low failure rate, two axes can be operated simultaneously, saving 50%
2. Front mold is suitable for variety 2-layers or multi-layers molds, it is a kind of new multi-function machine
3. Lift and clamping mold speed can be adjustable, accuracy and reliability
4. Out-In mold positioning accuracy, positioning 100% security, to ensure that mold does not damage
5. Vacuum chamber can reach 650-700mmHg within 5 seconds
6. Has a fast, slow correction mode selection function, so that the mold can be correction more accurate, more secure
Applicable products:
Applied to Auto parts, rubber fasteners, O-ring, silicon button, home application rubber, bottle stoppers, industrial rubber, silicon/rubber multi-layer molded products.
Parameter:
| Model | 200Ton | 250Ton | 300Ton | 350Ton | 400Ton | 500Ton |
| Clamping force(Ton) | 200 | 250 | 300 | 350 | 400 | 500 |
| Stroke(mm) | 250 | 250 | 250 | 300 | 300 | 300 |
| Heating plate size(mm) | up 503x508mm down 554x560mm | up 600x600mm down 600x650mm | up 600x600mm down 650x650mm | up 700x700mm down 750x750mm | up 800x800mm down 850x850mm | up 950x950mm down 1000x1000mm |
| Main cylinder diameter(mm) | 355 | 400 | 450 | 475 | 500 | 560 |
| Horse power(HP) | 10x2 | 10x2 | 10x2 | 15x2 | 15x2 | 15x2 |
| Electrical power(KW) | 22 | 34 | 34 | 43 | 48 | 72 |
| Gross weight(KG) | 90000 | 11500 | 13500 | 16500 | 19500 | 23500 |
| Machine size(L*W*H mm) | 3000x2360x2330 | 3300x2710x2530 | 3450x2630x2600 | 3600x2950x2600 | 3800x3300x2800 | 4200x3600x3300 |
Main parts instruction for plate & vacuum rubber machine
| NO. | Item | Branch/Material | Remarks |
| 1 | Motor | Taiwan Tatung | Large torque type, quiet and silent |
| 2 | Oil Pump | Japan branch | Collective style circuit design |
| 3 | PLC | Japan Mitsubishi | Independent written, easy to operate |
| 4 | LCD touch screen | Taiwan PanelMaster | Clear and intuitive, convenient, easy to operate |
| 5 | Heating pipes | Taiwan branch | Nickel-chromium alloy wire, never rust |
| 6 | Oil seal | Japan NOK | Wear-resistant, durable, no leakage |
| 7 | Solenoid valve | Taiwan Victoria | Controlled fast, long life |
| 8 | Other electrical configuration | Japan Fujitsu, Great Wall, Chint and so on | Performance and stability |
| 9 | Thermostat | Omron | Using PID correction, temperature uniform distribution, the error value at ± 3 ºC |
| 10 | Pressure sensor | Denmark TRAFAG | Conduction pressure accurate, unbiased, and easy to use |
| 11 | Heating control system | Taiwan Solid State Relays | temperature uniform distribution, the error value at ± 3 ºC |
| 12 | Machine body casting | FCD50 Ductile Iron | Aging passivation, high tensile strength |
| 13 | Column | Carbon Steel | Hardness up to HRC55--58 |
| 14 | Work plate | Size as per quotation | 45 # high carbon steel, grinding, surface nitriding hardness HRC50-55 |
| 15 | Machine Middle body | Umbrella tapered design | Make the machine rise and fall by force, the mold cavity pressure evenly, the product is not lack of material, no bubbles |
| 16 | Vacuum Pump | Germany Busch | Evacuated quickly, can reach 760 mm Hg within 5 seconds |
Certifications
Company Information
Any inquiry please feel free to contact with us, thank you for your attantion.
Our Services
Packaging & Shipping
Naked Pack / Wooden Case / Customer Request
FAQ
1. who are we?
We are based in Guangdong, China, start from 2006,sell to Southeast Asia(35.00%),North America(20.00%),Africa(10.00%).
It is a professional manufacturer of silicone rubber machinery and equipment, integrating product development, design, production, sales and after-sales service as one of the high-tech enterprises.
The company fully implements ISO9001 quality management system and ERP management system, and its products have passed CE certification and are in line with EU standards.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
hydraulic molding machine,press molding machine,vacuum molding machine,injection molding machine
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,DDU;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese,Japanese,Russian,Korean
5. Which model should we choose?
Whe have many models for your choice. Bofore suitable model is recommended, please tell us the application, materials, output and pressure you want.
6. Can we have customized model?
Yes. We can make the customized machine according to your actual requirements.
7. Do I need to know technical skill to operate this machine?
No. This machine has no professional requirements for the operator.
However, we provide technical instruction for your backup.
8. What should we do if there are some problems with the machine?
You can refores to the Operate Instruction or cantact us for online instruction.
Also, our engineers are available to service overseas.
9. What is the lead time?
Within a month
10. How about the package?
We have wooden case to protect the machine from damage during the long-distance delivery.
11. How should Ipay for you if I place this order?
Generally, TT, 30% deposit 70% before shipment.
