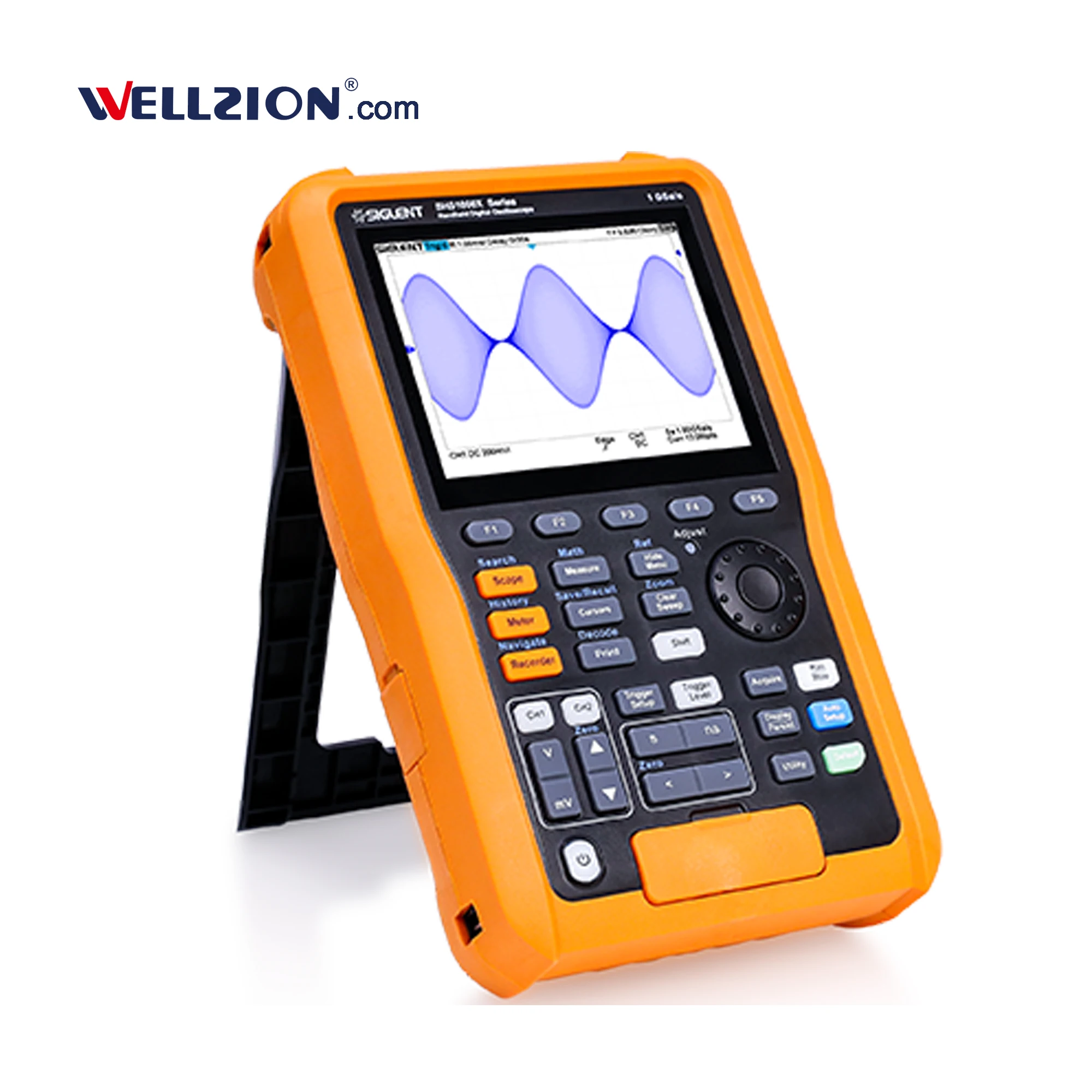

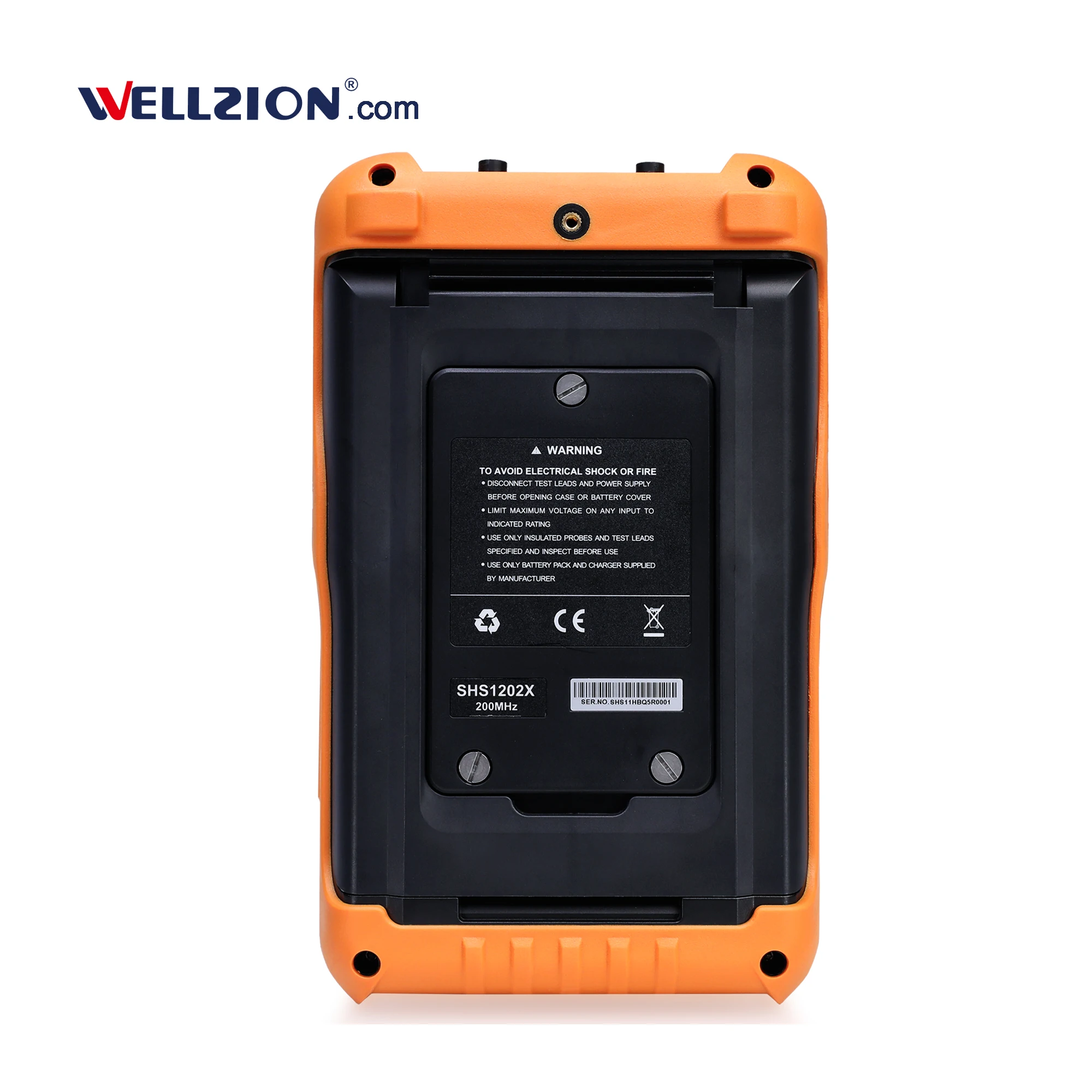

SHS1102X 100MHz bandwidth Handheld 2 Channel digital oscilloscope Siglent
Product Overview
The SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. including 200 MHz and100 MHz model.A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is actived, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.
Function & Benefits
- 200 MHz, 100 MHz bandwidth models
- 5.6 inch TFT LCD display with 640 * 480 resolution
- Sample rate of 1 GSa/s (single channel), Sa mple rate of 500 MSa/s(two channels)
- Low background noise with voltage scales from 2 mV/div to 100 V/div
- 3 one button shortcuts for Oscilloscope, Multimeter and Recorder functions
- Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
- Serial bus triggering and decoding (Standard) for IIC, SPI, UART, CAN, and LIN protocols
- Suppor ts SCPI remote control commands
Specifications
| Model | SHS1102X | SHS1202X |
| Oscilloscope | ||
| Bandwidth | 100 MHz | 200 MHz |
| Rise time | 3.5 ns | 2.0 ns |
| Sampling Rate (Max.) | 1 GSa/s (single channel), 500 MSa/s (two channels) | |
| Memory Depth (Max.) | Max 12 Mpts/Ch (single channel), 6 Mpts/Ch (two channels) | |
| Peak Detect | 2ns | |
| Average | Averages:4,16, 32,64,128,256,512,1024 | |
| ERES | Enhance bits:0.5, 1.5, 2, 2.5, 3 | |
| Waveform | interpolation Sin(x)/x, Linear | |
| Channels | 2 channels | |
| Coupling | DC, AC, GND | |
| Impedance | DC: (1 MΩ±2%) || (14 pF ±2 pF) | |
| Max. Input voltage | CAT III 600 Vrms, CAT II 1000 Vrms Between BNC Signal and Protecting Earth CAT III 600 Vrms, CAT II 1000 Vrms Between BNC GND and Protecting Earth CAT III 300 Vrms Between BNC Signal and BNC GND | |
| Waveform capture rate (Max.) | 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) | |
| Vertical Resolution | 8-bit | |
| Vertical Scale (Probe 1X) | 5 mV/div–100 V/div (1-2-5 sequence ) | |
| SFDR including harmonics | ≥ 28 dB | |
| Overshoot (500 ps Pulse) | typical 18% | |
| DC Gain Accuracy | ≤ ± 3%: ≥ 10 mV/div; ≤ ± 4%: < 10 mV/div | |
| Low frequency response | ≤ 2 Hz (at input BNC) (AC coupling 3 dB) | |
| Timebase Scale | 1.0 ns/div-100 s/div | |
| Timebase Accuracy | ±25 ppm | |
| Operation | + , , * , / , FFT , d/dt , ∫dt , √ | |
| FFT window | Rectangular, Blackman, Hanning, Hamming, Flattop | |
| FFT display | Full Screen, Split, Exclusive | |
| Trigger type | Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video | |
| Serial Trigger and decoder | IIC, SPI, UART, CAN, LIN | |
| Data Logger(Recorder) | Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s | |
| Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4 channels | ||
| Multimeter | ||
| Maximum Resolution | 6000 Counts | |
| Maximum Input Voltage | CAT III 600 Vrms ; CAT II 1000 Vrms | |
| Maximum Input Voltage (For adapter SCD10A, SCD600MA) | CAT III 60 Vrms | |
| DC Voltage | 60.00 mV / 600.00 mV / 6.000 V / 60.000 V / 600.000 V / 1000 V | |
| AC Voltage (45Hz~400Hz) | 60.00 mV / 600.00 mV / 6.000 V / 60.000 V / 600.000 V /750 V | |
| DC Current | 60.00 mA / 600.00 mA / 6.000 A / 10.00 A | |
| AC Current(45Hz~400Hz) | 60.00 mA / 600.00 mA / 6.000 A / 10.00 A | |
| Resistance | 600.0 ohm/6.000 k ohm/60.000 k ohm/600.000 k ohm/6.000 M ohm/60.00 M ohm | |
| Capacitance | 40.00 nF / 400.00 nF / 4.000 uF / 40.000 uF / 400.000 uF | |
| Diode | 0~2 V | |
| Continuity | Continuous beep when resistance < 50 Ω | |
| I/O | USB Host, USB Device | |
| Display | 5.6-inch TFT-LCD (640x480) | |
| Dimensions | 276 mm(L)x168 mm(W)x68 mm(D) | |
| Weight | Without package 1.75 kg. With package 3.5 kg | |
General Characters

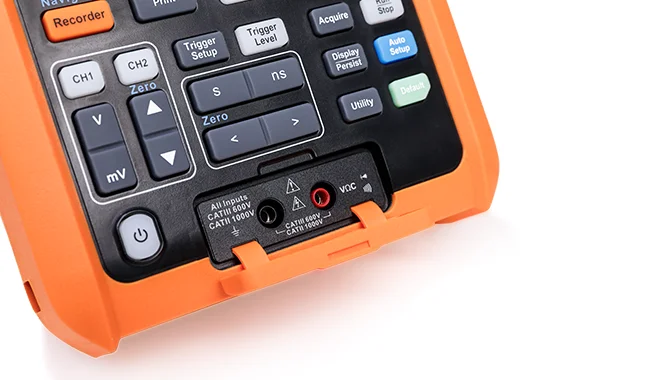

Full Isolation
IEC61010-2-030 defines measurement categories that rate the ability of measuring instruments to withstand short-term transient overvoltages outside the operating voltage.
For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms.
SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.

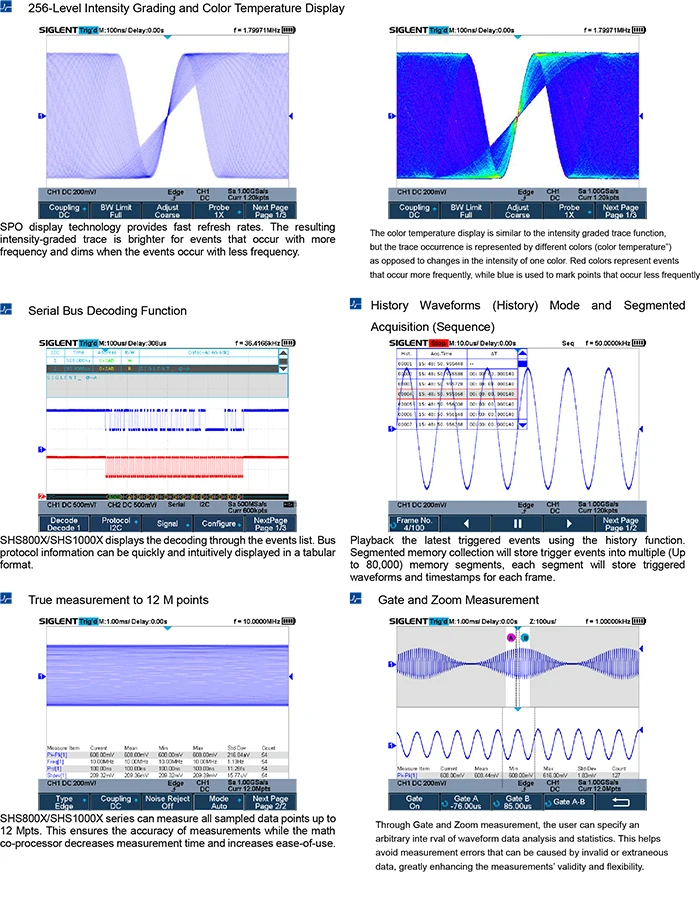

Standard Serial trigger and decode
Standard Serial trigger and decode: IIC, SPI, UART, CAN, LIN, widely used in automotive and embedded industries. Because of its unique portable design and battery power supply, it can better meet the testing needs of the automotive and embedded industries that require on-site decoding.
Hardware-based True RMS multimeter

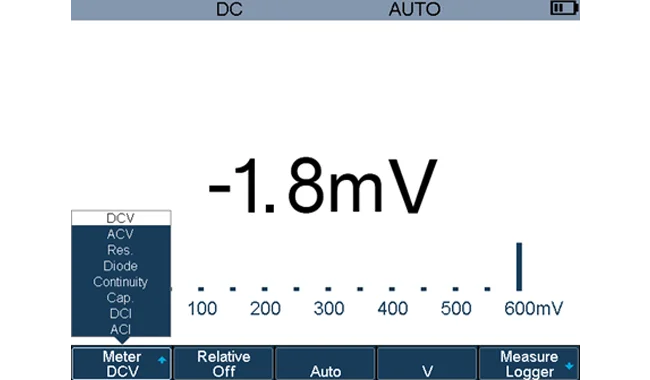

Integrated 6000 count (~ 3.5 digit) digital multimeter
Hardware-Based True RMS Measurement
Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points
