Digital Dissolved O3 Measuring Instrument Ozone Sensor Water Monitor Meter ppm Analyzer in Water for Water
- Category: >>>
- Supplier: Shaanxi Elian Technology Co. Ltd.
Share on (1600616771934):
Product Overview
Description
Product Description
Industrial online ozone monitor is a water quality online monitoring and control instrument with microprocessor. The instrument is widely used in drinking water treatment plants, drinking water distribution networks, swimming pools, water quality treatment projects, sewage treatment, water quality disinfection (ozone generator matching) and other industrial processes to continuously monitor and control the ozone value in the aqueous solution.
Features and uses
♥ LCD color screen LCD display
♥ Smart menu operation
♥ A variety of signal output methods
♥ Two sets of relay control switches
♥ High limit, low limit and hysteresis control
♥ The same interface displays ozone, temperature and status, etc.
♥ With password protection to prevent misuse by non-staff
♥ Smart menu operation
♥ A variety of signal output methods
♥ Two sets of relay control switches
♥ High limit, low limit and hysteresis control
♥ The same interface displays ozone, temperature and status, etc.
♥ With password protection to prevent misuse by non-staff
Technical parameter

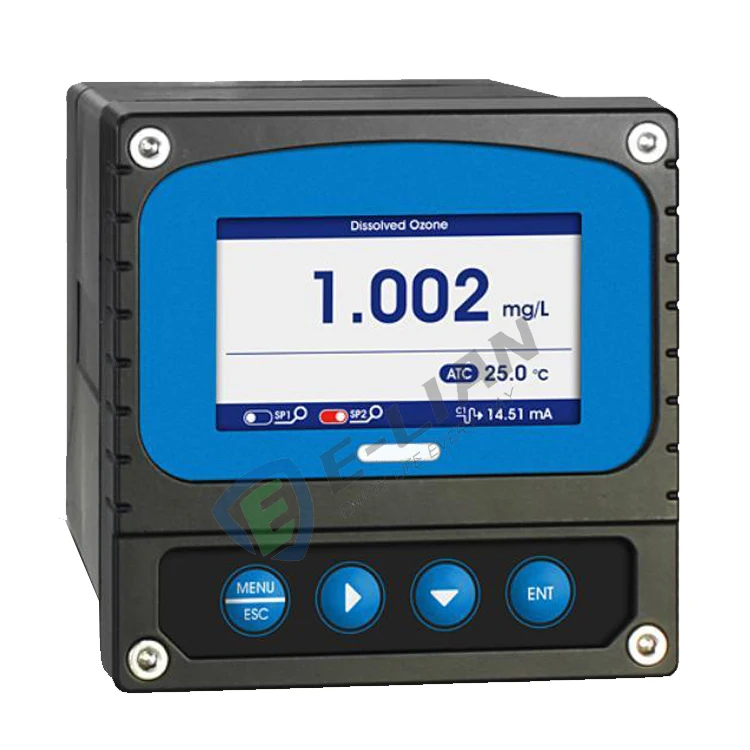

| E-4058 ozone monitor | |
| Measuring range | Ozone: 0~20.00mg/L; |
| Temperature: 0~50.0℃; | |
| Resolution | Ozone: 0.001mg/L; |
| Temperature: 0.1℃; | |
| Basic error | Ozone: ±1%F.S; |
| Temperature: ±0.3℃; | |
| Response time | 90% less than 90 seconds; |
| 2-way current output | 0/4~20mA (load resistance <750Ω); |
| 20~4mA (load resistance <750Ω); | |
| Communication output | RS485 MODBUS RTU; |
| Two sets of relay control contacts | 3A 250VAC, 3A 30VDC; |
| Power supply (optional) | 85~265VAC±10%, 50±1Hz, power≤3W; |
| 9~36VDC, power: ≤3W; | |
| Dimensions | 98×98×130mm; |
| Installation method | panel type, wall-mounted type; |
| Panel opening size | 93×93mm; |
| Protection class | IP65; |
| Weight | 0.6kg; |
| Working environment | Ambient temperature: -10~60℃; |
| Relative humidity: not more than 90%; | |
| Except for the earth's magnetic field, there is no strong magnetic field interference around. | |

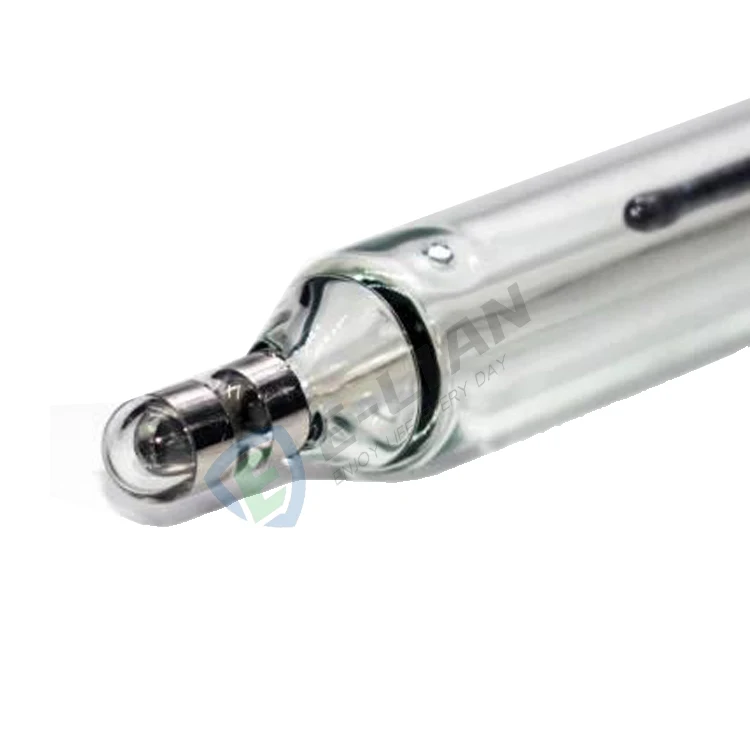

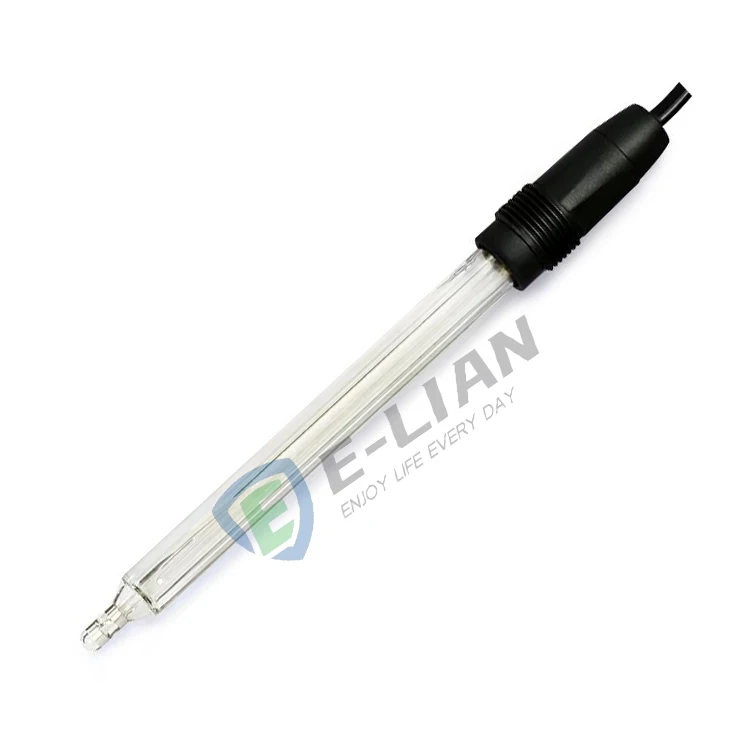

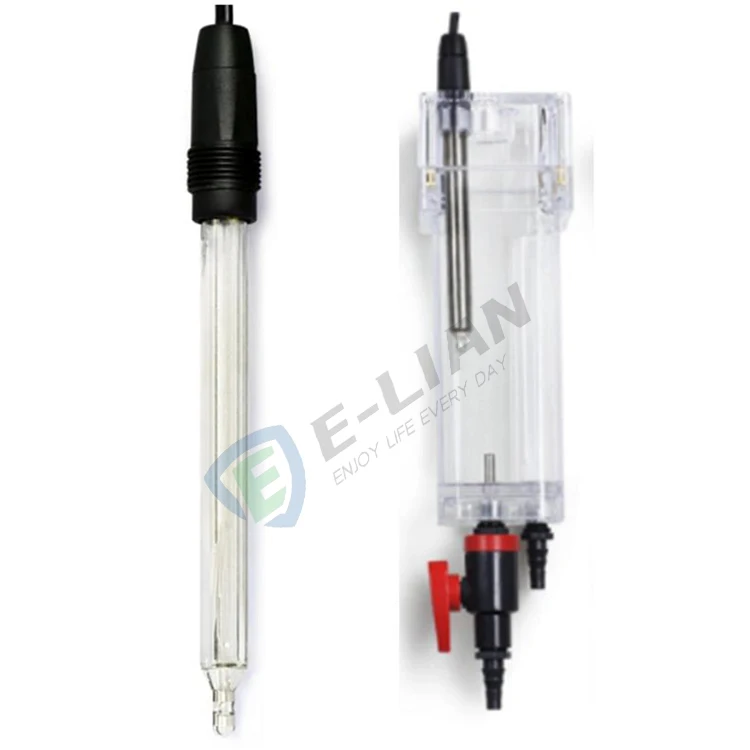

| E-6530 sensor | |
| Power supply | 9~36VDC |
| Output | RS485 MODBUS RTU |
| Measurement material | double platinum ring |
| Shell material | glass + POM |
| Waterproof grade | IP68 |
| Measuring range | 0-2mg/L; 0-10mg/L; 0-20mg/L |
| Measurement accuracy | ±1%F.S |
| Pressure range | ≤0.3Mpa |
| Temperature Compensation | NTC10K |
| Temperature range | 0-80℃ |
| Calibration | sample calibration, chlorine-free water calibration, comparison calibration |
| Connection method | 4-core cable |
| Cable length | Standard 10m cable, optional Extend to 100 meters |
| Mounting thread | PG13.5 |
| Scope of application | tap water, swimming pool water, etc. |
Application
Packaging & Shipping
About Us
Elian Sensing is a high-tech company integrating production.R&D,sales and engineering services.Relying on the rich high-tech rosources in Xi'an,we have carried out technlcal cooperation with many universities and scientific research institutions, constantly breaking through technical barriers,improving product performance,and using leading technology to provide high-quality products for the water quallty monitoring industry. Based on the current rapid development of the Interet of Things technology,we launched a wireless water quality monitoring solution,combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display,remote cloud control,and upper and lower limit alarms.
We are committed to the water quality monitoring industry,actively innovating and improvingproducts,and optimizing industry application solutions.We take technology and quality as thecornerstone,honesty and service as the foundation.do a good job of water quality monitoring withour heart.and contribute to the development of the water quality monitoring industry.
FAQ
Q: How do you guarantee the quality?
A: Firstly, we have our own factory,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.we have with strong R&D center and QA team which can totally make sure the quality of every single product. Secondly, we have a completed after-sale service so that you don't have to worry about anything.
Q: Is OEM available?
A: Yes, all goods can be customized according to your requirements, including packing, LOGO print, etc.
Q: Can it buy only 1 set of the sensor?
A: Yes. No matter how many products you buy, we are grateful all along.
Q: How to deliver the goods for trial order or small order?
A : For trial order or small order, we prefer to choose international express, such as DHL, EMS which are faster and more convenient for customers. Meanwhile, we cooperate with an express agent that can give us a big discount for express fee which is much lower than that quoted by official. For the goods with detachable battery, the express fee can be lower down if the goods is sent out without battery.
Q: If we have not found the model from website, what should we do?
A: Please contact us with description of what you need, and we research and develop new model every month, and some of them may have not been uploaded in website immediately. But If this is a new product, we can develop it for you according to your detailed information about your product.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q: How about warranty?
A: 12 months warranty
