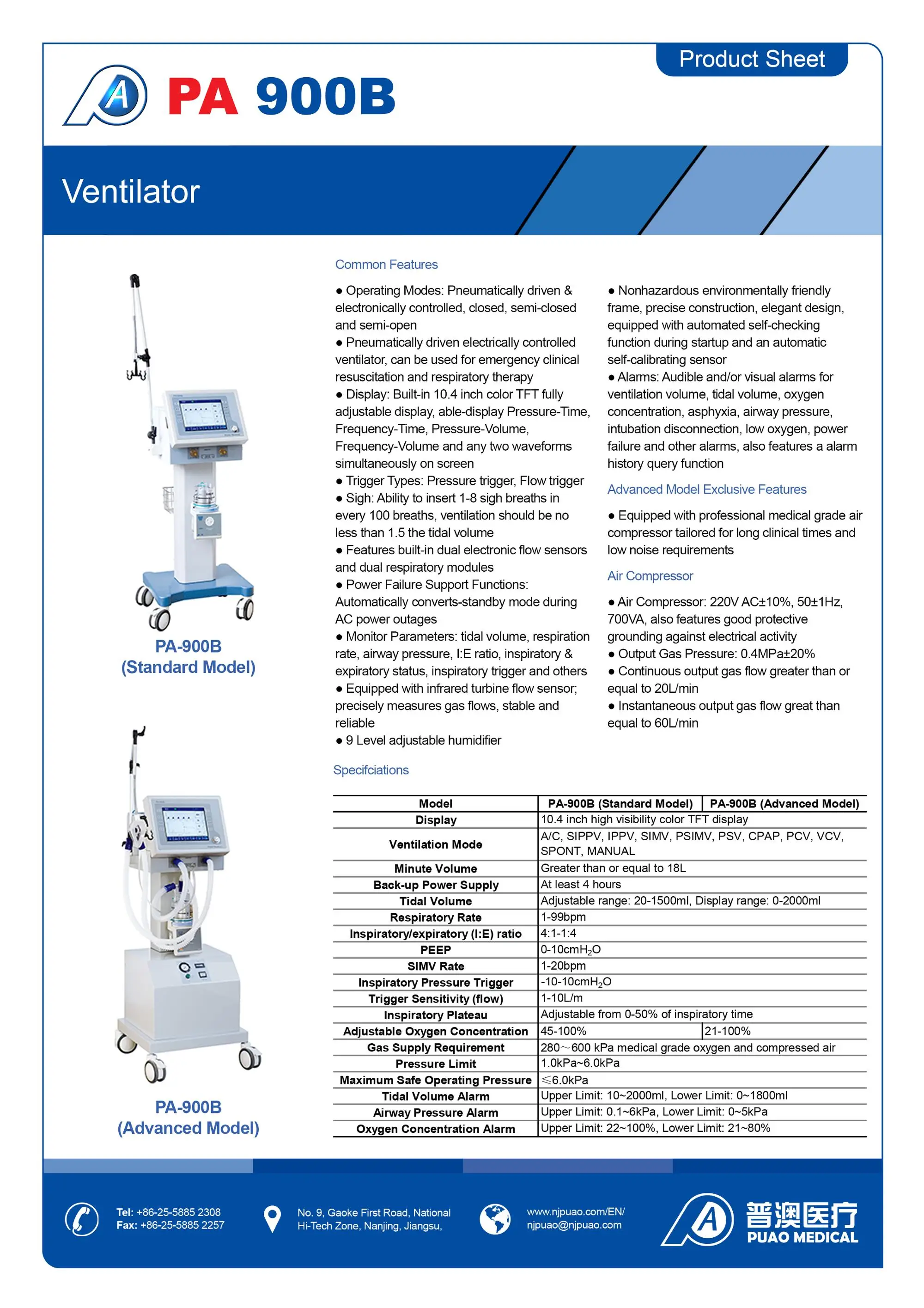

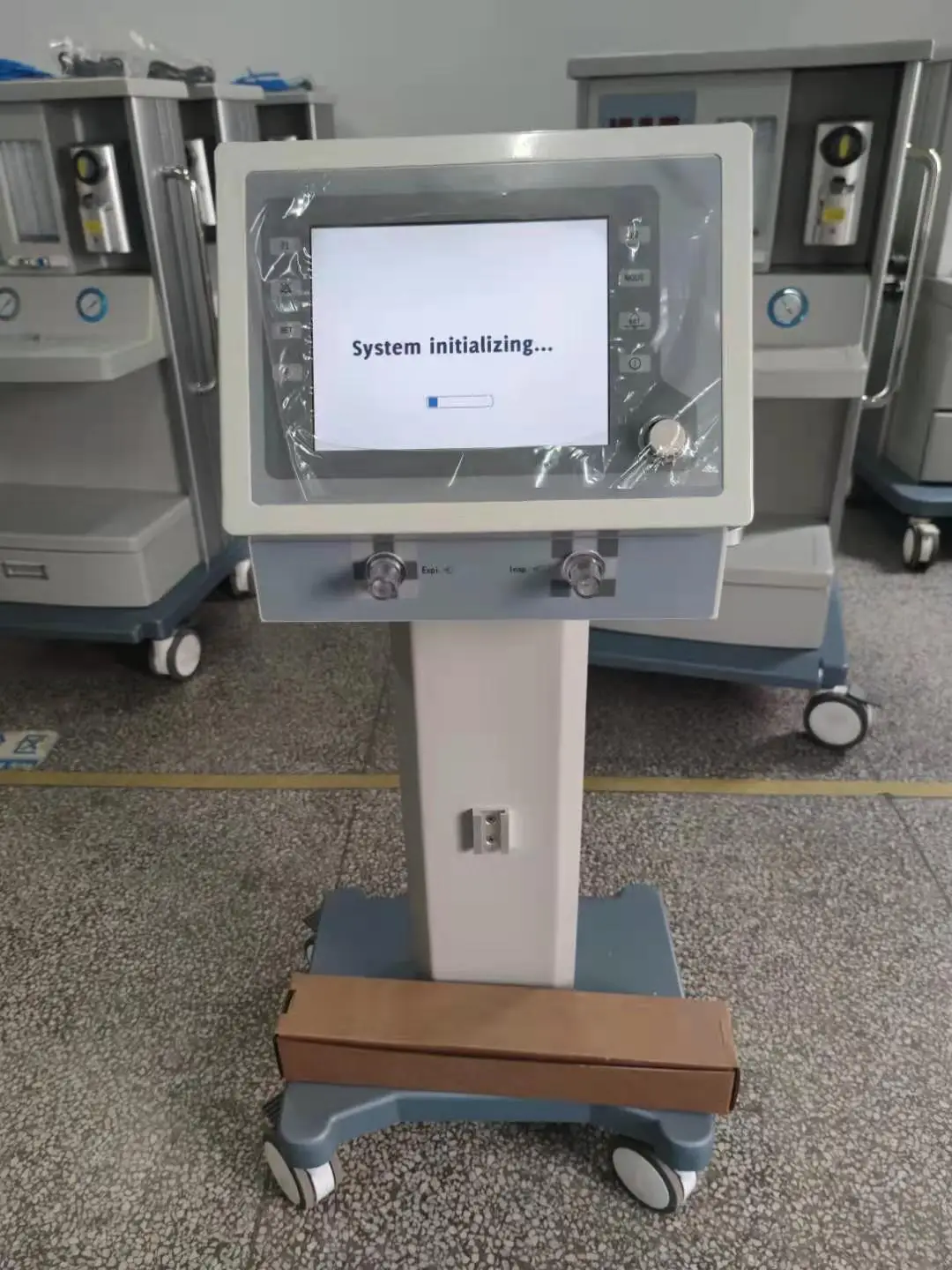

Medical Lung Ventilator Machine, Cheap ICU Ventilator Machine with 10.4 inch TFT Display PA 900

Common Features

1. Operating modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

2. Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy

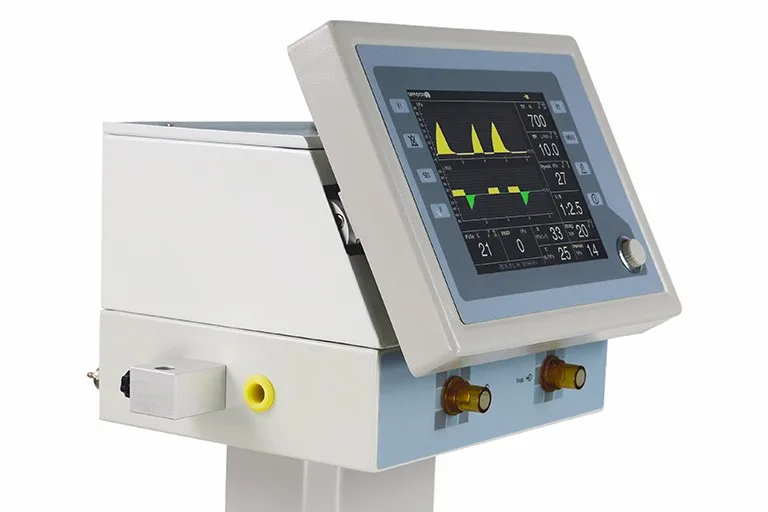

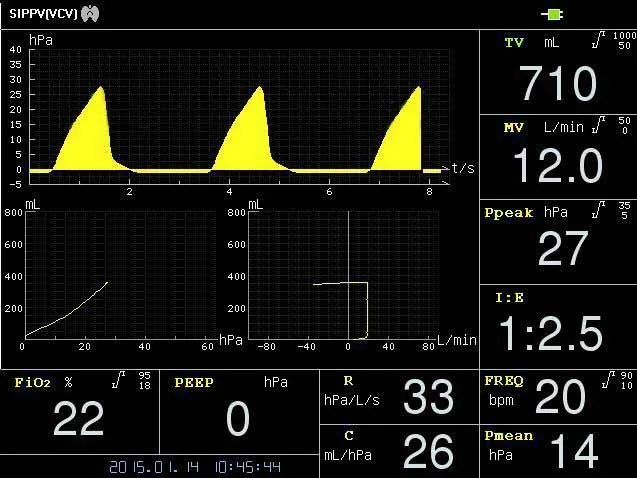

3. Display: Built-in 10.4 inch color TFT fully adjustable display, able-display Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume and any two waveforms simultaneously on screen

4. Trigger Types: Pressure trigger, Flow trigger

5. Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume

6. Features built-in dual electronic flow sensors and dual respiratory modules

7. Power failure support functions: Automatically converts-standby mode during AC power outages

8. Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory trigger and others

9. Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable

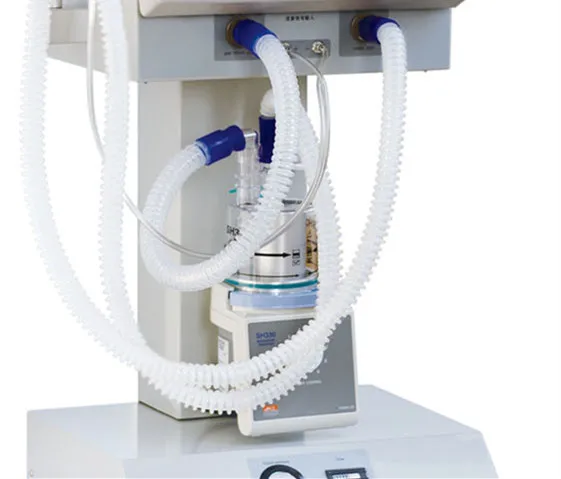

10. 9 Level adjustable humidifier

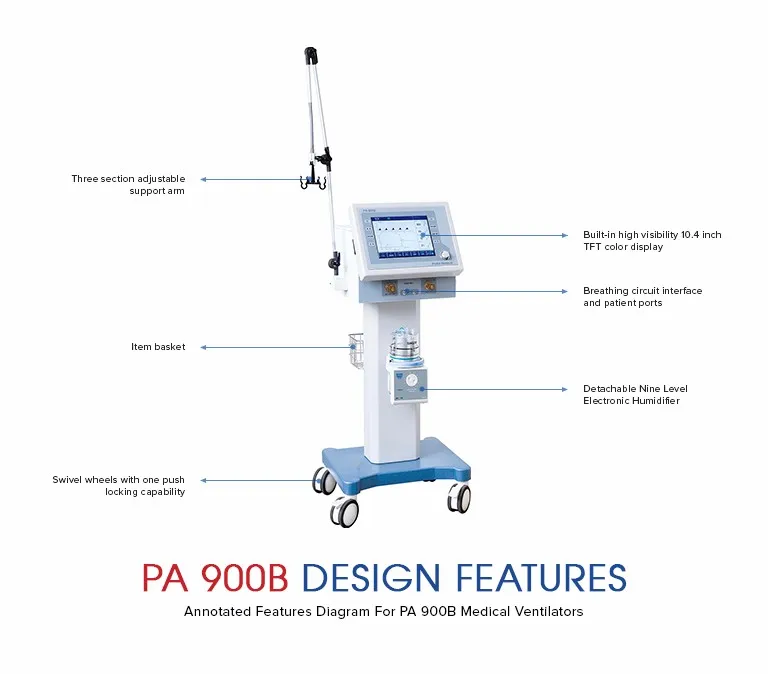

11. Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor

12. Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function

Advanced Model Exclusive Features

1. Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements

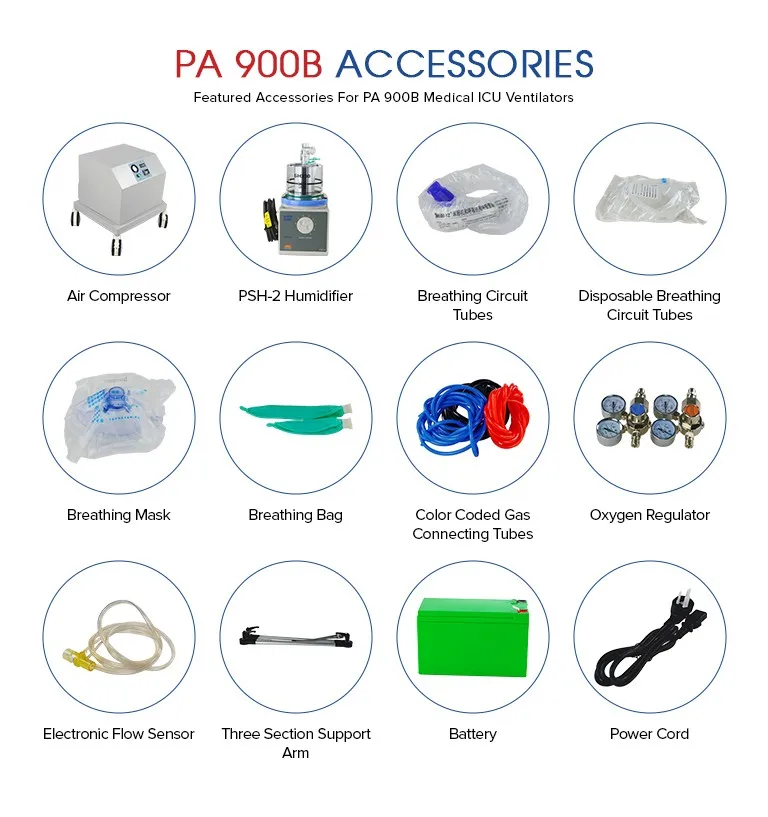

Air Compressor(optional)

1. Air compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity

2. Output gas pressure: 0.4MPa±20%

3. Continuous output gas flow greater than or equal to 20L/min

4. Instantaneous output gas flow great than equal to 60L/min

Specifications

Model: 900B (Advanced Model)

Display: 10.4 inch high visibility color TFT display

Ventilation Mode: A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT, MANUAL

Minute Volume: Greater than or equal to 18L

Back-up Power Suppl:y At least 4 hours

Tidal Volume Adjustable range: 10-1500ml, Display range: 0-2000ml

Respiratory Rate:  1-99bpm

Inspiratory/expiratory (I:E) ratio: 4:1-1:4

PEEP: 0-10cmH2O

SIMV Rate: 1-20bpm

Inspiratory Pressure Trigger : .-10-10cmH2O

Trigger Sensitivity (flow): 1-10L/m

Inspiratory Plateau: Adjustable from 0-50% of inspiratory time

Adjustable Oxygen Concentration: 21-100%

Gas Supply Requirement: 280~600 kPa medical grade oxygen and compressed air supply

Pressure Limit: 1.0kPa~6.0kPa

Maximum Safe Operating Pressure: ≤6.0kPa

Tidal Volume Alarm: Upper Limit: 10~2000ml, Lower Limit: 0~1800ml

Airway Pressure Alarm: Upper Limit: 0.1~6kPa, Lower Limit: 0~5kPa

Oxygen Concentration Alarm:  Upper Limit: 22~100%, Lower Limit: 21~80%

          Nanjing Puao Medical Equipment Co., Ltd. dedicated to the manufacturing, R & D, sales and servicing of anesthesia machines, ventilators and patient monitors. First established in the 1970s and formerly know as the government sponsored “Nanjing Jinling Anesthesia Machine Factory” Puao Medical is the premier domestic manufacturer of anesthesia machines. Our “Jinling” series of anesthesia machines built with “safety, reliability, simplicity and effectiveness” in mind quickly established itself as a well-known and celebrated brand both domestically and aboard.

1).How to order your product and cancel order?

When you are ready to order, please contact us to confirm current prices, payment arrangement, availability,

and delivery time of your medical equipment or accessories. Whenever possible, we request a hard copy

purchase order to ensure that your order is processed properly.When you are ready to cancel order,please

contact us by email or fax and list cancel which invoice number.

2).What's your product guarantee?

Normally we offer 24 months warranty,and lifetime maintenance.

3).Does your product has any certificate?

Almost all our medical equipment is CE,ISO approved.

4).What's your payment terms?

We can accept T/T,Western Union,cash etc

5).What's your product lead time?

Normally we can deliver goods within 7 workdays after receipt payment

6).How to maintenance the product if it has problem?

We have professional engineers,they can solve the problem by communicating with your engineer by skype or phone.

7).What's your shipping terms?

Puao offers express,air,sea shipping methods.Client can choose anyone depends on detail situation
