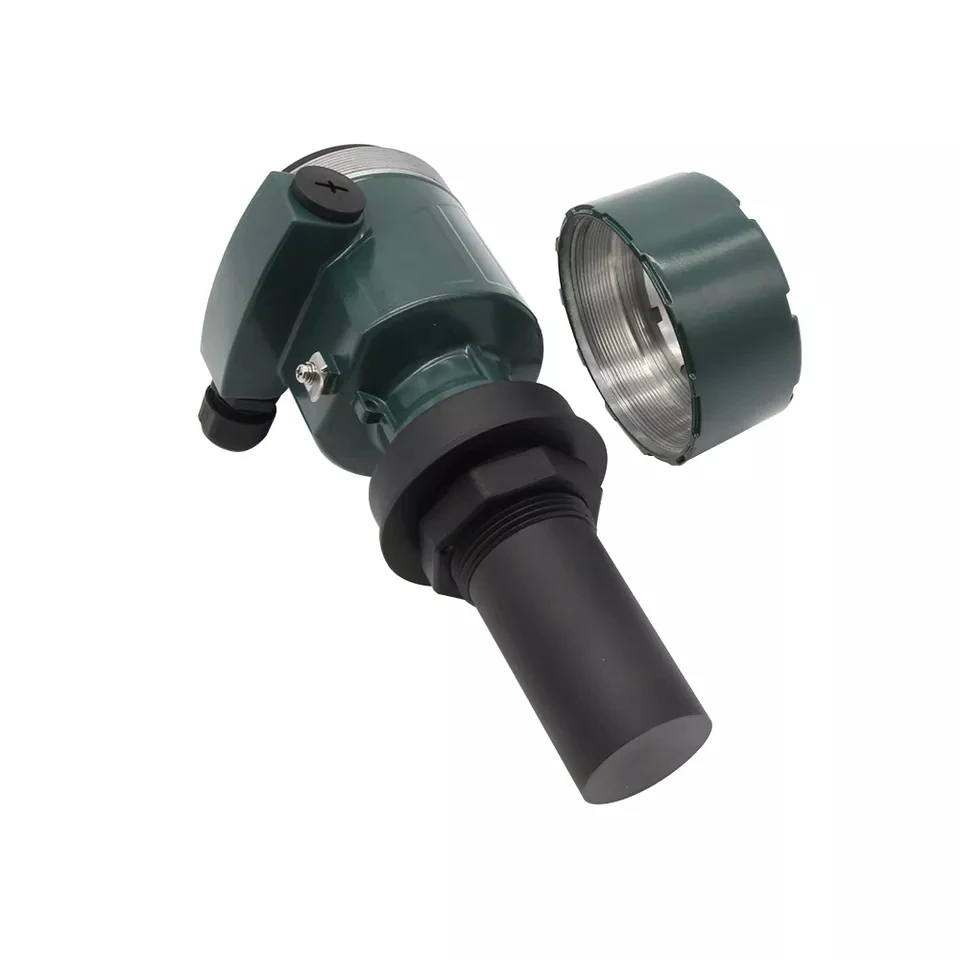

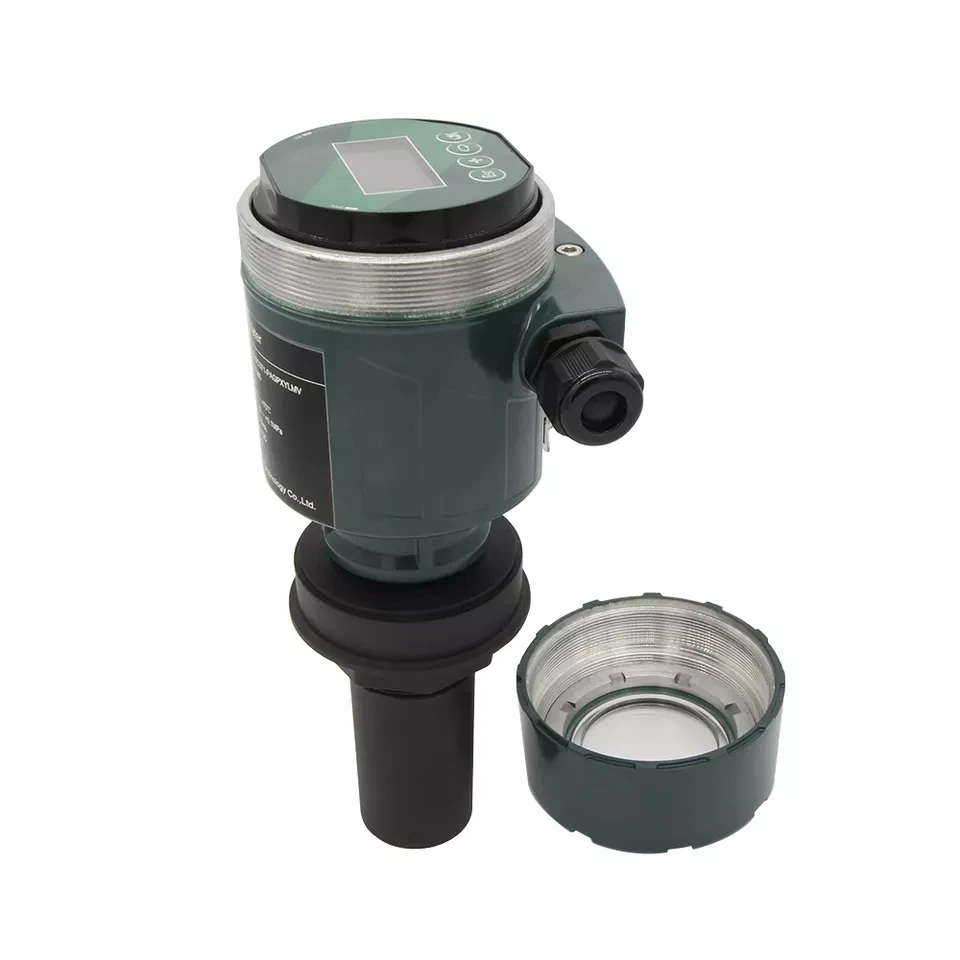

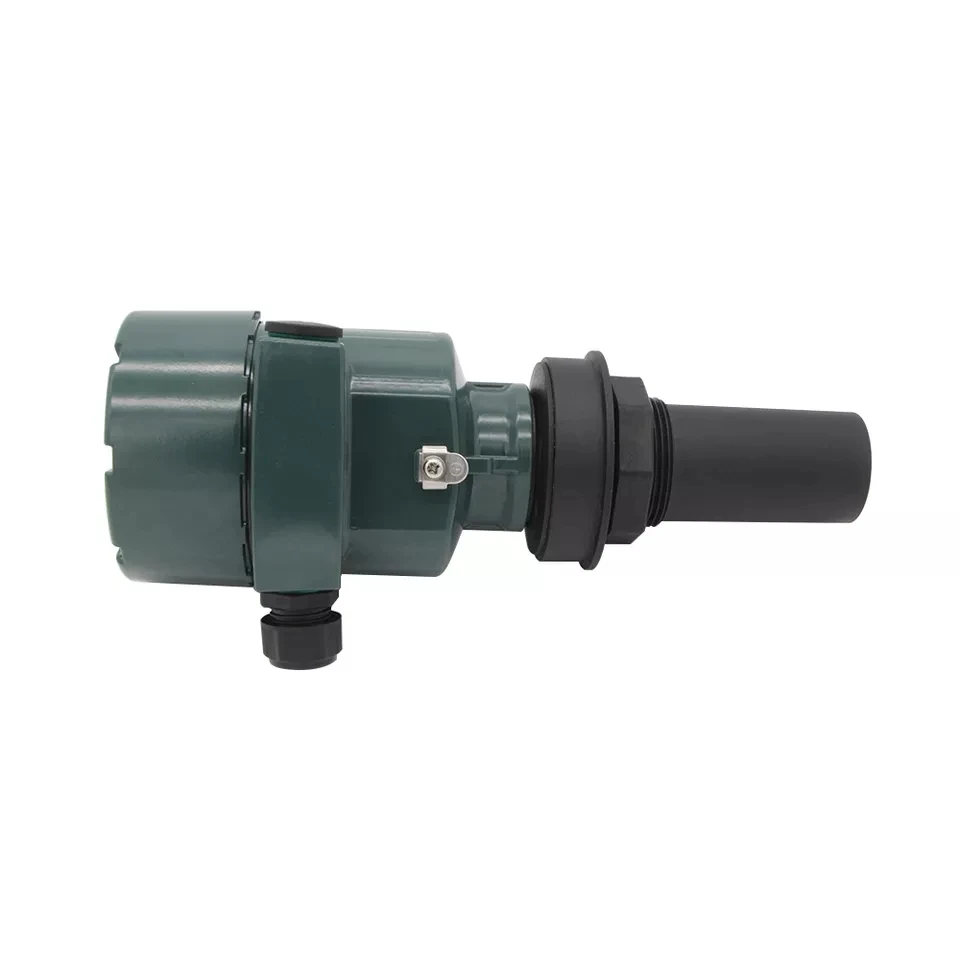

IP66 plastic housing digital signals RS485/MODBUS solar panel Parshall flume water flow measuring ultrasonic level meter(27)
- Category: >>>
- Supplier: Dandong Virtue River Technology Co. Ltd.
Share on (1600616802273):
Product Overview
Description
Product Paramenters
Model number | VRPWCS71 |
Features | Analogue signals with HART or digital signals with RS485/MODBUS are optional; |
Unique echo processing technology with the functions of an echo curve display and false echo storage; | |

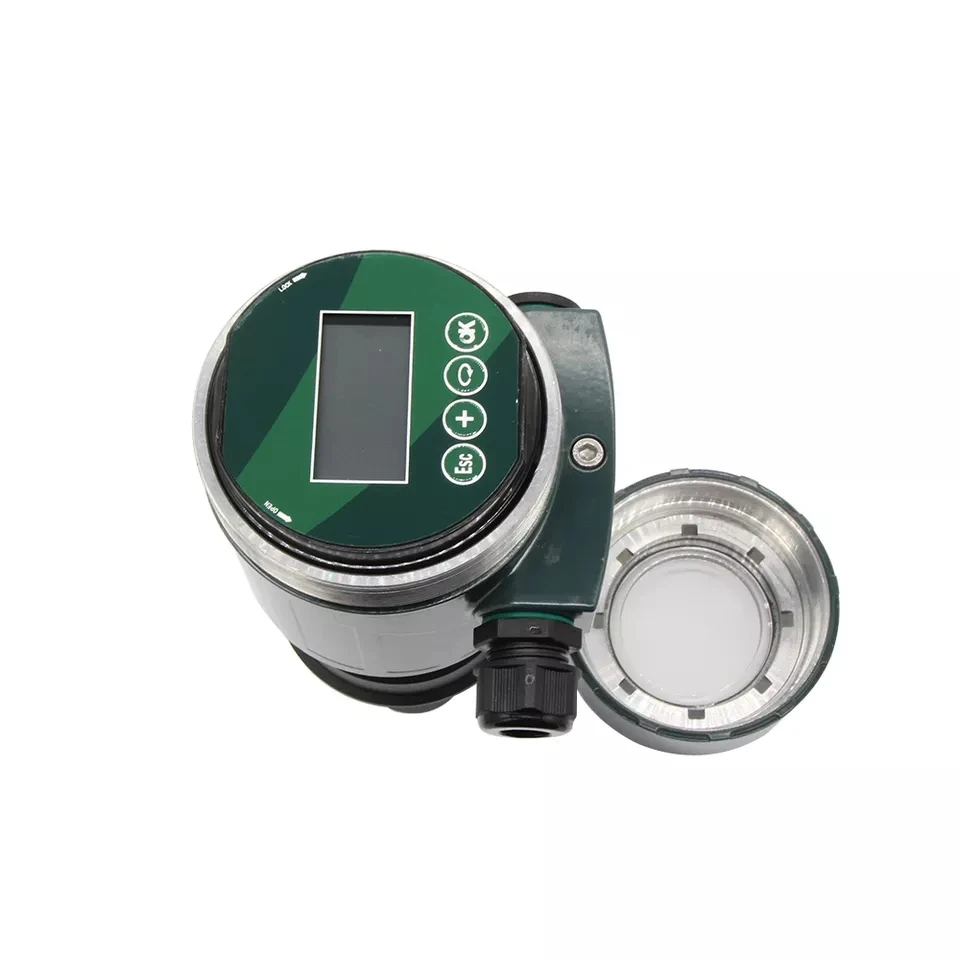

Built-in programmer with buttons for easy setting and calibration; | |
Built-in temperature compensation; Intrinsically safe is optional. | |
Typical applications | For both liquid level and solid level measurement in various industrial fields, especially for water treatment industry |
Measuring range | Standard probe: liquid, 0.25 - 5m; solid, 0.25 - 2m |
Sealed and anti-corrosive probe: liquid, 0.25 - 4m; solid, 0.25 - 2m | |
Process connection | Thread G1 1/2A, bracket or flange |
Process temperature | -40 - +70℃ |
Process pressure | -0.02 - +0.1MPa |
Accuracy | ±0.25% of full range |
Probe material | PA66+GF30/ PVDF |
Ultrasonic frequency | 60kHz |
Explosion proof | Ex ia IIB T6 Ga |
Enclosure protection grade | Plastic enclosure-IP66; AL enclosure-IP67 |
Signal output | 4-20mA+HART, 24V DC (2-wire/ 4-wire); 220V AC (4-wire) |
RS485/MODBUS |
