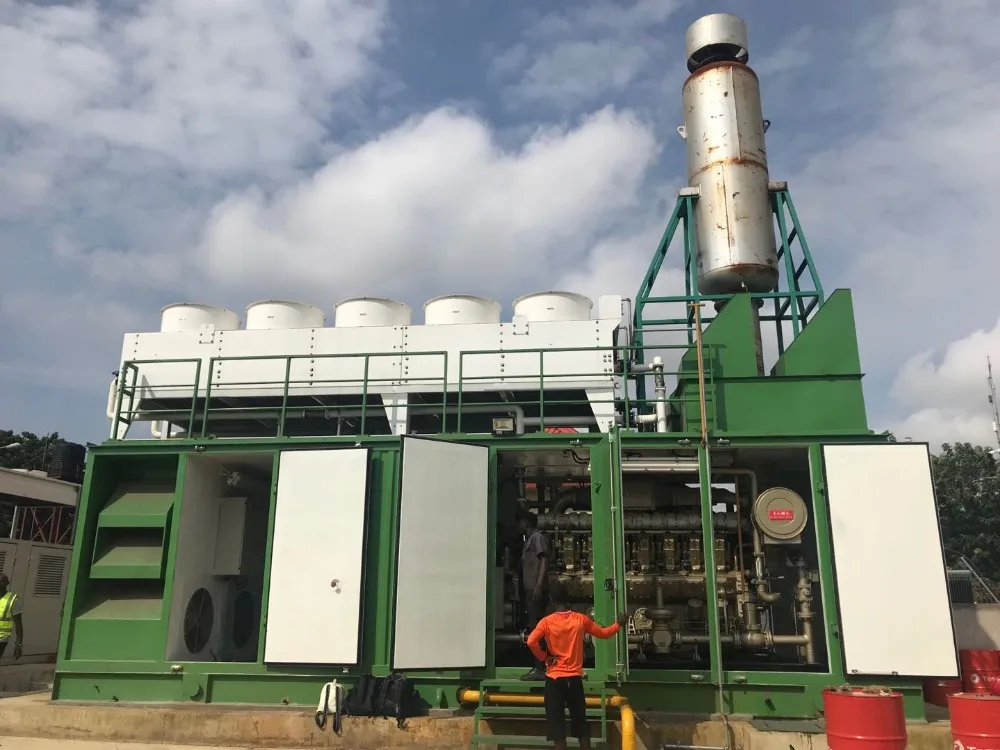

bio gas generator 1 mw continuous
- Category: >>>
- Supplier: Jinan Jichai Huanneng Gas Generating Equipment Co. Ltd.
Share on (1600616850459):
Product Overview
Description
Product Description
Brief Introduction of Our Company
Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.
Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.
Product Introduction

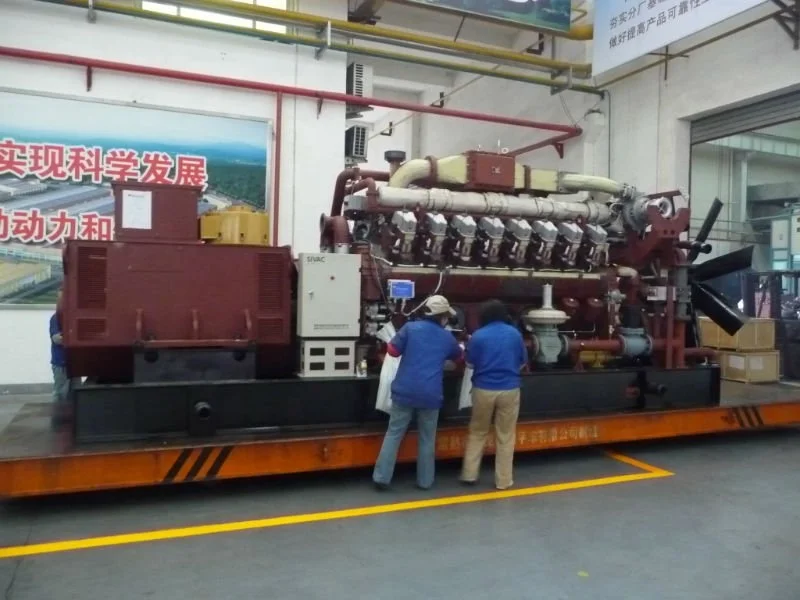

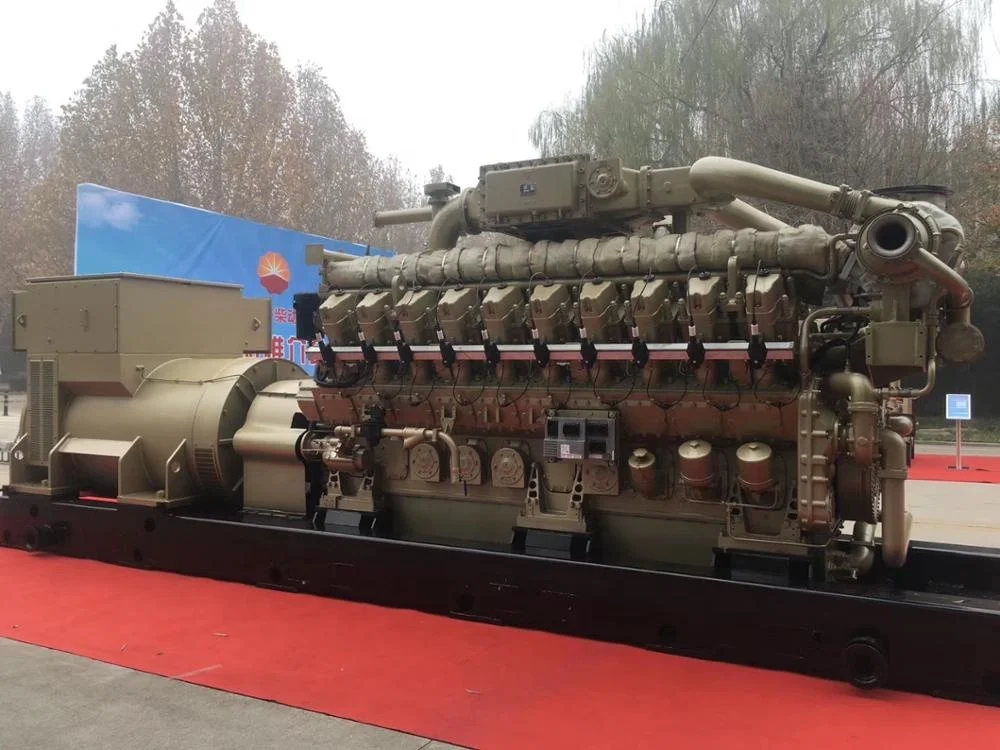

This biogas generator adopts - H16V190ZLT 2 engine, which is one sort of highly intelligent, low heat consumption, high reliability, low emission, long lifetime 16V gas engine. H16V190ZLT-2 electrical control and external mix engine owns speed 1000r/min, single unit power 1320kW.
SPECIFICATIONS FOR 1000kw BIOGAS GENERATOR SET | ||||||
Biogas generator set | Rated power | kW | 1320 | |||
No. of cylinders | 16 | |||||
Rated current | kVA | 1250 | ||||
Rated voltage | V | 400 | ||||
Rated speed | rpm | 1000 | ||||
Rated frequency | Hz | 50 | ||||
Oil consumption | g/kW·h | ≤0.3 | ||||
Heat consumption | kJ/kW·h | ≤9500 | ||||
Rated power factor | 0.8(Lag) | |||||
Alternator model | Siemens JFG series | |||||
Starting method | Electrical starting | |||||
Operation mode | Remote electrical control | |||||
Voltage adjustment method | Automatic | |||||
Governor mode | Electric governor | |||||
Engine | Name | H16V190ZLT-2 | ||||
Type | Four stroke, water cool, turbocharger inter-cooler, air-fuel ratio control,spark plug ignition, electrical control, external mix. | |||||
Cylinder arrangement | V type, 60°angle | |||||
No. of cylinder | 16 | |||||
Cylinder diameter | mm | 190 | ||||
Piston stroke | mm | 215 | ||||
Total displacement | L | 97.53 | ||||
Rated speed | r/min | 1000 | ||||
Idle speed | r/min | 700 | ||||
Rated powe | kW | 1320 | ||||
Piston average speed | m/s | 7.17 | ||||
Biogas pressure | kPa | 7~9 | ||||
Exhaust temp before turbo | ℃ | ≤680 | ||||
Output water temp | ℃ | ≤90 | ||||
Intercooler input water temp (℃) | ≤45 | |||||
Lube oil temp | ℃ | ≤90 | ||||
Alternator | Model | Siemens series | ||||
Rated power | kW | 1000 | ||||
Rated voltage | V | 400 | ||||
Rated current | A | 1800 | ||||
Rated frequency | Hz | 50 | ||||
Power factor | 0.8(Lag) | |||||
Rated speed | rpm | 1000 | ||||
Efficiency | 93.9 % | |||||
Connection method | Three phases and three lines(Y ) | |||||
Excitation method | Brushless excitation | |||||
Insulation level | F level | |||||
Protection mode | IP23 | |||||
Cooling method | Fan cooling(IC01) | |||||
Main Requirements
I.Biogas purification requirements
Other composition\tOil and water\tDust \tParticle size of dust
Contents\tNo liquid\t<10 mg/ m3\t<5μ m
Input biogas requirements: Biogas temperature is no more than 35℃ at 1meter distance from gensets, input pressure 5-10kPa, pressure change ratio ≤1kPa/min,
CH4 volume contents 30%~60%,
CH4 volume contents change rate ≤2%∕min.
Biogas consumption: Under standard conditions(atmospheric pressure: 100kPa. Ambient temperature: 25℃, relative humidity: 30%), 50% CH4 of biogas, when running at the power of 600kw, the biogas consumption is 375Nm3/h for the generator set.
II. Lubrication oil and Cooling Water
Lube oil consumption ratio ≤0.3g/kW·h;
Type & Grade: Mobil Pegus 705 or 15W40CD
High and low temperature circulation of engine need soften water. Cooling water should select clean water that has slight alkaline. Corrosive compound such like chloride, sulfate or sour could not be contained.
The main norms as below:
Hardness 0.7~5.3me/L
Chloridion content <150mg/L
PH value 7~8.5
III. Environment
The rated power can be output stable under the standard environment condition (atmospheric pressure: 100kPa. Ambient temperature: 25℃, relative humidity: 30%).
Certifications
Detailed Images
Machine Parts
Name: SPEED GOVERNING control system
Brand: AMERICAN Woodward EGS
Original: USA

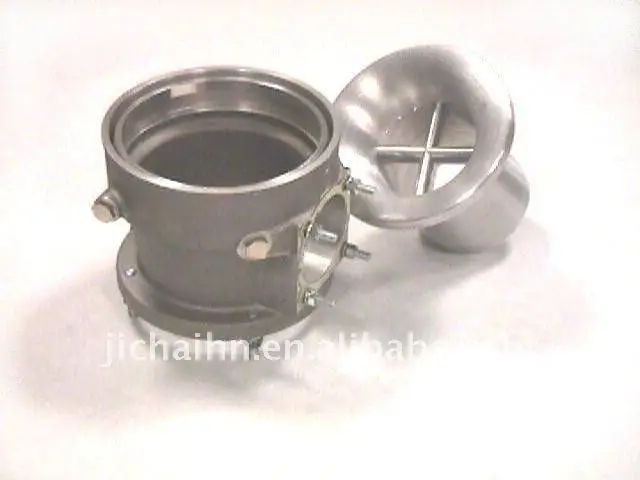

Adopting American WOODWARD EGS control system, after special control for air and gas ratio (Gas and air compound density) with Tecjet Valve through analysis and calculation for gas and air inlet parameters and operation parameters of engine, it can reach high air and gas ratio, realize rarefied combustion, solve flash back and blasting phenomenon existing in common outer-compound engine and raise economical characteristics of engine.
Main Features
Name: IGINITION SYSTEM
Brand: MOTORTECH intelligent ic500
Original: Germany

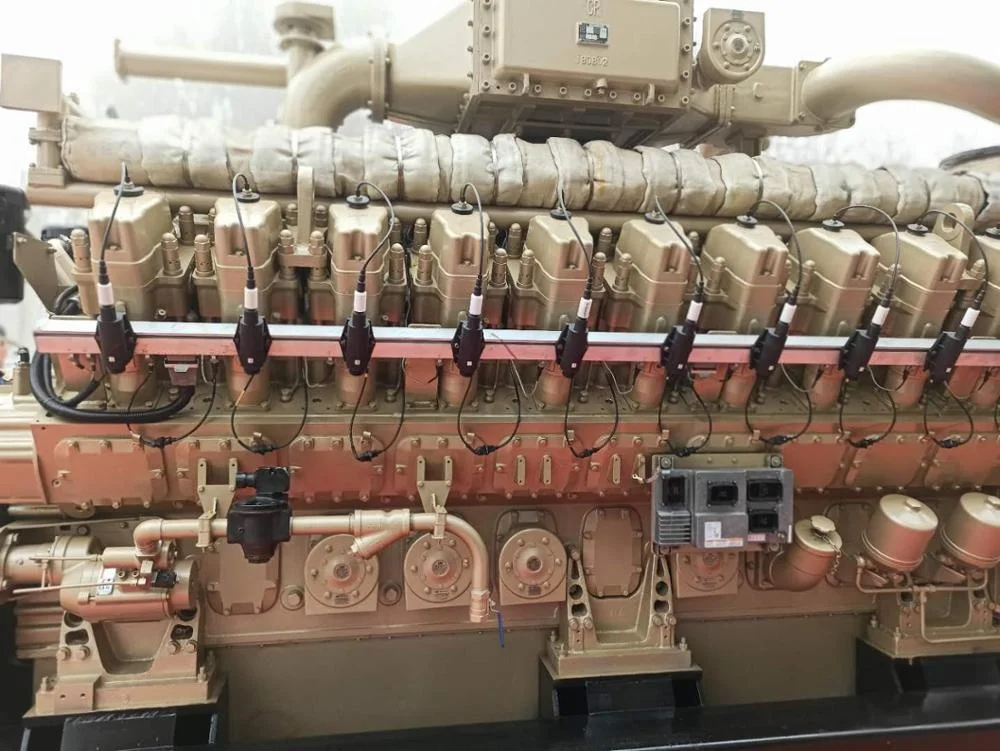

Ignition system includes digital ignition module, high pressure coil, high pressure wire and spark plug, and all of them belong to famous imported products. High energy intelligent ignition module from Germany MOTORTECH MIC500 is adopted on this engine ignition.
Machine Parts
Name: LUBRICATION SYSTEM
Brand: JICHAI
Original: CHINA

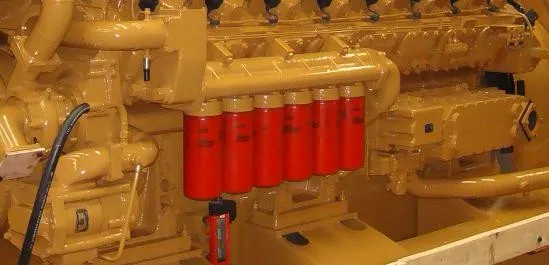

The lubricating method is pressure and splash lubrication, the pressure in the main oil pipe is 500 to 800 kPa. The oil pump is outer type which is convenient to maintenance and the manual oil pump and electric pre-oiling pump is also equipped. Oil cooler and oil pressure low alarm and shutdown equipment is installed to protect the operation of genset.
Main Features
Name: Control module
Brand: IGNT
Original: Czech Republic
Control panel is equipped with controllers, kinds of display instruments, adjusting buttons, protection indication lamps, emergency shutdown buttons etc, to control and monitor working condition of the generator set. It is equipped with automatic synchronization IG-NT or IC-NT (according to customers demand) with the function of automatic synchronizing and load sharing.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 7600 (L) *2100 (W)*2500 (H) mm | |
Weight | 28 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 2150 (L) * 1250 (W) * 1400 (D)mm | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
