Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill
- Category: >>>
- Supplier: Zhengzhou,Chryso,Machinery,Import&Export,Co.,Ltd.
Share on:
Product Overview
Description
Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill
Product Description
Horizontal band saw is main for variety of wood, puzzle, thick plate open processing board, solid wood flooring and other
decorative veneer panels.
decorative veneer panels.
Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill

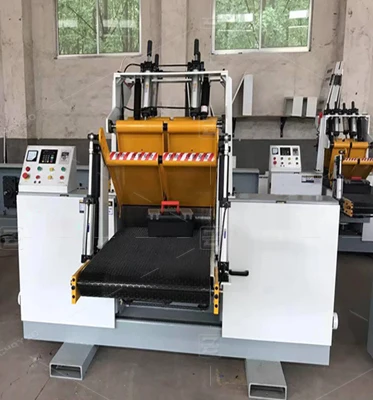

Horizontal band resaw machine is designed for Solid wood sawing. aim at cutting wood panel from the original wooden pillar to make the beautiful and smooth wood panel.
Horizontal band resaw machine is designed for Solid wood sawing. aim at cutting wood panel from the original wooden pillar to make the beautiful and smooth wood panel.
Specification
Model | 300 | 400 | 650 |
Max Cutting size(mm) | 300*300 | 400*300 | 650*300 |
The distance of blade to the workbench (mm) | 3-200 | 3-200 | 3-200 |
Conveyor belt width(mm) | 285 | 380 | 650 |
Saw wheel diameter(mm) | 711 | 711 | 711 |
Feed speed(m/min) | 0-18 | 0-18 | 0-18 |
Saw wheel lifting motor(kw) | 0.18 | 0.18 | 0.18 |
Saw wheel motor(kw) | 15 | 18.5 | 22 |
The hydraulic pressure(kg/cm³) | 55 | 55 | 55 |
Dust tube diameter(mm) | 102*2 | 102*2 | 102*2 |
Saw blade size (L*W*T)mm | 4572*27*0.9 4572*41*1.27 | 4572*27*0.9 4572*41*1.27 | 4572*27*0.9 4572*41*1.27 |
Saw the road(mm) | 1.2-2.2 | 1.2-2.2 | 1.2-2.2 |
Overall dimensions(mm) | 2700*2100*1850 | 2700*2200*1850 | 2700*2300*1850 |
Net weight(kg) | 1600 | 1700 | 1800 |
Feature
1. Human oriented micro computer operator interfaces, for easy and convenience operating.
Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill
2. Sawing width is controlled by the combine use of rotary high precise encoder and rigid ball screwod, to provide higher
accuracy.
2. Sawing width is controlled by the combine use of rotary high precise encoder and rigid ball screwod, to provide higher
accuracy.
Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill
3. Use asisted reefed system, save time, save labor and free from worry.
3. Use asisted reefed system, save time, save labor and free from worry.
Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill
4. PLC intergrated controlsystem, save and reliable.
4. PLC intergrated controlsystem, save and reliable.
Wholesale Horizontal Band Saw Machine timber sawmill machine Automatic Movable Woodworking band Saw mill portable band sawmill

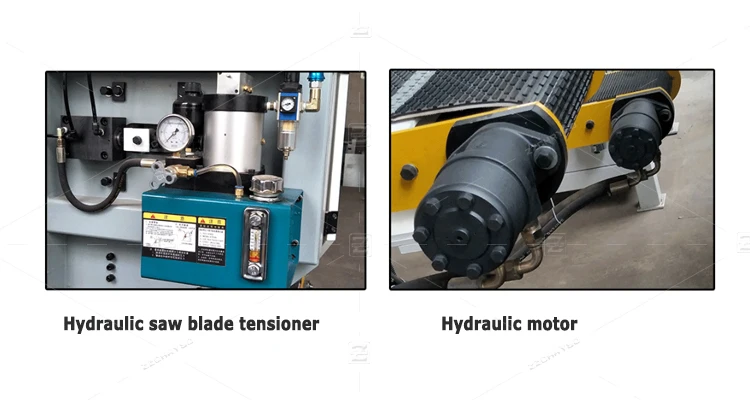

5. Hydraulic saw blade tension auto-compensation system ensure the saw blade is always staying a bes tension status and provides a longer service life.
5. Hydraulic saw blade tension auto-compensation system ensure the saw blade is always staying a bes tension status and provides a longer service life.
Good price portable band saw Wood cutting saw mills

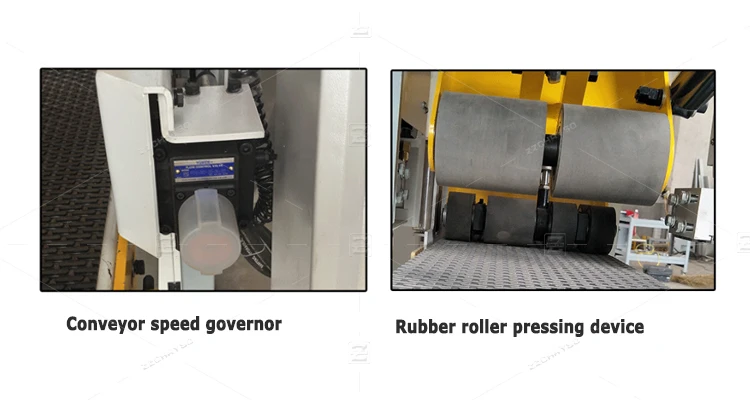

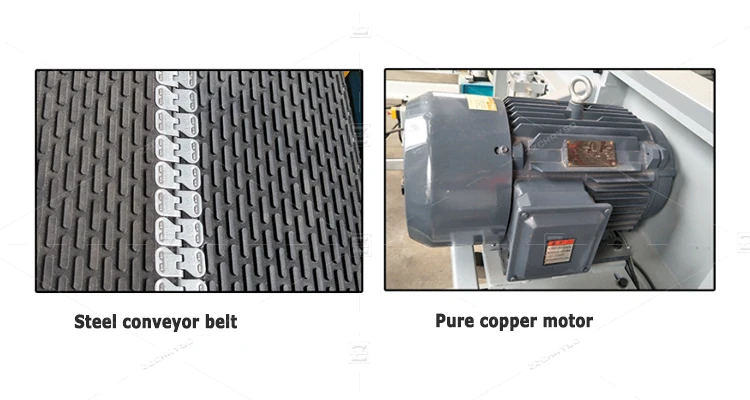

6. The conveyer belt is driven by hydraulic motor, which provides steady operation, constant and powerful driving force, so as to ensure the workpiece is smooth.
6. The conveyer belt is driven by hydraulic motor, which provides steady operation, constant and powerful driving force, so as to ensure the workpiece is smooth.
Good price portable band saw Wood cutting saw mills
7. Thickness tolerance 0.1mm-0.2mm, no gap between interface.
7. Thickness tolerance 0.1mm-0.2mm, no gap between interface.
Good price portable band saw Wood cutting saw mills
8. Saw route in 1.5-1.8mm, 20% save compared with other cutting methods, effectively reduce costs.
8. Saw route in 1.5-1.8mm, 20% save compared with other cutting methods, effectively reduce costs.
Good price portable band saw Wood cutting saw mills
9. All ready-to-ship machines inspected by overseas dept. staff indepedently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.
9. All ready-to-ship machines inspected by overseas dept. staff indepedently with detail photo and video to customers. We are trying all the best to insure your worry-free on both purchasing and running of all our machines.
Details Images
Company Profile

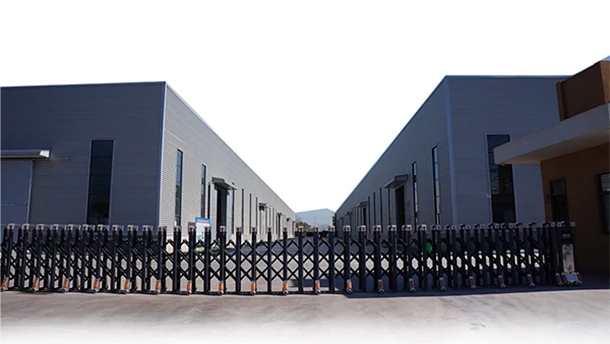

Zhengzhou Chryso Machinery Co., Ltd. is located in Zhengzhou, central area of China, a traditional industry city with rich
