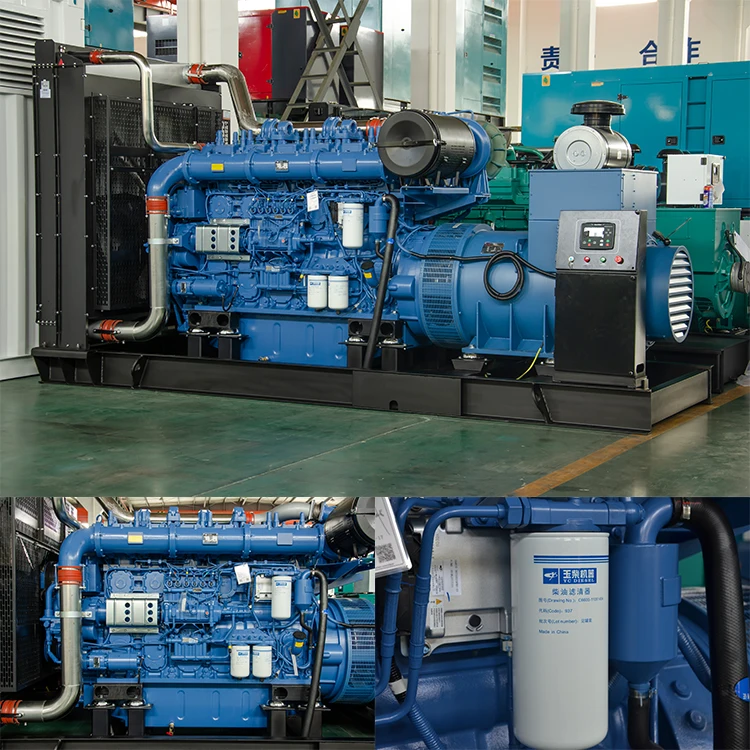

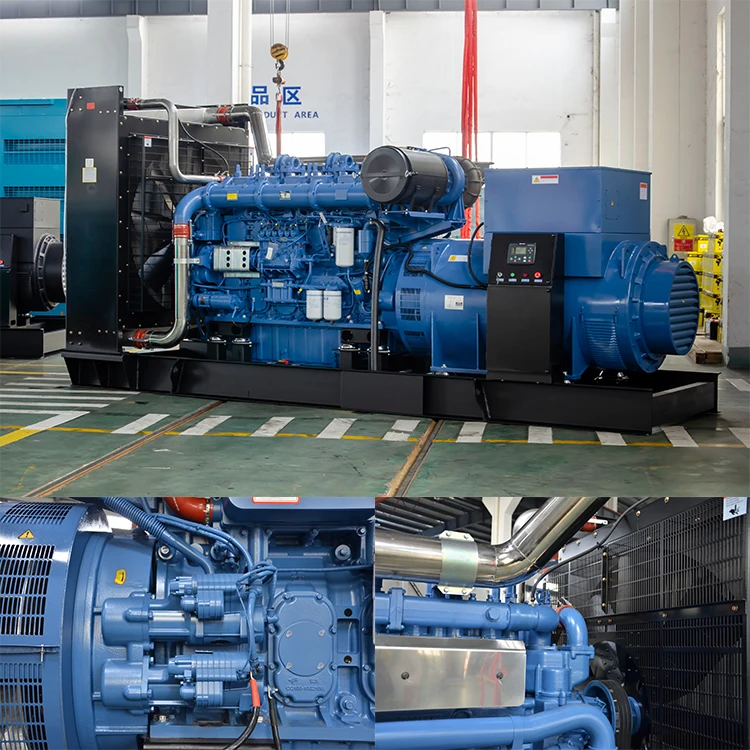

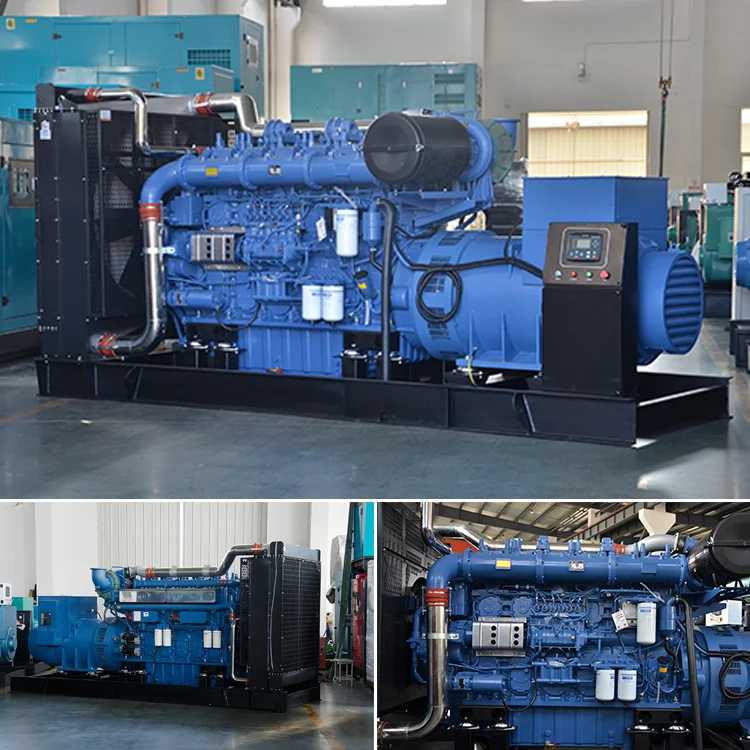

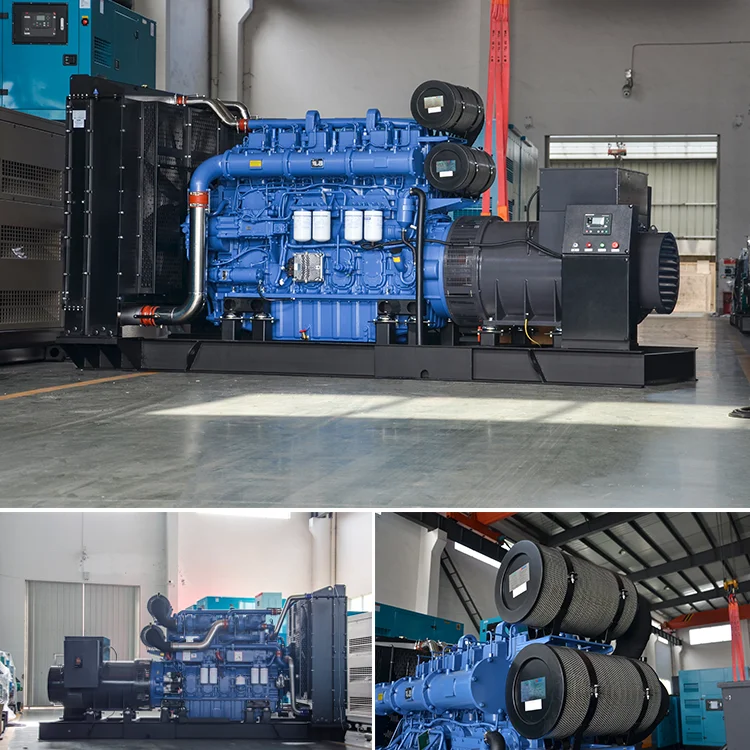

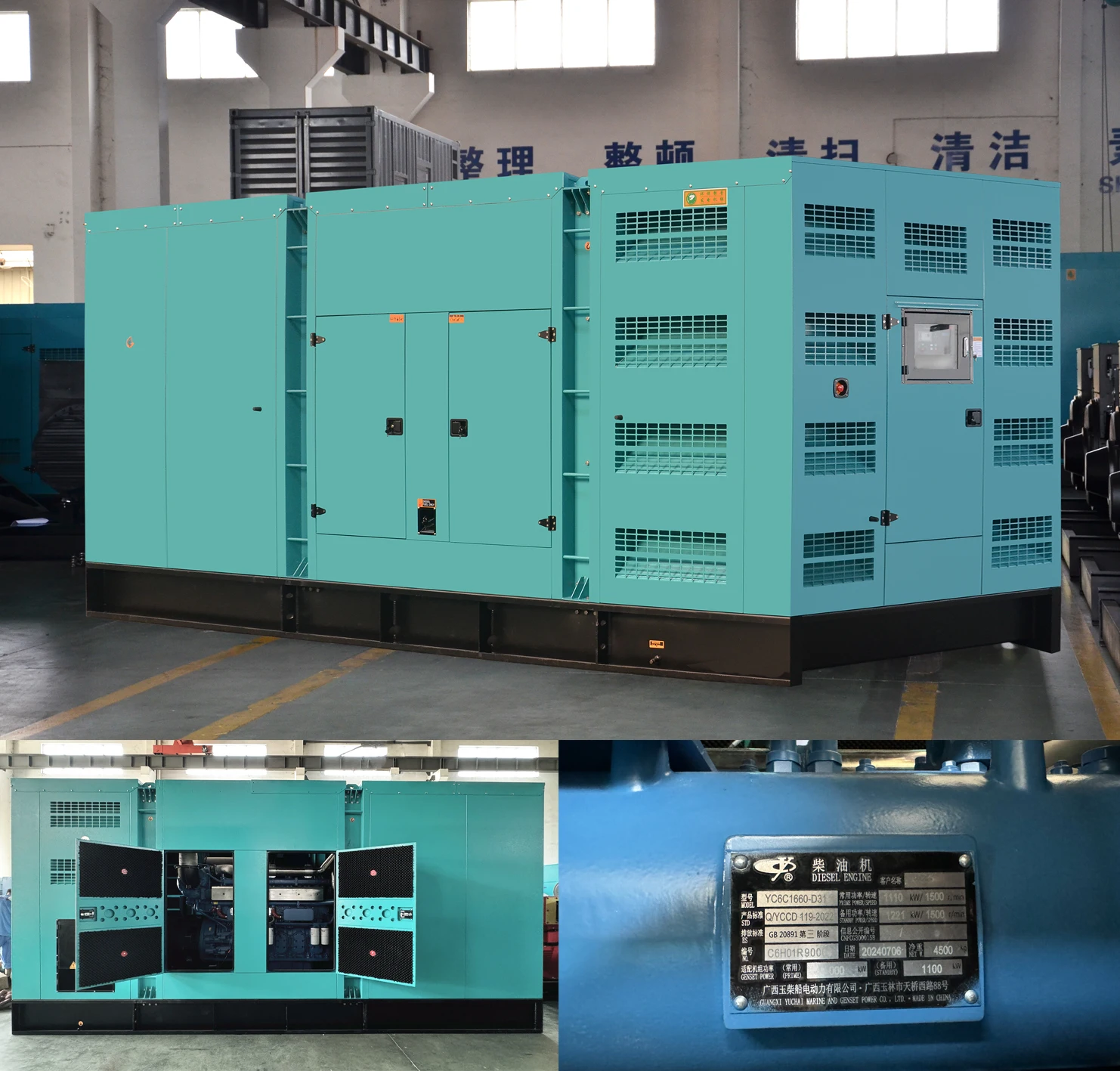

| Technical parameters of diesel generator sets: | ||||||||
| Generator Set | ||||||||
| Generator Model | JHY-1000GF | |||||||
| Prime Power | 1000kw | |||||||
| Rated Voltage | 400/230V | |||||||
| Frequency | 50Hz/60Hz | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimension (L×W×H) (mm) | 3500*1100*1850mm | |||||||
| Genset weight (kg) | 3500kg | |||||||
| Diesel Engine | ||||||||
| Brand | YUCHAI | |||||||
| Type | YC6C1660-D31 | |||||||
| Number of Cylinders | 6 | |||||||
| Rotating Speed | 1500/1800RPM | |||||||
| Cycle | Four stroke | |||||||
| Cooling Method | Water Cooling | |||||||
| Speed Governor | Electrical | |||||||
| Cooling System | Water-cooled | |||||||
| Total Lubrication System Capacity (L) | / | |||||||
| Fuel Consumption at 100% Load | <213 g/kwh | |||||||
| Starting Method | 24V Electrical starting | |||||||
| Alternator | ||||||||
| Brand | Stamford/Marathon/Leroy Somer for option | |||||||
| Model | - | |||||||
| Prime/Standby Power | 1000kw | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | single | |||||||
| Protection Grade | IP23 | |||||||
| Altitude | ≤1000M | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating | |||||||
| Insulation Class | H | |||||||
