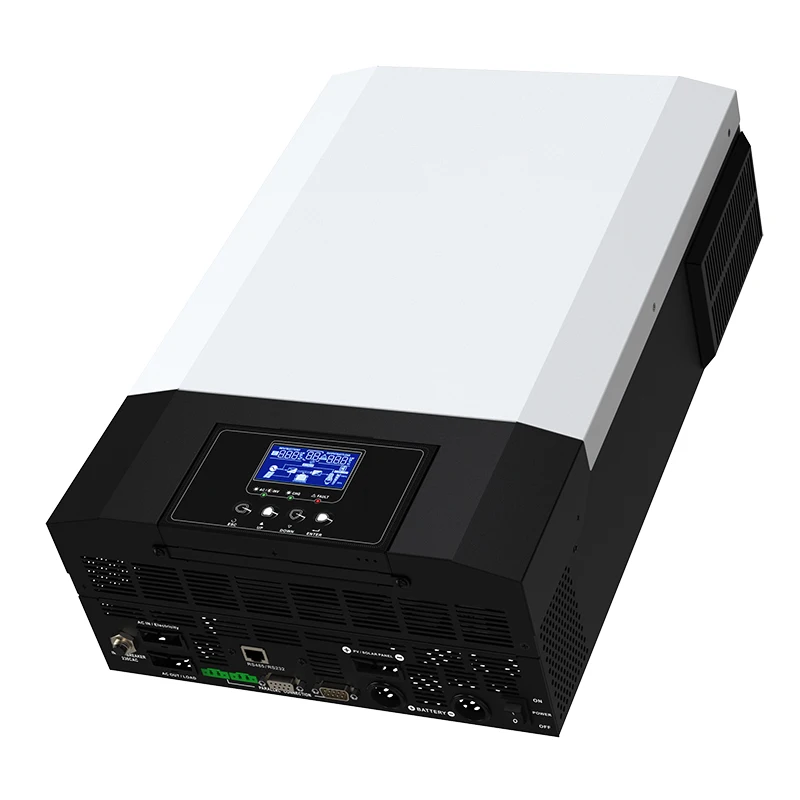

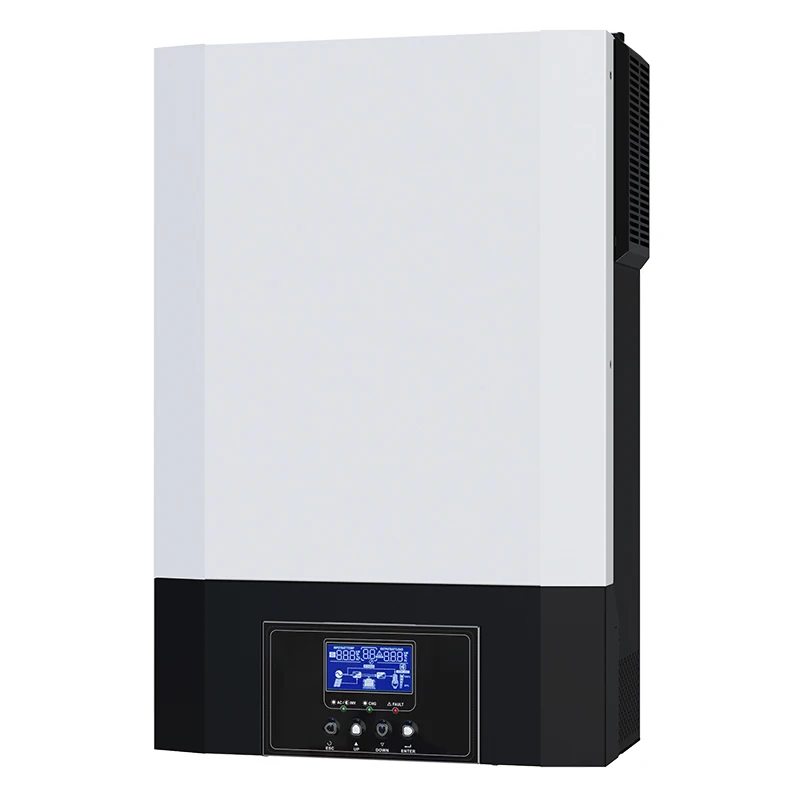

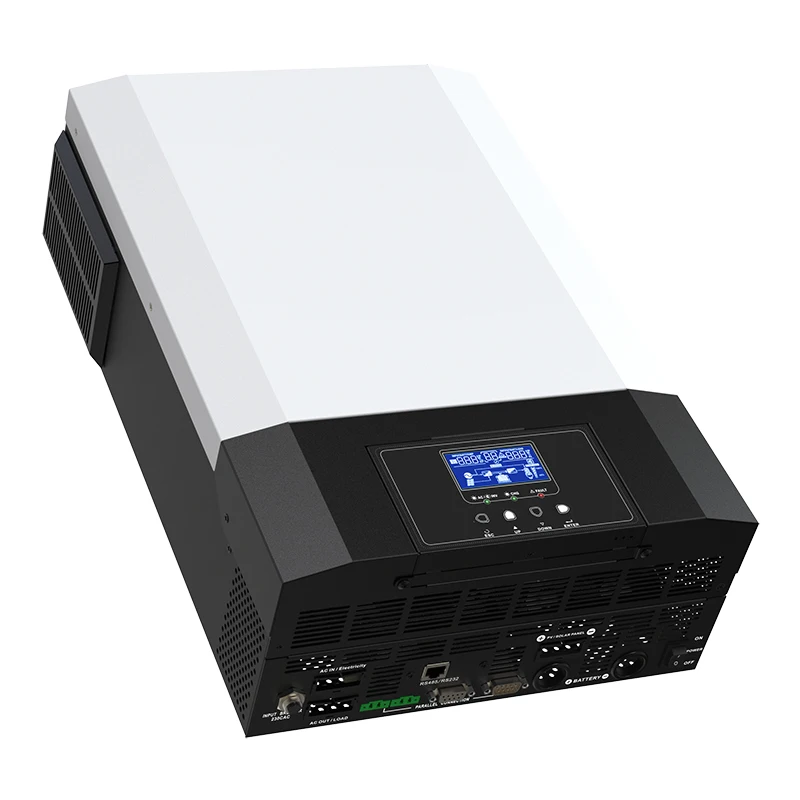

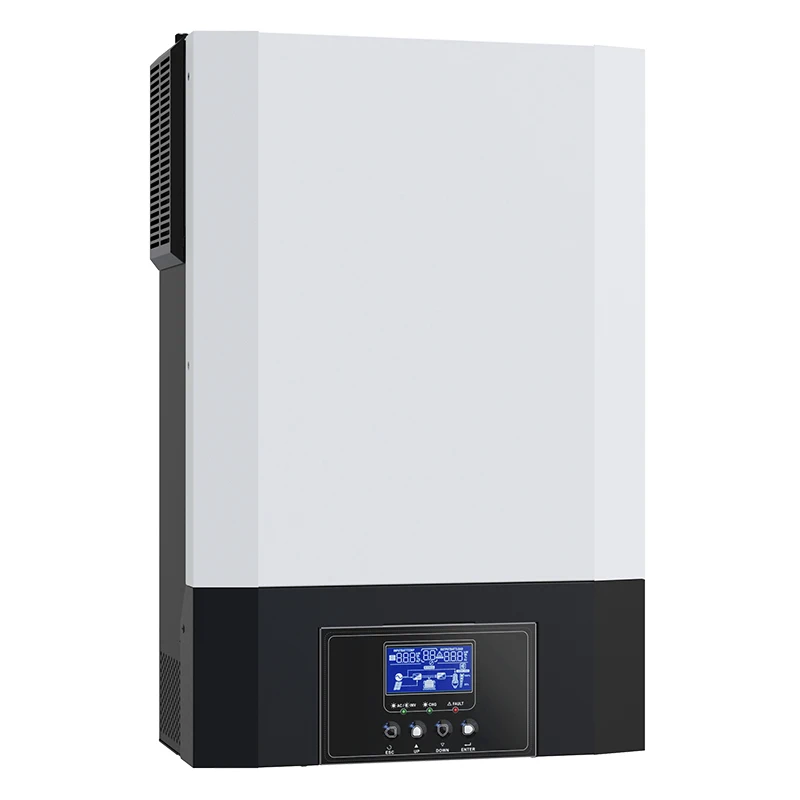

5500W 230VAC Off Grid Pure Sine Wave Power Inverter with 110A 48VDC MPPT Solar Charge Controller Remote LCD Display
- Category: >>>
- Supplier: Shenzhen Sunray Power Co. Ltd.
Share on (1600616913289):
Product Overview
Description
5500W 230VAC Off Grid Pure Sine Wave Power Inverter with 110A 48VDC MPPT Solar Charge Controller Remote LCD Display

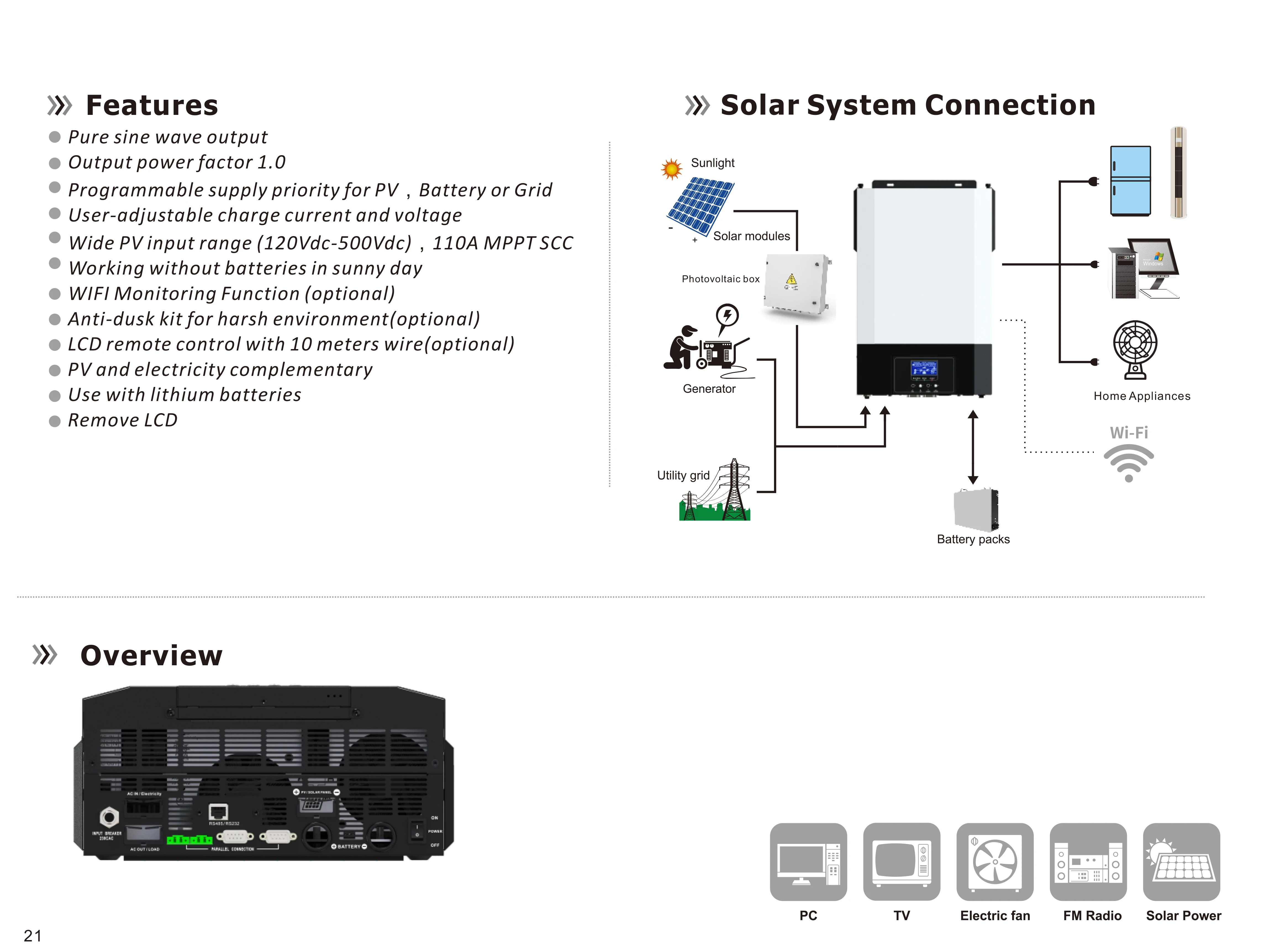

Features
1.Pure sine wave output
2.Output power factor 1.0
3.Programmable supply priority for PV,Battery or Grid
4.User-adjustable charge current and voltage
5.Wide PV input range (120Vdc-500Vdc),110A MPPT SCC
6.Working without batteries in sunny day
7.WIFI Monitoring Function (optional)
8.Anti-dusk kit for harsh environment(optional)
9.LCD remote control with 10 meters wire(optional)
10.PV and electricity complementary
12.Use with lithium batteries
13.Remove LCD Display
14.Parallel function for 6pcs
MODEL | MPS-3500H PRO | MPS-5500H PRO |
Rated Power | 3500VA/3500W | 5500VA/5500W |
INPUT | ||
Voltage | 230VAC | |
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |
Frequency Range | 50Hz/60Hz(Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation(Batt . Mode) | 230VAC±5% | |
Surge Power | 7000VA | 11000VA |
Efficiency(Peak)PV to INV | 97% | |
Efficiency(Peak)BAT to INV | 94% | |
Transfer Time | 10ms(for personal computers) 20ms(for home appliances) | |
Wave form | Pure Sine Wave | |
BATTERY&AC CHARGER | ||
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum charge current | 80A | 80A |
SOLAR CHARGER | ||
MAX.PV Array Power | 5000W | 6000W |
MPPT Range@ Operating Voltage | 120-450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 110A | |
Maximum Efficiency | 98% | |
PHYSICAL | ||
Dimension. D*W*H(mm) | 472*298*143 | |
Net Weight(kgs) | 9.5kg | 10.5kg |

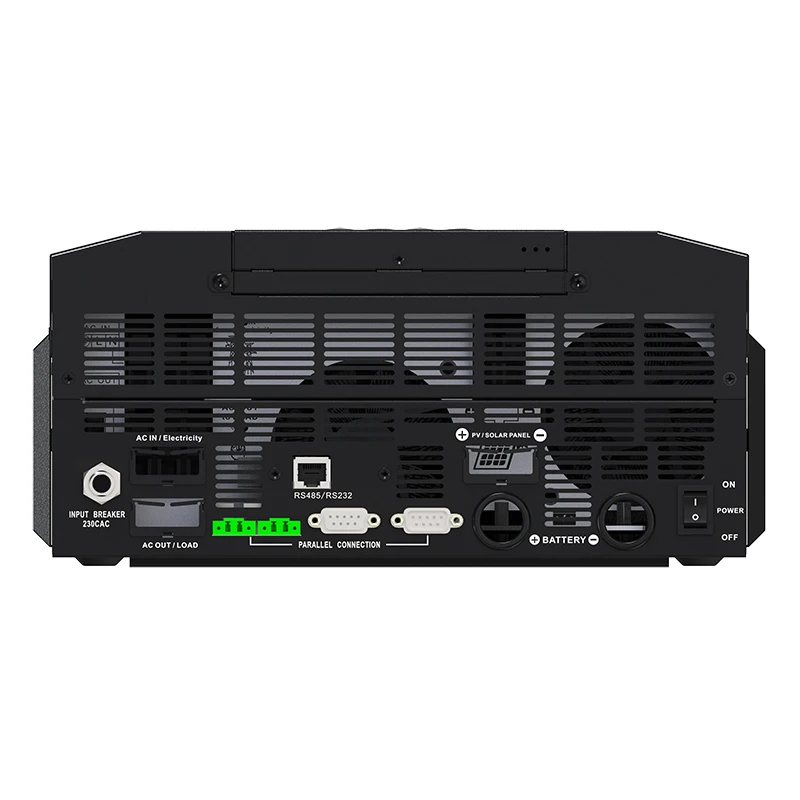

Communication Interface | RS485/RS232(Standard) WIFI(Optional) | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0℃ to 55℃ | |
Storage Temperature | -15℃ to 60℃ | |
PRODUCT SHOW
