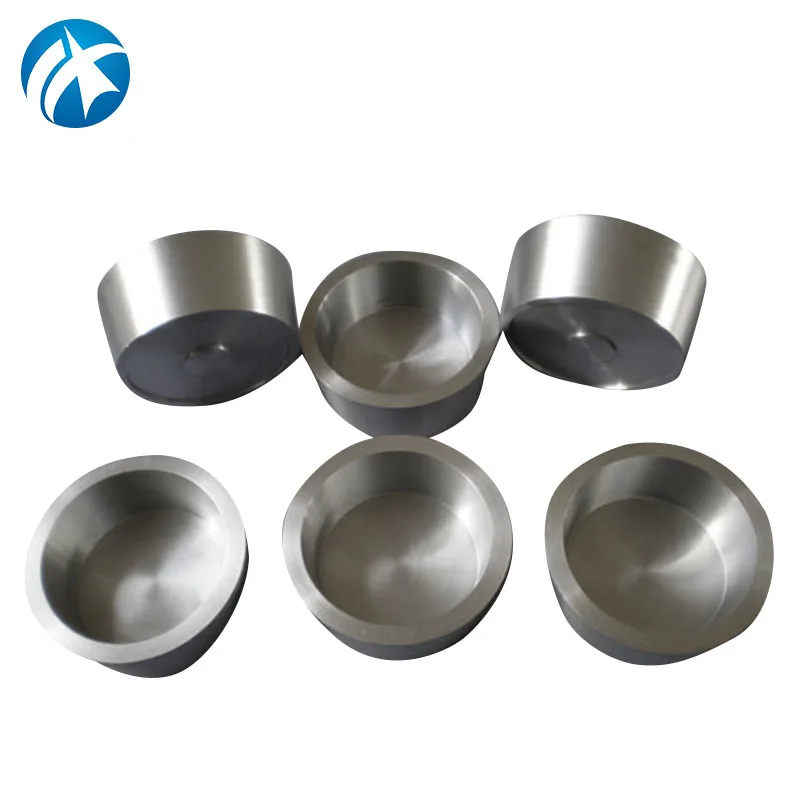

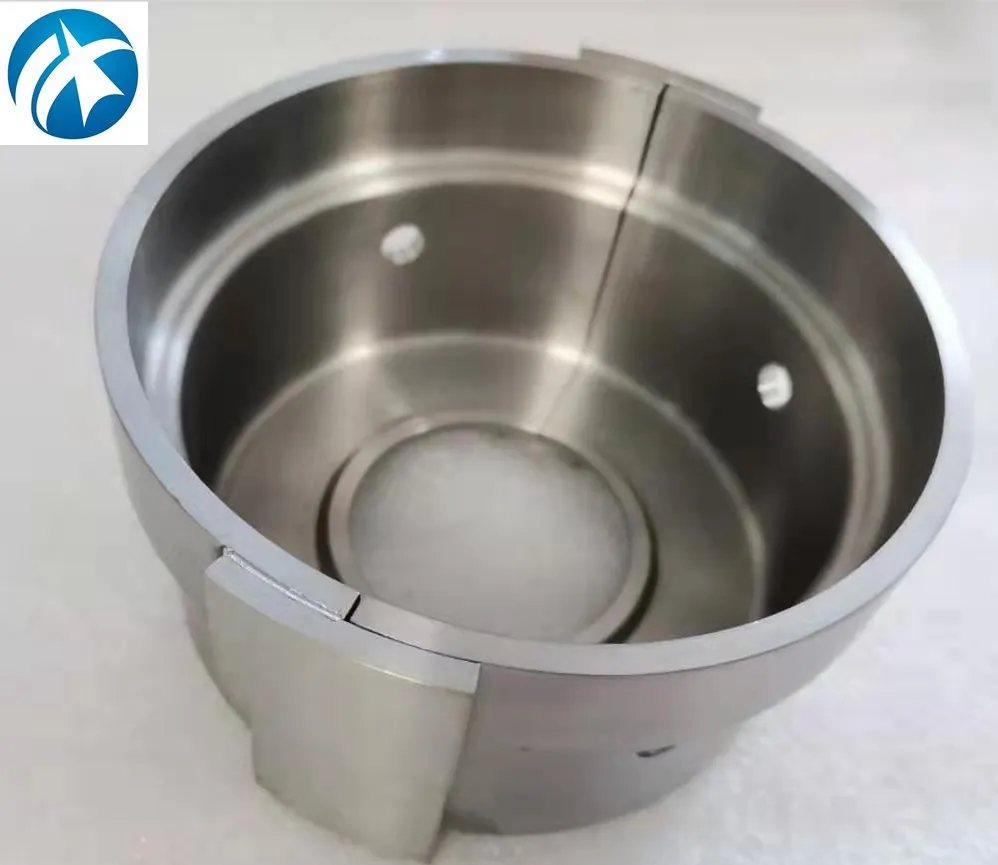

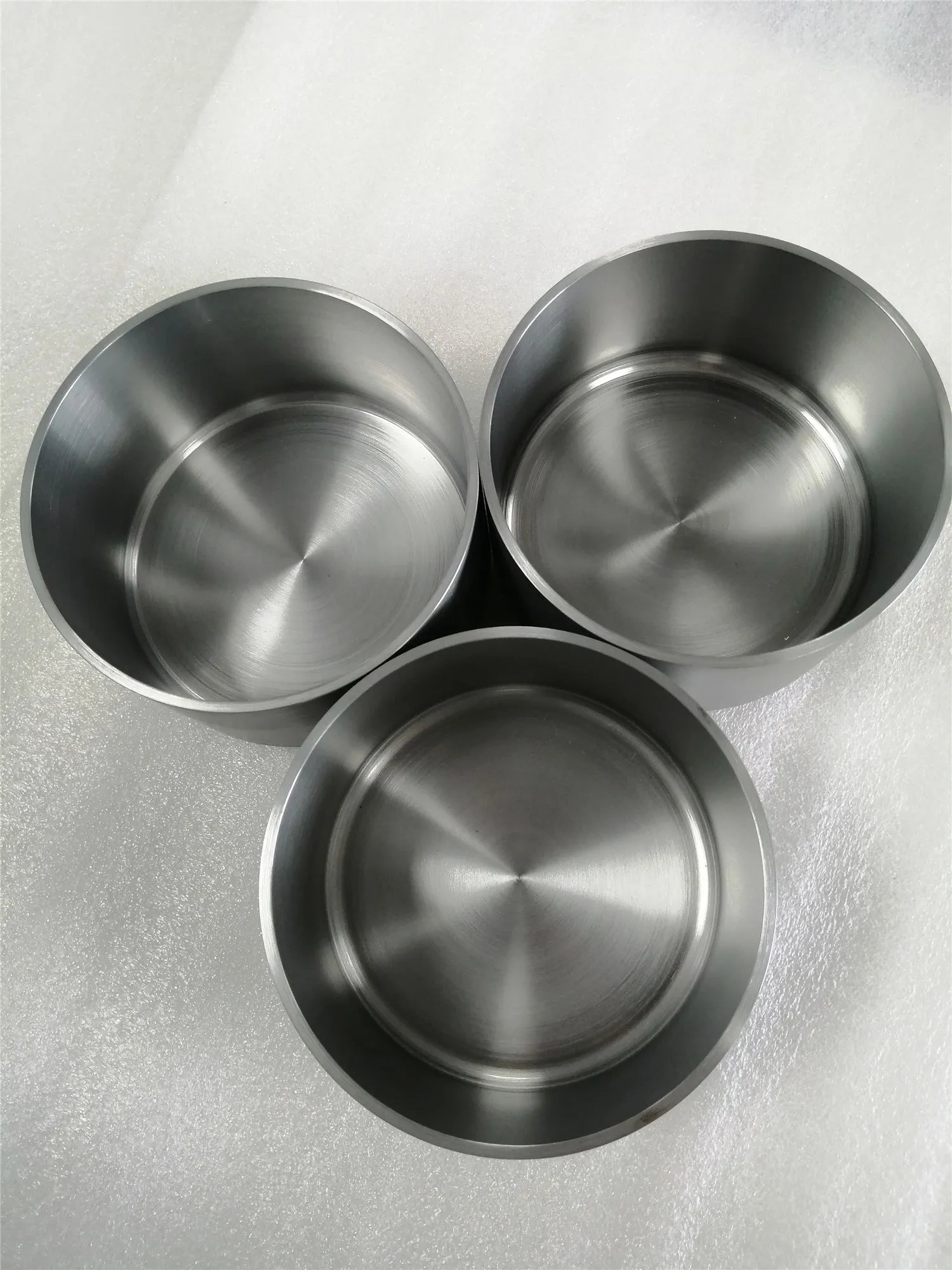

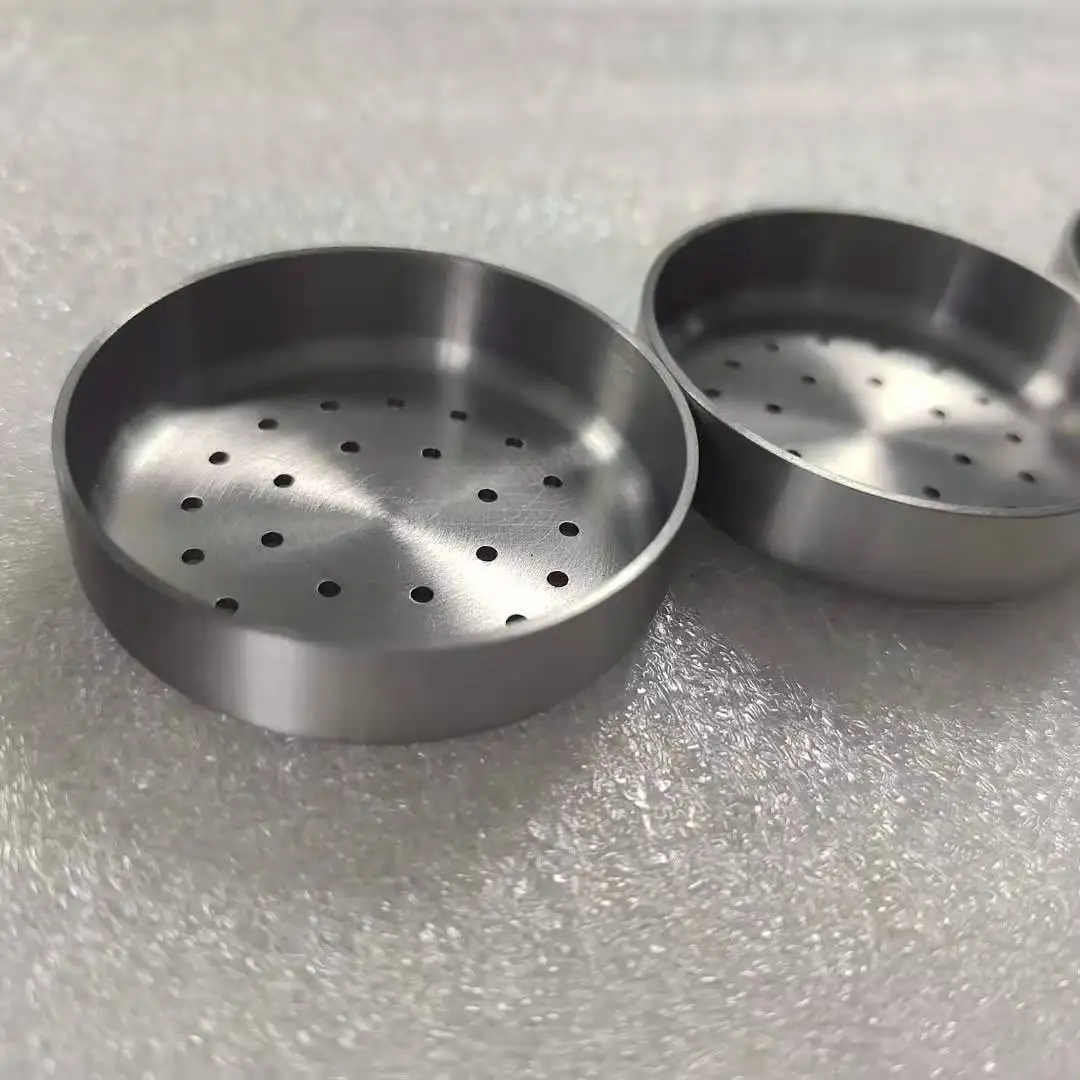

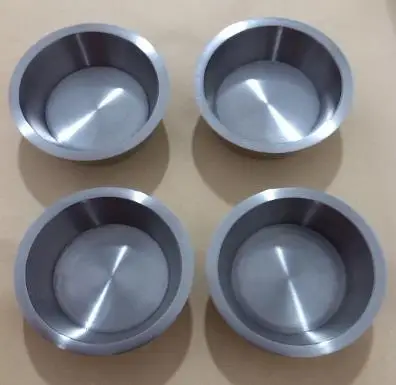

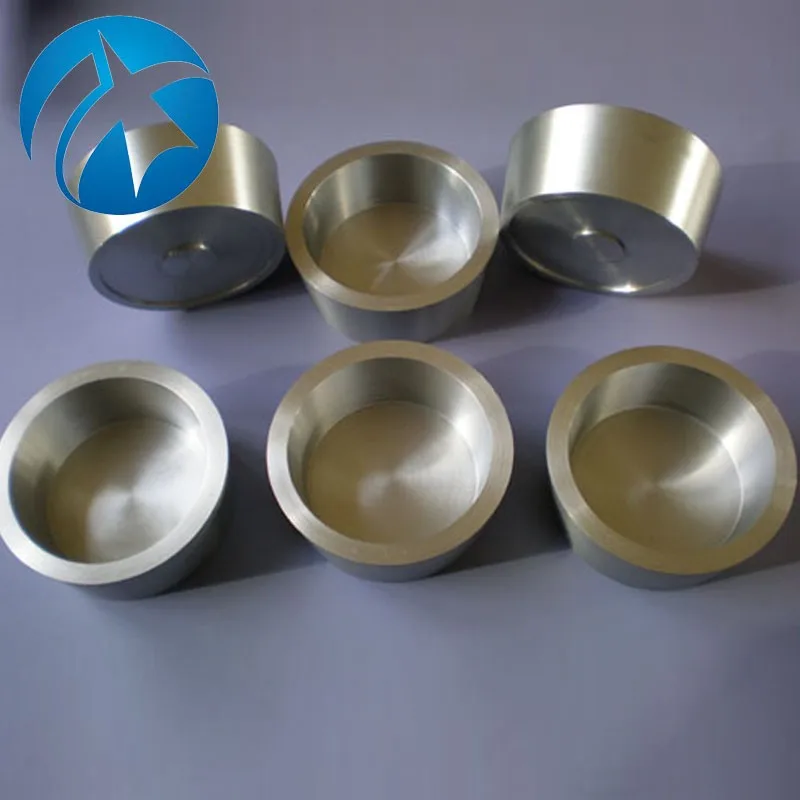

Tantalum Ta crucible for electron beam evaporator Sale Tantalum crucible

 Tantalum Ta Crucible





Tantalum Crucible



Diameter:30-500mm

Wall Thickness:2-30mm

Product Feature: High melting point, High-density, high temperature oxidation resistance, long service life, resistance to corrosion.





Specification

Item Code	Capacity	Outside Diameter	Inside Diameter	Depth	Tolerances
TA00891000	1000 mL	OD127 mm	ID 125.5 mm	Depth 89 mm	Outside Dimensions: ±10 % Inside Dimensions: ±10 % Depth: ±10 %
TA00450100	100 mL	OD 59 mm	ID 58 mm	Depth 45 mm
TA00410075	75 mL	OD 51 mm	ID 50 mm	Depth 41 mm
TA00410055	55 mL	OD 47 mm	ID 46 mm	Depth 41 mm
TA00340045	45 mL	OD 46 mm	ID 45 mm	Depth 34 mm
TA00290035	35 mL	OD 46 mm	ID 45 mm	Depth 29 mm
TA00220025	25 mL	OD 45 mm	ID 44 mm	Depth 22 mm
TA00290020	20 mL	OD 33 mm	ID 32 mm	Depth 29 mm
TA00220015	15 mL	OD 33 mm	ID 32 mm	Depth 22 mm
TA00220010	10 mL	OD 27 mm	ID 26 mm	Depth 22 mm
TA00180005	5 mL	OD 21 mm	ID 20 mm	Depth 18 mm



Tantalum Straight Wall Crucibles





Inspection Equipments
No.	Inspection item	Sampling Qty	Test method	Sampling location
1	Chemical component	lpcs/batch	GB/T 4698	top/middle/bottom
2	Mechanical properties	3pcs/batch	ASTM E8	top,middle, bottom
3	Metallographic	3pcs/batch	ASTM E94
4	X-ray	3pcs/batch	E112/ASTM E92
5	UT-Test	1OO%	ASTM A388	each one
6	Liquid penetrant test	1OO%	ASTM E165	each one
7	Surface finish	each one	ANSI B46-1	——
8	Surface and Dimension	each one	visual and vernier caliper	——
9	Cleaning	each one	——	——
