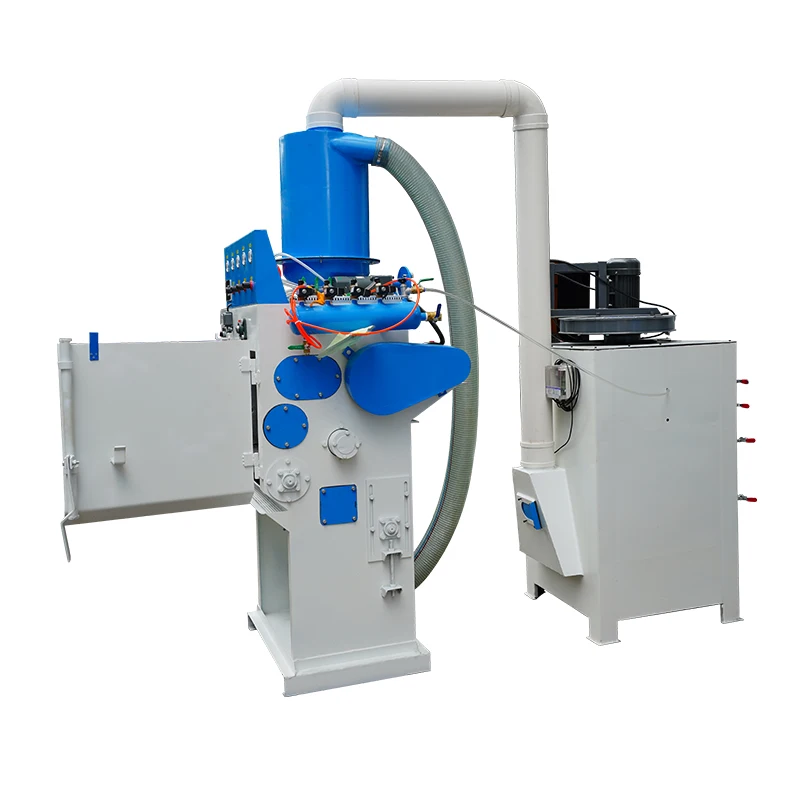

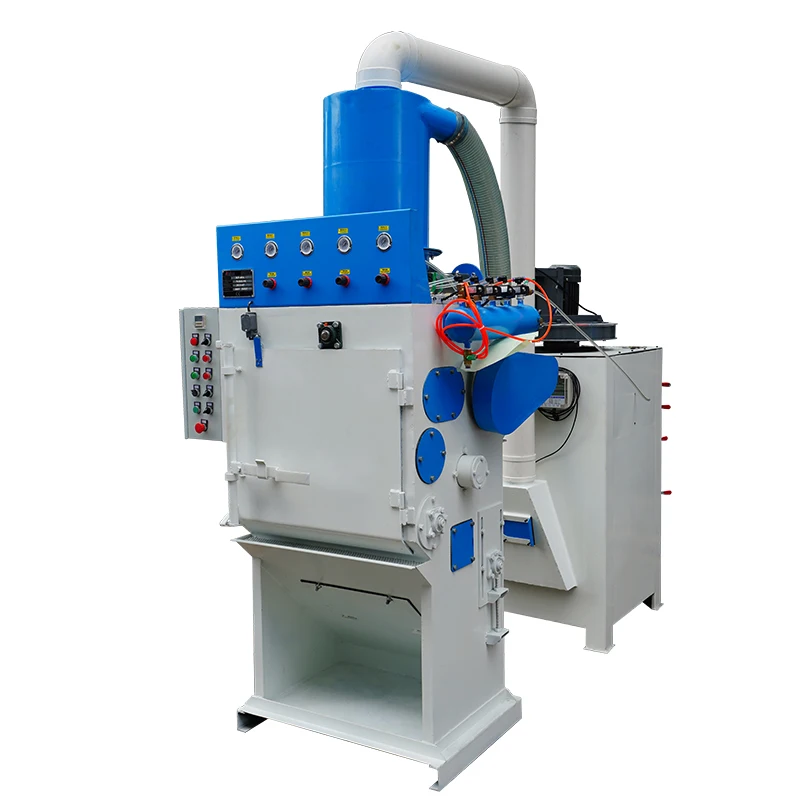

Tumble Belt Automatic Sand Blasting Machine
Tumble belt automatic sandblasting machine deliver efficient, affordable batch processing to automate the cleaning, and finishing of workpieces varying in size.
The endless rubber belt keeps parts gently tumbling as they are exposed to blast streams on all surfaces. This system is ideal for batch processing a set of small pieces at once, as well as relatively heavy, complex-shaped parts that would be hard to handle in a traditional sandblast cabinet.
Tumble Belt Automatic Sand Blasting Machine Application:
Processes several pieces at a time (batch cycle), simplifies the surface treatment of small, hard-to-hold pieces. Rubber belt ensures a gentle tumbling motion on delicate parts.

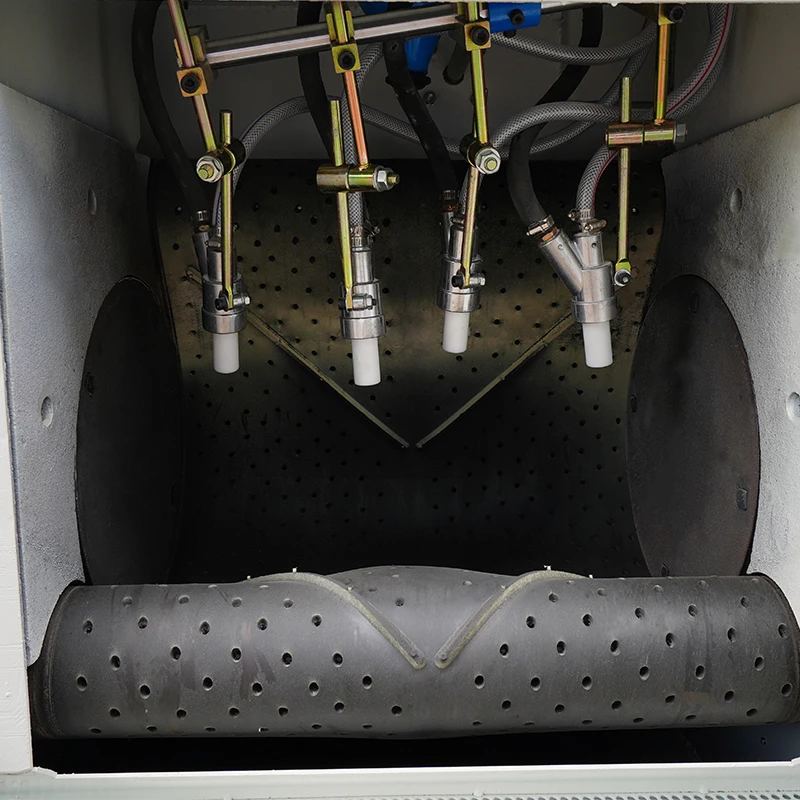

Parts tumble on a thick, perforated rubber belt, a group of blast guns uniformly blast medias to all exposed surfaces to deliver a consistent finish automatically.
Specifications
Cabinet worksize: | KF-A40 |
Cabinet outsize: | L800*W650*H2720 (mm) |
Dust collector dimensions: | L800*W800*H2100mm |
Productivity: | 0.3-0.5 T/H |
Rolling motor power: | 1.5KW |
Load capacity: | ≤100KGS |
Dust collection motor power: | 2.2KW |
Automatic blasting gun: | 4pcs Aluminium alloy blasting guns, with 4pcs boron carbide nozzles, dia 8mm. |
Qty of Blast Guns | 8 pcs |
Blast Gun Nozzle | Durable Boron Carbide |
Power Supply | 380V/220V As required |
Voltage: | 380V 50HZ |

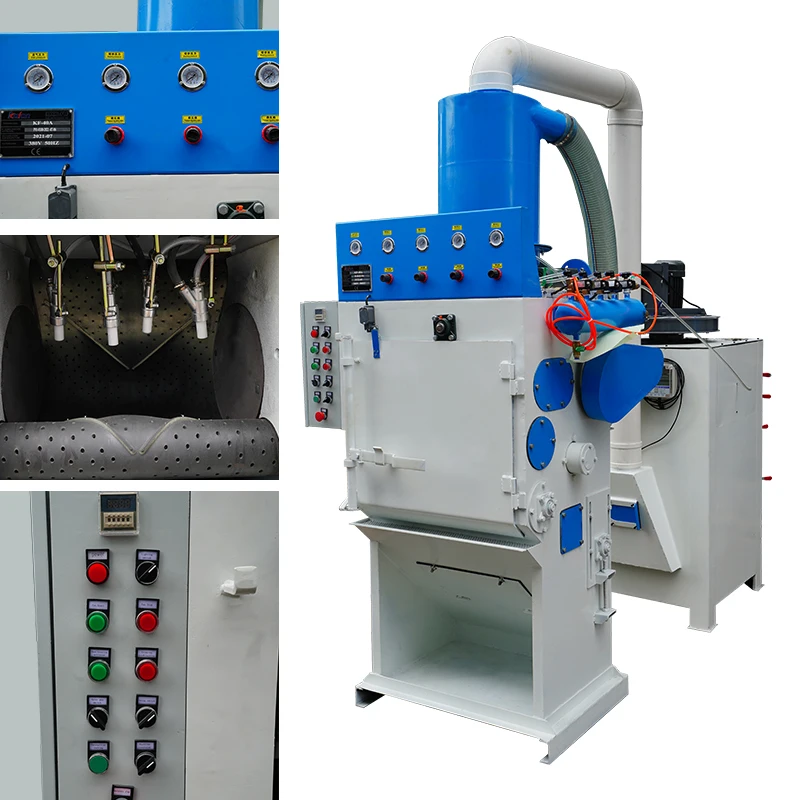

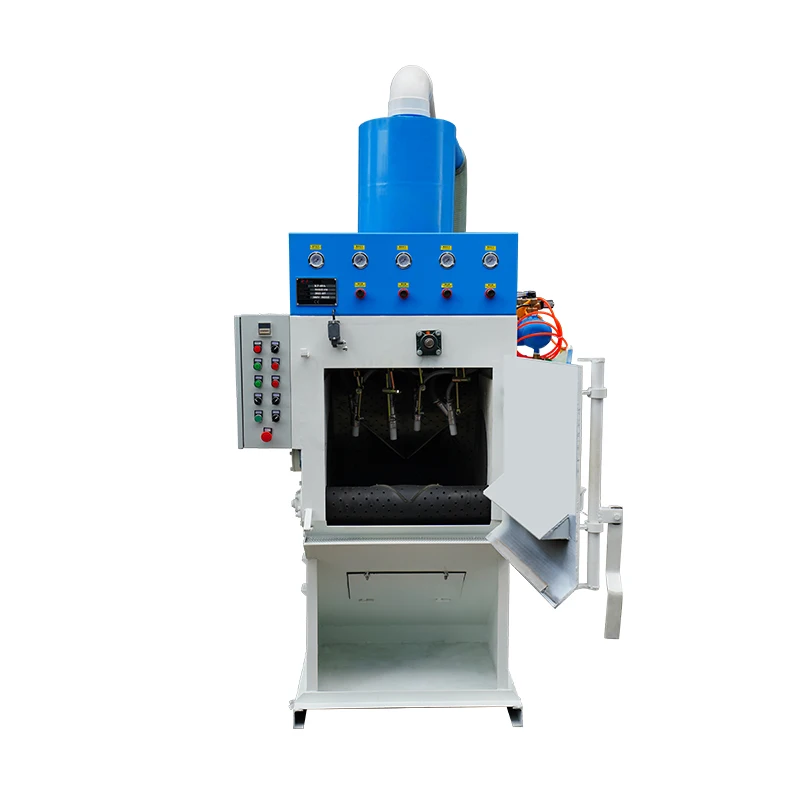

Detailed Images

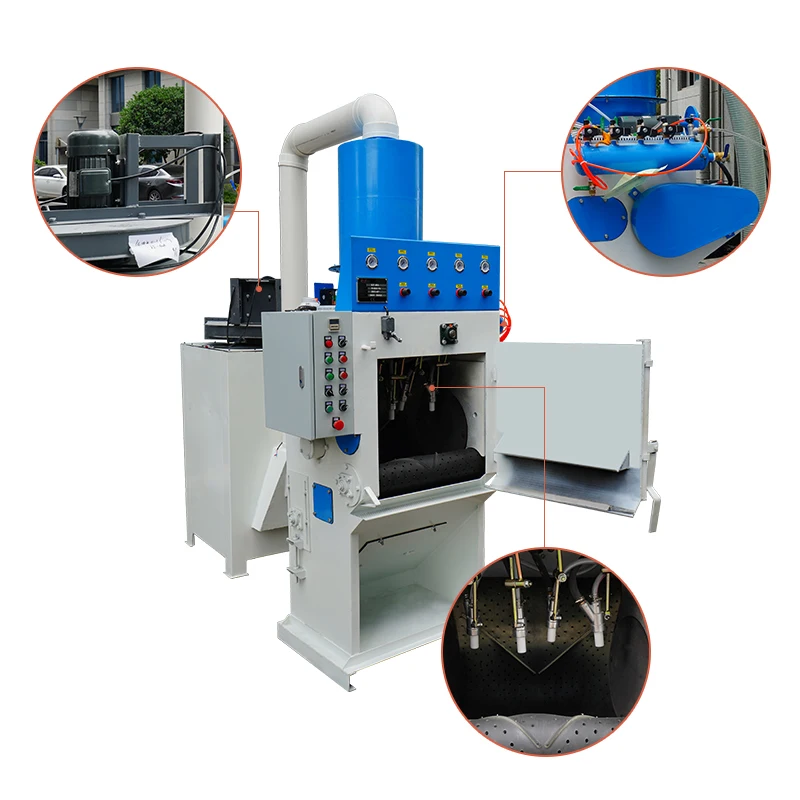

Tumble Belt Automatic Sand Blasting Machine Features
1. Long life, wear-resistant rubber belt with a loading capacity of 100kgs.
2. Blasting guns are composed of boron carbide nozzles, which is the most durable materials in the market.

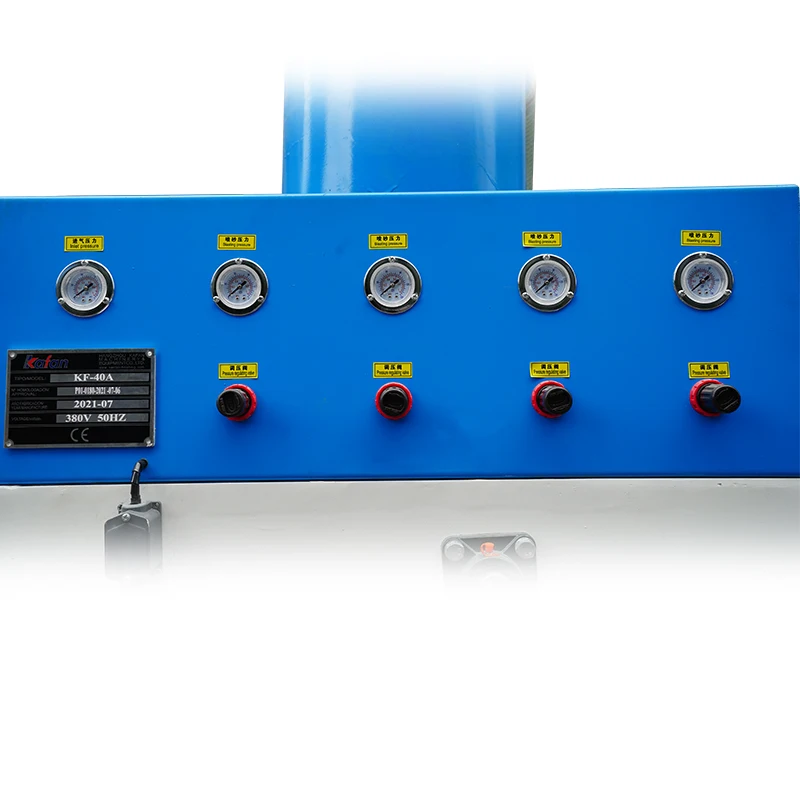

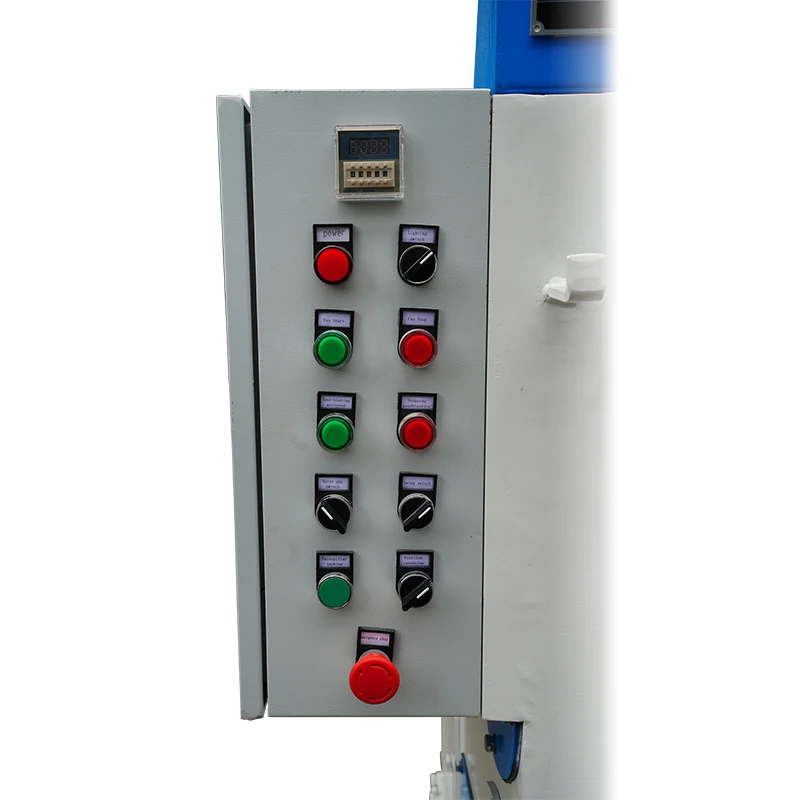

3. Easy-to-use electric control to adjust blasting pressures, belt tumbling speed, and blasting cycle time, etc.
4. Blast media is continuously separated from dust by a cyclone device, returning only pure blast media in good shape back to the blast nozzles for optimal results.
5. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
6. The blast guns quanity, swing speed, rubber belt size, all can be tailored to the customers specifications to address all
process constraints and for optimal results and productivity.
1. Long life, wear-resistant rubber belt with a loading capacity of 100kgs.
2. Blasting guns are composed of boron carbide nozzles, which is the most durable materials in the market.
3. Easy-to-use electric control to adjust blasting pressures, belt tumbling speed, and blasting cycle time, etc.
4. Blast media is continuously separated from dust by a cyclone device, returning only pure blast media in good shape back to the blast nozzles for optimal results.
5. Configured a pulse filter cartridge for dust removal system, features high removal efficiency and requires easy installation and maintenance.
6. The blast guns quanity, swing speed, rubber belt size, all can be tailored to the customers specifications to address all
process constraints and for optimal results and productivity.
Application
Why need a sandblasting machine?

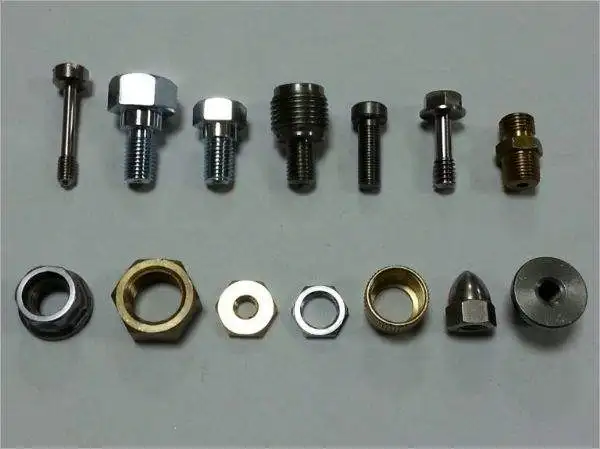

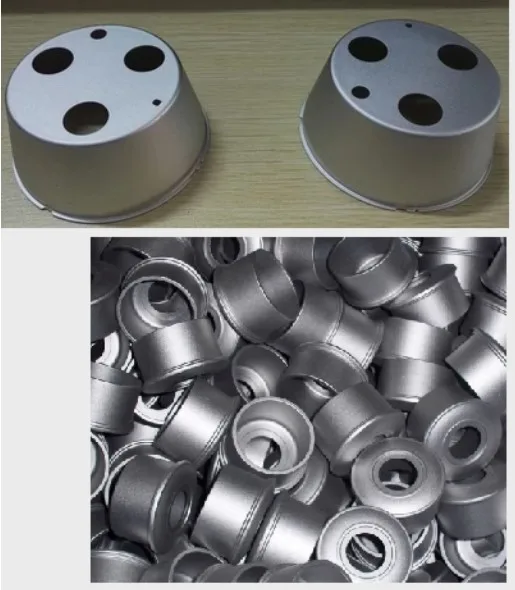

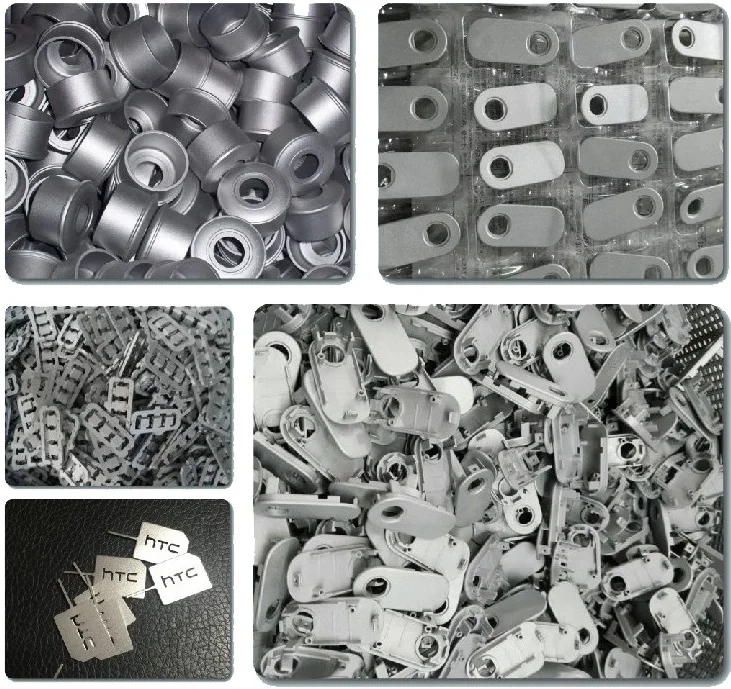

The tumble belt sand blasting machines are used for surface cleaning of cast, pressed, heat treated, forged, etc. products without sharp corners and suitable for rounding. Ability to sandblast small and medium sized parts is the significant advantage.
