GSK980MDc Brief Introduction

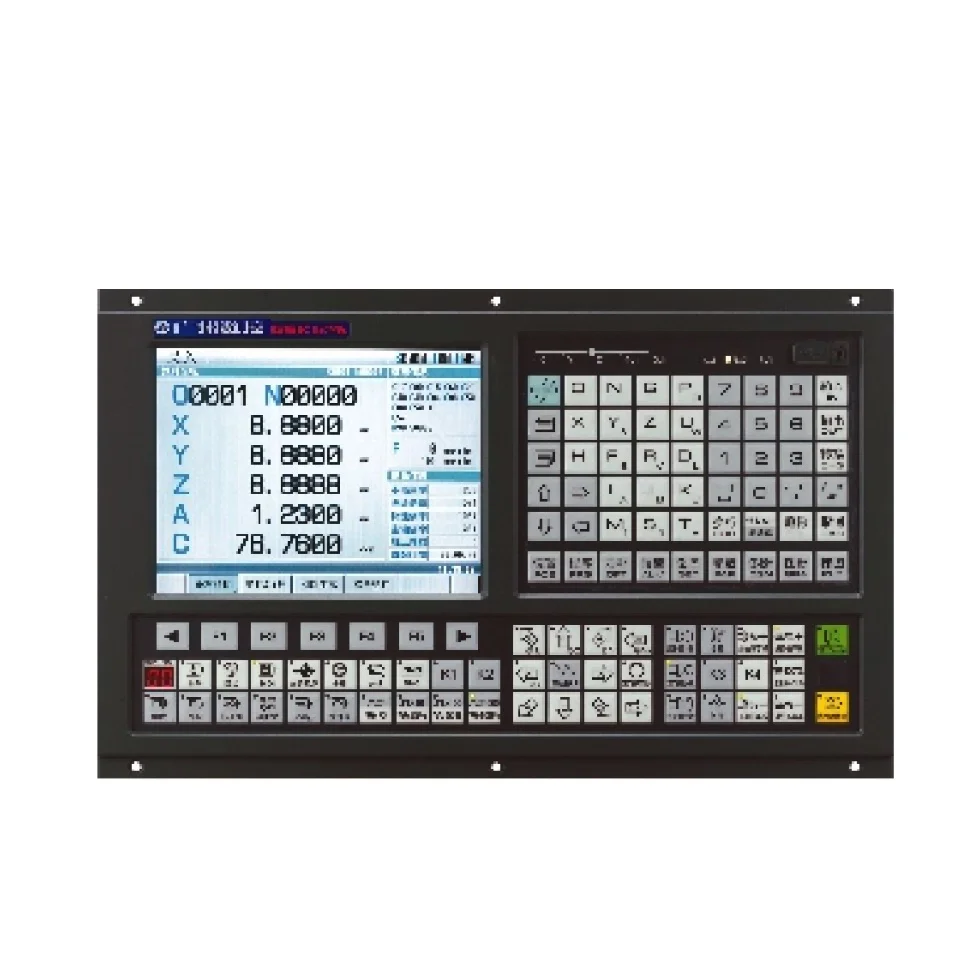

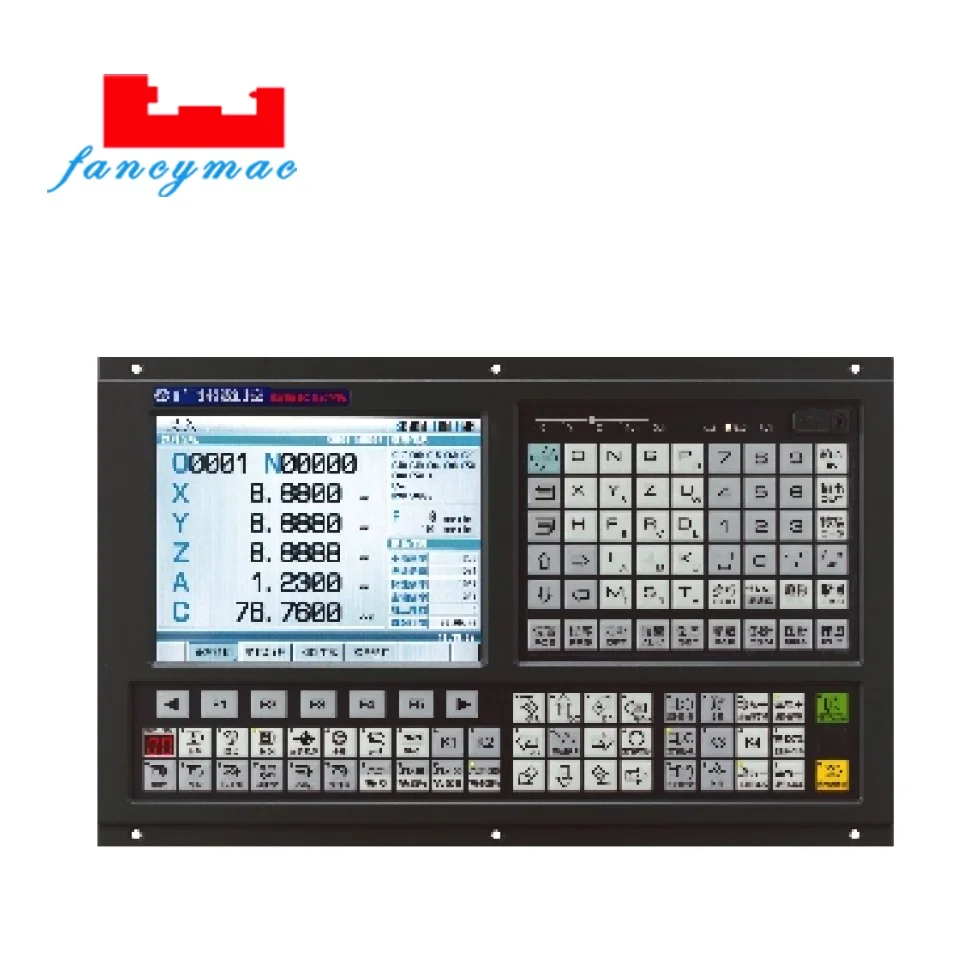

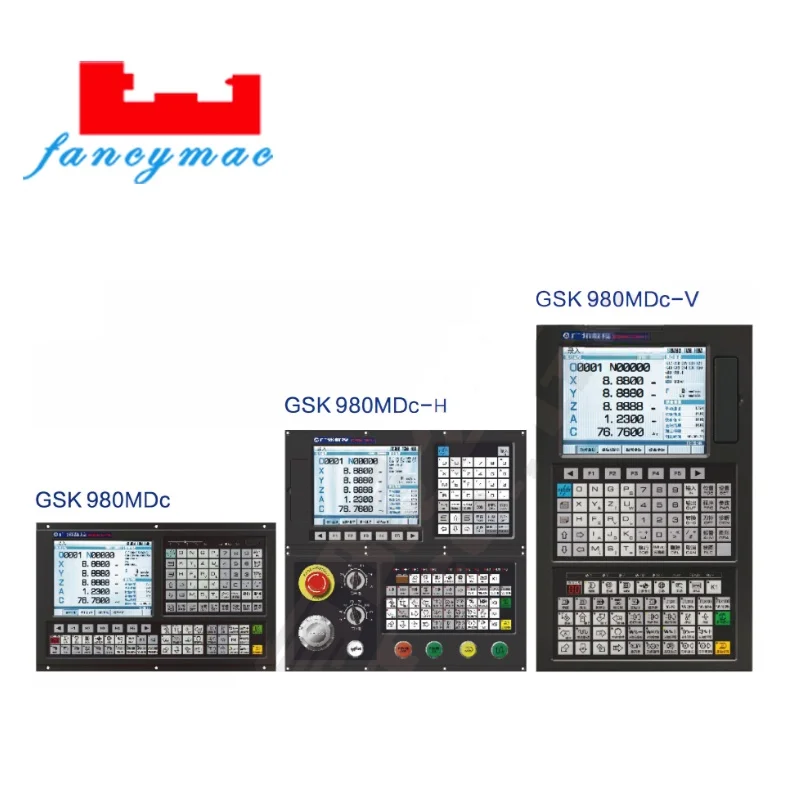

GSK980MDc is a new product upgraded from GSK980MDa (including software and hardware).Its structure is divided into horizontal and vertical type,with 8.4"colored LCD,5 feed axes (including C axis)and2 analog spindles.The minimum command unit is 0.1μm.It has graphic auxiliary programming,multiple time-limit stop functions,supports MDI multi-block execution,common parameter customization,PLC ladder on-line display and real-time monitoring.As an upgraded product of GSK980MDa,GSK980MDc CNC Milling system is the best choice for CNC milling machine technology upgrade.
Characteristics
● X,Z,Y,4,5;axis name and axis type of Y,4,5 can be defined.
● 2ms interpolation period,control precision 1u m,0.1 u m
● Max.speed 60m/min (up to 24m/minin 0.1u m)

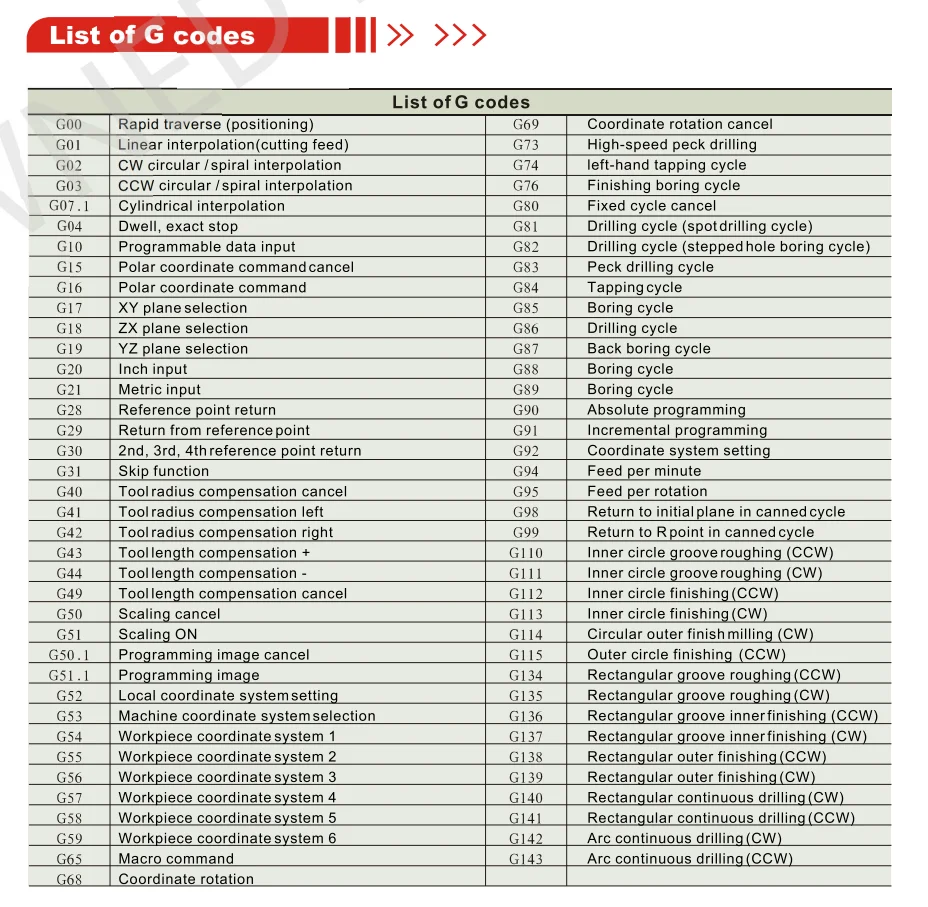

● Drilling/boring,circle groove/rectangular groove roughing,full-circle/rectangularfinishing, linear/rectangular/arc continuous drilling and so on,spiral interpolation,cylindricalinterpolation and polar coordinate command
● Adapted to servo spindle can realize spindle continuously positioning and rigid tapping Built-in multi PLC programs,the currently running PLC program can be selected Display on-line,monitor in real-time PLC
● Adapting to theservo spindle to realize the spindle continuously positioning,rigidtapping Graphic auxiliary programming
● Multiple time-limit stop function
● MDI multi-block execution
● Counter
● Built-in multi PLC programs,PLC ladder on-line display,and real-time display
● Controllable disc tool magazine and umbrella-type tool magazine
● Support the programming of macro command in sentence type and the calling of macro programwith parameter.
● Metric/inch programming,scaling,programmable image,automatic chamfer,toollife management function
● 8.4"color LCD,Chinese,English,Spanish,Russian and Portuguese display can be selected by parameter With USB interface,it supports file operation in USB,system configuration and software upgrade. High-speed DNC,real-time transmitting part programs to machine
● 2-channel OV~10V analog voltageoutput,analog input/output can be extended
● 1-channel handwheel input,handheld electronic MPG
● Panel size,mounting holes position,command system are compatiblewith GSK980MDa,mounting holes dimension has minor difference.
● 2ms interpolation period,control precision 1u m,0.1 u m
● Max.speed 60m/min (up to 24m/minin 0.1u m)
● Drilling/boring,circle groove/rectangular groove roughing,full-circle/rectangularfinishing, linear/rectangular/arc continuous drilling and so on,spiral interpolation,cylindricalinterpolation and polar coordinate command
● Adapted to servo spindle can realize spindle continuously positioning and rigid tapping Built-in multi PLC programs,the currently running PLC program can be selected Display on-line,monitor in real-time PLC
● Adapting to theservo spindle to realize the spindle continuously positioning,rigidtapping Graphic auxiliary programming
● Multiple time-limit stop function
● MDI multi-block execution
● Counter
● Built-in multi PLC programs,PLC ladder on-line display,and real-time display
● Controllable disc tool magazine and umbrella-type tool magazine
● Support the programming of macro command in sentence type and the calling of macro programwith parameter.
● Metric/inch programming,scaling,programmable image,automatic chamfer,toollife management function
● 8.4"color LCD,Chinese,English,Spanish,Russian and Portuguese display can be selected by parameter With USB interface,it supports file operation in USB,system configuration and software upgrade. High-speed DNC,real-time transmitting part programs to machine
● 2-channel OV~10V analog voltageoutput,analog input/output can be extended
● 1-channel handwheel input,handheld electronic MPG
● Panel size,mounting holes position,command system are compatiblewith GSK980MDa,mounting holes dimension has minor difference.
