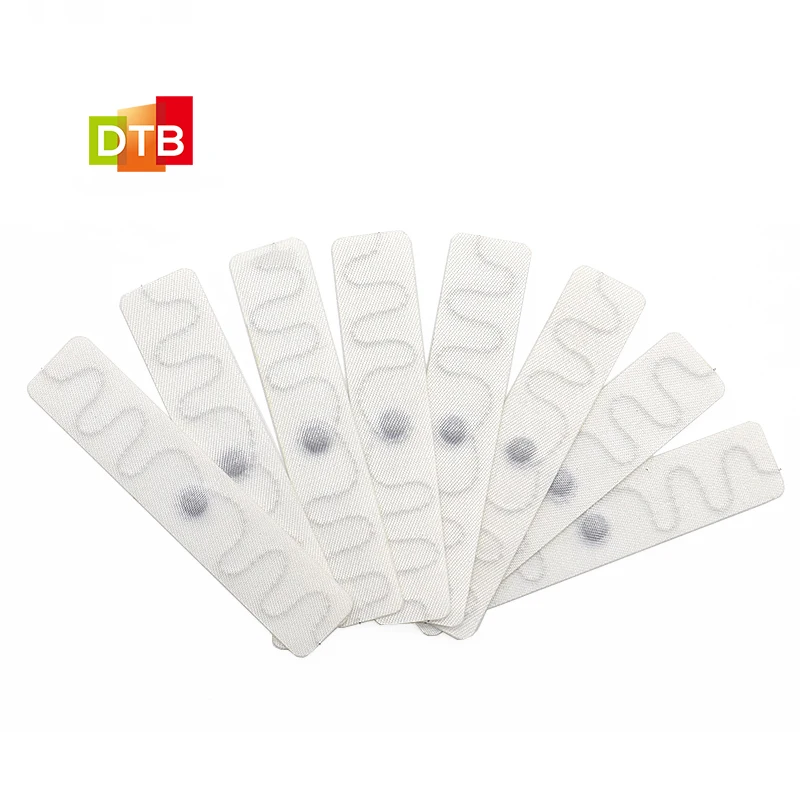

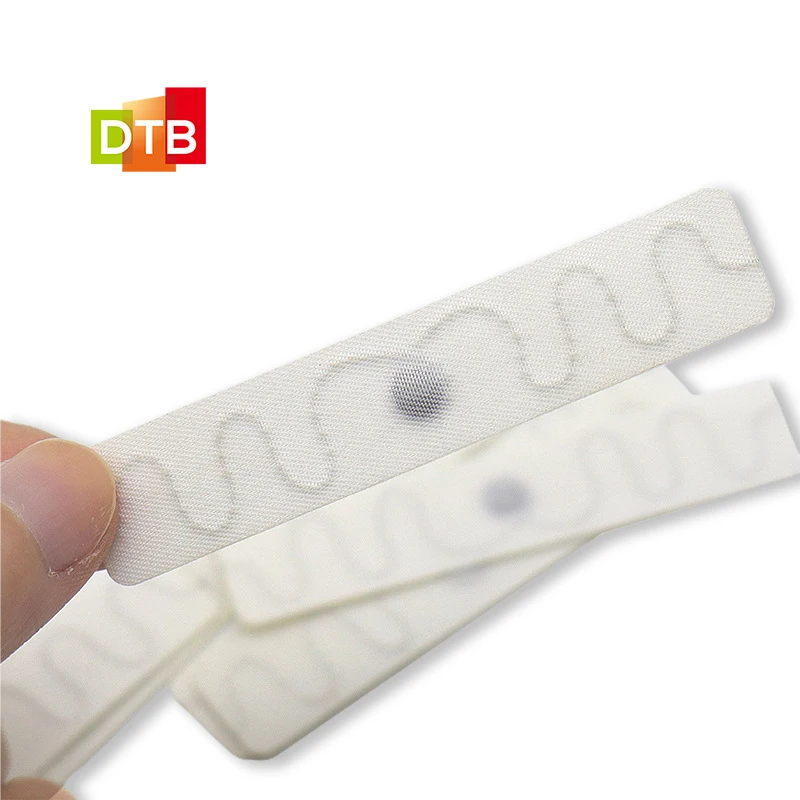

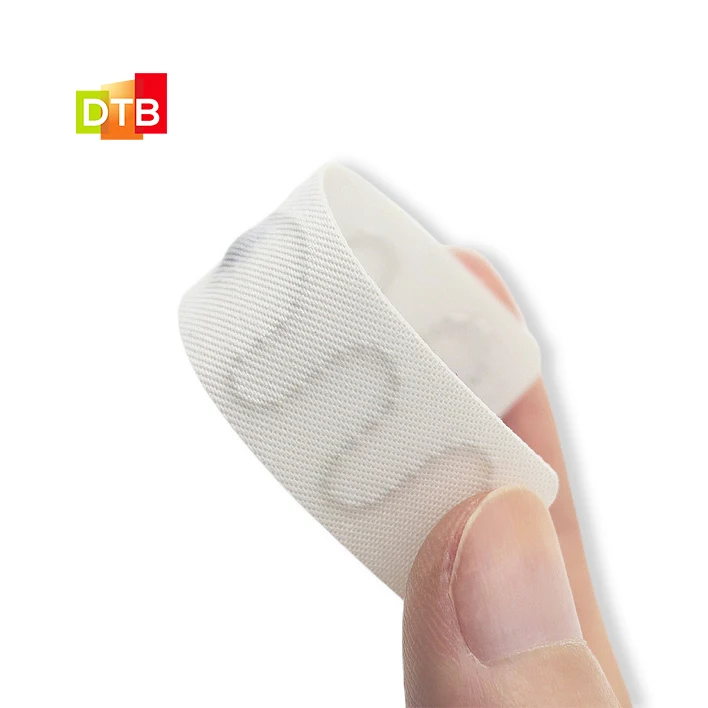

Uhf Ucode 8 Washable Nfc Laundry Label Rfid Uhf Laundry Fabric Label Garment Tag
- Category: >>>
- Supplier: Shenzhen DTB RFID Co. Ltd.
Share on (1600616994181):
Product Overview
Description
Fast transfer | Fast read write | Anti-fouling Moisture-proof | Information security |
Details Images
Product Description
Product introduction:*More than 200 times Industrial washing.
*100% Memory write test；
*Material and design have been tested for reliability；
*The product has been inspected for 100% RF consistency by Finland Tagformace equipment；
* REAL 200 times Industrial washing；
* Soft, Flexible；
* Withstand 60 atmospheric pressures.
Product application:
* Industrial washing;
* Management of Employee and school uniforms;
* Medical clothing management;
* Military clothing management;
* Personnel patrol management;
* Production management of garment factories.
*100% Memory write test；
*Material and design have been tested for reliability；
*The product has been inspected for 100% RF consistency by Finland Tagformace equipment；
* REAL 200 times Industrial washing；
* Soft, Flexible；
* Withstand 60 atmospheric pressures.
Product application:
* Industrial washing;
* Management of Employee and school uniforms;
* Medical clothing management;
* Military clothing management;
* Personnel patrol management;
* Production management of garment factories.
Product Features
Product Name | UHF UCODE® 8 Textile RFID Laundry Tag |
Material | Fabric/Woven + Metal sewing + COB |
Chip Model | UCODE® 8 |
Memory | 128/96bit |
Protocol | EPC C1 G2/ISO 18000-6C |
Size | 70*15*1.5mm |
Color | White or customized(Need 50K) |
Working Times | more than 200 times |
Operating Temperature | -25℃ to +110℃ |
Read Distance | 3-6M |
Application | Laundry solution, wash store, industrial washing, hotel cloth management, supermarket/ cloth store management, etc |
Advantages to use the UHF Laundry Tag | 1) Reduce Labor Cost, together with the handheld UHF reader Scan will know the the quantity. 2) Assort the clothes from different hotel or companies. 3) Data analysis, after collect the data, you can know more, for example: * which textile quanlity is more better, you can choose that company to save more cost for future orders. * Which hotel or companies textile more easy to get damaged. etc |
Chip Options
Procotol | Chip | User Memory |
860~960Mhz EPCglobal Gen2 | Higgs 3 | 512 bits |
Higgs 4 | 128 bits | |
Monza 4QT | 512 bits | |
Monza 4E | 128 bits | |
Monza 4D | 32 bits | |
Monza 5 | -- | |
UCODE EPC G2 | 512 bits | |
UCODE G2XL | 368 bits | |
UCODE G2XM | 880 bits |
Remark:
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.

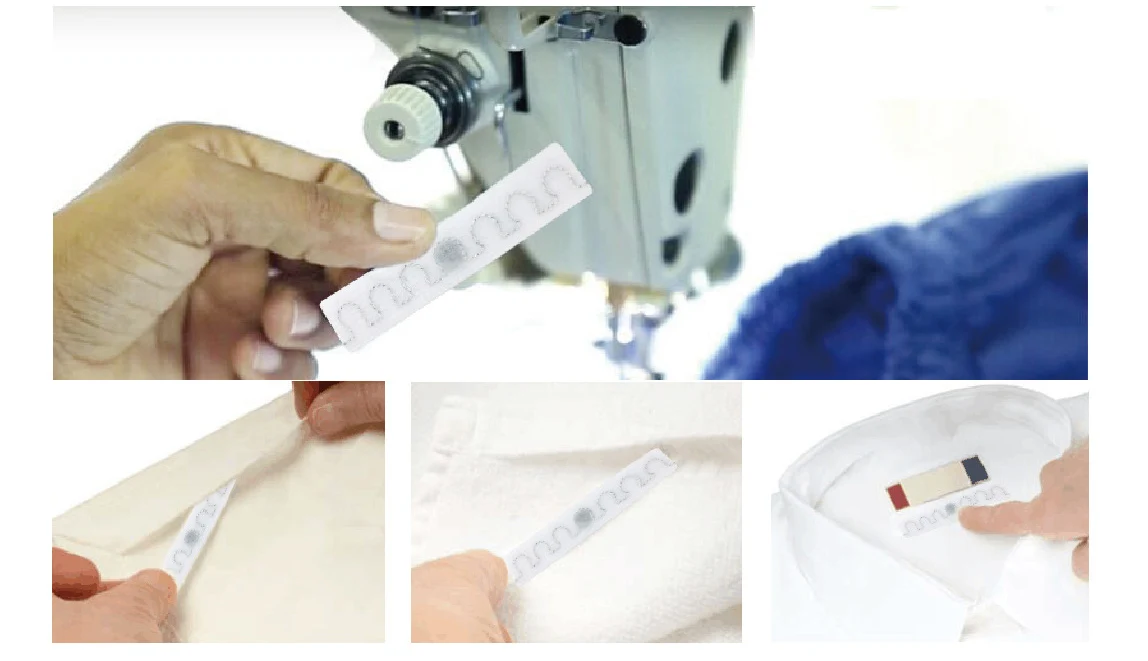

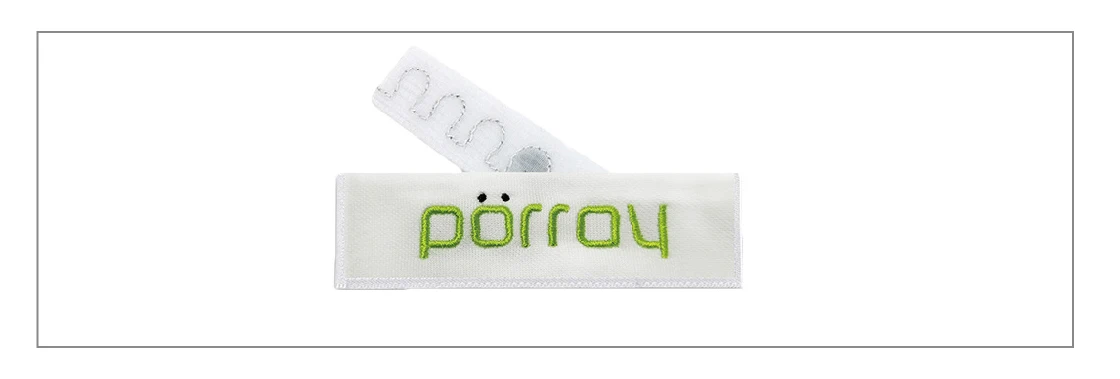

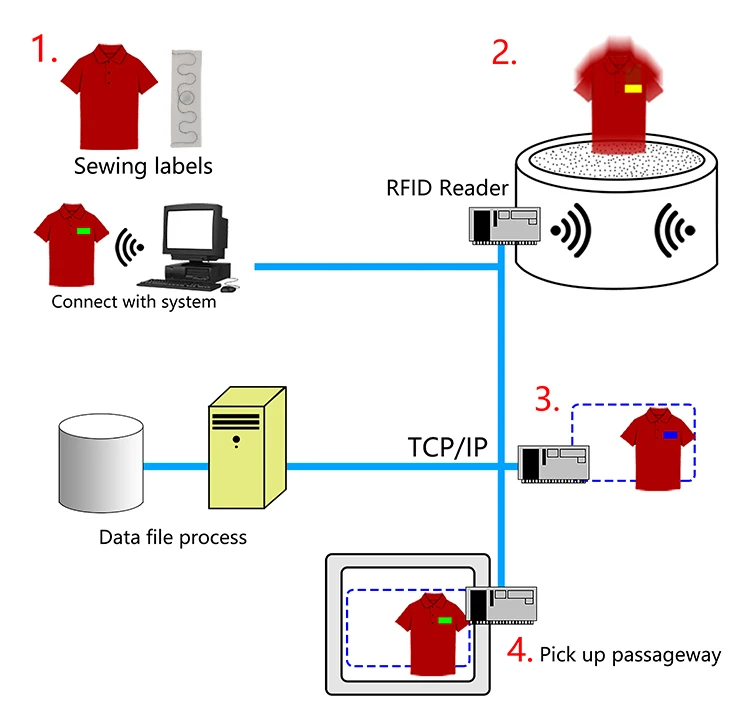

RFID Wash Tag Installation
1. Bag sewing
2. Hemming sewing

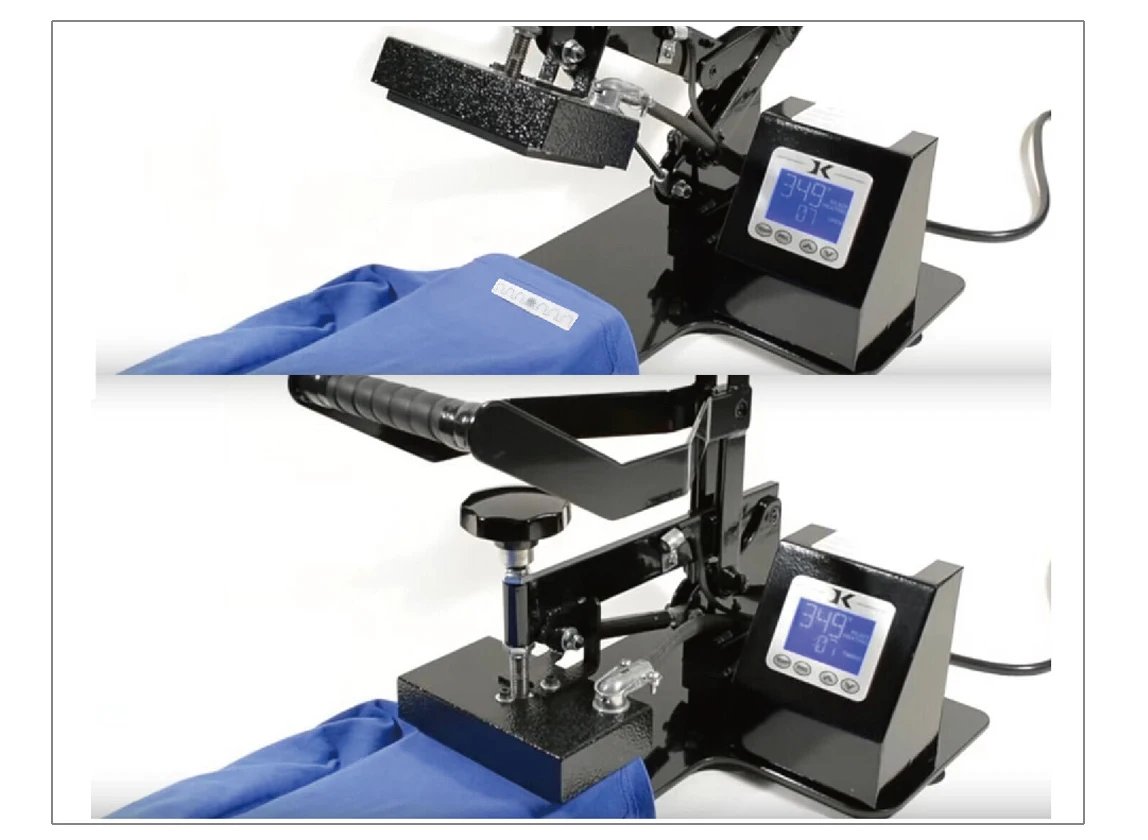

3. Hot stamping

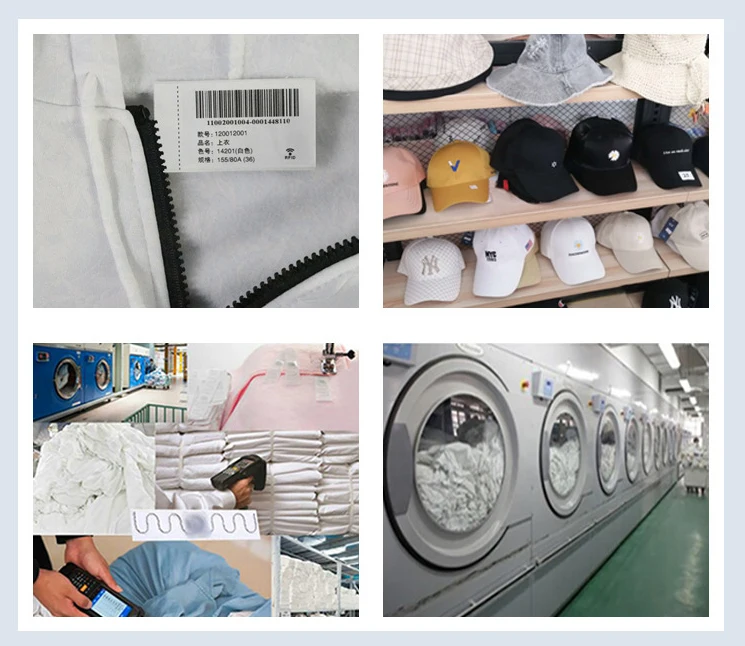

Application

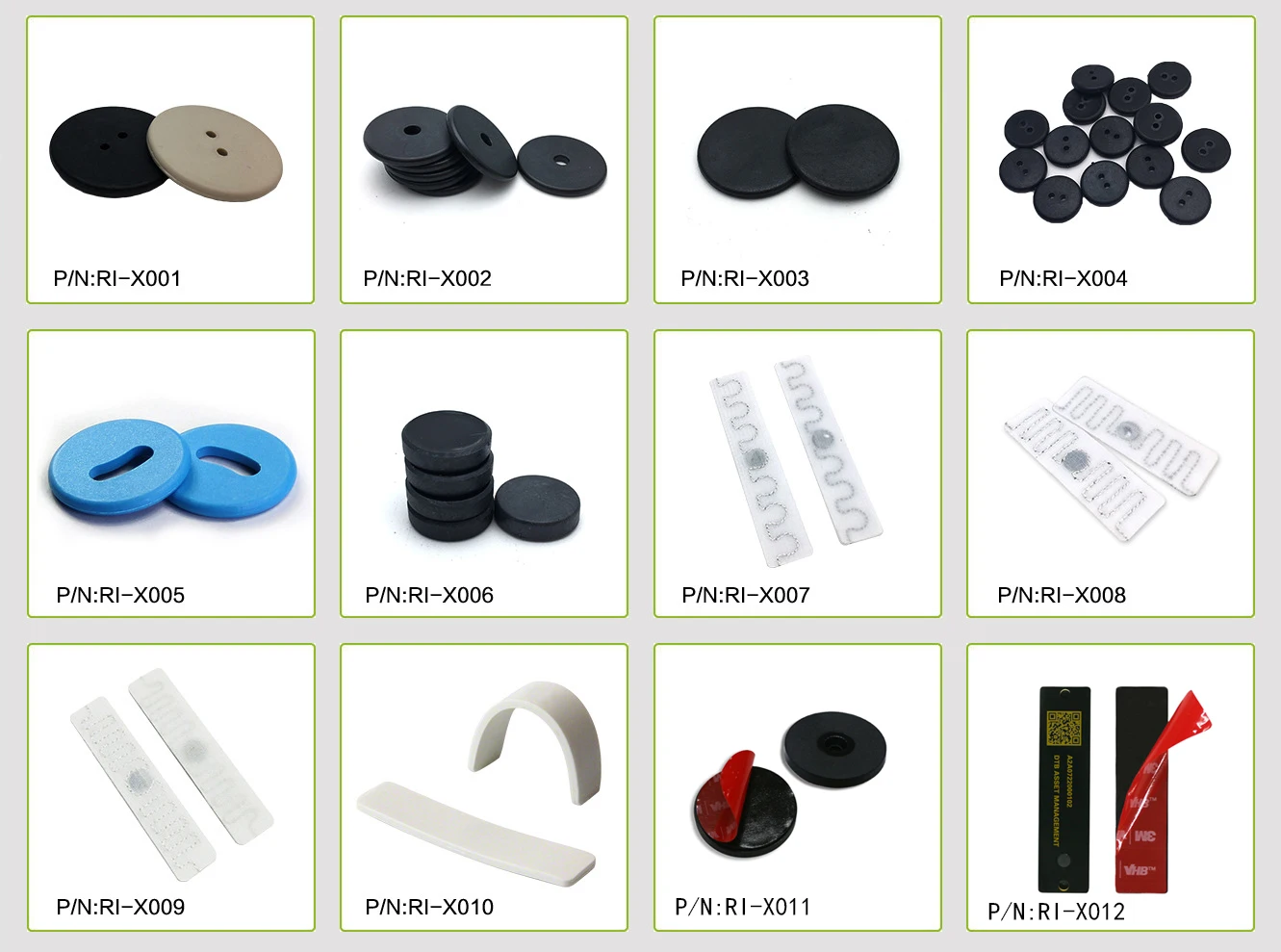

Related Products
