Pantalla LED para la publicidad exterior P3 P3.9 P4 P4.8 P5 P8 P10 pantallas de LED China indoor outdoor LED display screen
- Category: >>>
- Supplier: Shenzhen Prevision Electronics Co. Ltd.
Share on (1600617013155):
Product Overview
Description

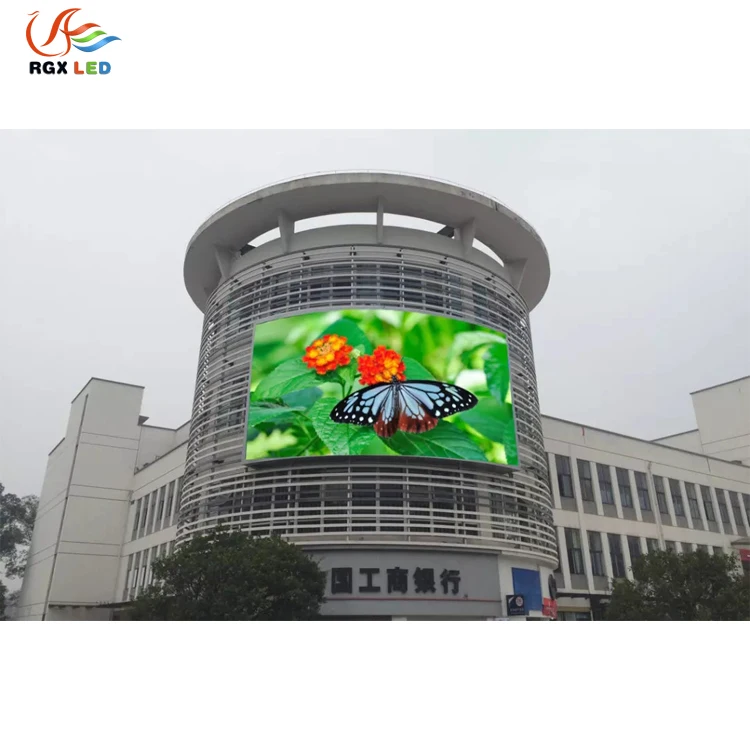

Pantalla LED para la publicidad exterior P3 P3.9 P4 P4.8 P5 P8 P10 pantallas de LED
>>Enery-saving
>>Easy installation
>>Environmental protection
>>High brightness and refresh 3840Hz
>>Using high reflesh IC, better viewing effect
>>Passed highest /lowest temperature testing
>>Larger viewing angle: Horizontal angle 160 degree, Vertical angle 140 degree
Product Description
| Unit Module Specifications | ||||||
| Item | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| Pixel Configuration | 3in1 (1R1PG1B) | |||||
| Module Size(MM) | 192*192 | 256*128 | 320*160 | 192*192 | 256*128 | 320*160 |
| Module Resolution(Dots) | 64*64 | 64*32 | 64*32 | 32*32 | 32*16 | 32*16 |
| Module Weight(Kg) | 0.35 | 0.32 | 0.5 | 0.35 | 0.32 | 0.5 |
| Package LED Mode | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Max Power(Watt) | 42 | 40 | 38 | 25 | 12 | 12 |
| Pixel Density(Dots/SQM) | 111'111 | 625'000 | 40'000 | 27'777 | 15'635 | 10'000 |
| Driving Method | Constant Current Driving | |||||
| Scan Method(Scan) | 1/32 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 |
| Interface Way | HUB 75 | |||||
| Brightness(CD/SQM) | ≥ 4500 | ≥ 5500 | ≥ 6000 | ≥ 6000 | ≥ 6500 | ≥ 6500 |
| Unit Cabinet Specifications | ||||||
| Cabinet Size(MM) | 576*576 | 512*512 | 640*640 | 576*576 | 768*768 | 960*960 |
| Cabinet Composing(PCS) | 9 | 8 | 8 | 9 | 18 | 18 |
| Power Supply Mode(Per Cabinet) | 5V60A | 5V40A | 5V40A | 5V40A | 5V60A | 5V60A |
| Cabinet Resolution(Dots) | 192*192 | 128*128 | 128*128 | 96*96 | 96*96 | 96*96 |
| Optimal Viewing Distance(M) | 3-300 | 4-400 | 5-500 | 6-600 | 8-800 | 10-1000 |
| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree | |||||
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree | |||||
| Relative Humidity | 10% ~ 95% | |||||
| Power Supply Specifications | ||||||
| Operating Voltage | AC:100V~120V AC:220~240V | |||||
| Average Power(W/SQM) | 150-350 | 150-320 | 150-320 | 150-320 | 120-280 | 150-300 |
| Max Power Consumption(W/SQM) | ≤ 850 | ≤ 750 | ≤ 780 | ≤ 720 | ≤ 720 | ≤ 650 |
| Current | ≤ 20mA (single LED) | |||||
| Control System Specifications | ||||||
| Computer | Pentium4 or above P4 or above | |||||
| Operate System | Win7-11/2000/NT/XP | |||||
| Control Mode | Synchronization with PC | |||||

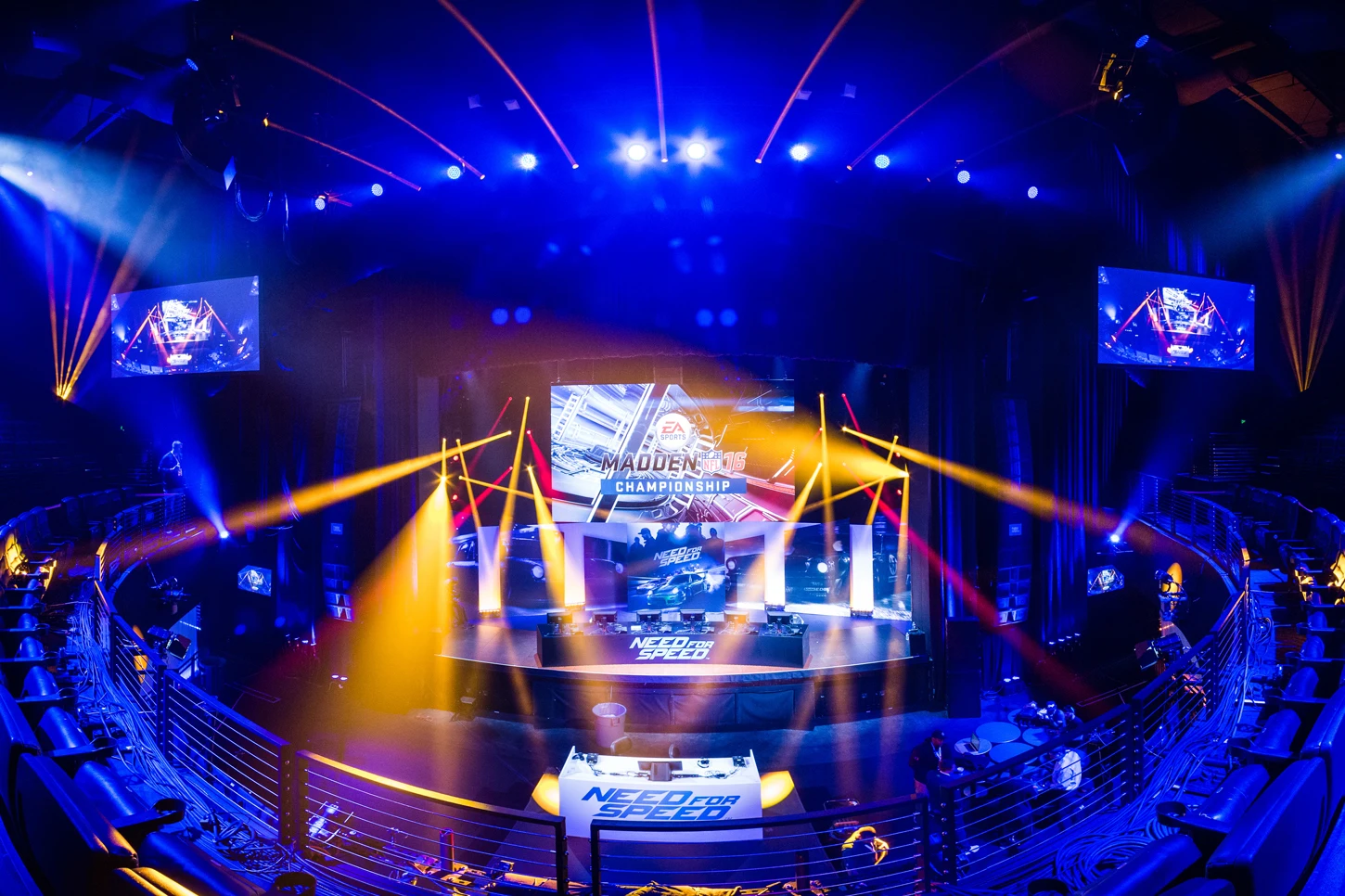

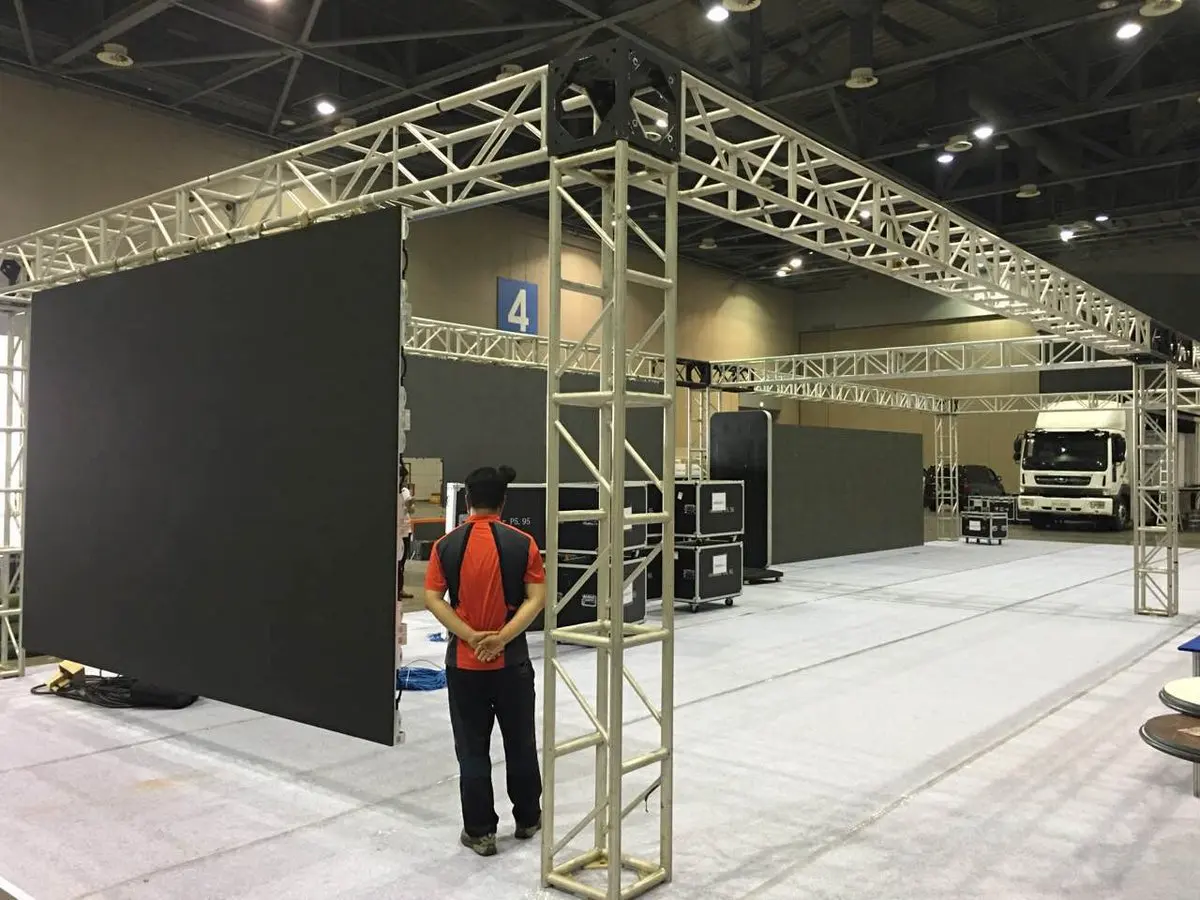

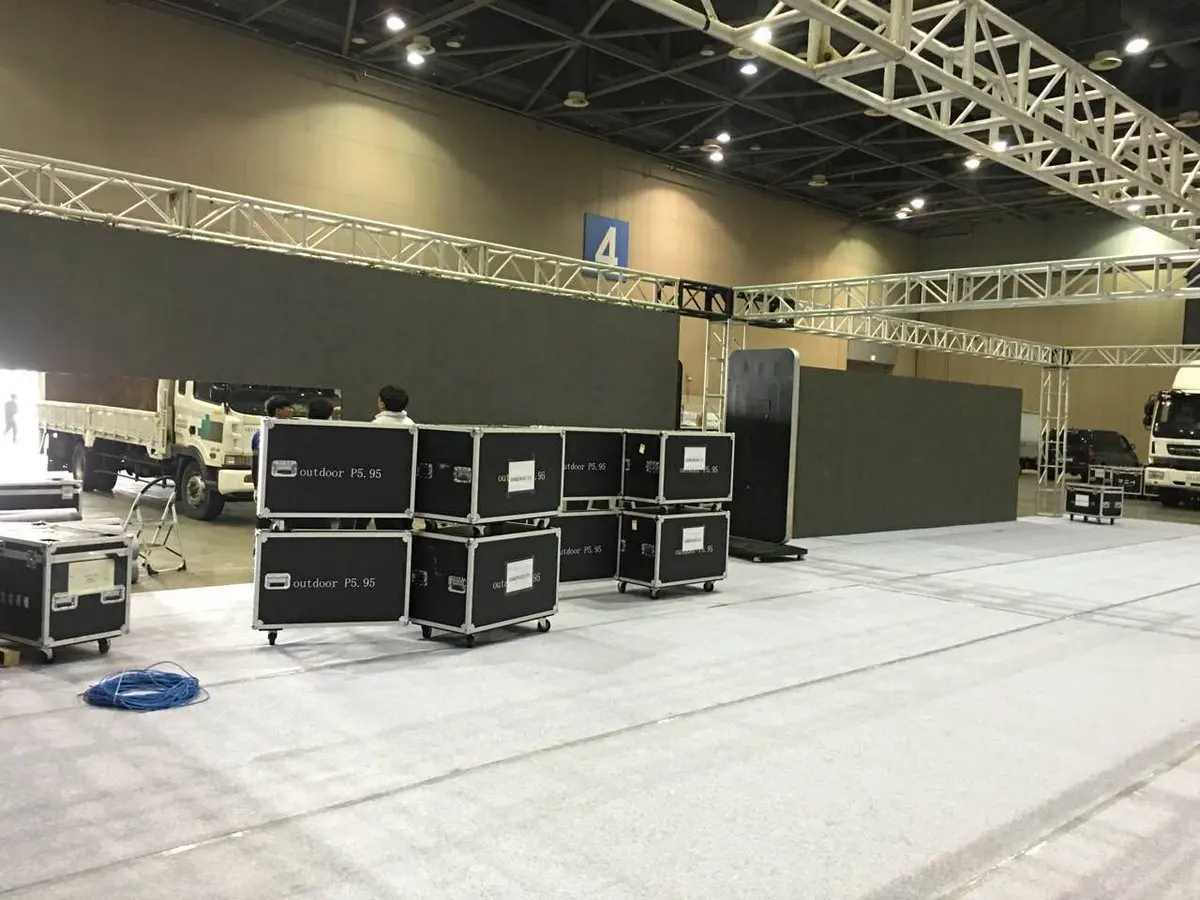

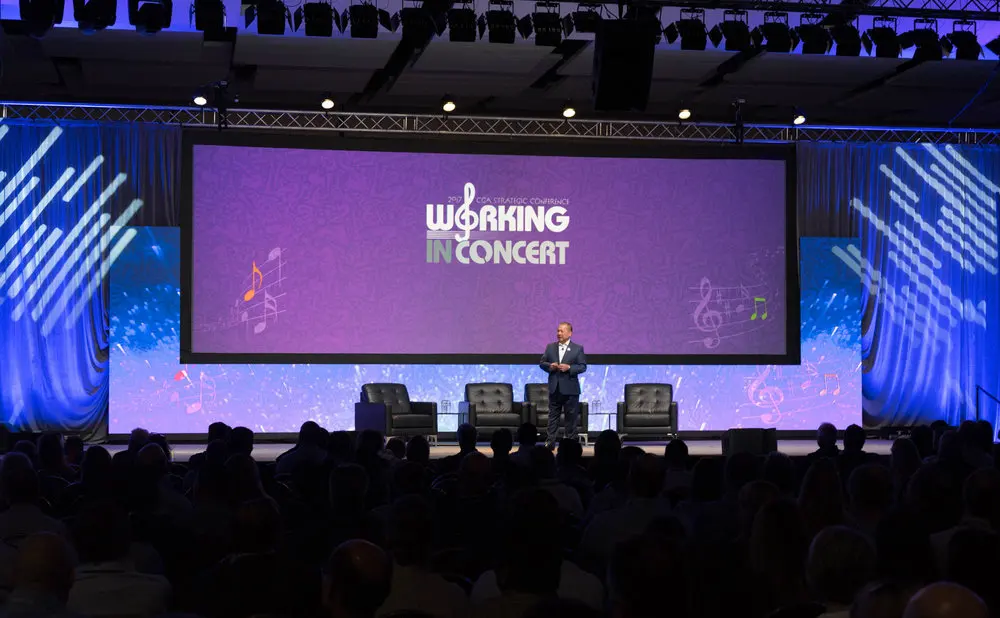

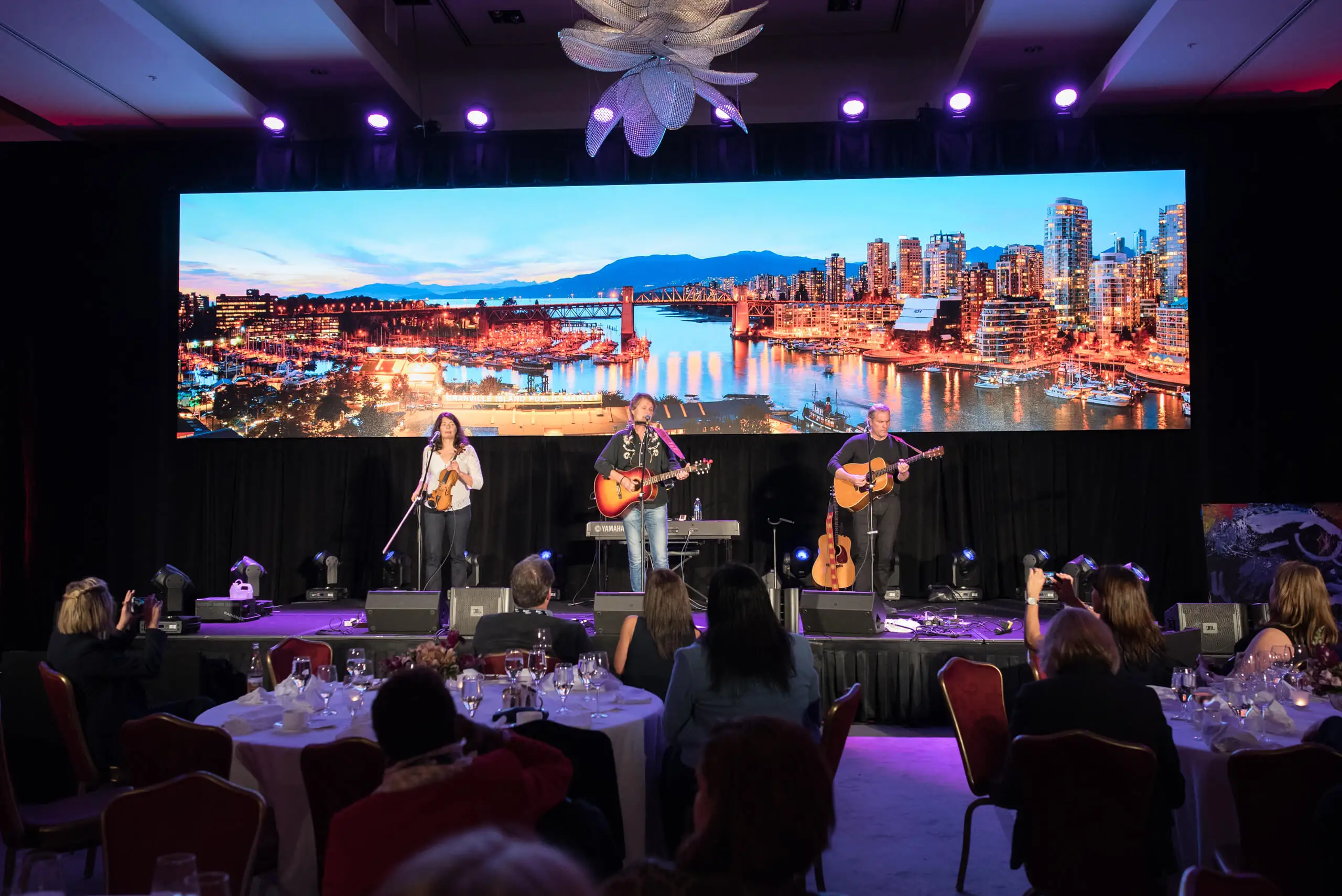

Application of Rental LED video walls P2 P2.5 P3 P4 P5

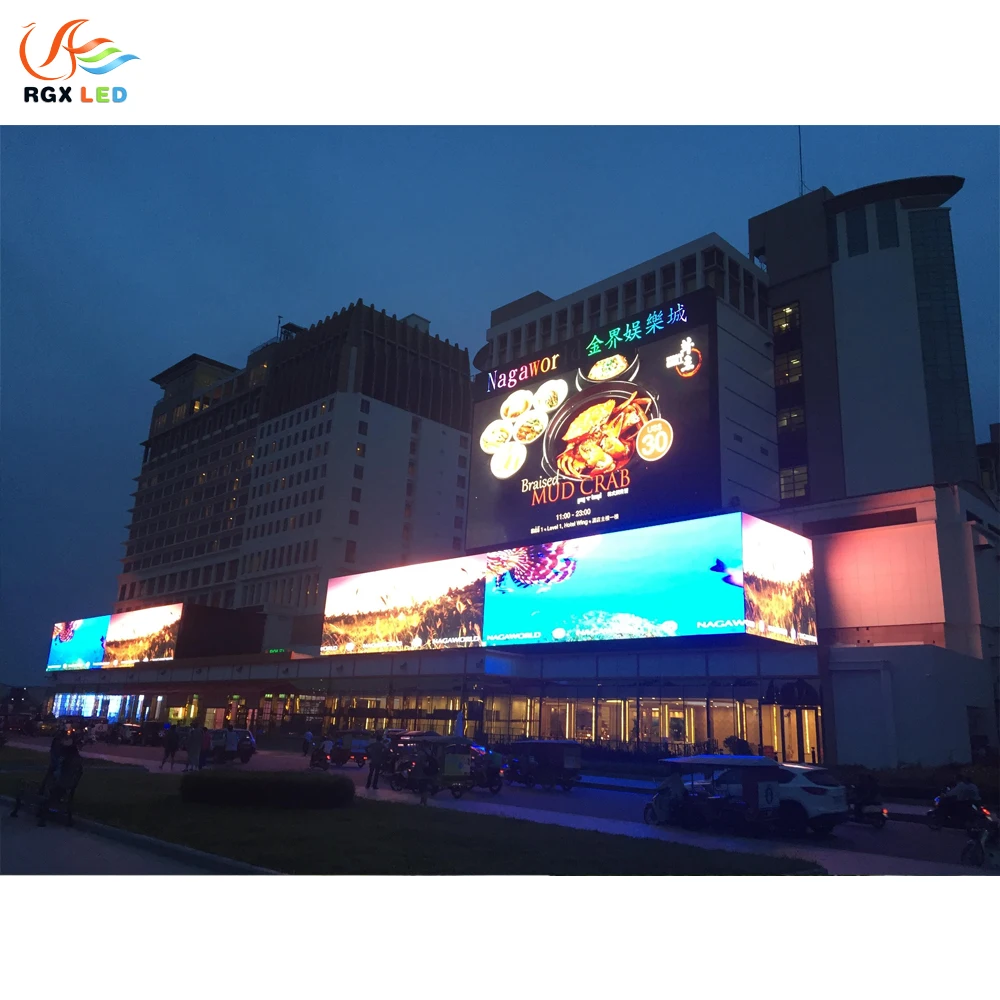

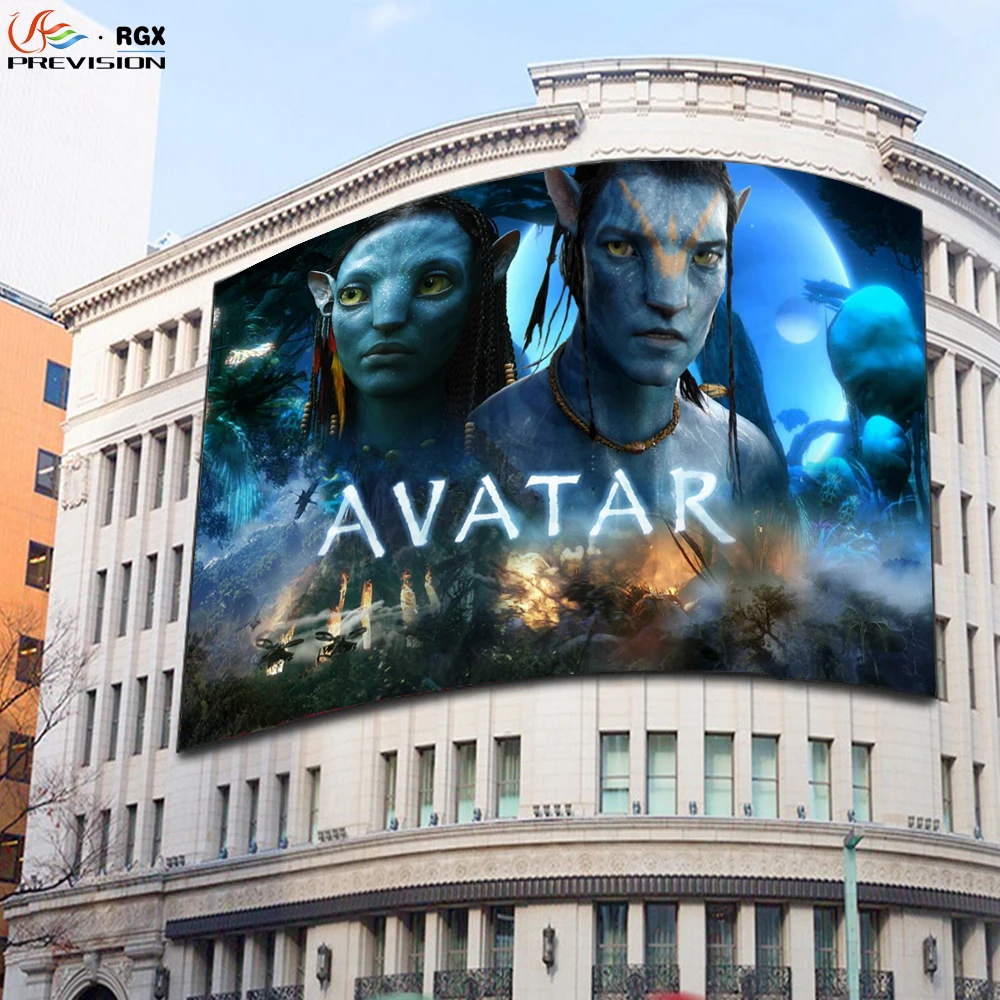

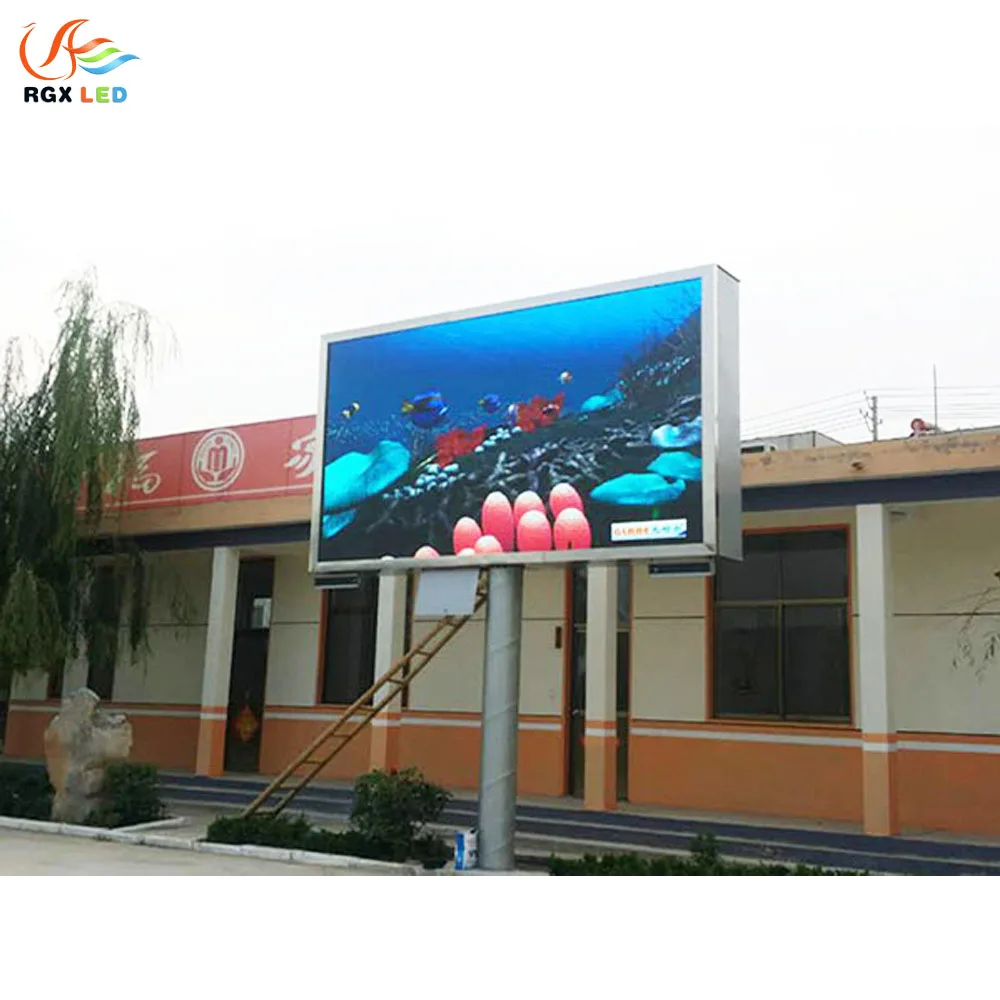

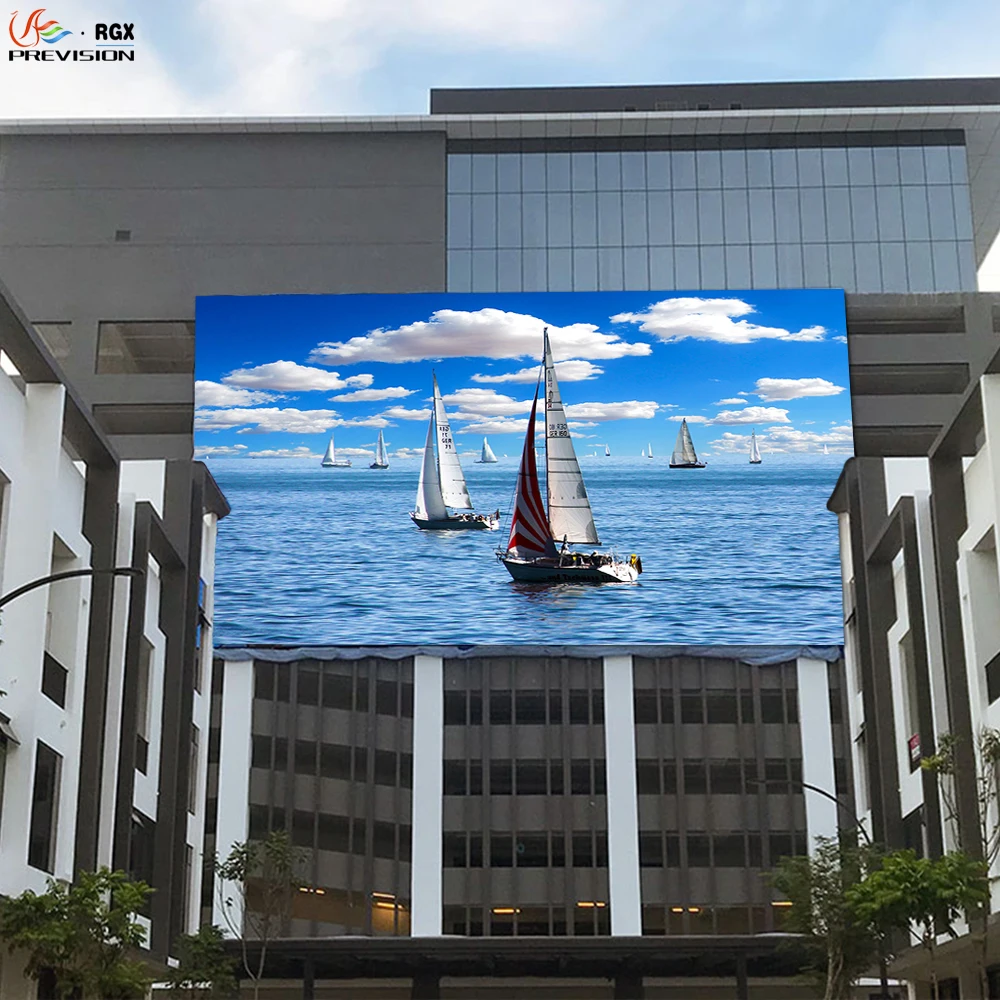

Hot LED Display
All of our products can be customized. Any sizes, material, shape, logos, packaging meet
your requirement,before quote you the price, we will be appreciated if you can provide the
information below:
1. What will the LED display be used for? video, TV , graph or?
2. Where do you plan to install the LED display,indoor or outdoor or rental purpose?
If possible, please send me a picture about the installation environment.
3. What's the size do you need? the length and width?
If you are not clearly , we will recommend for you.
About Us
Shippment & Payment
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
Any question please add my wechat/ whatsapp +86137 1700 8357 for quick response or send your detailed inquiries in the belows for free samples, click"send"Now.
