Product Overview
Description
Wholesale UART ESP8266 WiFi Module CC3200 Chip Wireless Module E103-W02 SMT with IEEE 802.11b/g/n Protocol
Product Description

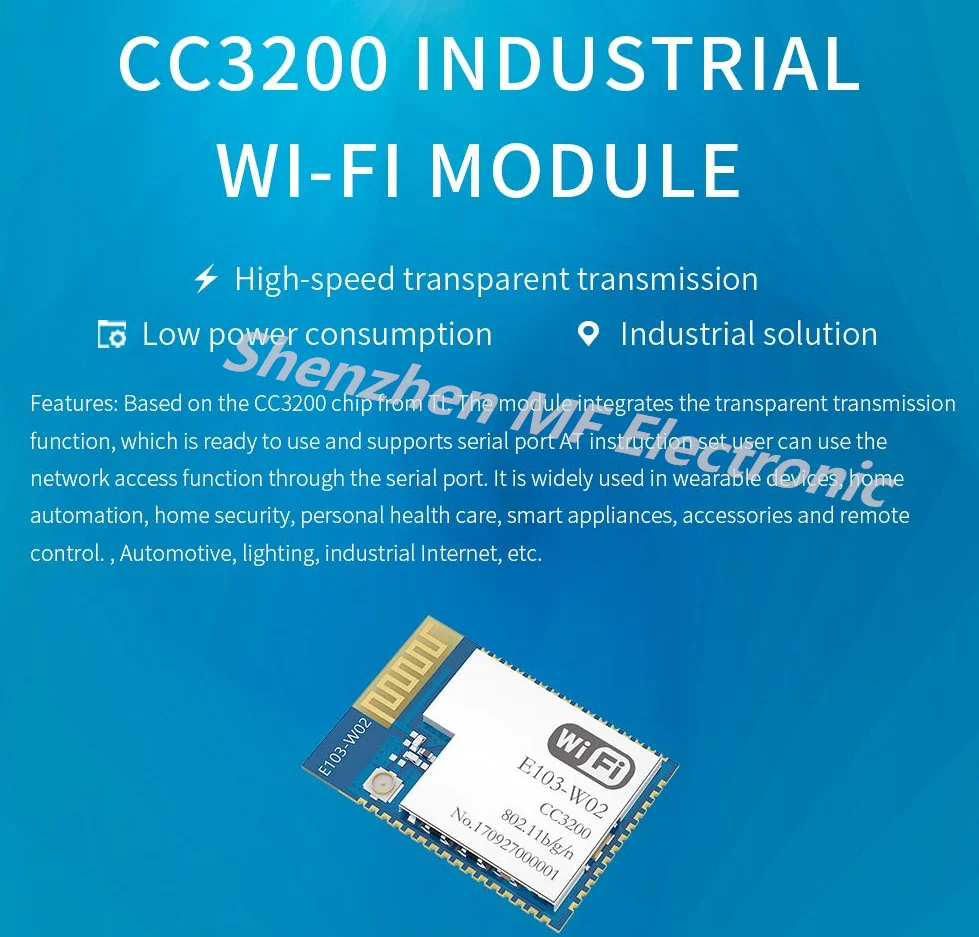

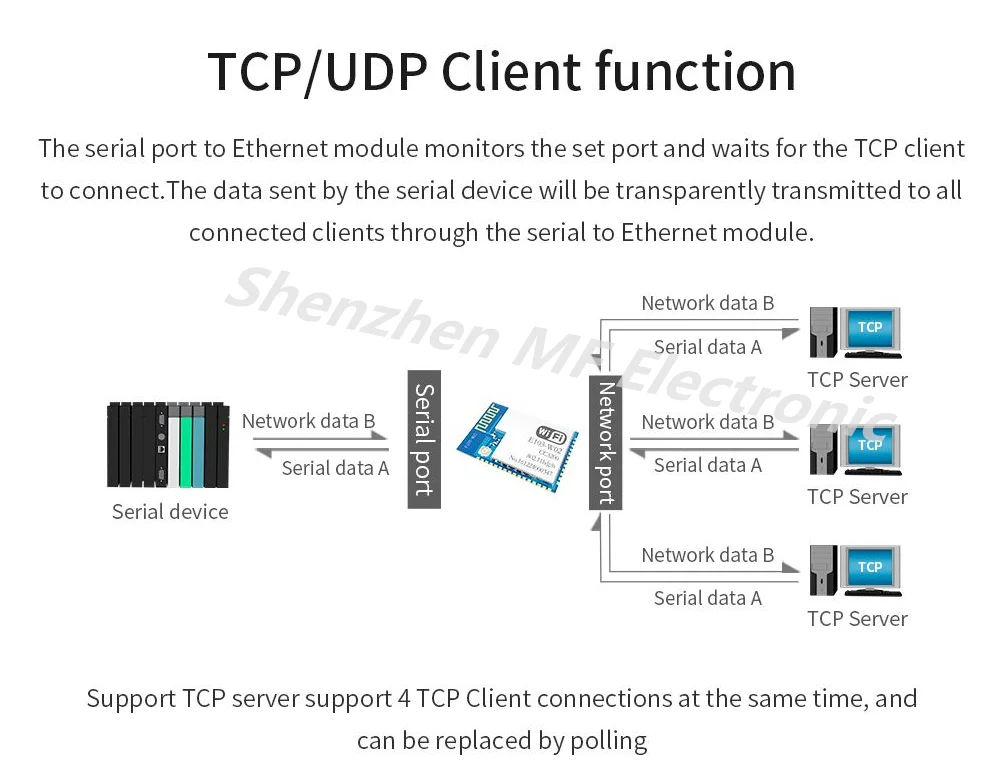

E103-W02 based on CC3200 of TI, is an ultra low power UART to Wi-Fi module with small size SMT packing and PCB antenna operating at 2.4 ~ 2.484GHz. It supports AT command, standard IEEE802.11b/g/n protocol and complete TCP/IP protocol stack.
Technical Parameters
Model | E103-W02 |
Chip | CC3200 |
Working Frequency | 2402~2483MHz |
Transmitting Power | 20dBm |
WiFi Version | 802.11 b/g/n |
Test Distance | 150 meter / 500 meter |

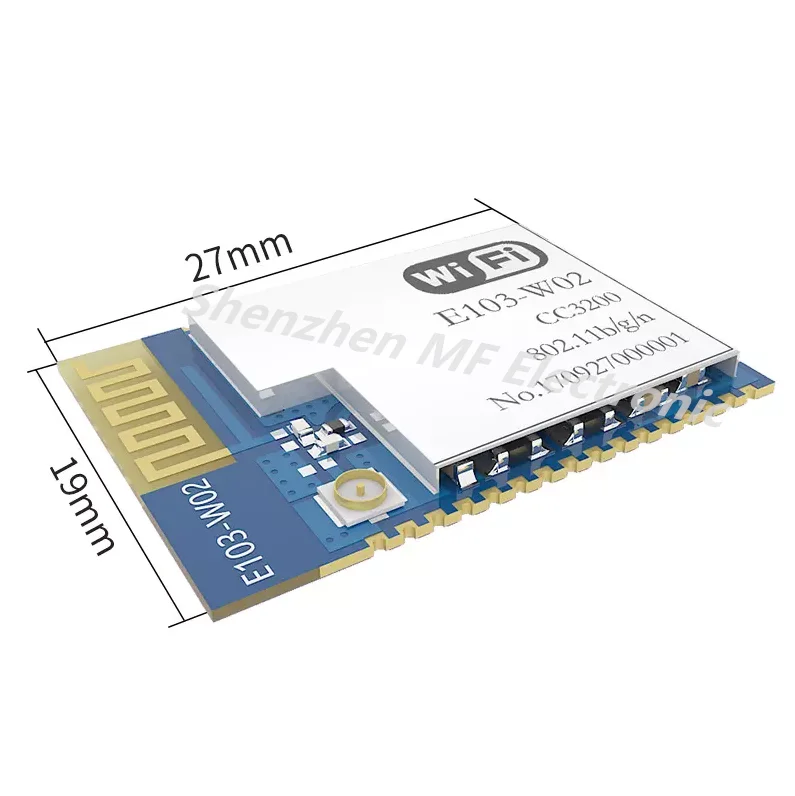

Size | 19*27mm |
Antenna Type | PCB / IPEX Antenna |
Communication Interface | UART |
Package | SMD |
Power Supply | 2.4~3.6V |
Communication Level | 2.4~3.6mA |
Transmitting Current | 64~78mA |
Sleep Current | 4.2~5.1mA |
Operating Temperature | -40℃~85℃ |
Operating Humidity | 10~90% |
Storage Temperature | -40~+125℃ |
Detailed Images
