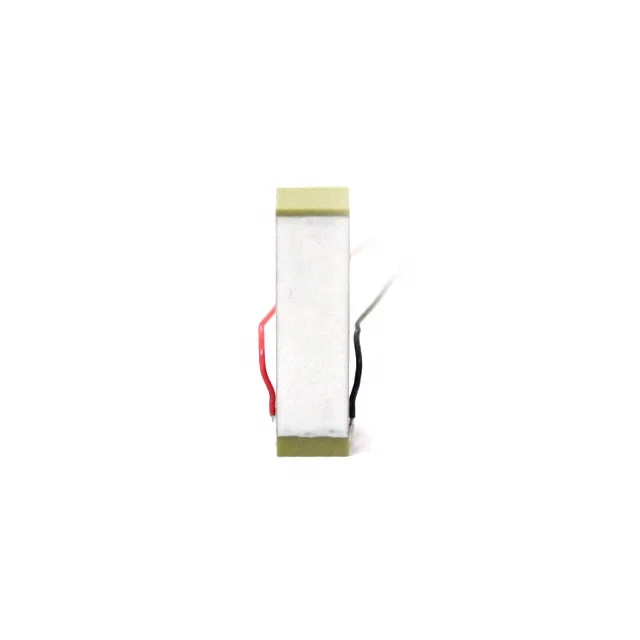

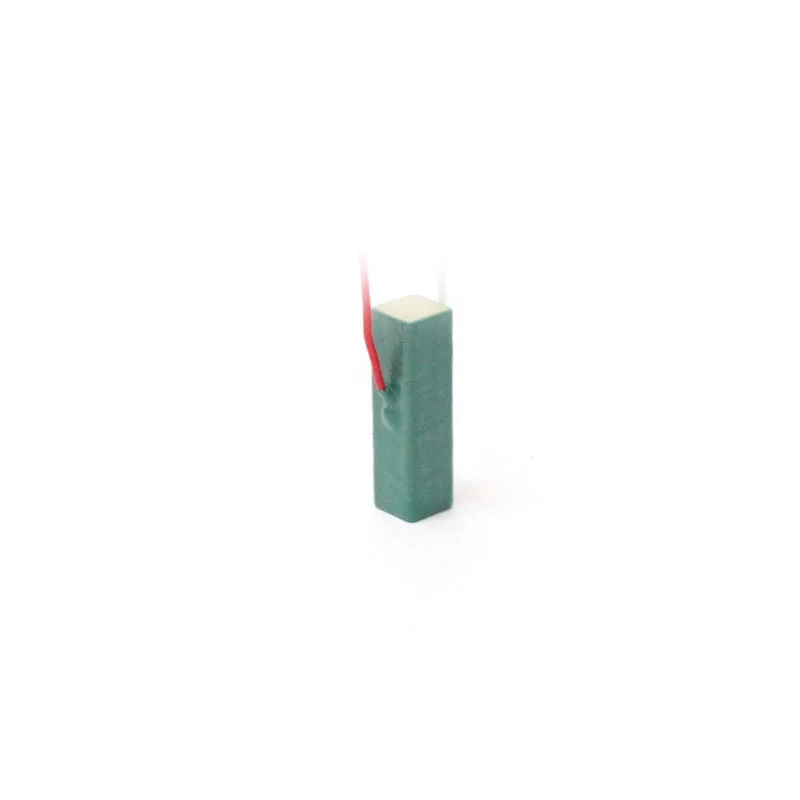

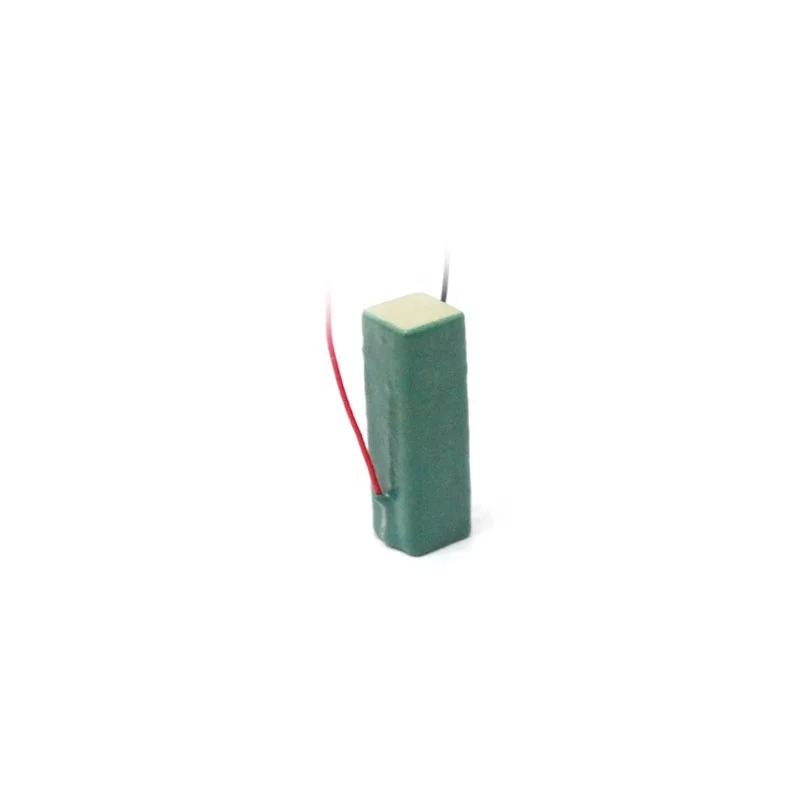

Popular high precision low voltage piezo stack multilayer piezo for lab and vibration control piezo actuator

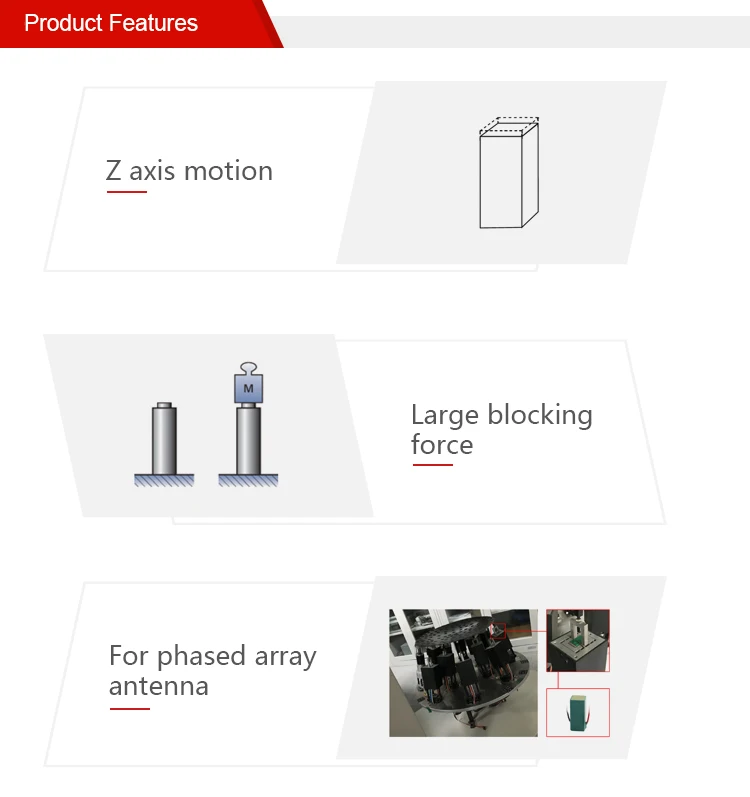

Product Overview

Description



Models	Dimensions[1] a×b×L[mm]	Max./Stroke[2] [μm]±15%	El.capacitance [μF]±20%	Stiffness [N/μm]±10%	Resonant frequency [kHz]	Blocking Force [N]	Mass [g]±5%
PSt150/5×5/20H	5×5×18	28/20	1.8	60	50	1600	3.8
PSt150/5×5/20L	5×5×18	28/20	1.8	60	50	1600	4.1

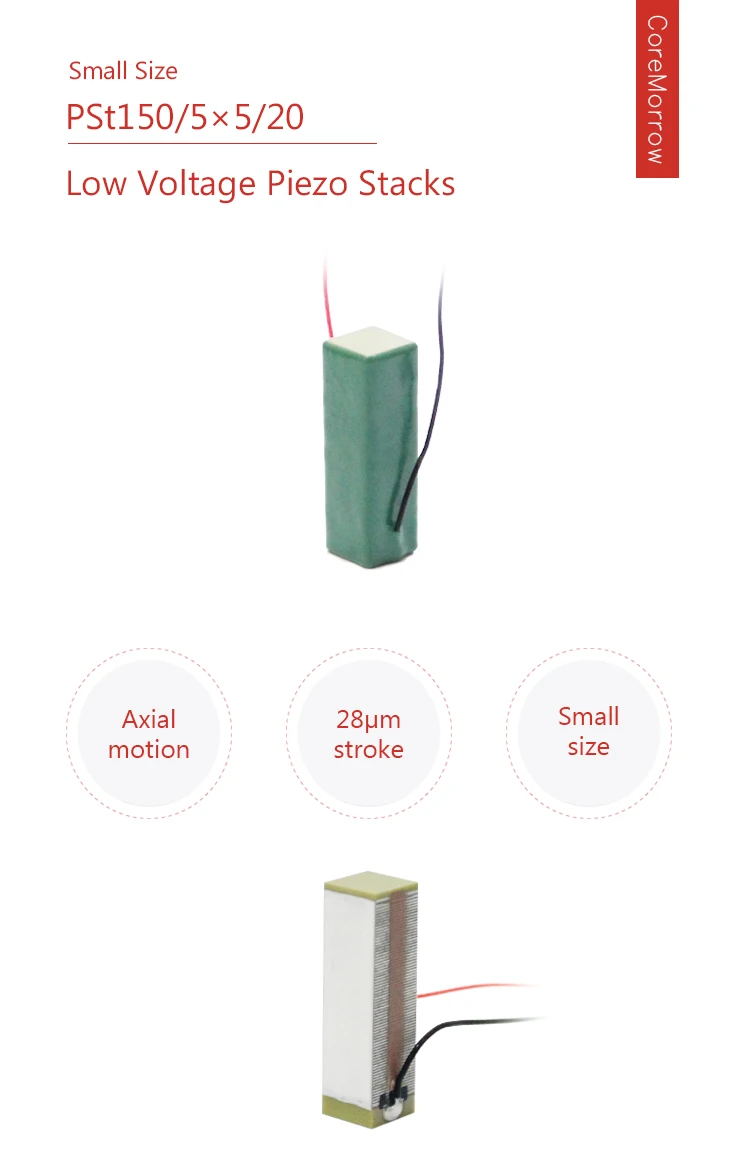

PSt150/5×5/20	5×5×20	28/20	1.5	60	50	1600	4.1

Notes: In standard lead, the red line is positive. About PSt50/PSt100 series, the red line is negative.

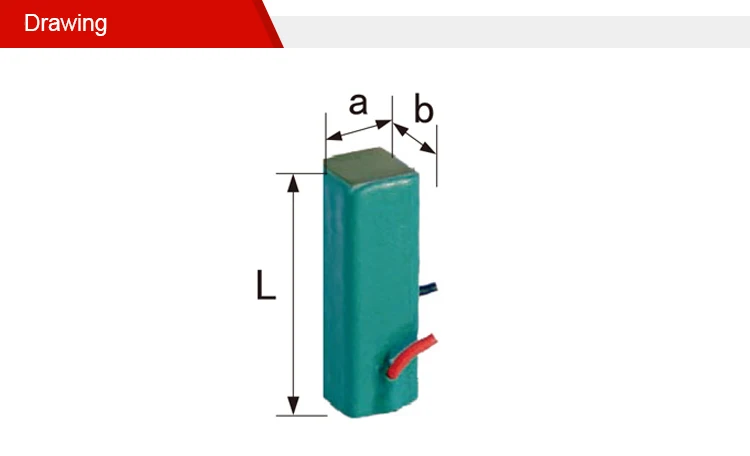

[1] The dimensions of piezo ceramic is not include thickness of resin. The single side thickness of Gray resin is 50μm and the green resin is 0.5mm, outlet size single side +1mm, tolerance +/-0.2mm, the heightness tolerance +/-0.05mm.

[2] PSt150: stroke is under 0~150V, Max. stroke is under -30~150V. Recommended voltage 0-120V for long-time high reliability. PSt50: Max. stroke is under 0~50V. PSt100: Max. stroke is under 0~100V.
