Price:$12,000.00 - $13,500.00

Quantity:


Product Overview

Description



PRODUCT DESCRIPTION

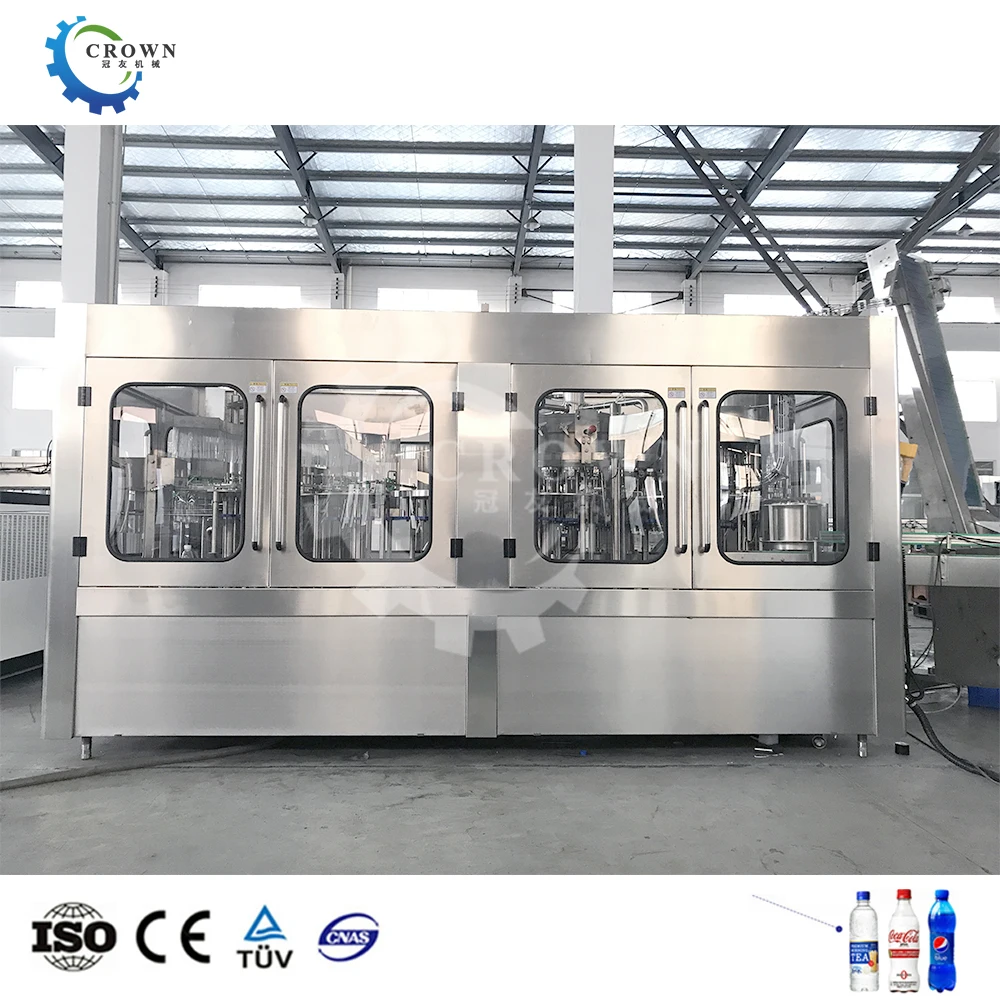

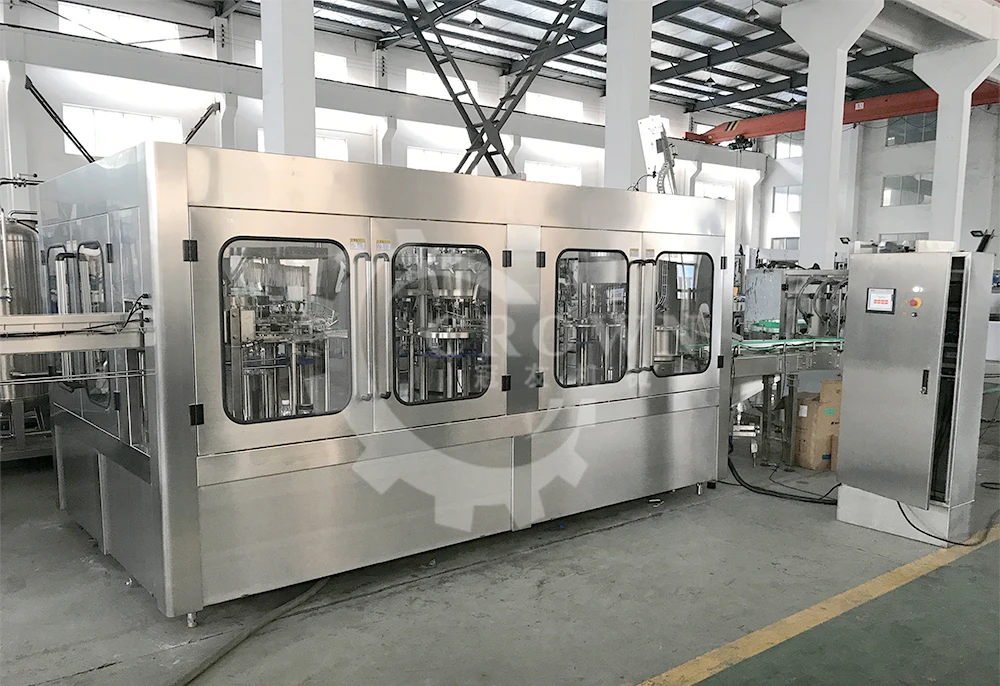

Crown automatic complete carbonated soft drink filling machine





Detail Photos



Washing heads

- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

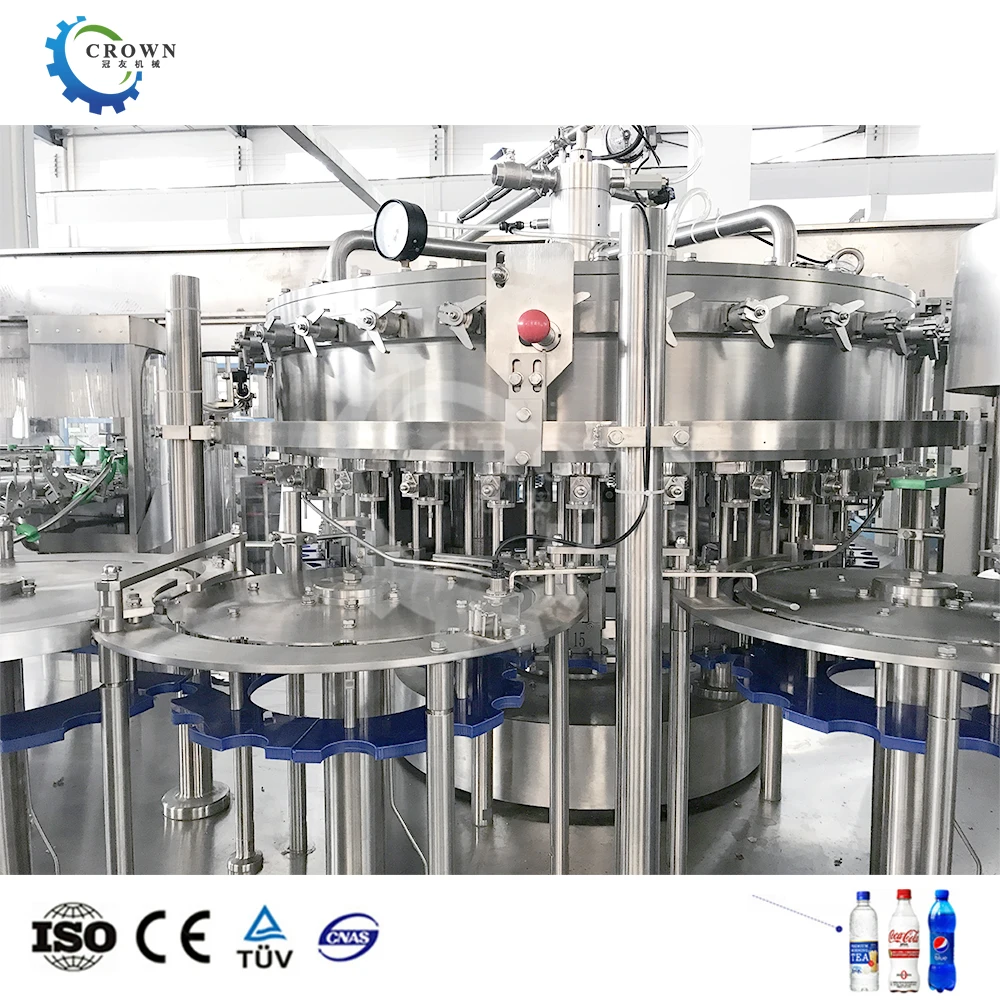

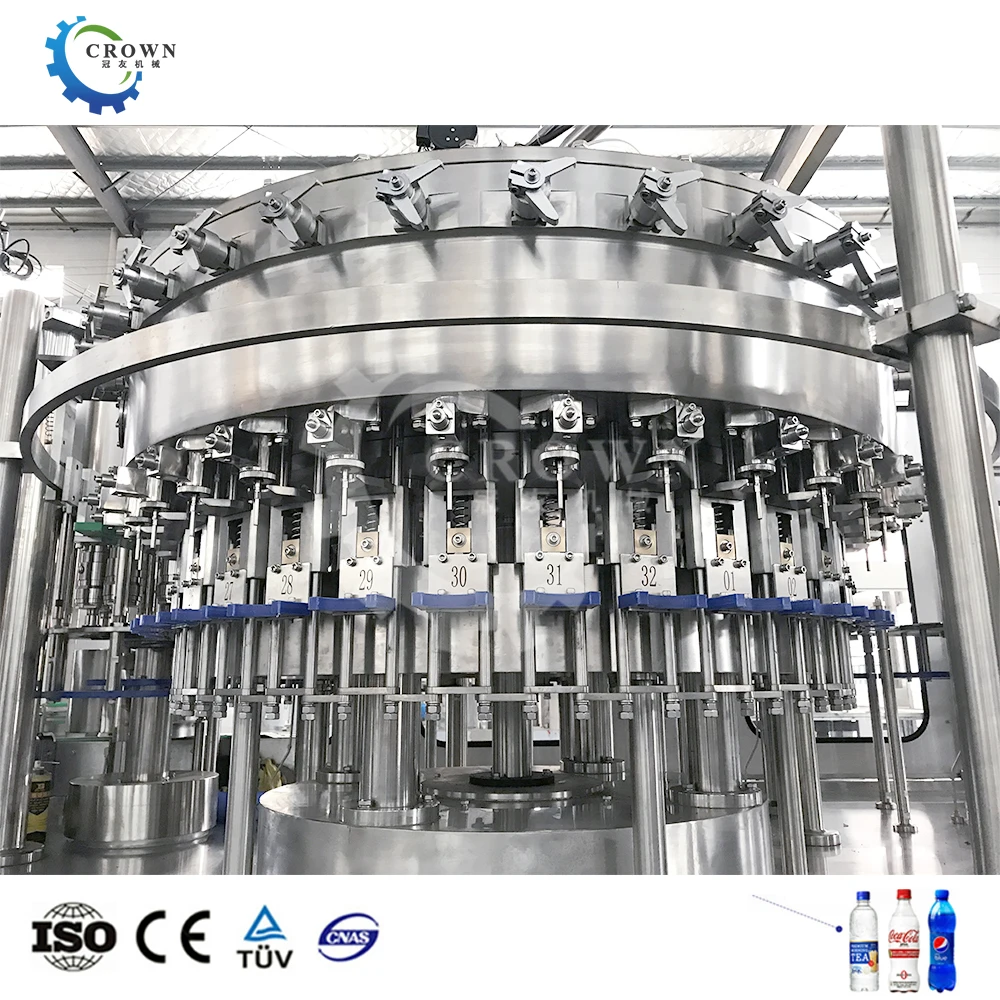

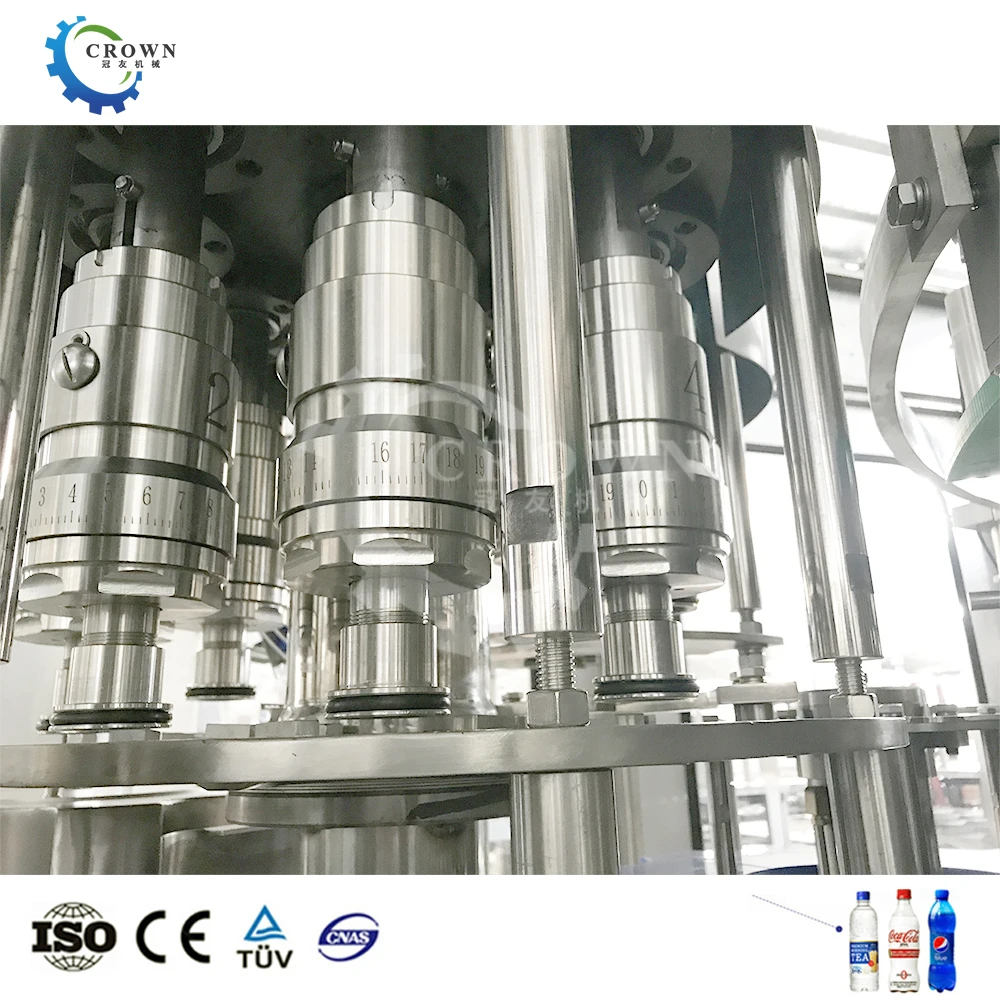

Filling heads
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

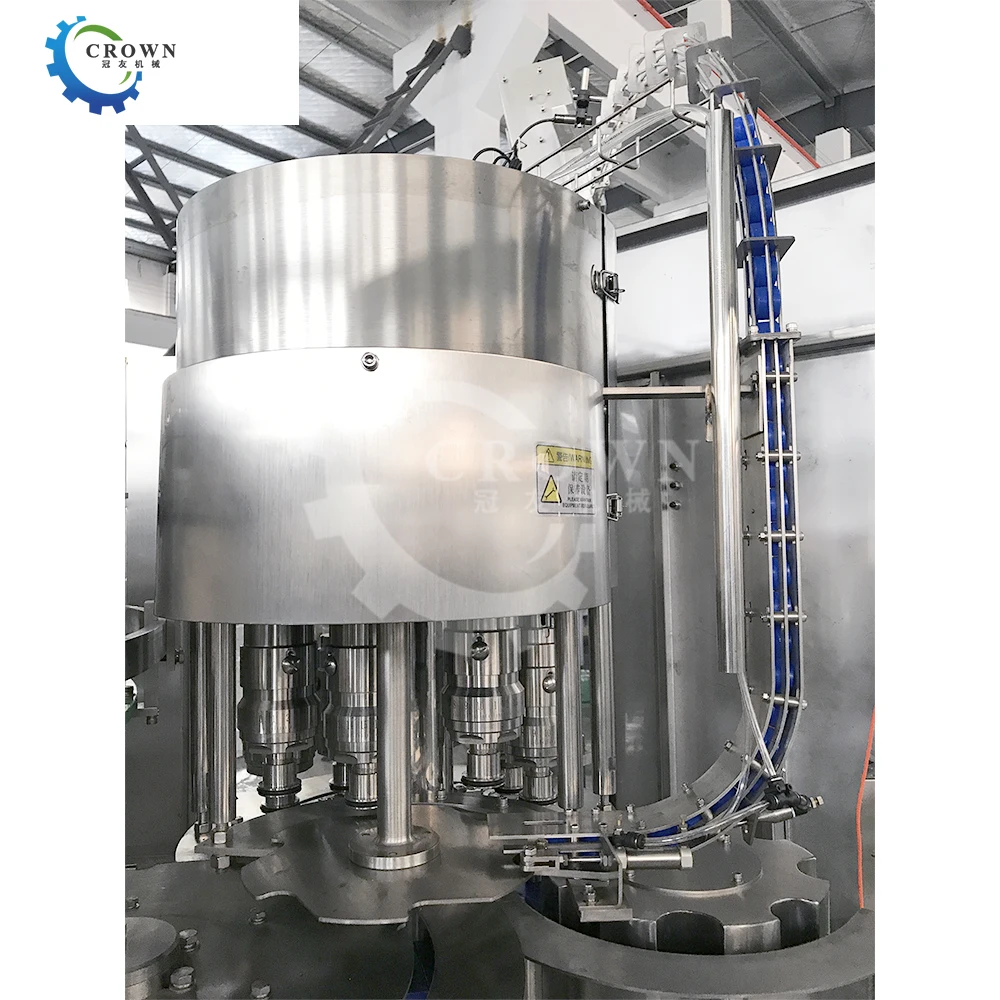

Capping heads
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate


Technical Parameter


Model
DCGF14-12-5
DCGF18-18-6
DCGF24-24-8
DCGF32-32-10
DCGF40-40-12
DCGF50-50-12
DCGF60-60-15
Washing heads
14
18
24
32
40
50
60
Filling heads
12
18
24
32
40
50
60
Capping heads
5
6
8
10
12
12
15
Capacity(B/H)
2000
5000
7000
9000
14000
18000
24000
Power（kw）
2.2
3.5
4.5
6
7.5
9.5
11.2
Dimensions
(mm)
2300*1600*2500
2600*1920*2550
3100*2100*2800
3850*3000*2850
4850*3800*2750
5750*3550*2750
6500*5500*2750
Weight
(KG)
2800
3650
4800
6800
8650
10500
12800


PET Carbonated Drink Filling Machine Benefits
(1) This machine is mainly used to fill the carbonated drink.
(2) Washing,filling and capping are available in one machine.
(3) The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
(4) The filling method adopts the isobaric filling so that the filling speed is faster and stable.
(5) Using the advanced PLC(Programmable Logic Controller) technology.
(6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON. Technical Parameters


TURNKEY SOLUTION

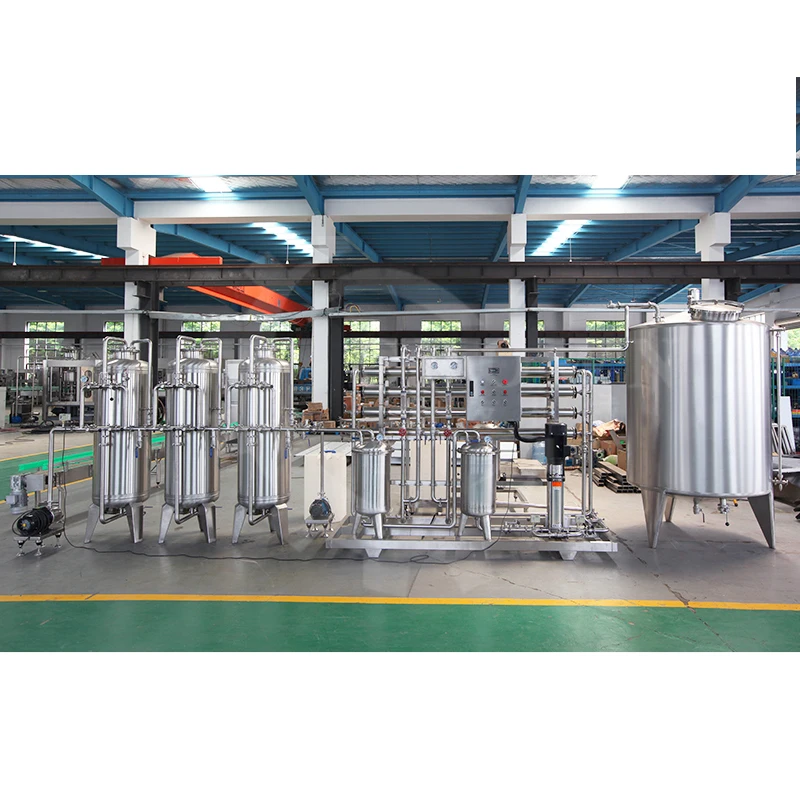

Water Treatment Part

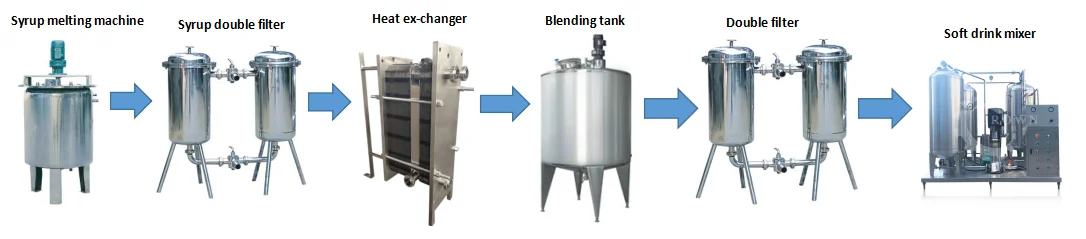

Pro-process Part

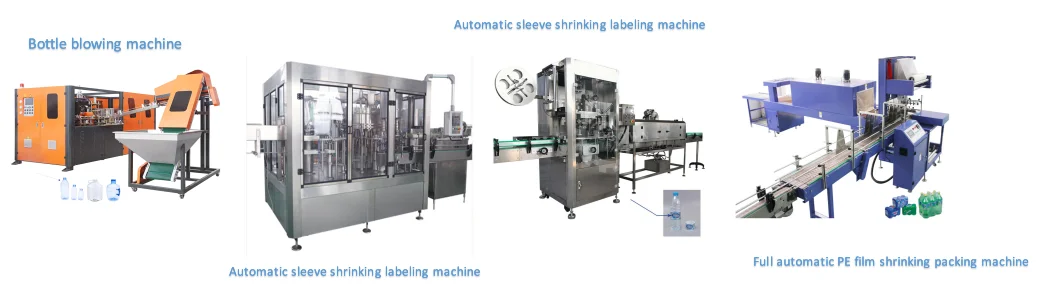

Filling and Packing Part




Application






OTHER SOLUTIONS










Click the product you interest, get the detail information!
Send us message to get more kinds of beverage filling information!

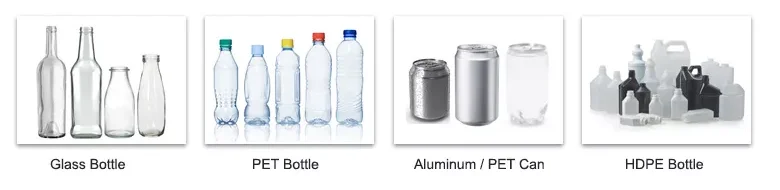

Available with customized bottle sizes

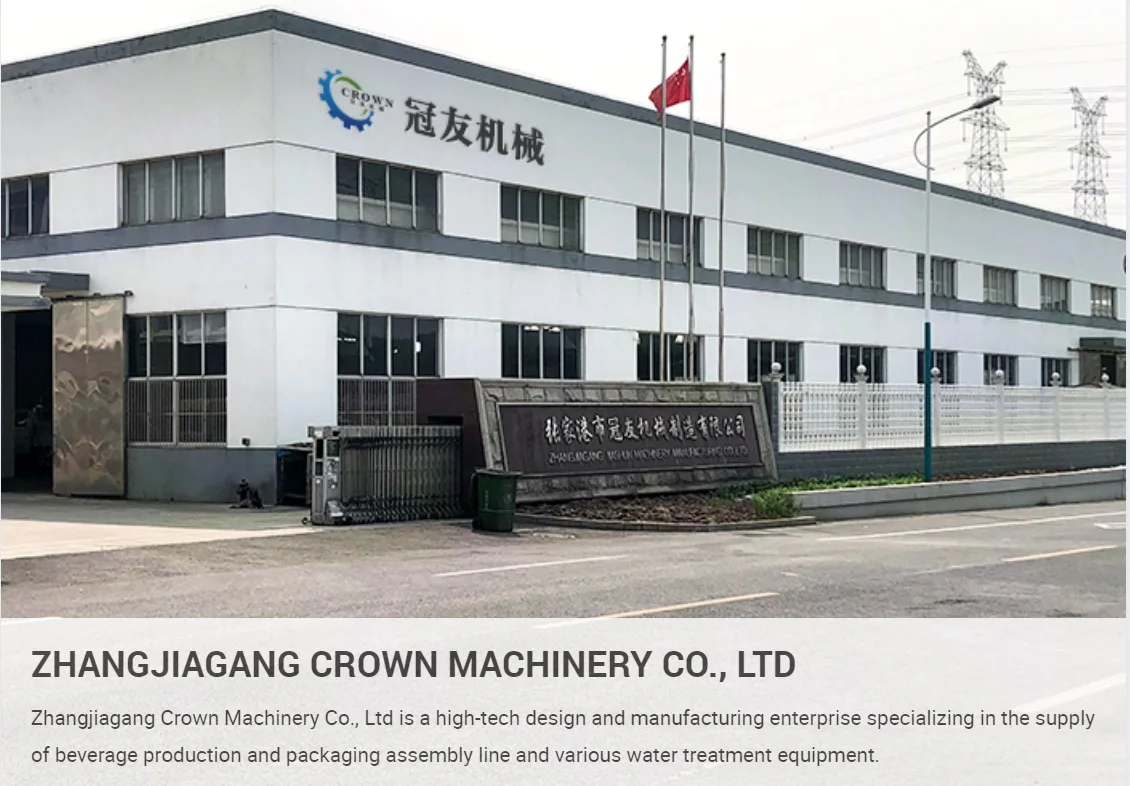

COMPANY INTRODUCTION
