Famous Brand CNCD 400Nm3/H Cryogenic Liquid Ambient Air Gas Vaporizer Air Temperature Gasifier
- Category: >>>
- Supplier: Xinxiang Chengde Energy Technology Equipment Co. Ltd.
Share on (1600617046502):
Product Overview
Description
Famous Brand CNCD 400Nm3/H Cryogenic Liquid Ambient Air Gas Vaporizer Air Temperature Gasifier

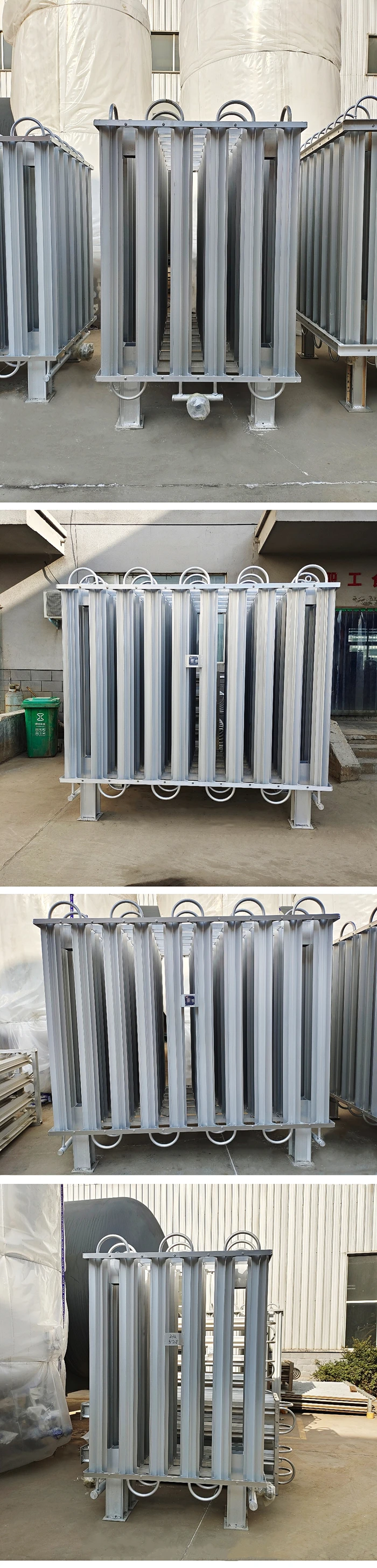

Air Ambient vaporizer this series of vaporizer uses the highly efficient star-shaped aluminum alloy fin as its main body heat transfer meter.Inside the pressure-bearing pipe among the high-pressure ambient air vaporizer and aluminum alloy fin applies the special technology,which greatly reduces the thermal resistance and improves the heat-transfer efficiency. The star-shaped aluminum alloy fins are connected with the joining piece into the diamond shape ,which ensures its stability and quality.During the working process,it' s energy ,making it more energy-saving and environmental-friendly.

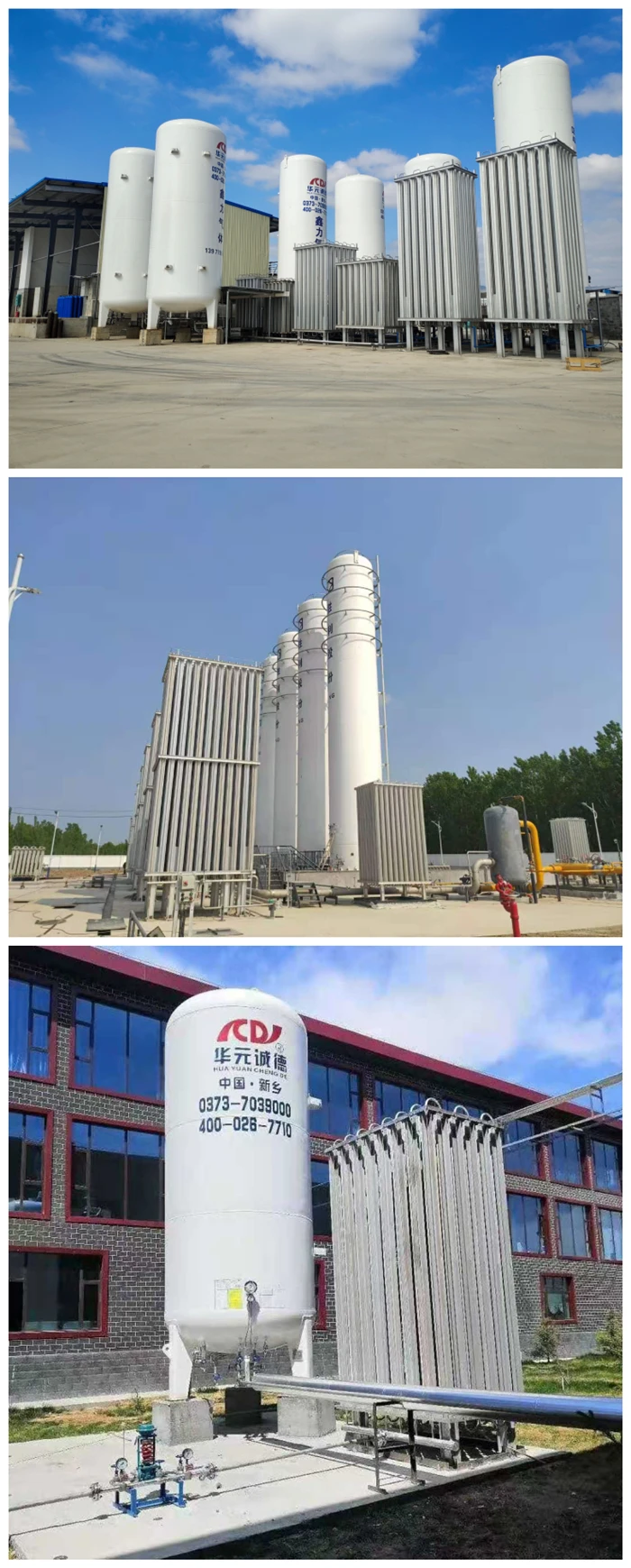

Usually the carburetor is used in conjunction with our cryogenic storage tank:
| Item Name: | Air Heated Vaporizer |
| Model No.: | KQ400/3.0 |
| Medium: | liquid oxygen,liquid nitrogen ,liquid argon,LCO2,lng,etc |
| Working pressure: | 3MPa |
| Design temperature: | -196℃ |
| Operating outlet temperature: | 10℃ below ambient |
| Heating method: | Heated by air |
| Terms of payment: | T/T, 30% deposit, 70% balance before shipment |
| Delivery time: | 15 workdays |
| MOQ: | 50 Cubic Meter/Cubic Meters |
Ambient Vaporizer advantages:
1.No energy consumption, no pollution, and environmental protection;
2.Easy to install and easy to maintain;
3.Special high-strength aluminum heat exchange, high efficiency, light design, durable;
4.Special super-large diameter special aluminum heat exchange tube, the defrosting speed is extremely fast.
| 3Mpa Model Data Reference Table | ||||
| Model | Maximum evaporation (Nm3/h) | Maximum working pressure (Mpa) | Body material | Heat transfer Area (M3) |
| KQ-50/3.0 | 50 | 3.0 | 6063-T5 | 12.5 |
| KQ-100/3.0 | 100 | 6063-T5 | 24.75 | |
| KQ-150/3.0 | 150 | 6063-T5 | 37.125 | |
| KQ-200/3.0 | 200 | 6063-T5 | 49.5 | |
| KQ-250/3.0 | 250 | 6063-T5 | 62 | |
| KQ-300/3.0 | 300 | 6063-T5 | 74 | |
| KQ-350/3.0 | 350 | 6063-T5 | 87 | |
| KQ-400/3.0 | 400 | 6063-T5 | 99 | |
| KQ-500/3.0 | 500 | 6063-T5 | 124 | |
Xinxiang Chengde Energy Technology Equipment Co., Ltd.

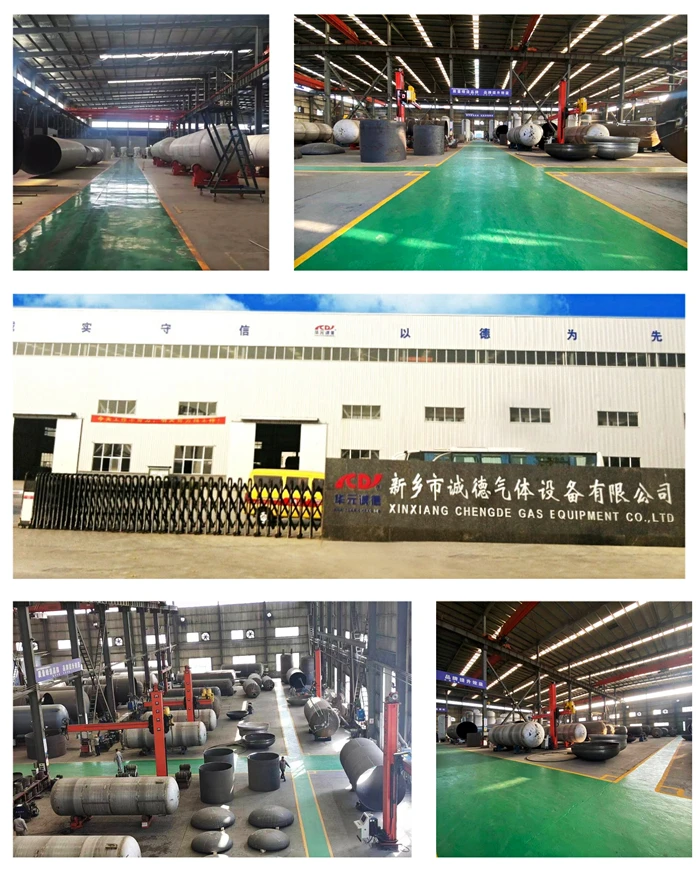

We are manufacture of cryogenic tank ,cryogenic liquid filling pump,ambient vaporizer,lng tank,lpg tank,liquid dewar cylinder ,liquid nitrogen semen tank and related products , we have our own factory ,We have more than 18 years of production experience,also have rich exported experience.We supply Industrial gas(O2,N2,Ar,CO2,LNG etc) filling stations for foreign market more than10 years.Complete gas solutions,can be provided for customers.Of course,total package for the filling station can be done by us.Including installation,comssioning and start-up etc.
We have agent in Vietnam, South Korea, Kenya, Indonesia, Pakistan,Australia, the United States, kazakhstan,also have agent in Vietnam.Cooperate with us,you need not worry about quality and after-sale Service.You can check our products in our agent factory,we can also arrange engineer help you solve all products question.
Many customers come to visit our company,they are very satisfied with our products more trust.If conditions permit, you are also welcome to visit our company to visit and exchange, I believe you will be more trust in our products, we look forward to working with you to become a long-term partner.

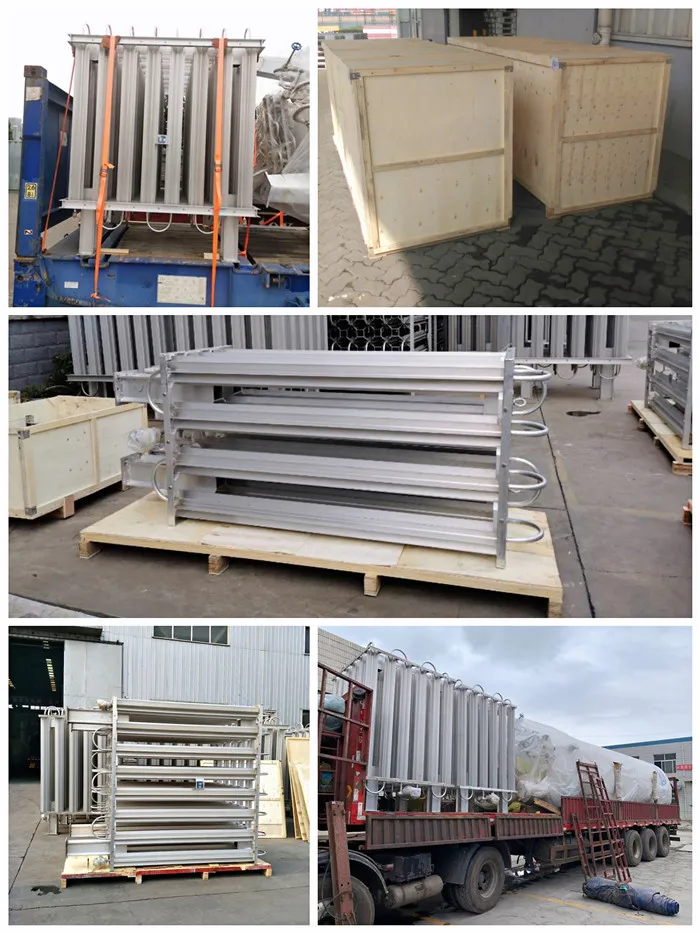

Ambient Vaporizer Packaging:
1.Standard export packaging,
2.Wooden case,
3.Bare load into container
4.Packing as requested by the customer

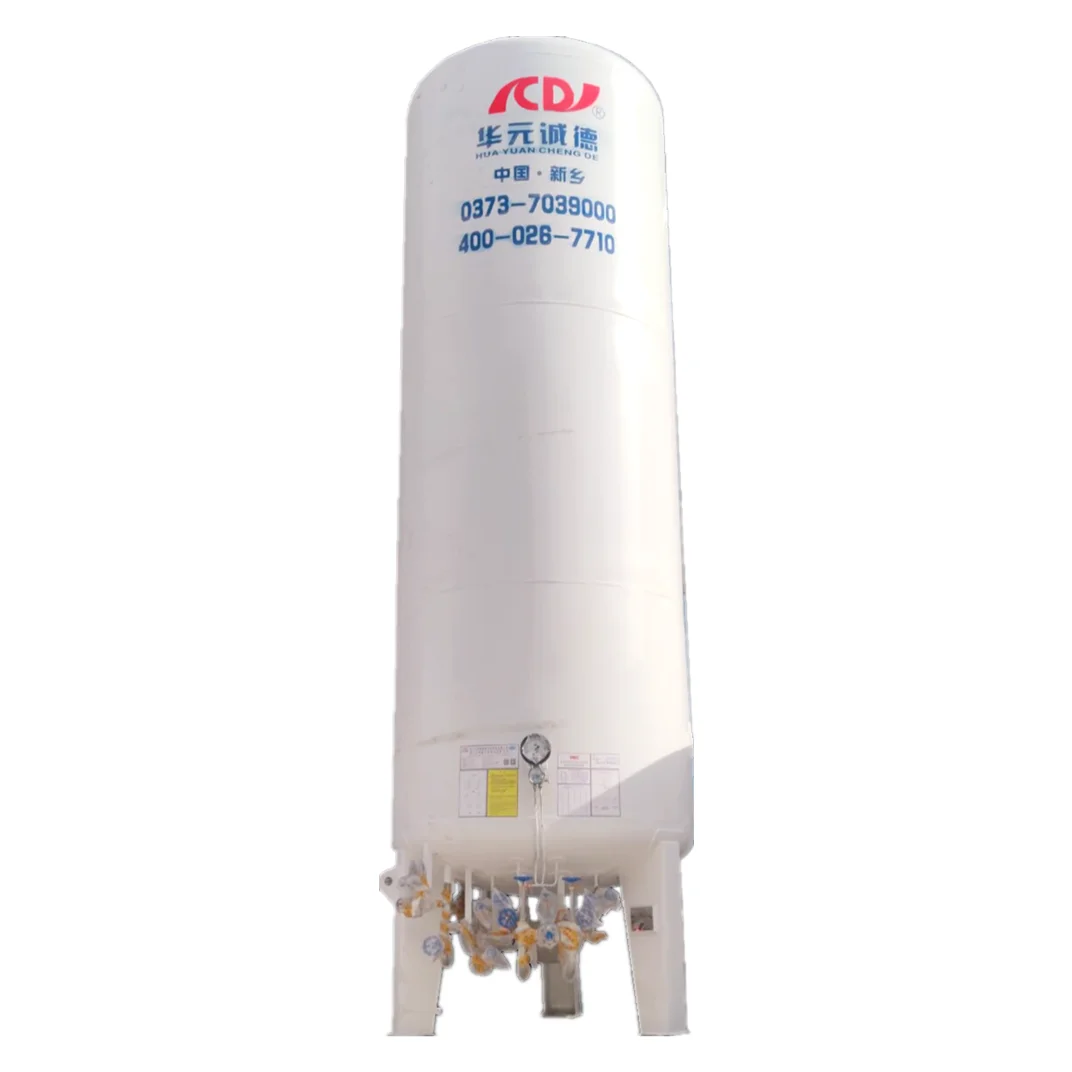

cryogenic liquid storage tank:

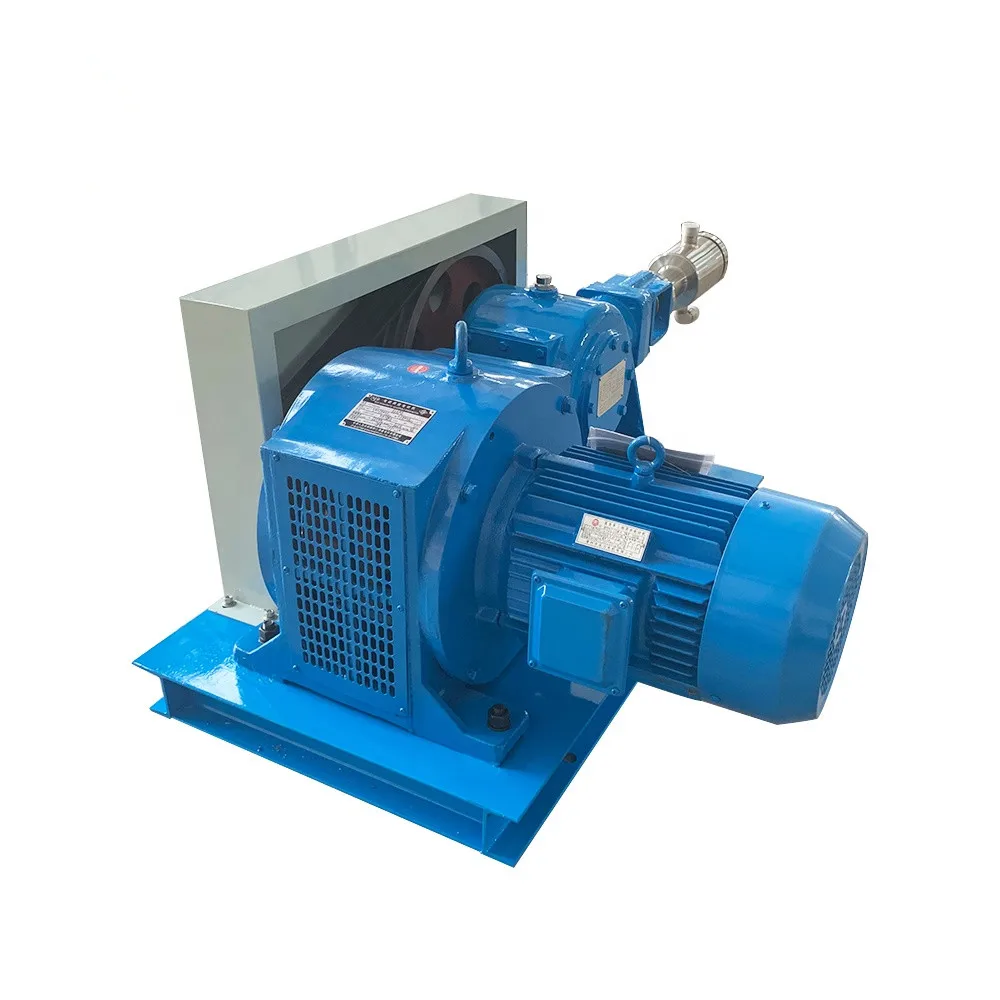

Cryogenic Pump:
If you have more questions about our products, welcome to ask us, we are happy to introduce to you.
