GZV Series small vibrating feeder magnetic Vibrating conveyor mining Feeder electromagnetic linear vibrating feeder
- Category: >>>
- Supplier: Xinxiang City Leader Machinery Co. Ltd.
Share on (1600617047414):
Product Overview
Description
Factory direct quantitative packing small gzv2 vibro hopper feeder
Product Description
Chinese GZV electromagnetic vibrating feeder is widely used in light industry, chemical industry, grain, food, grinding, and other industries, which is mainly used for processes of feeding, dosing and quantitative automatic packing, etc., and can realize control and automatic control of production process.
Technical parameter
Model | Capacity (t/h) | Double Amplitude (mm) | Frequency (r/m) | Voltage (v) | Powder (w) | Weight (kg) |
GZV1 | 0.1 | 1.5 | 3000 | 220 | 5 | 4 |
GZV2 | 0.5 | 1.5 | 3000 | 220 | 8 | 7 |
GZV3 | 1 | 1.5 | 3000 | 220 | 20 | 12 |
GZV4 | 2 | 1.5 | 3000 | 220 | 25 | 18 |
GZV5 | 4 | 1.5 | 3000 | 220 | 30 | 27 |
GZV6 | 6 | 1.5 | 3000 | 220 | 50 | 45 |

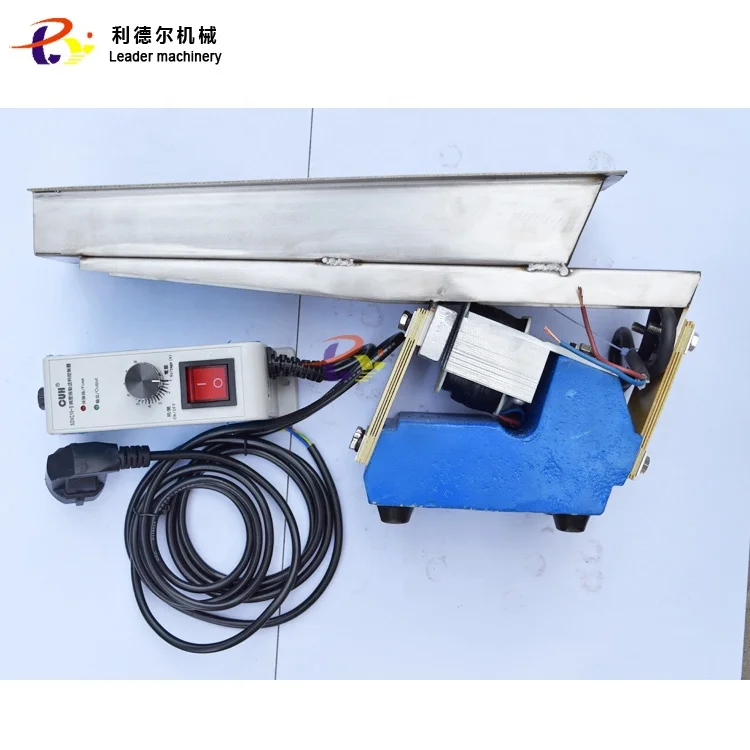

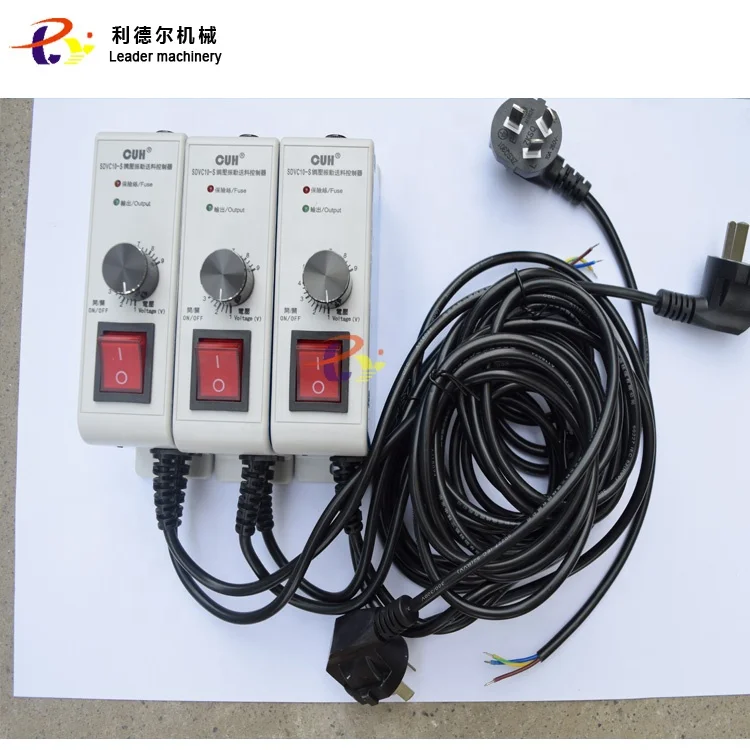

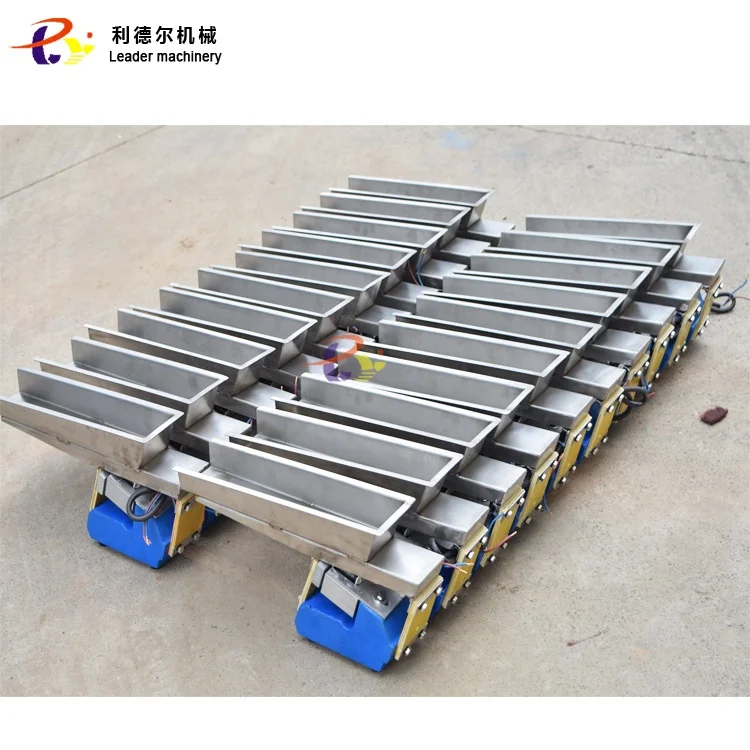

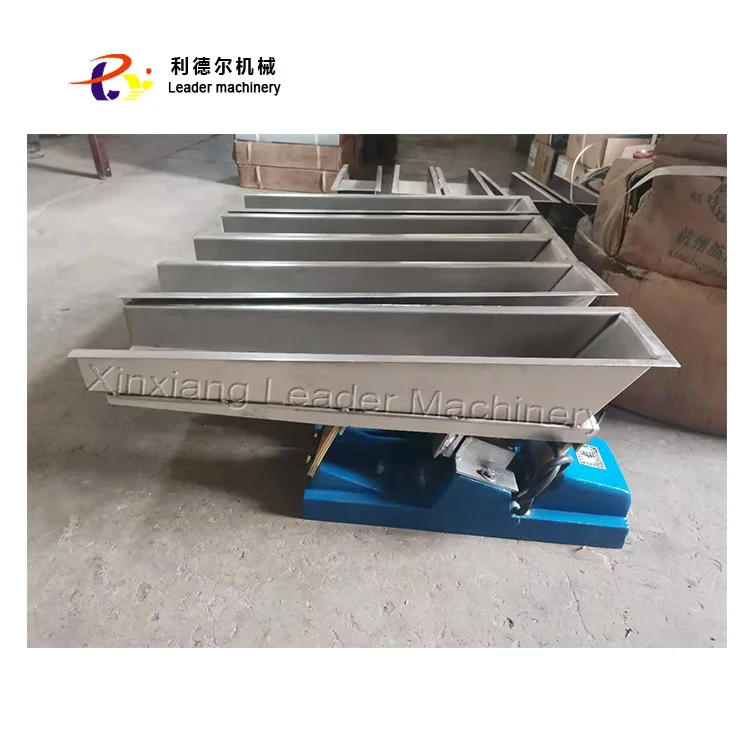

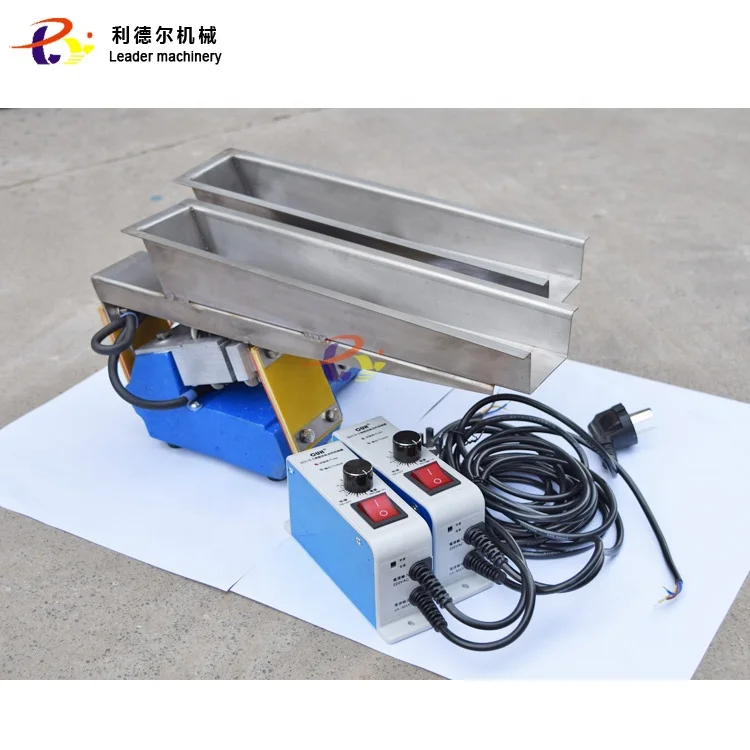

Product showcase
Product Application
Miniature electromagnetic vibrating feeder is very popular in various industries such as light industry, chemical industry, food industry and so on. It was used for the feeding of powder and granular materials, and makes the production process centralized control and automatic control be possible.
Main Feathers:
Miniature electromagnetic vibrating feeder is a new type of feeding equipment,it has the following
characteristics,when compared with other feeding device:
1) Small size, light weight, easy installation and low noise;
2) High accuracy and feeding capacity;
3) Low energy consumption;
4) Simple structure, and easy to carry and adjust;
5) Less damage to feeder.
Packaging & Shipping
Company Information
Related Products
FAQ
If you can not choose a suitable model by yourself,pl answer the following questions?
1.the feeding material_______
2.particle size _________
3.the capacity per hour ______kg/h
4.voltage supply in your country_______
