AWD-75 Petroleum Products Sealability Index Tester
SH / T 0305
Products Description
Structural Features
The instrument is composed of tapered gauge, rubber ring, host, etc. The rubber ring is made of butadiene rubber processing, its cross section is square, the inner diameter of 25±0.25mm, square section side length 1.5± 0.15mm. The taper gauge is made of alloy bearing steel, which has high machining accuracy and fully meets the requirements of the standard.

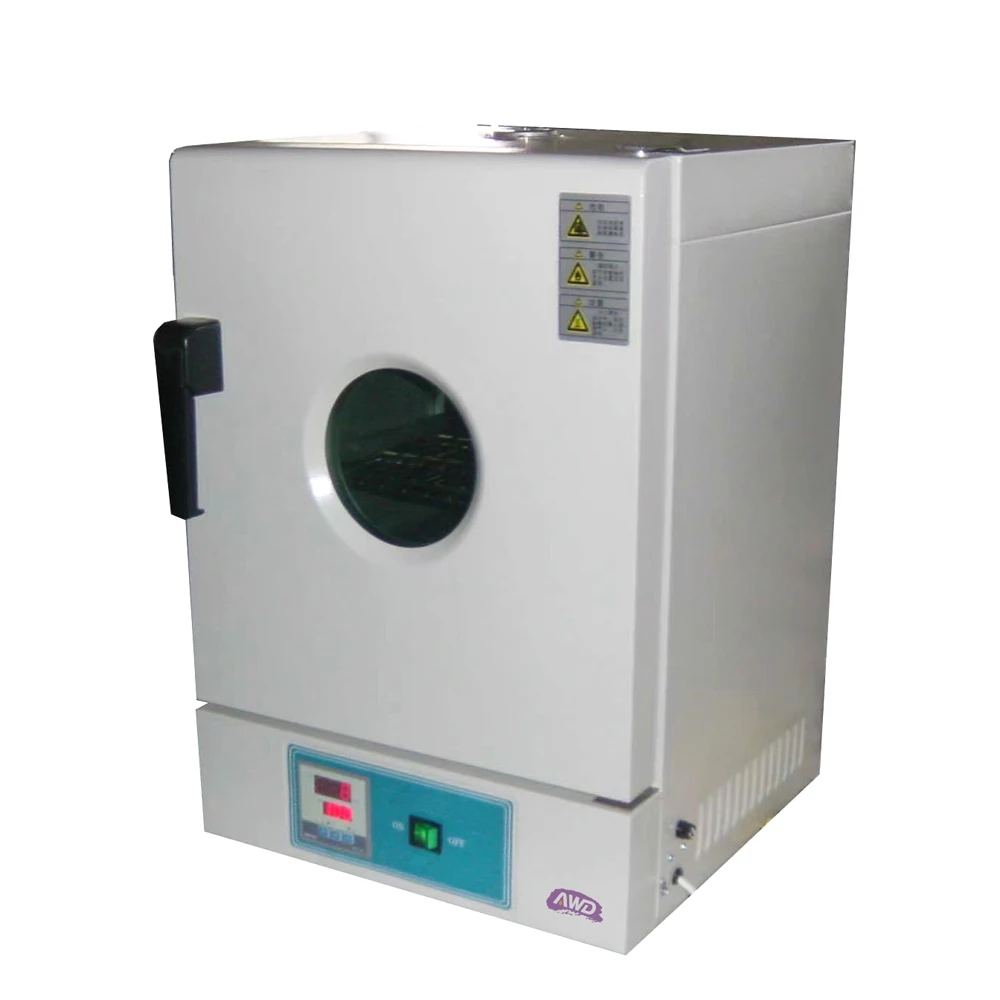

The main engine is mainly composed of shell, temperature control system, exhaust device and so on.
The inner liner of the shell is made of stainless steel, the middle of the door is equipped with a glass observation window, and the door is inlaid with a high-temperature resistant rubber strip.
The inner liner of the shell is made of stainless steel, the middle of the door is equipped with a glass observation window, and the door is inlaid with a high-temperature resistant rubber strip.
Temperature control system adopts digital temperature control table, temperature controller and sensor with time proportional adjustment function. The system has small measurement error and high temperature control accuracy.
The exhaust valve is set on the upper side of the studio, which can discharge the moisture released by the heater out of the box at any time during the working process.
Lock type elastic adjustable door lock to ensure good sealing.
Product Paramenters
No. | Tech Indicator | Description |
1 | Power | AC220V±10% 50Hz (Can be changed to your country request) |
2 | Heating Power | 800W |
3 | Temperature Control Accuracy | ±1℃ |
4 | Temperature Control Range | Room Temperature +10℃~300℃ |
5 | Rubber Ring | Square Section Inner Diameter 25±0.25mm Square Section Side Length 1.5±0.15mm |
6 | Cone Gauge | Alloy Bearing Steel |
Standard Accessories
No. | Description | Note | Unit | Qty |
1 | Certification & Operation Video | Copy | 1 Each | |
2 | Main Part | Set | 1 | |
3 | Baffle Board | With 2 Pieces Bracket Sleeve | Set | 1 |
4 | Stainless Steel Disc | 24.5x24.5x2cm | Piece | 1 |
5 | Nitrile Butadiene Rubber Ring | Piece | 40 | |
6 | Fuse | Piece | 2 | |
7 | Cone Gauge | Piece | 1 | |
8 | Bamboo Tweezer | Length 150~200mm | Piece | 1 |
9 | 250ml Wide Mouth Bottle | With grinding cap, the diameter of the bottle mouth is not less than 40mm | Piece | 2 |
10 | Measuring Cylinder | 50ml | Piece | 1 |
11 | Thermometer | GB-49 (-20~150℃) | Piece | 1 |
12 | Thermometer Plug | Piece | 1 |
