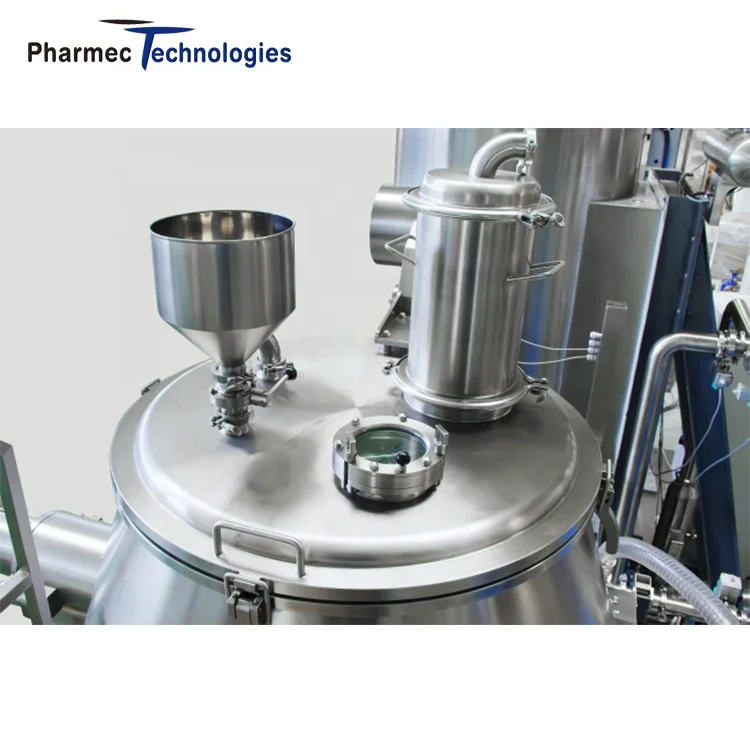

Pharmaceutical High Shear Mixing Granulator Wet Type Powder Mixer Granulator Machine
- Category: Chemical Machinery & Equipment >>>
- Supplier: Pharmec,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Application
The machine is widely used in such industries as drug, food, dairy products, chemical industry, etc. It is a process machine widely applied during production, for example, the production of tablets, capsules, granules, and other wet granules. It has many functions such as mixing, granulating, etc.
Working Principle
The materials are fed into the granulating pot through the vacuum feeder or lifting feeder. After the action of centrifugal force of mixing paddle, the pressure liquid supply system injects the adhesive through the spray gun. Meanwhile, the cutter rotates at a high speed. The materials are bonded into hollow granules in the pot and discharged to the next procedure (granule sizing or drying) after the granulating is finished.
Structural Features
* The main machine adopts the most advanced design concept of SAR LABORTECNIC Company.The pot is of a conical structure.
* As the pot diameter is large, the granules formed are more even. Material reproducibility is ensured reliably.
* The interval between the pot and mixing paddle is controlled to be within 1.5mm. There are no material residues at the bottom of the pot.
* The machine is provided with the terminal control system to provide reliable guarantee for granulating reproducibility.
* It combines gas seal and mechanical seal. It is also provided with gas seal pressure upper and lower limits inspection.
* As the pot diameter is large, the granules formed are more even. Material reproducibility is ensured reliably.
* The interval between the pot and mixing paddle is controlled to be within 1.5mm. There are no material residues at the bottom of the pot.
* The machine is provided with the terminal control system to provide reliable guarantee for granulating reproducibility.
* It combines gas seal and mechanical seal. It is also provided with gas seal pressure upper and lower limits inspection.
Technical Parameters
Model | PT- GHL-10 | PT- GHL-25 | PT- GHL-50 | PT-GHL100 | PT- GHL-150 | PT-GHL200 | PT- GHL-300 |
Container volume(L) | 10 | 25 | 50 | 100 | 150 | 200 | 300 |
Working volume(L) | 4-8 | 10-20 | 20-40 | 40-80 | 60-120 | 80-160 | 100-240 |
Mixing speed (rpm) | 10-600 | 5-420 | 5-355 | 5-287 | 5-240 | 5-223 | 5-200 |
Wet mill power (KW) | -- | 0.75 | 0.75 | 0.75 | 1.5 | 3 | 3 |
Compressed air consumption m3/min | 0.03 | 0.05 | 0.05 | 0.1 | 0.1 | 0.2 | 0.2 |
Model | PT-GHL-400 | PT-GHL-500 | PT-GHL-600 | PT-GHL-800 | PT-GHL-1000 | PT-GHL-1200 |
Container volume(L) | 400 | 500 | 600 | 800 | 1000 | 1200 |
Working volume(L) | 160-320 | 200-400 | 240-480 | 320-640 | 400-800 | 480-960 |
Mixing speed (rpm) | 5-185 | 3-172 | 3-162 | 3-148 | 3-140 | 3-133 |
Wet mill power (KW) | 3 | 4 | 4 | 4 | 5.5 | 5.5 |
Compressed air consumption m3/min | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Material | Stainless Steel |
Customized | Accept |
Service | OEM and ODM |
Package | Standard wooden packing for sea shipping |
