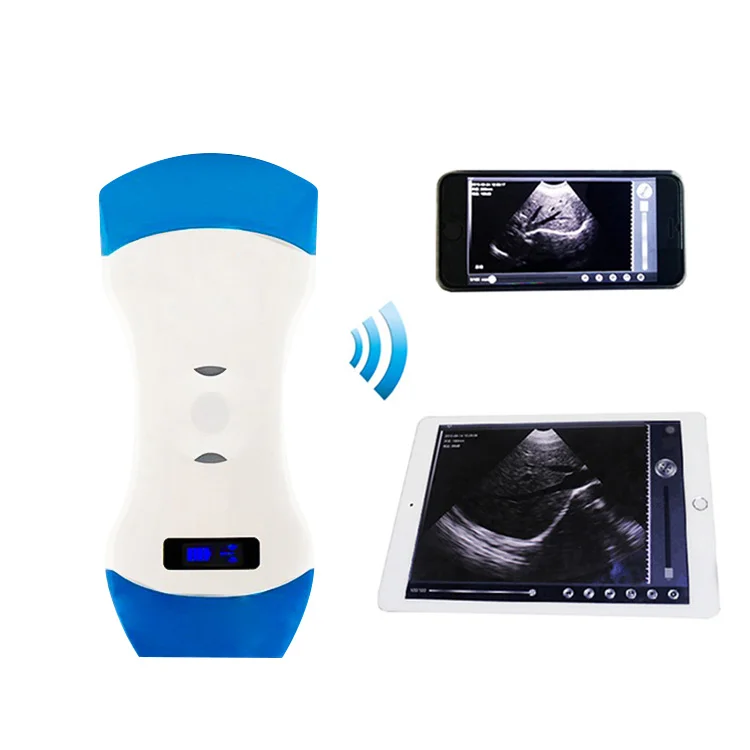

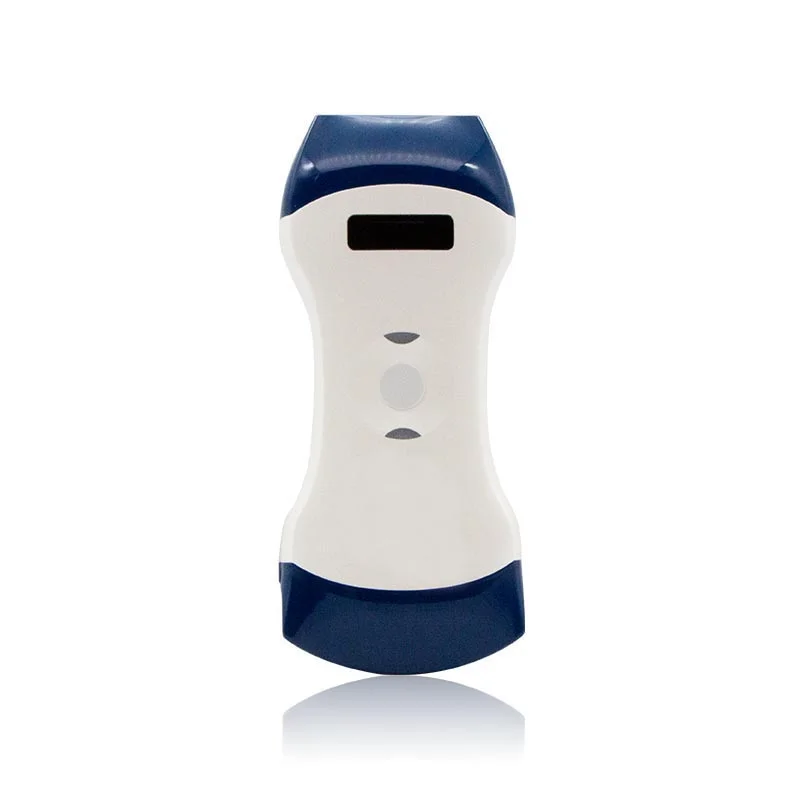

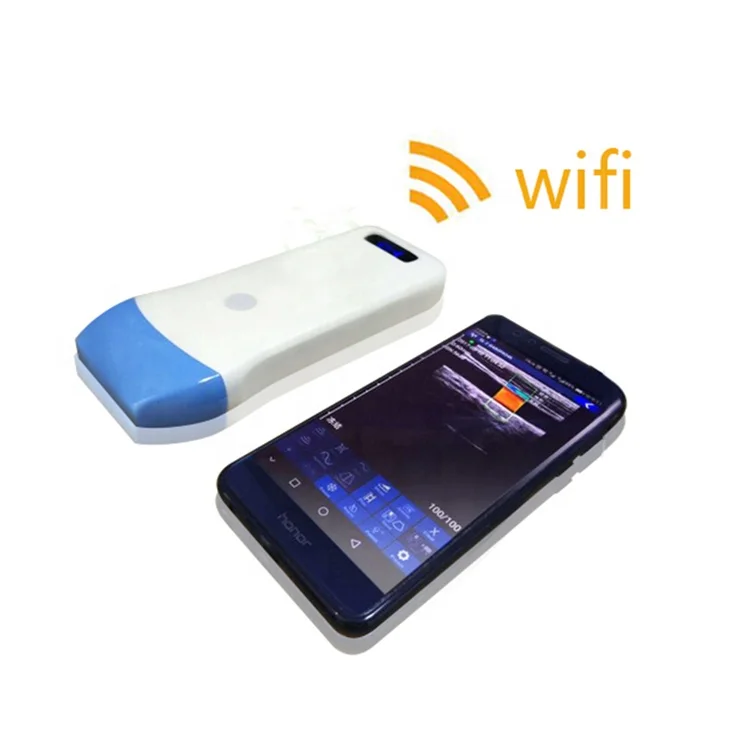

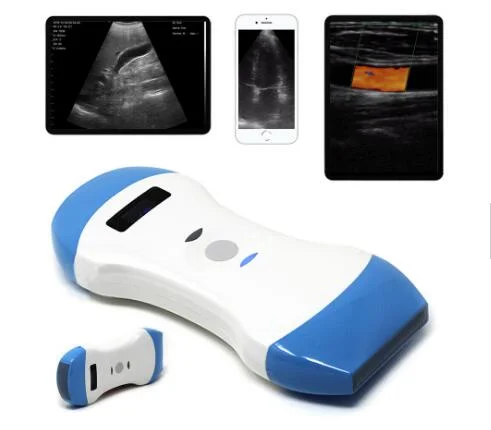

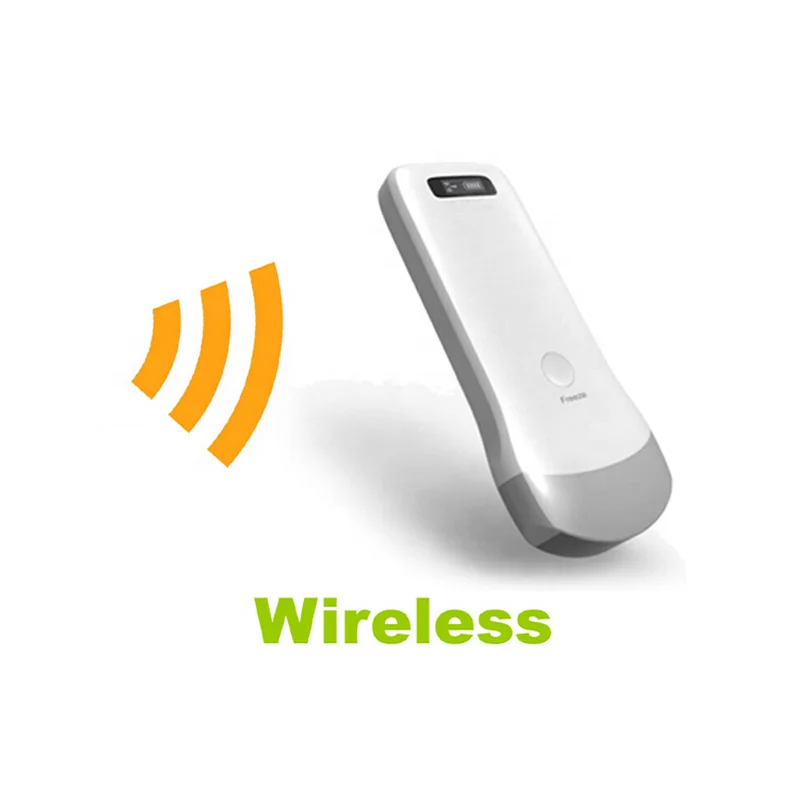

Portable Ultrasound Scanner Doppler Micro Convex USB Wifi Color Wireless Probe Ultrasound Probes
- Category: >>>
- Supplier: Nanjing AMIS Medical Technology Co. Ltd.
Share on (1600617155659):
Product Overview
Description
Product Display
Product Details
Specifications | ||

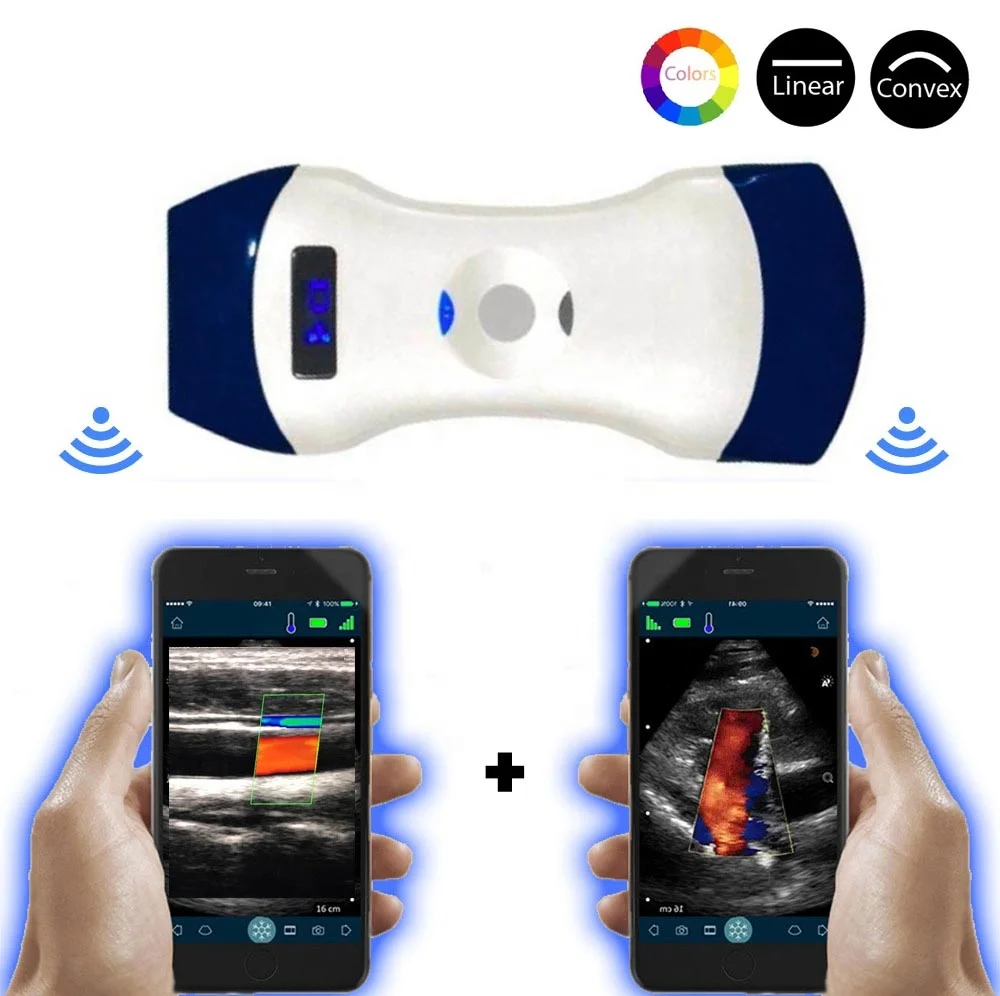

Probe Type | Convex Probe, Linear Probe,Phased array(cardiac) Probe | |
Display mode | B, B/M, Color doppler version with B+Color, B+PDI, B+PW | |
Probe element | 128 | |
Channel of RF circuit board | 32 | |
Convex Probe frequency | 3.5MHz/5MHz | |
Convex Probe scan depth | 90/160/220/305mm | |
Convex Probe head radius/width | 45mm | |
Convex Probe scan angle | 50° | |
Phased array(cardiac) Probe frequency | 3.5MHz/5MHz | |
Phased array(cardiac) Probe scan depth | 90/160/220/305mm | |
Phased array(cardiac) Probe head radius/width | 45mm | |
Phased array(cardiac) Probe scan angle | 80° | |
Linear Probe frequency | 7.5MHz/10MHz | |
Linear Probe scan depth | 20/40/60/100mm | |
Linear Probe head radius/width | 40mm | |
BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, | ||
Color Gain, Steer, PRF | ||
Cineplay | auto and manual, frames can set as 100/200/500/1000 | |
Puncture assist function | the function of in-plane puncture guide line, | |
out-of-plane puncture guide line, automatic blood vessel measurement. | ||
Measure | Length, Area, Angle, heart rate, Obstetrics | |
Image save | jpg, avi and DICOM format | |
Image frame rate | 18 frames/second | |
Battery working time | 2.5 hours(according to whether keep scan) | |

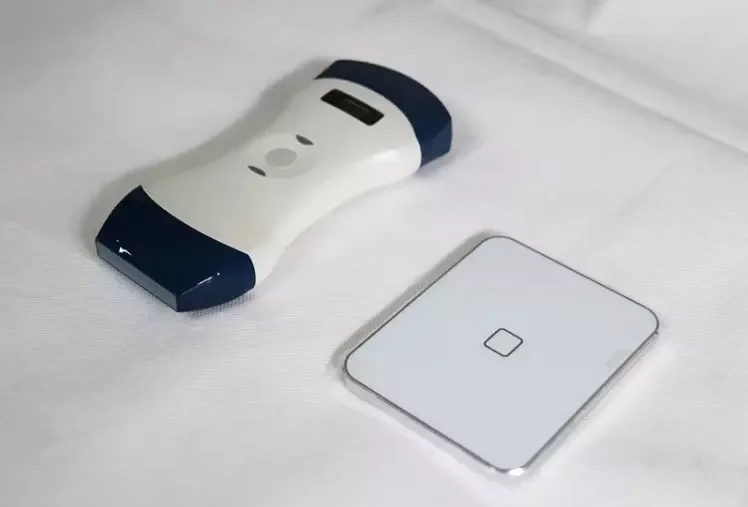

Battery charge | by wireless charge, take 2 hours | |
Working system | Apple iOS and Android, Windows | |
Wifi type | 802.11g/20MHz/5G/450Mbps | |

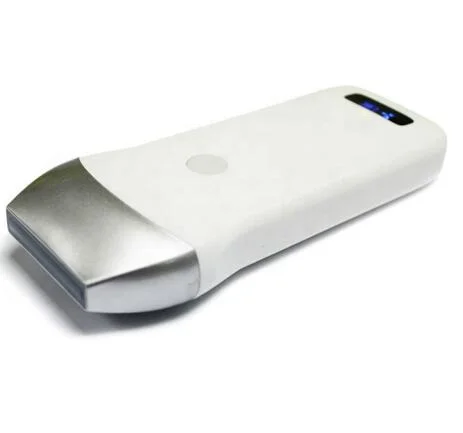

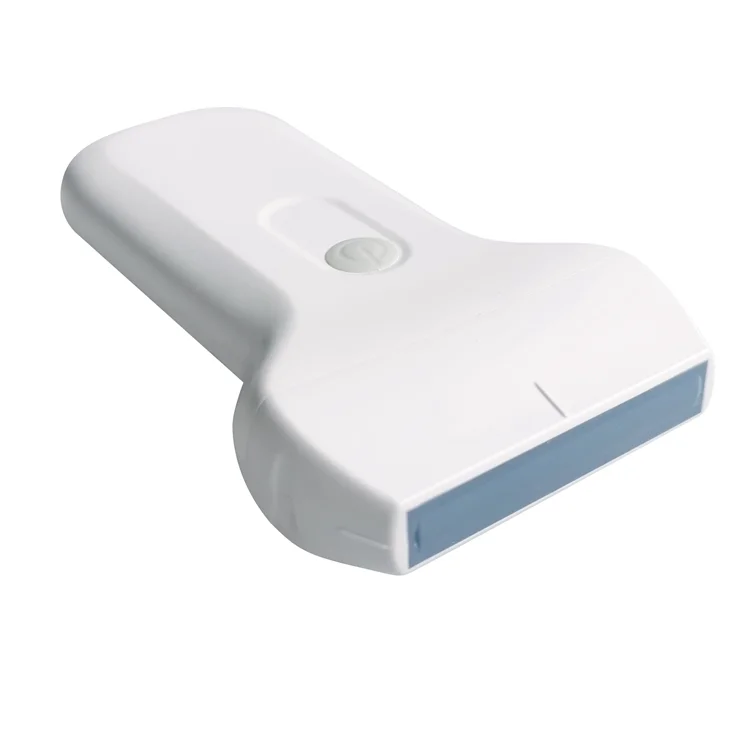

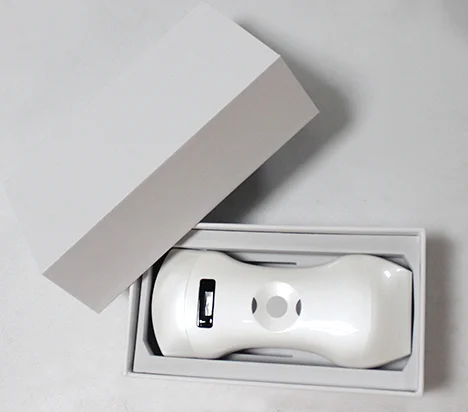

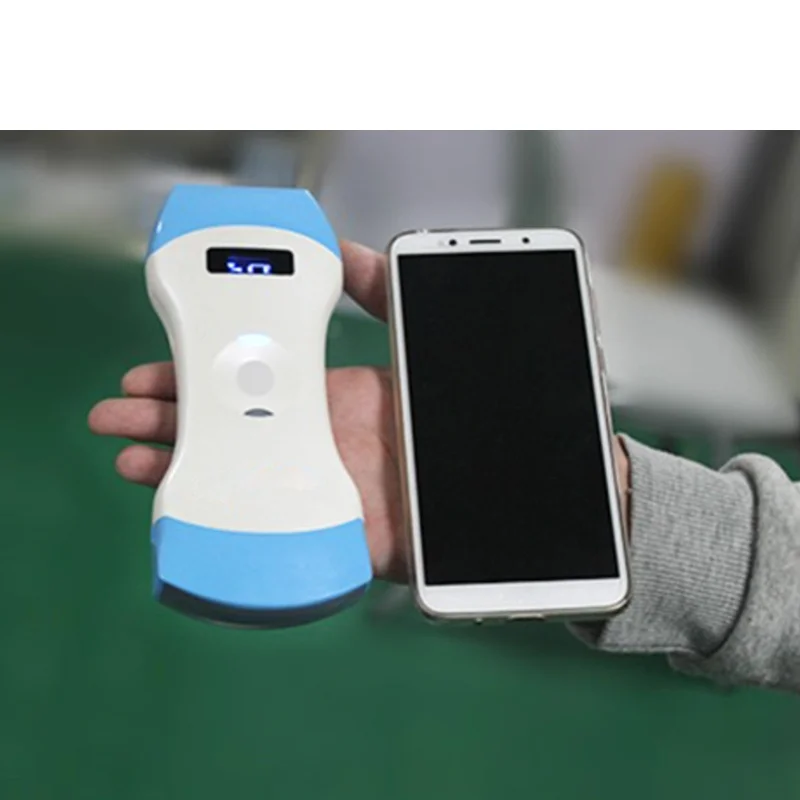

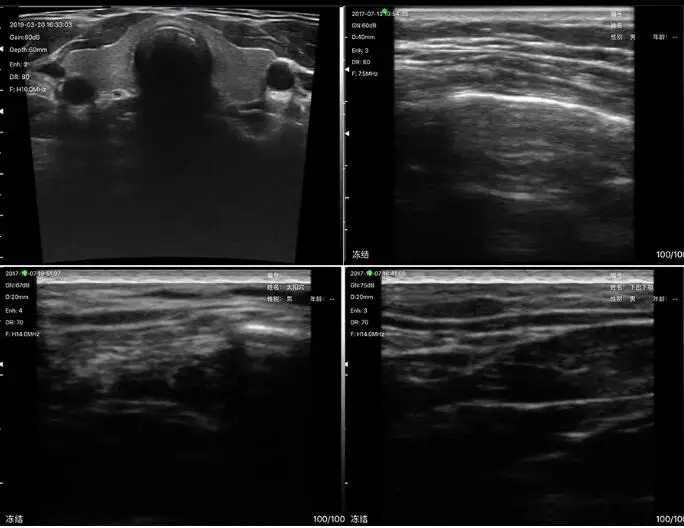

Detail Image

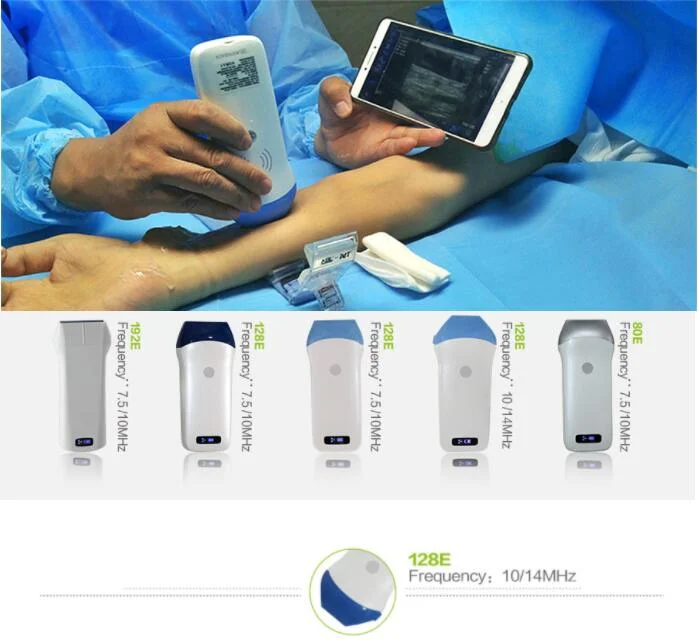

Application
