Original New WiFi Module Wireless ESP32 S2 WROOM ESP32 S2 Chip PCB and IPEX Antenna for IoT M2M and Smart Home
- Category: >>>
- Supplier: Shenzhen Manfri Electronic Technology Co. Ltd.
Share on (1600617216162):
Product Overview
Description
Original New WiFi Module Wireless ESP32-S2-WROOM ESP32-S2 Chip PCB and IPEX Antenna for IoT M2M and Smart Home
Product Description
CPU and On-Chip Memory
• ESP32-S2 embedded, Xtensa® single-core 32-bit LX7 microprocessor, up to 240 MHz
• 128 KB ROM
• 320 KB SRAM
• 16 KB SRAM in RTC
Technical Parameters

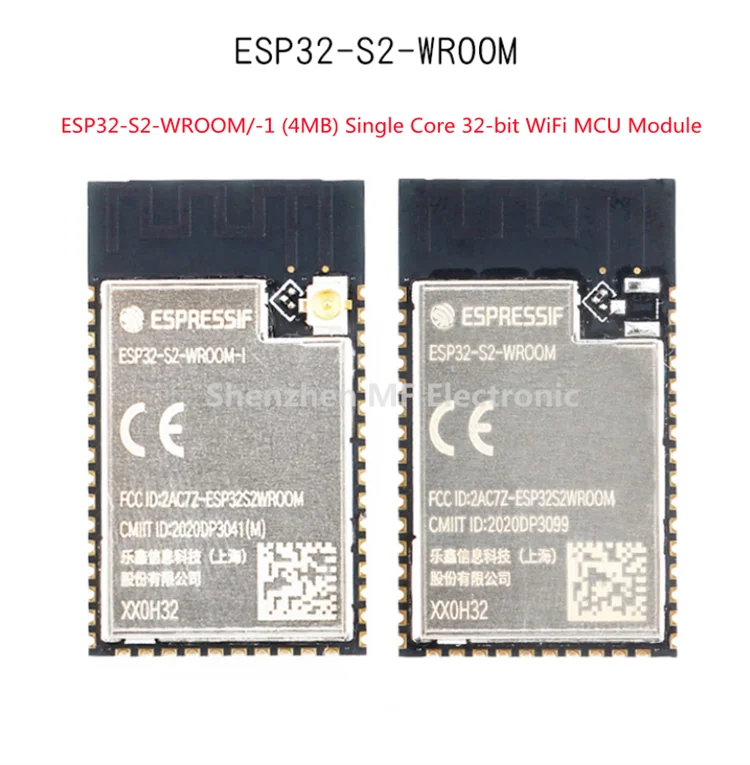

Model | ESP32-S2-WROOM | ESP32-S2-WROOM-I |
Antenna | On-board PCB Antenna | External antenna via a connector |
Size | 18*31*3.3mm | 18*31*3.3mm |
Model | ESP32-S2-WROOM/ ESP32-S2-WROOM-I |
Chip | ESP32-S2 |
Wi-Fi Wireless Standard | IEEE 802.11 b/g/n |
SPI Flash | 4MB |
Bit Rate | 802.11n up to 150 Mbps |
Aggregation | A-MPDU and A-MSDU aggregation |
Guard Interval Support | 0.4 µs |
Operating Frequency | 2412~2484MHz |
Integrated Components on Module | 40 MHz Crystal Oscillator |
Power Supply | 3.0~3.6V |
Test | HTOL/HTSL/uHAST/TCT/ESD |
Application | Smart Agriculture, Smart Home, etc. |
Operating Ambient Temperature | -40~85°C |
Detailed Images
