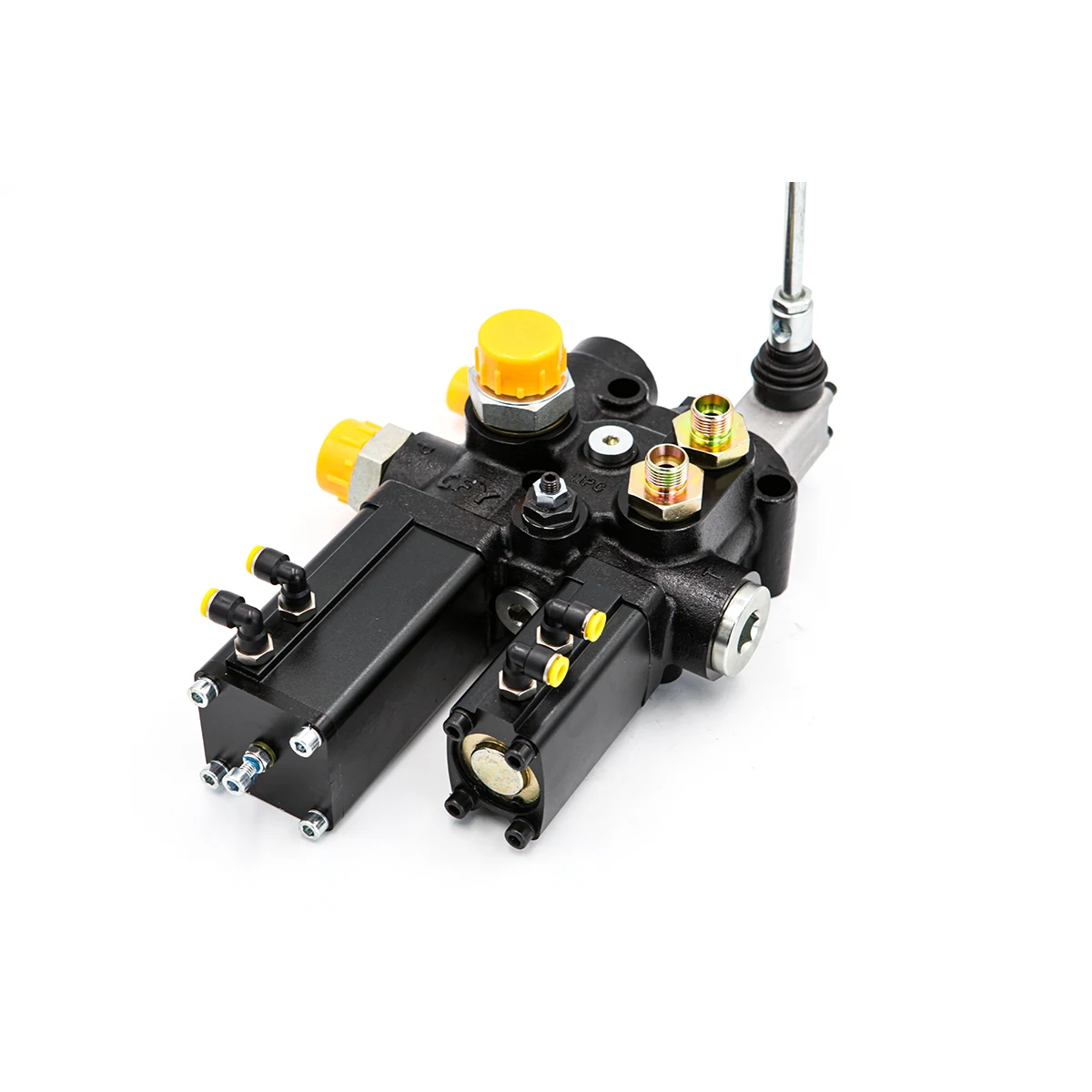

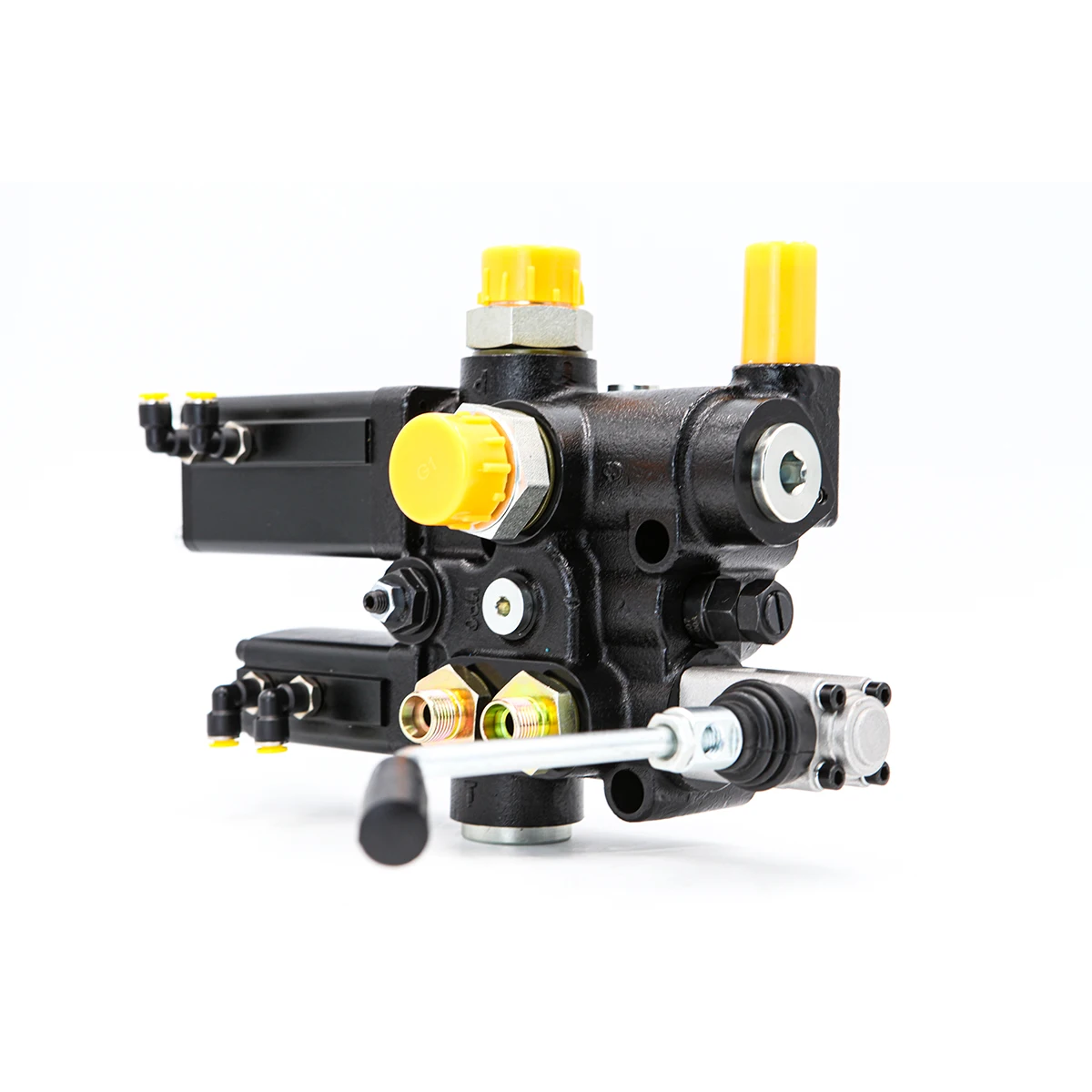

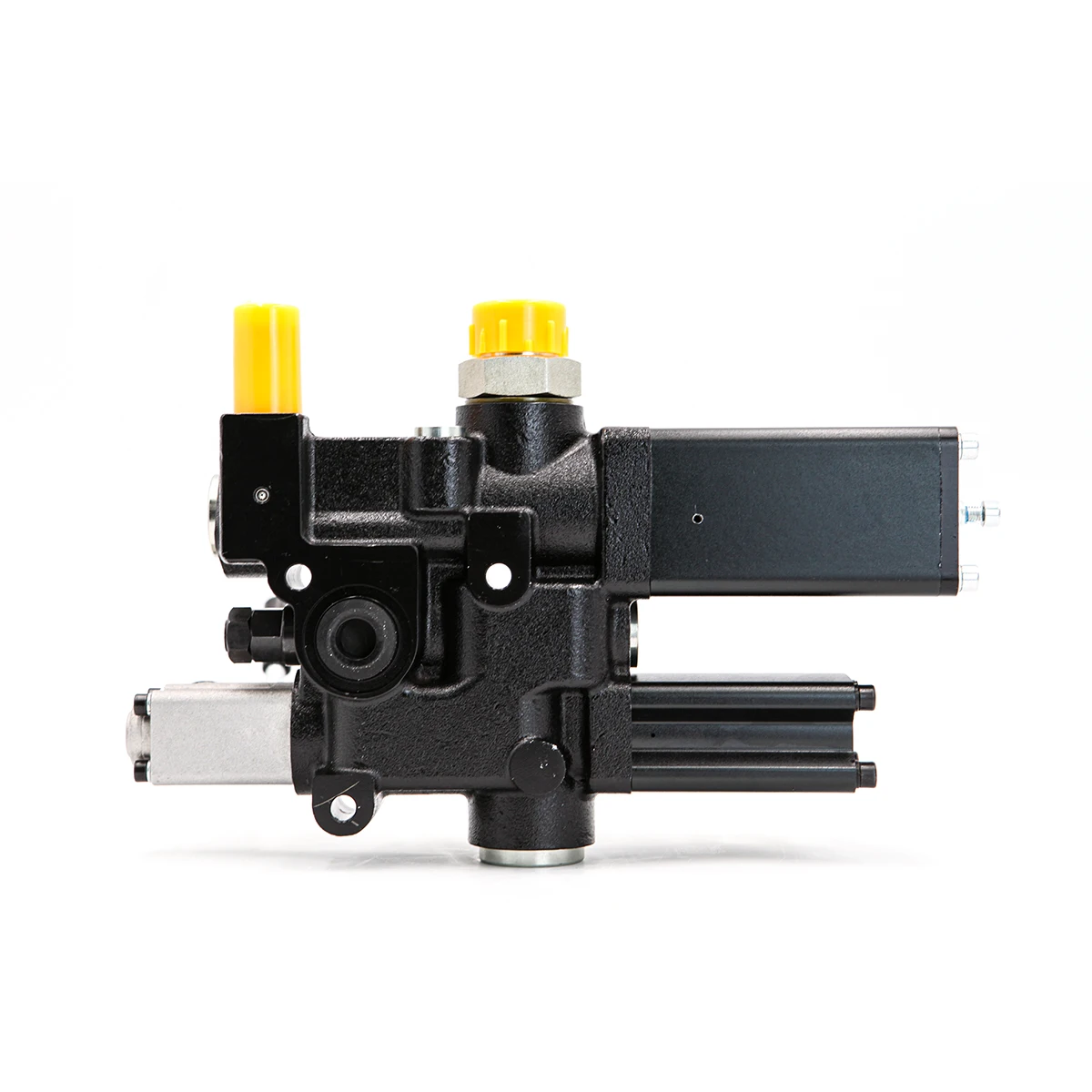

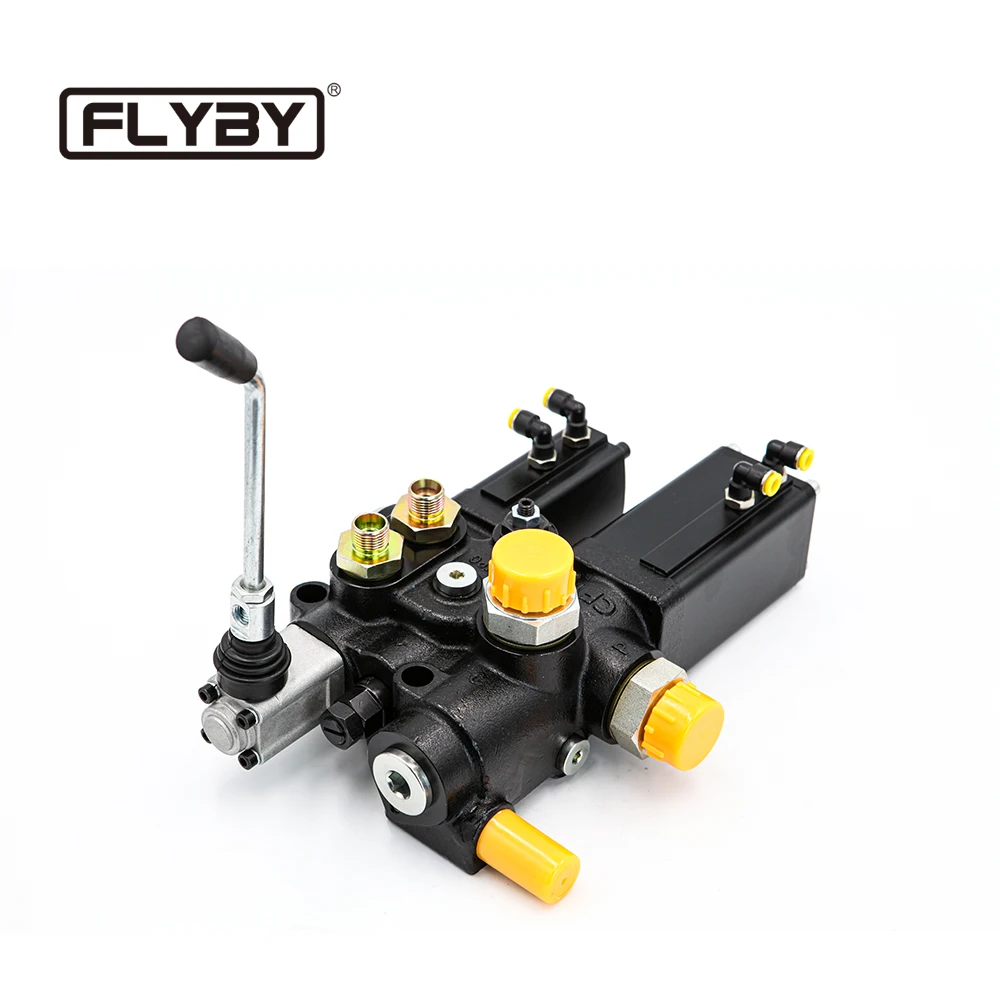

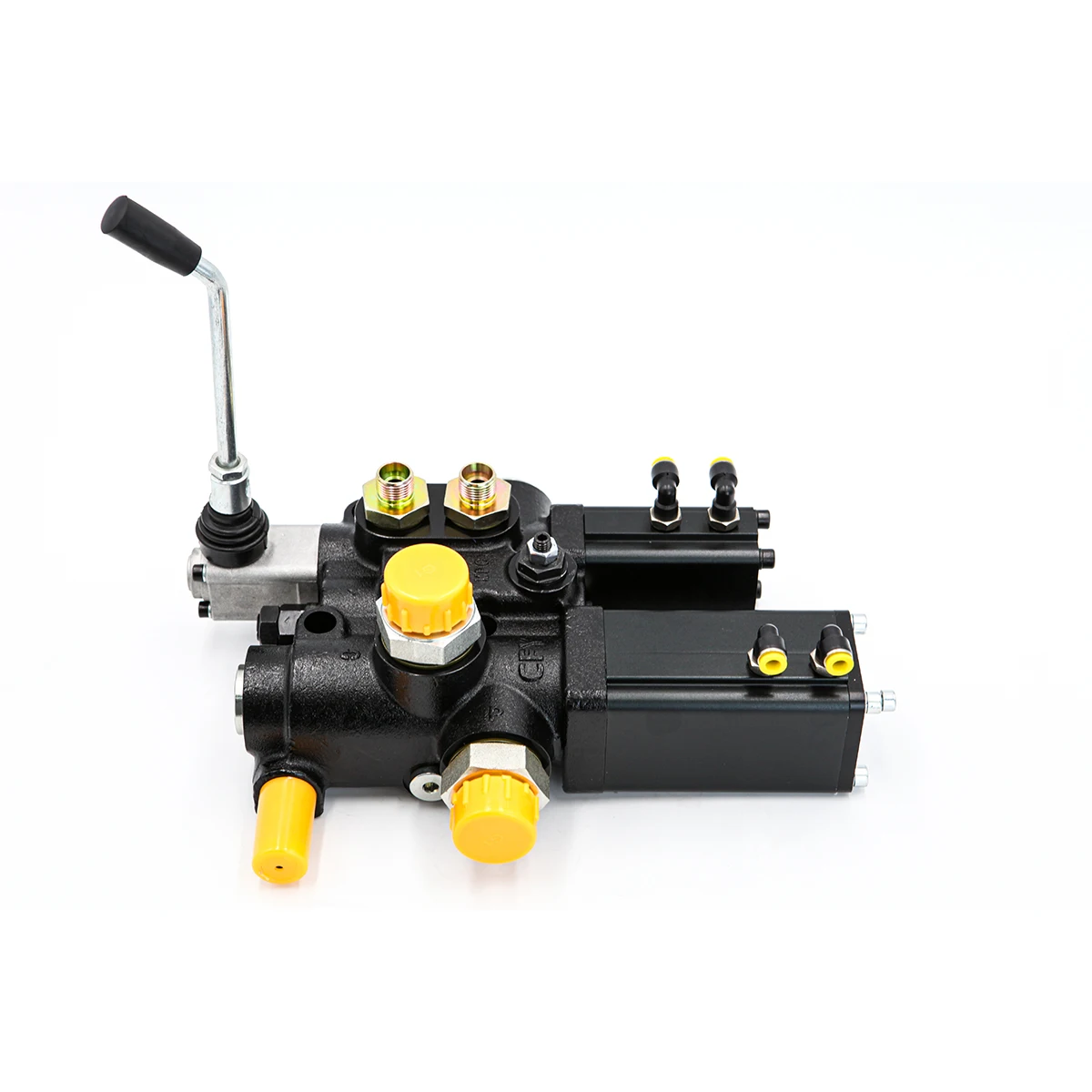

Manual reversing valve tubular hydraulic valve QSYX F20L
- Category: >>>
- Supplier: Weifang Chengfeiyue Hydraulic Machinery Co. Ltd.
Share on (1600617286306):
Product Overview
Description
Products Description
CFY Tipping valve：
This valve is a slide valve with a median bypass, When the valve falls back, pneumatic pilot valves can be fixed control hydraulic fluid flow. The overflow valve is independently developed and designed, this valve has big pressure opening ratio,High sensitivity and strong anti-pollution ability.
Technical parameters：
1、 Rated pressure ： 25Mpa
2、 Rated flow ： 220L/min
3、 Air pressure control ： 0.6~1Mpa
4、 Working temperature ： -20 to 80℃
5、 Working medium ： Antiwear hydraulic oil
Technical parameters：
1、 Rated pressure ： 25Mpa
2、 Rated flow ： 220L/min
3、 Air pressure control ： 0.6~1Mpa
4、 Working temperature ： -20 to 80℃
5、 Working medium ： Antiwear hydraulic oil
Name | Tipping Valve with slow down |
Material | Nodular cast iron+Aluminum |
Color | Black/Grey |
Characteristic | hard |
Length * width * height of each product (cm) | 31×15.5×7.6 |
Gross weight of each product (kg) | 6.3 |
Highlight：
In high temperature areas, we can provide fluorine seal to cope with the hot climate. The operating temperature can reach more than 100 degrees Celsius
The rated pressure can be customized.
