Introduction:
Automatic spiral oil press machine is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.It is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of screw oil expeller, they have similar theories in screw expeller pressing.
Application:
Automatic Soybean Oil Press Machine peanut extraction machine oil presser machine suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame seed, tea seed, walnut, olive, corn germ, rice bran, safflower seed, seeds of hippophae rhamnoides and so on.
Models | Handling Capacity | Power | Dimension | Weight |
GD-60 | 30kg/h | 2.2kw | 1200*800*1160mm | 230kg |
GD-70 | 40-50kg/h | 3kw | 1450*870*1180mm | 320kg |
GD-75 | 50-60kg/h | 4kw | 1400*940*1300mm | 290kg |
GD-80 | 100kg/h | 5.5kw | 1650*1500*1600mm | 565kg |
GD-100 | 200kg/h | 7.5kw | 2000*1500*1720mm | 760kg |
GD-125 | 250-300kg/h | 15kw | 2100*1500*1750mm | 920kg |
GD-130 | 200-260kg/h | 22kw | 2130*1050*2850mm | 1300kg |
GD-150 | 230-300kg/h | 26kw | 2430*1250*2850 | 1500kg |
Features:
1.High oil extraction rate -- compare with old model, multi-stage press, one time finish press, increase the oil extraction rate by 2-3%.
2.Energy saving-- compare with same capacity products, it can reduce electric power 40%, each hour can saving 6KW/H.
3.Labor saving-- compare with same capacity products, it can save labor 60%, only need 1-2 person can operating.
4.High oil purity-- vacuum filtration residue, safeguard oil purity, conform to the standard of health quarantine.
5.Cover small area-- only need 10-20 square meter can meet the use.
2.Energy saving-- compare with same capacity products, it can reduce electric power 40%, each hour can saving 6KW/H.
3.Labor saving-- compare with same capacity products, it can save labor 60%, only need 1-2 person can operating.
4.High oil purity-- vacuum filtration residue, safeguard oil purity, conform to the standard of health quarantine.
5.Cover small area-- only need 10-20 square meter can meet the use.

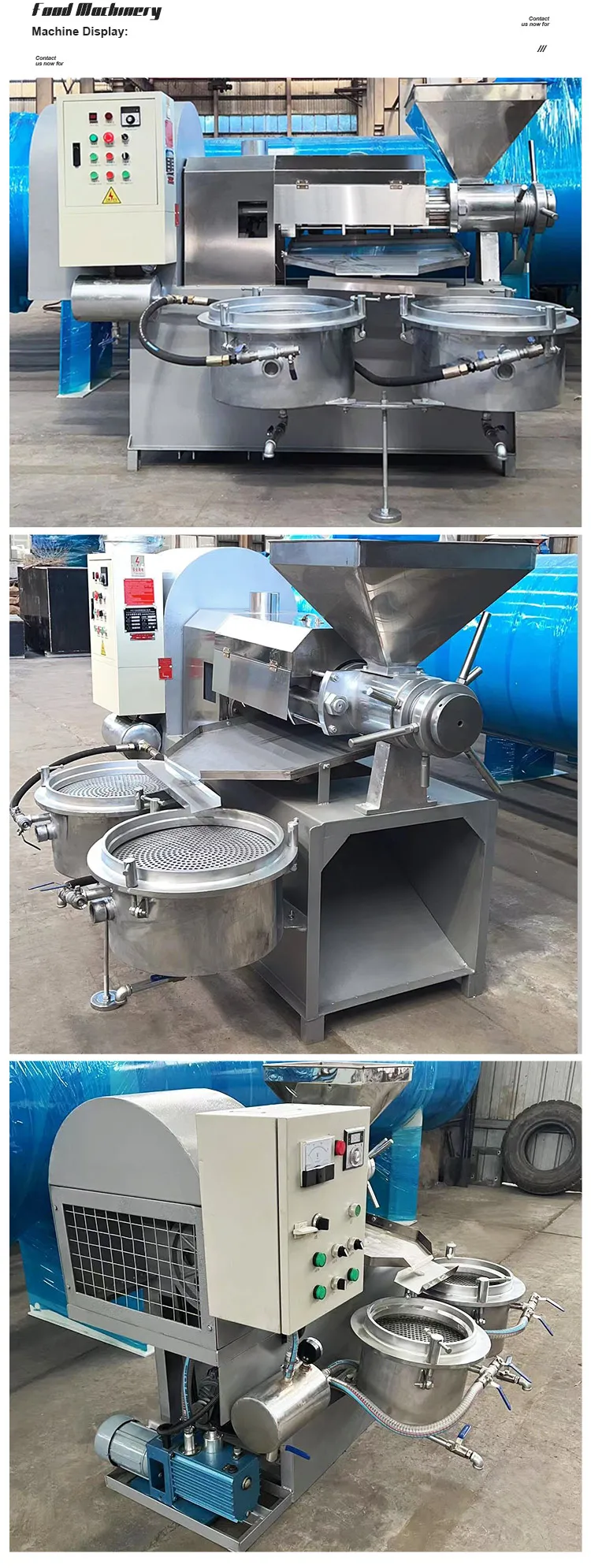

Machine Display

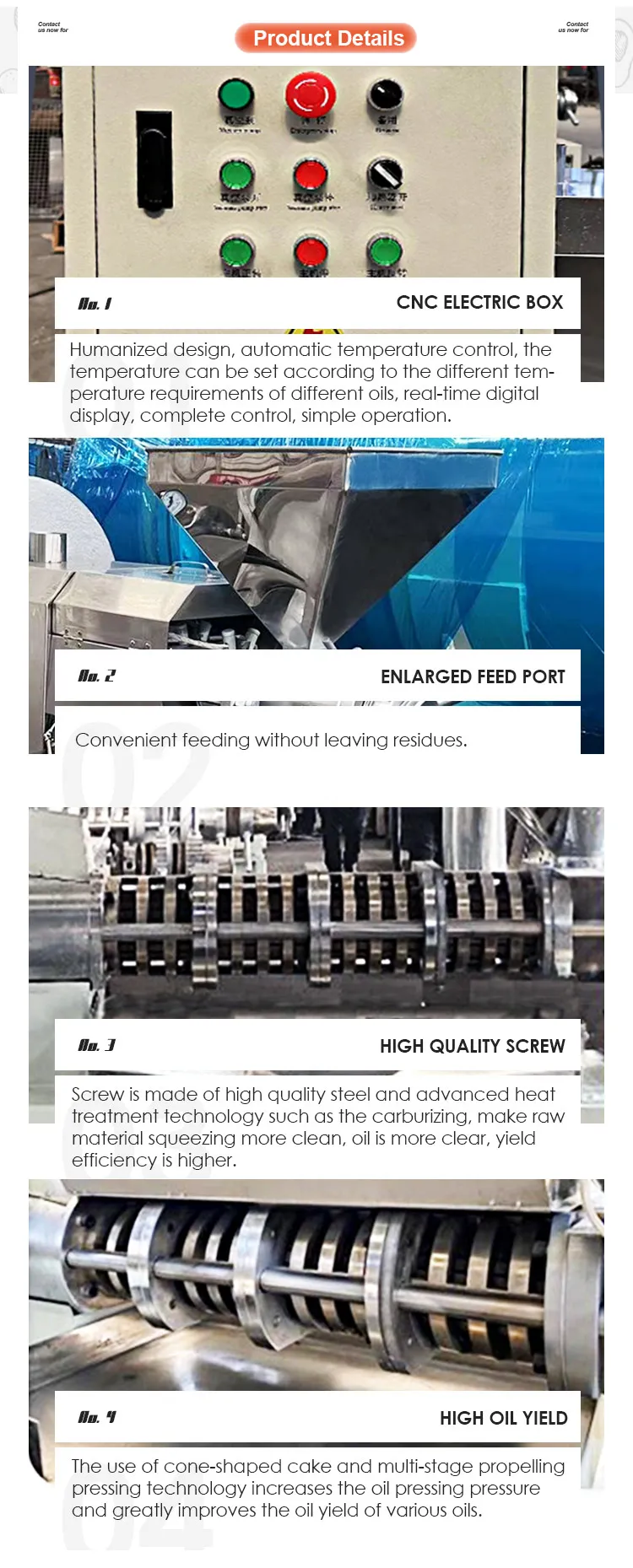

Screw is made of high quality steel and advanced heat treatment technology such as the carburizing, make raw material squeezing more clean, oil is more clear, yield efficiency is higher.
FAQ
Q1 :What's your company after-sales service?
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ？
A1: We will check three times before shipment to ensure that the machine itself has no problems.Offering the best quality machine&the best service to our customers is the mission of our enterprise.
Q2 :Any warranty ？
A2:One year warranty. Frankly speaking, the quality of our machines is very stable. The machine will be checked three times before leaving the factory to ensure that you can receive the machine in the best condition. If you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ？A3:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Differences from other brands in China ？A4:We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement.
We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q5 :Can I print my logo on the machine ?A5: Yes, sure. We can provide professional customized logo services for customers.
Q6 :How does your factory do regarding quality control?A6: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
